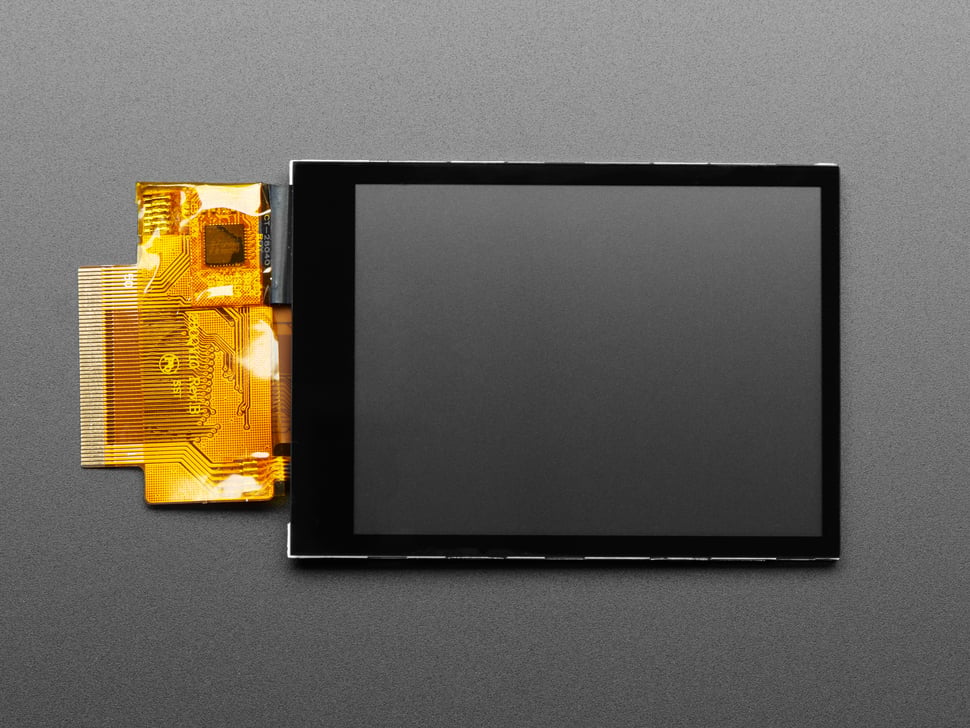

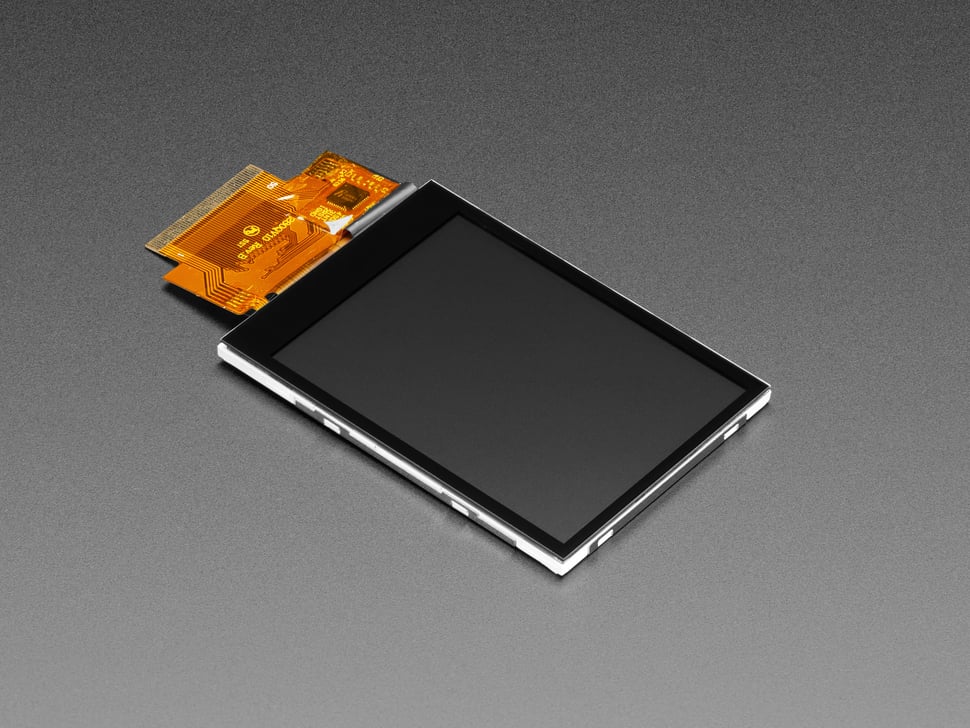

2.8" TFT Display - 240x320 with Capacitive Touchscreen

Add some jazz & pizzazz to your project with a color capacitive touchscreen LCD. This TFT display features a 2.8" diagonal size with a bright 4 white-LED backlight and high resolution of 240x320 pixels with individual RGB pixel control.

It comes equipped with a capacitive single-touch touchscreen (FT6236 touch chip) attached, allowing finger press detection anywhere on the screen. This display uses the ILI9341 chipset and communicates over SPI (4 or 3 wire), 8 bit parallel, or 16 bit parallel interfaces. Dot clock mode for raw TTL signal input is supported but without example code.

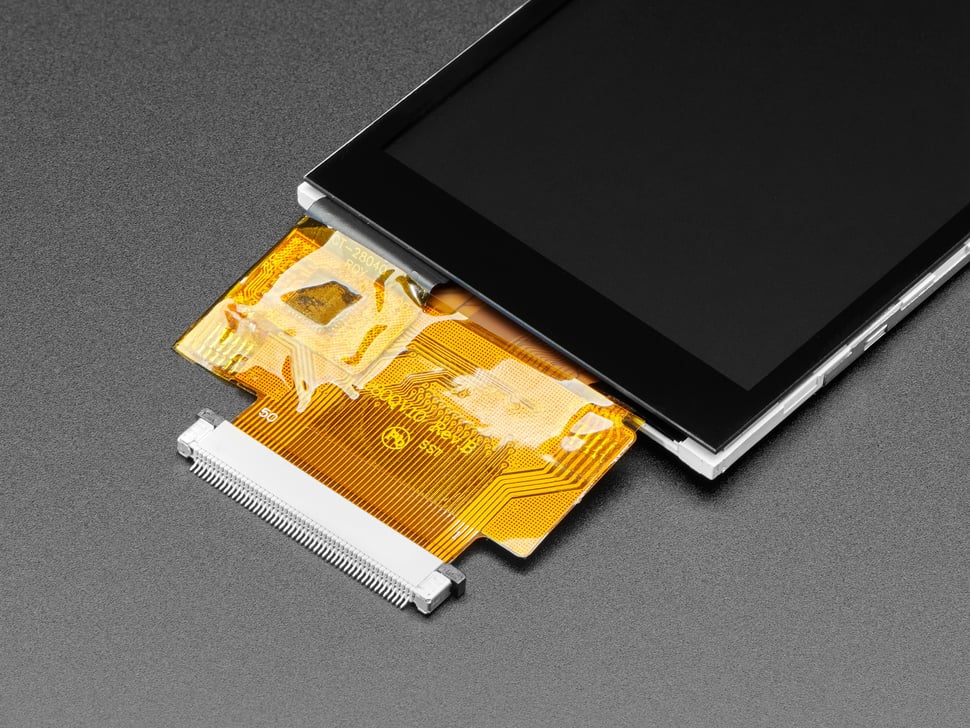

This is just the bare display module without any PCB included, ideal for advanced hackers wishing to integrate it into their own projects. A 50-pin, 0.5mm pitch, top-contact FPC connector is required (not included).

• 2.8" diagonal TFT display with 240x320 resolution
• Capacitive single-touch touchscreen (FT6236 touch chip) with I2C interface
• Bright 4 white-LED backlight
• Uses ILI9341 chipset
• Interfaces supported: SPI, 8/16 bit parallel, dot clock mode
• Bare display module only, no PCB included
• Requires 50-pin, 0.5mm pitch top-contact FPC connector (not included)

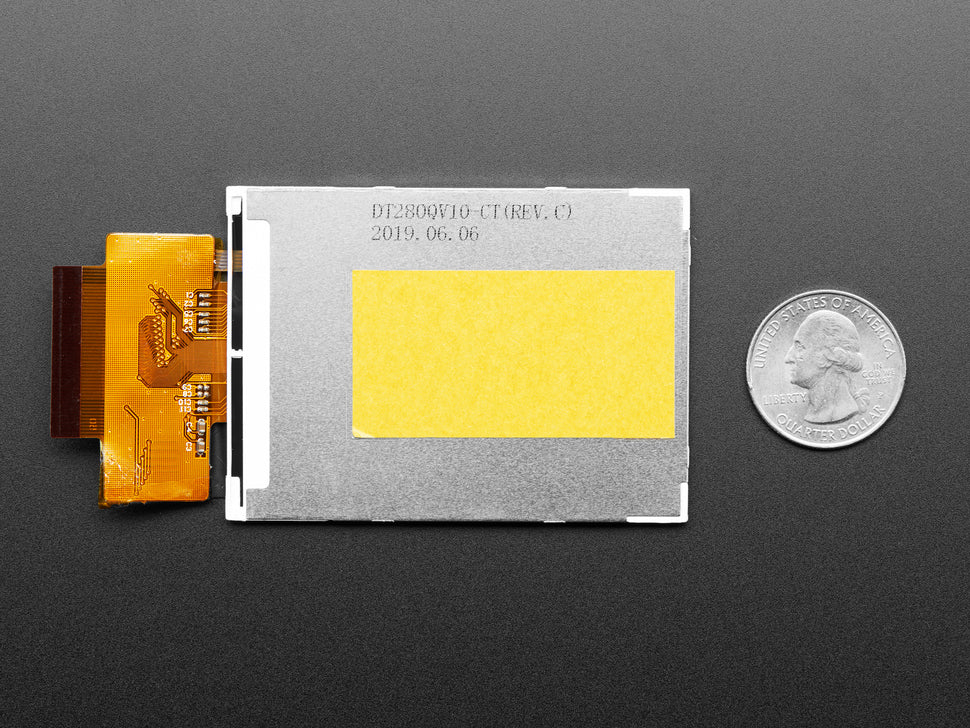

• Dimensions: 69.0mm x 50.0mm x 4.0mm

Note: For beginners, consider the breakout board version which simplifies usage and adds mounting holes and level shifting.
