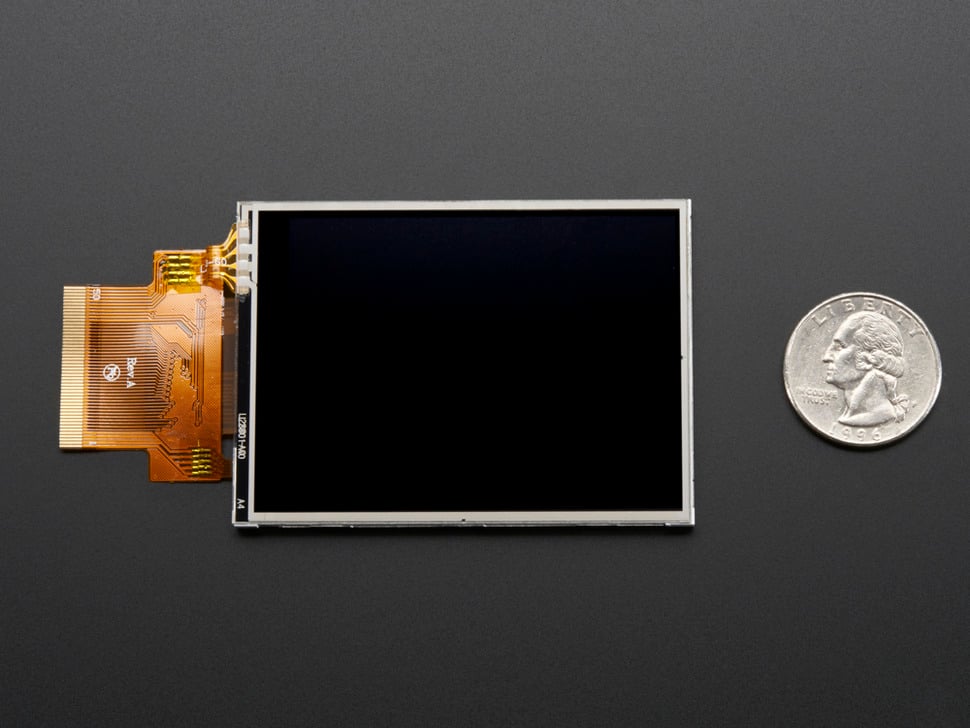

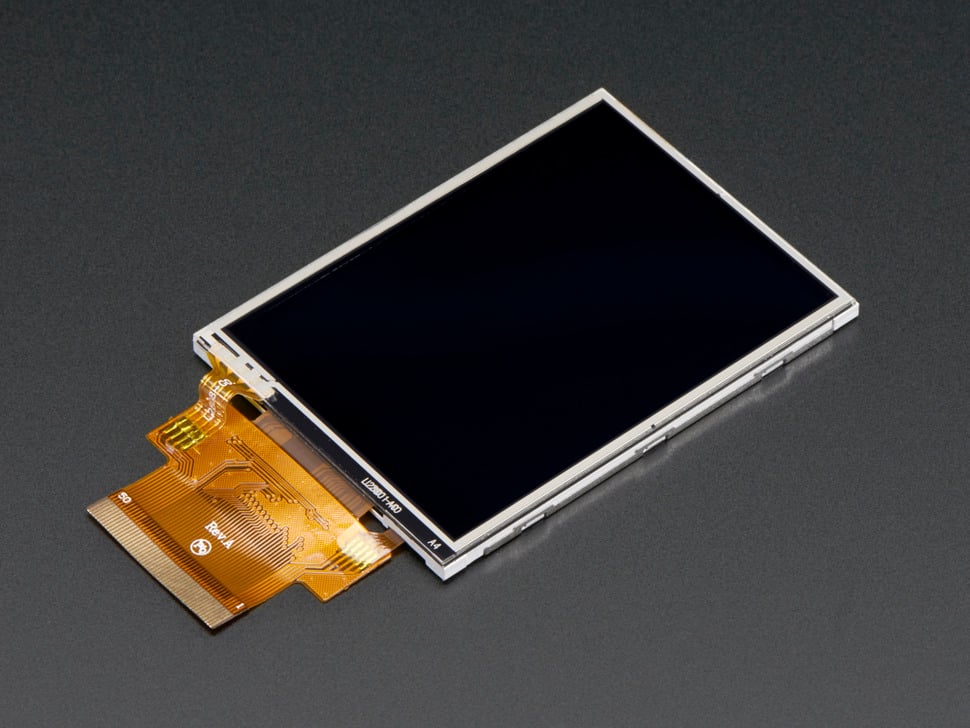

2.8" TFT Display with Resistive Touchscreen

This 2.8" TFT display with resistive touchscreen is designed for advanced hackers and developers who want the same high-quality screen used in the PiTFT, TFT shield v2, and 2.8" TFT breakout boards. The display features a 320x240 pixel resolution and is driven by the ILI9341 chipset.

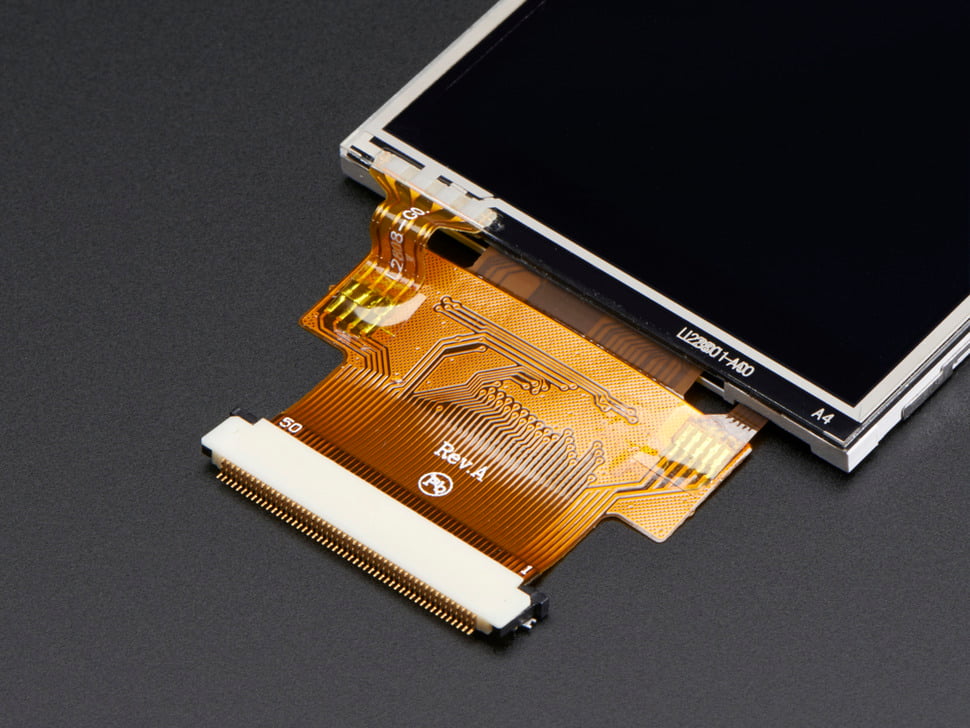

Note: This product is just the bare display module; no PCB or FPC connector is included. To use this display module, a 50-pin, 0.5mm pitch, top-contact FPC connector is required (sold separately). The display can be interfaced using SPI (3 or 4-wire), 8-bit parallel, or 16-bit parallel communication modes.

The resistive touchscreen requires either a microcontroller with analog inputs or a dedicated touchscreen controller (sold separately).

Features include:

• 320x240 pixel resolution
• Driven by ILI9341 controller with built-in video RAM buffer
• Supports SPI and parallel interfaces
• Resistive 'analog' touchscreen

Dimensions: 69mm x 50mm x 4mm (2.7" x 2" x 0.2"), weight 24g.

For easier use, consider our breakout board with mounting holes, level shifting, and integrated connectors.

Datasheets and libraries are available for this display, including the Adafruit ILI9341 SPI library.
