20W 4 Ohm Full Range Speaker - XS-GTF1027

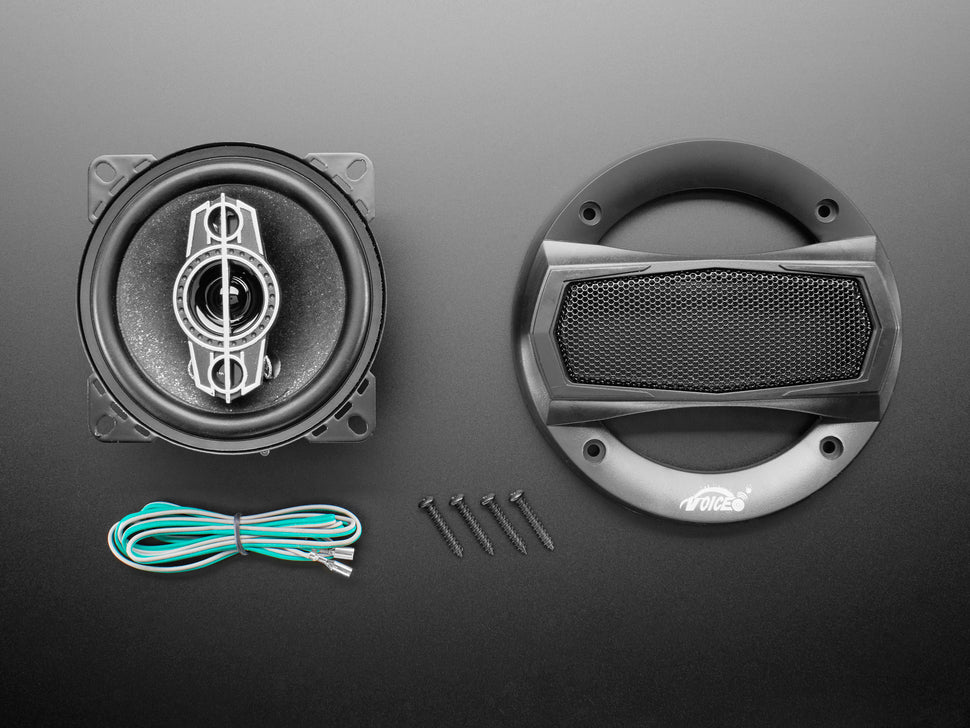

Listen up! This high power 4" diameter speaker will amp up any audio project where you need loud sound! It is 4 ohm impedance, rated for 20W continuous power. This speaker is really loud and features four handy mounting tabs 3 inches apart. The grill fits on top to protect the cones but is not necessary for use.

The speaker offers a wide frequency response range of 60Hz to 24kHz, which is excellent for a speaker this size. Originally designed for use in car doors, it is ideal for any project where you need to fill a room with sound. For example, using two of these speakers with a MAX9744 amplifier powered at 12V can easily fill 5,000 sq ft with sound. It is recommended to place the speaker into an enclosed cabinet for best results.

Key Features:

• Speaker diameter: 102 mm (4.0")
• Height: 53 mm (2.1")
• Mounting tab length: 14 mm (0.6")
• Distance between tabs: 77 mm (3")
• Weight: 249.4 grams
• Grill diameter: 136 mm (5.4")
• Grill height: 20 mm (0.8")
• Grill weight: 48.6 grams
• Peak power: 120W
• Rated power: 20W continuous
• Impedance: 4Ω
• Frequency response: 60Hz - 24kHz
• Speaker grill available with silver or black accent colors
• Note: Since June 1, 2023 revision no longer includes 4 metal brackets, dimensions and functionality remain the same
