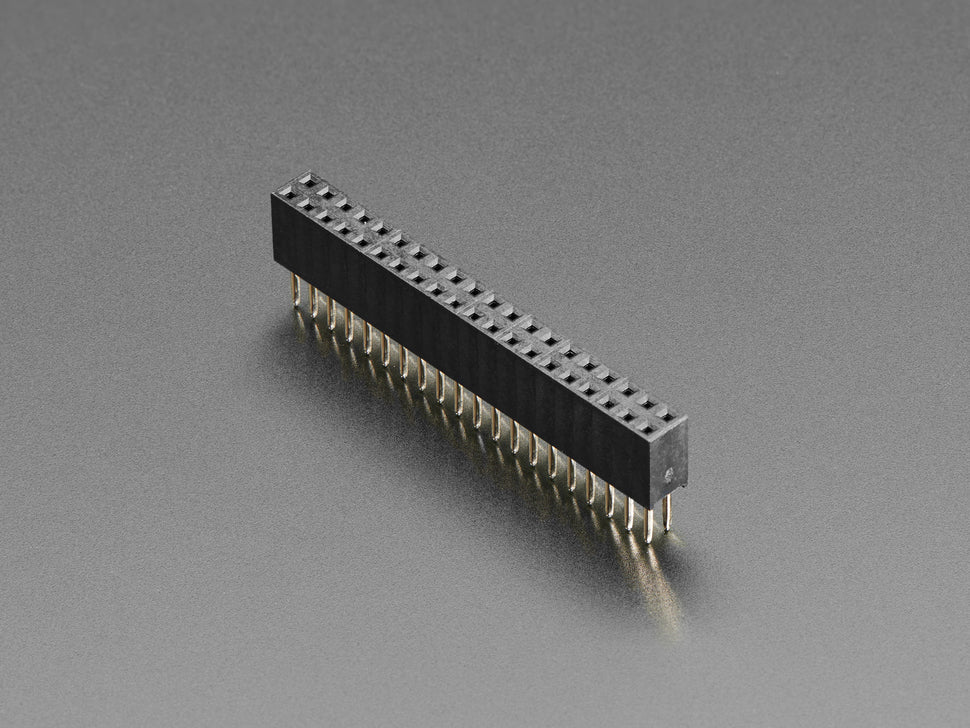

2x20 Socket Riser Header for Raspberry Pi HATs and Bonnets

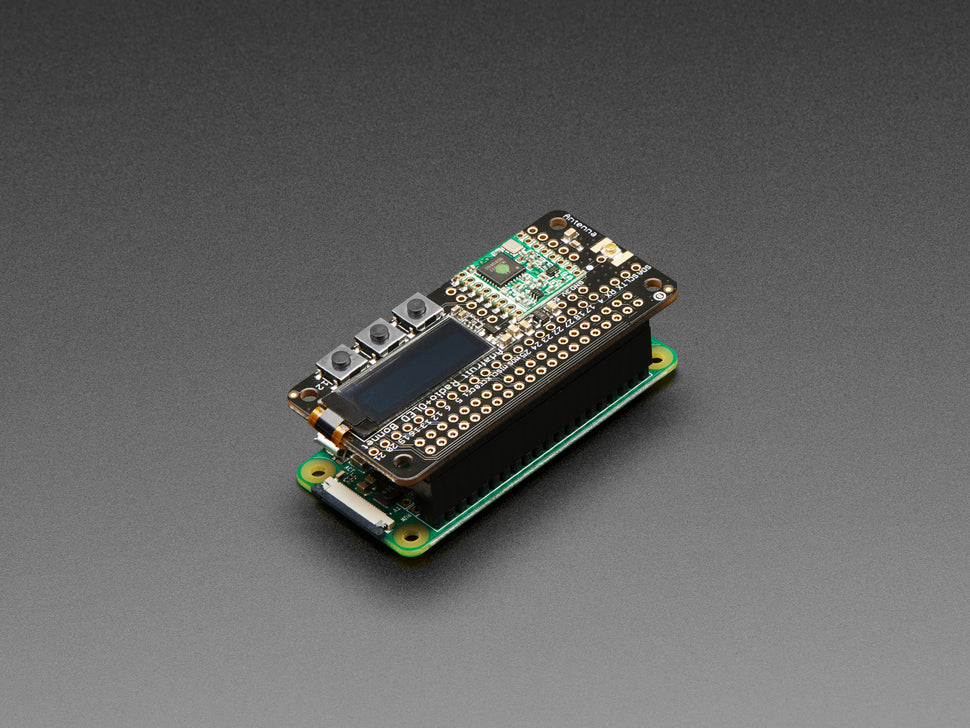

Give yourself a lift with this 2x20 female socket header featuring slightly longer than usual pins. It plugs into your Raspberry Pi GPIO port and allows a HAT, Bonnet, or Phat to be connected on top.

Especially useful for Bonnets with slim headers on the bottom that need to clear some components on the Pi or fit better in a case.

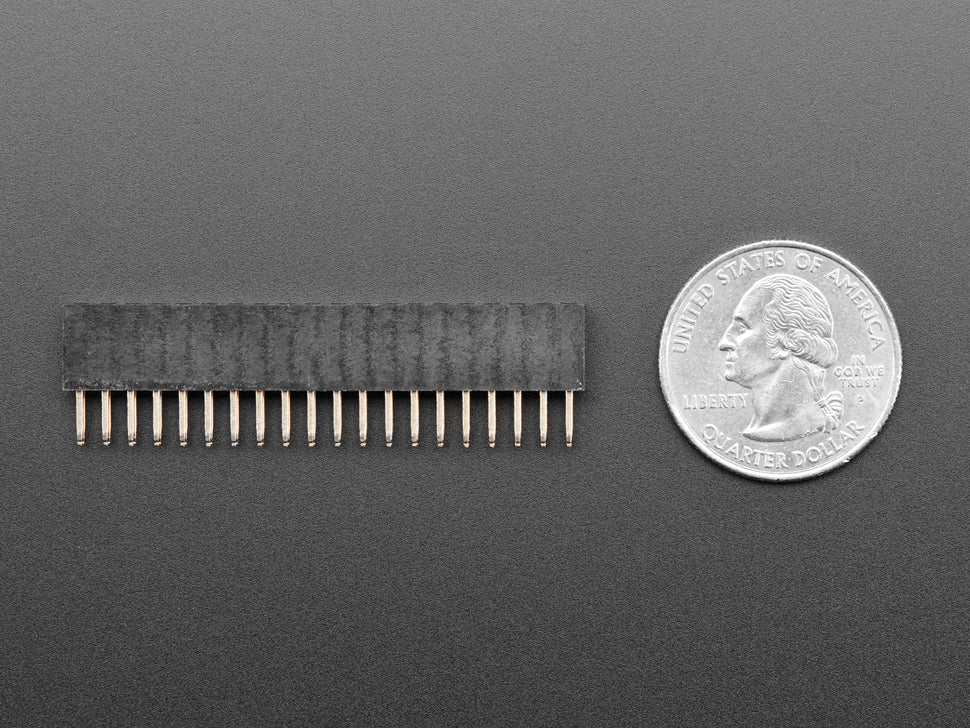

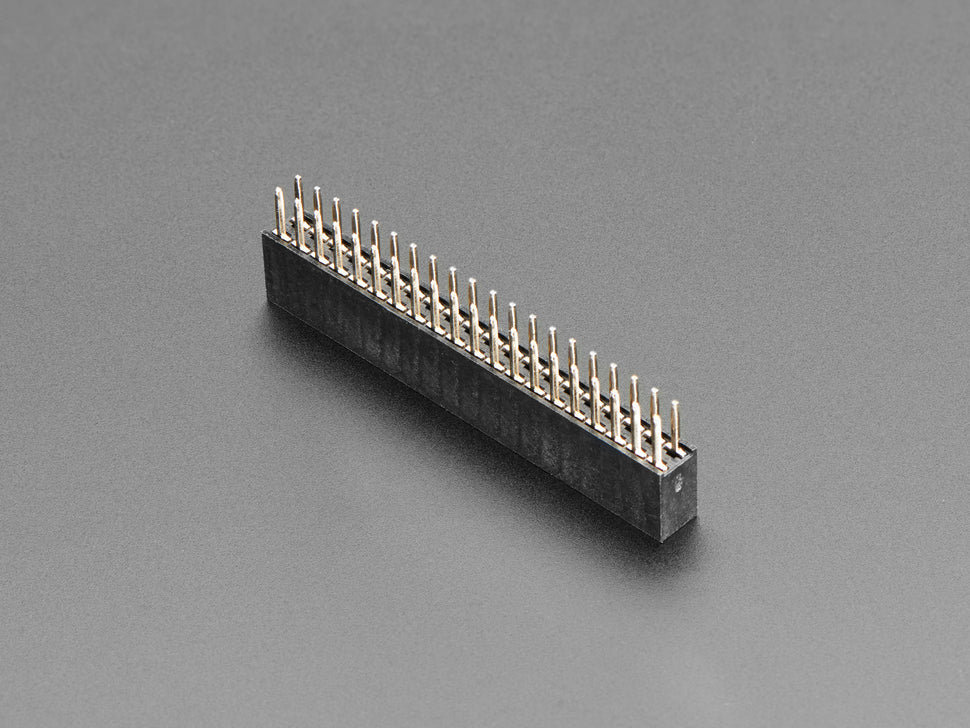

The header body is 8.5mm tall with 6mm pin length, ensuring a secure connection with male pin-type socket headers.

You will receive one header per order.

Technical Details:

• Pin Length: 6mm
• Pin Spacing: 2.5mm / 0.1"
• Pin Thickness: 0.6mm / 0.02"
• Product Dimensions: 51.5mm x 14.0mm x 5.0mm (2.0" x 0.6" x 0.2")
• Product Weight: 4.1g / 0.1oz
