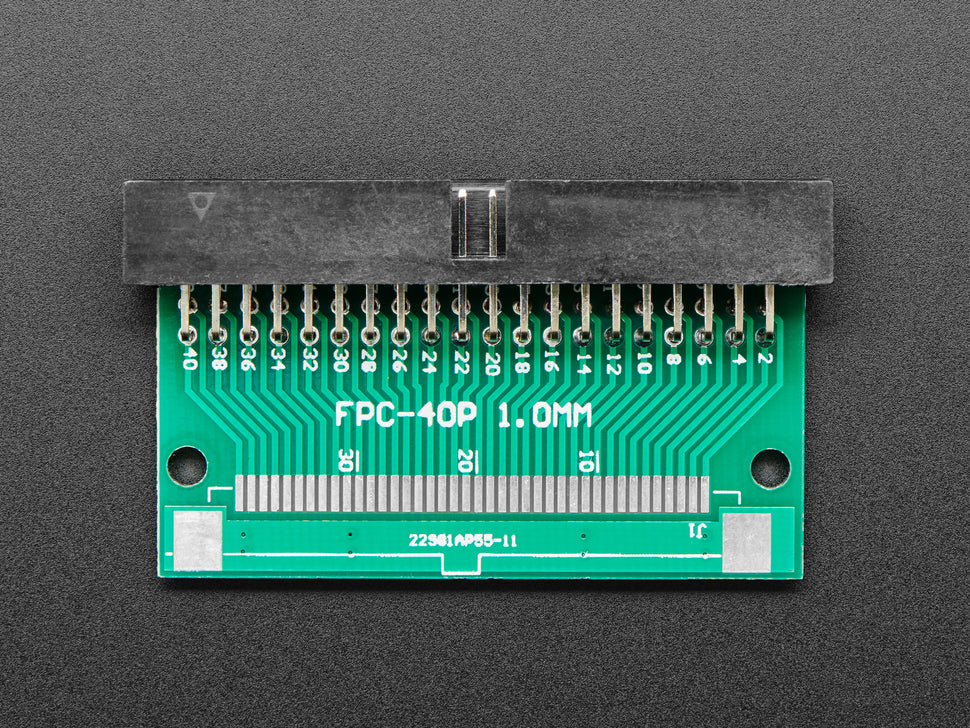

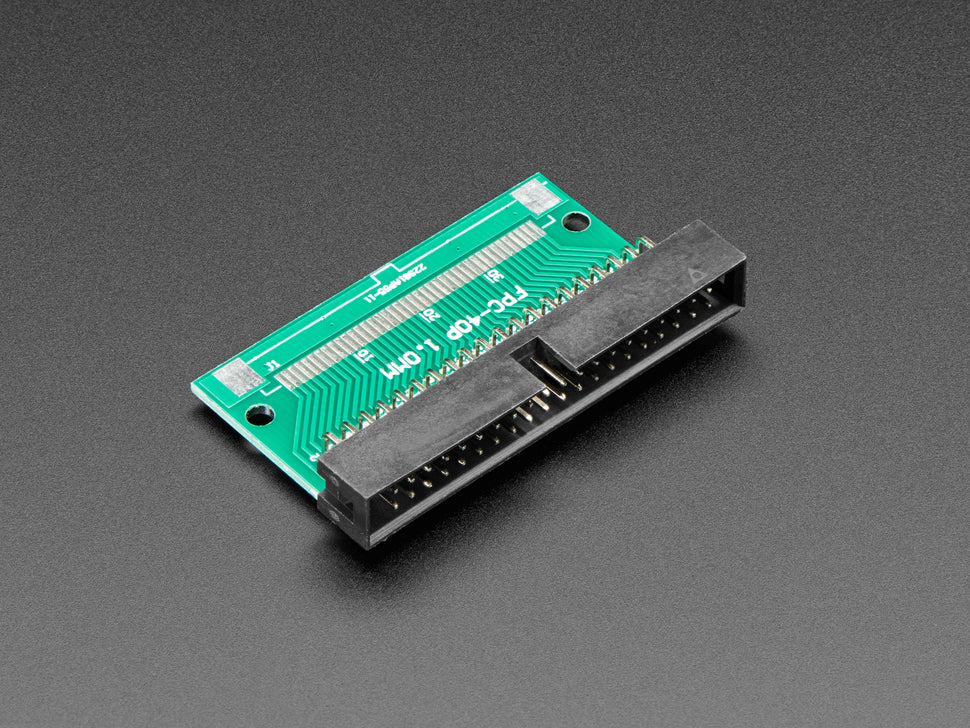

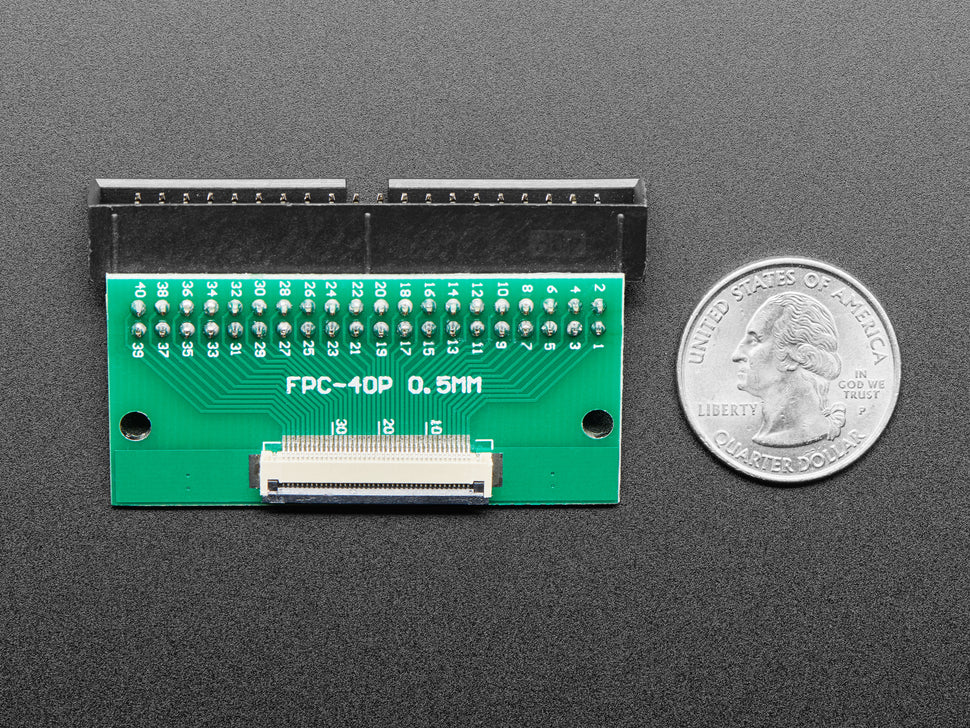

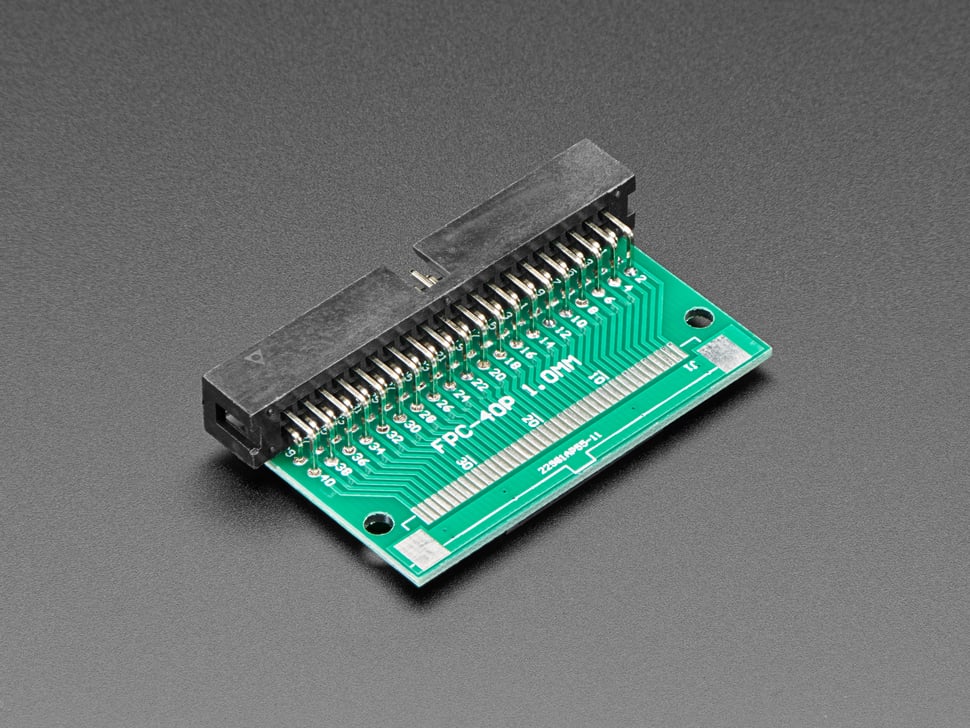

40-pin FPC to Right Angle 2x20 IDC Male Plug Header Adapter

Here is an easy solution for extending your Raspberry Pi's GPIO capabilities. This 40-pin FPC to Right Angle 2x20 IDC Male Plug Header Adapter acts as an extender for all 40 pins, providing additional reach for your GPIO connections.

Simply plug the socket side into the Raspberry Pi. Keeping an eye on the location of Pin 1, insert your FPC ribbon cable into the 40-pin flex connector. Compatible with any 40-pin wide, 0.5mm pitch, 0.3mm thick connector FPC with 'A-B' connections.

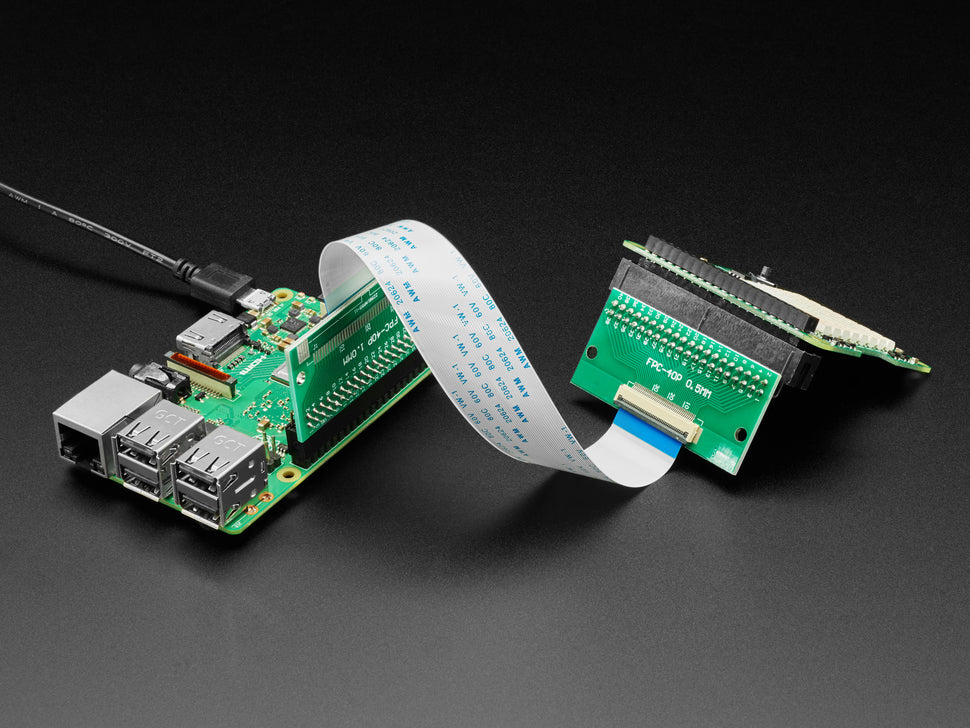

You can extend the FPC ribbon cable further by using a 40-pin extender. Additionally, a matching adapter board can be used to connect your HAT or bonnet on the other end.

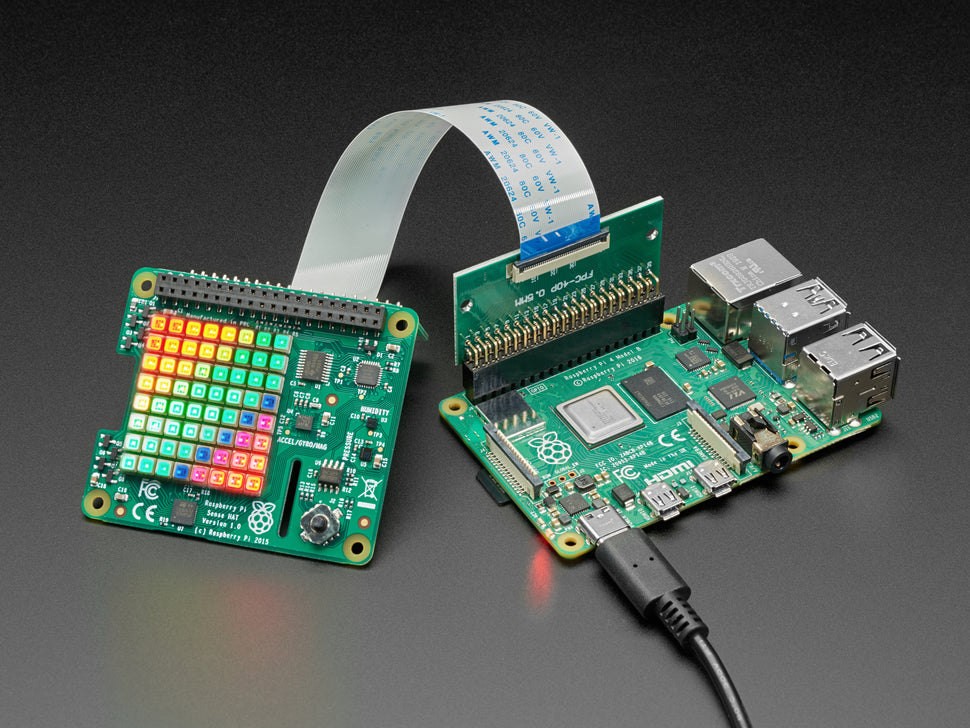

Note: Some HATs, such as the Sense HAT or Bonnets with slim connectors on the bottom, might benefit from adding a socket 'riser' to provide additional connector body for better grip of the cable.

• Extends all 40 pins of the Raspberry Pi GPIO
• Right angle 2x20 IDC male plug header
• Compatible with 40-pin, 0.5mm pitch FPC cables
• Useful with Raspberry Pi HATs and Bonnets
