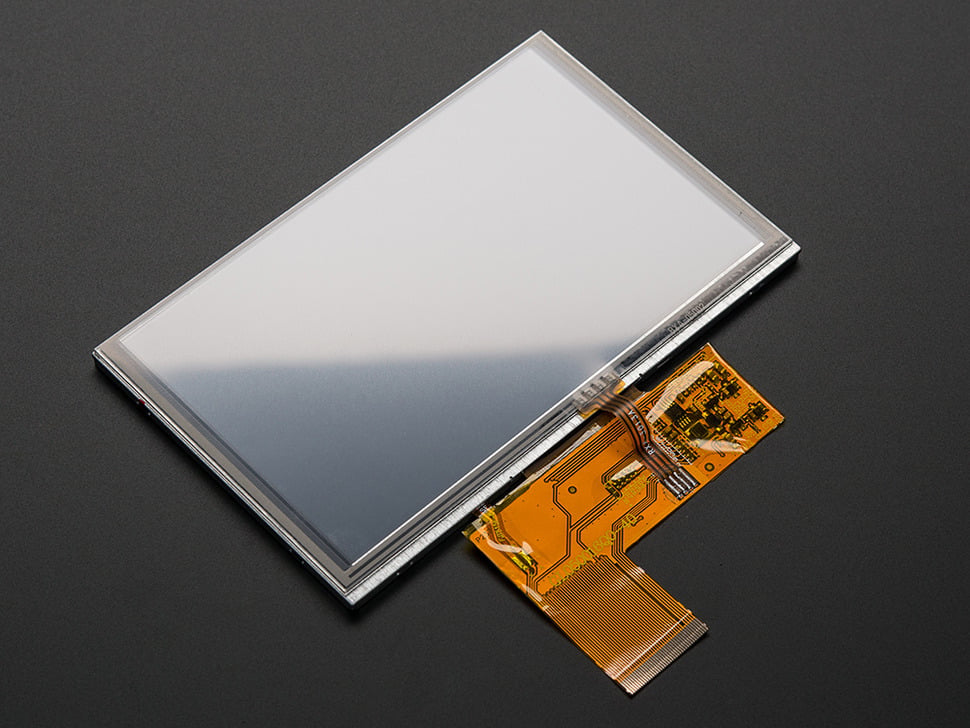

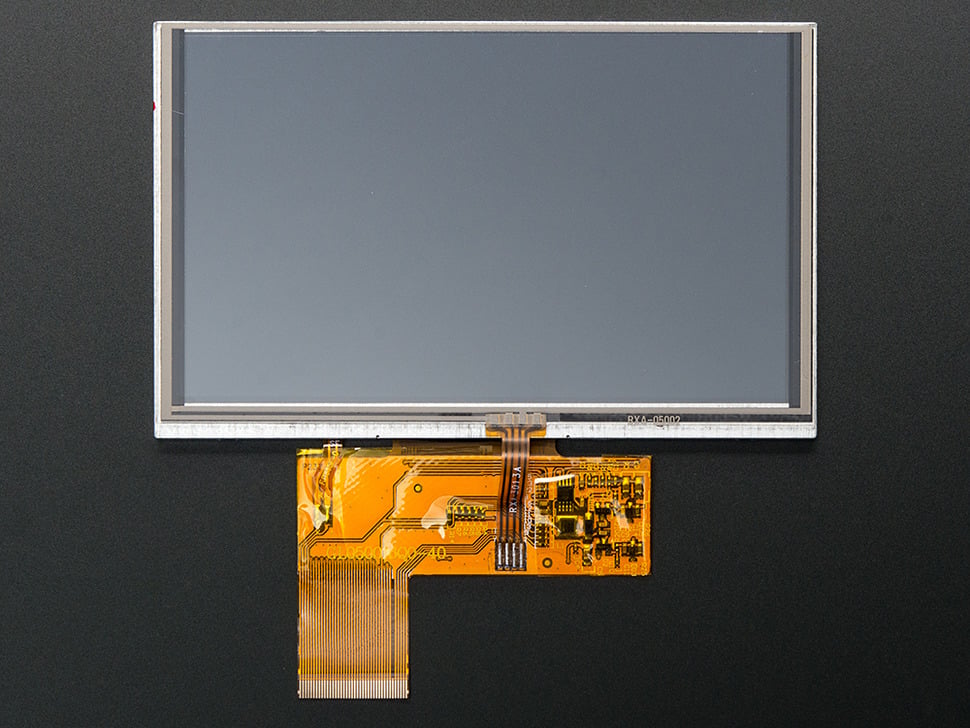

5.0" 40-pin TFT Display - 800x480 with Resistive Touchscreen

This 5.0" TFT display features an 800x480 pixel resolution, LED backlight, and a 4-wire resistive touchscreen overlay, ideal for graphics-intensive applications and user interfaces. It's commonly used in miniature TVs, GPS devices, handheld games, and car displays. The 40-pin connector offers 24-bit color capability with 8 red, 8 green, and 8 blue parallel pins.

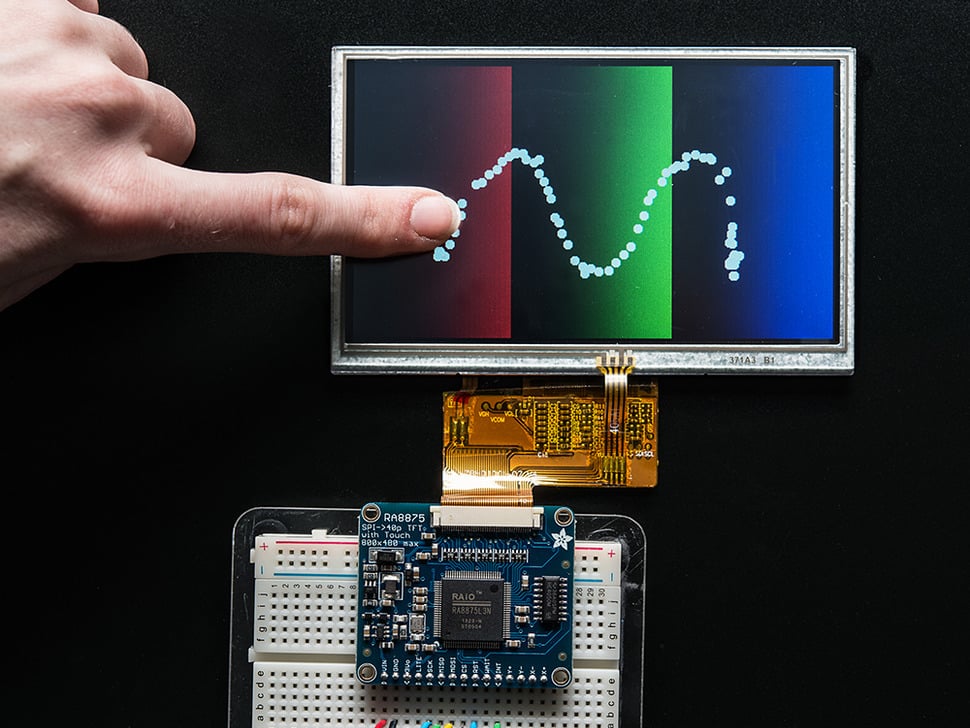

The display is a raw pixel-dot-clock type that requires constant refreshing at 60Hz and is best paired with the Adafruit RA8875 driver board for easy interfacing with microcontrollers.

Features:

• 5.0" TFT screen with 800x480 resolution
• LED backlight
• 4-wire resistive touchscreen
• 40-pin connector with 24-bit color support
• Requires constant refreshing display controller
• Compatible with Adafruit RA8875 driver board

Technical Details:

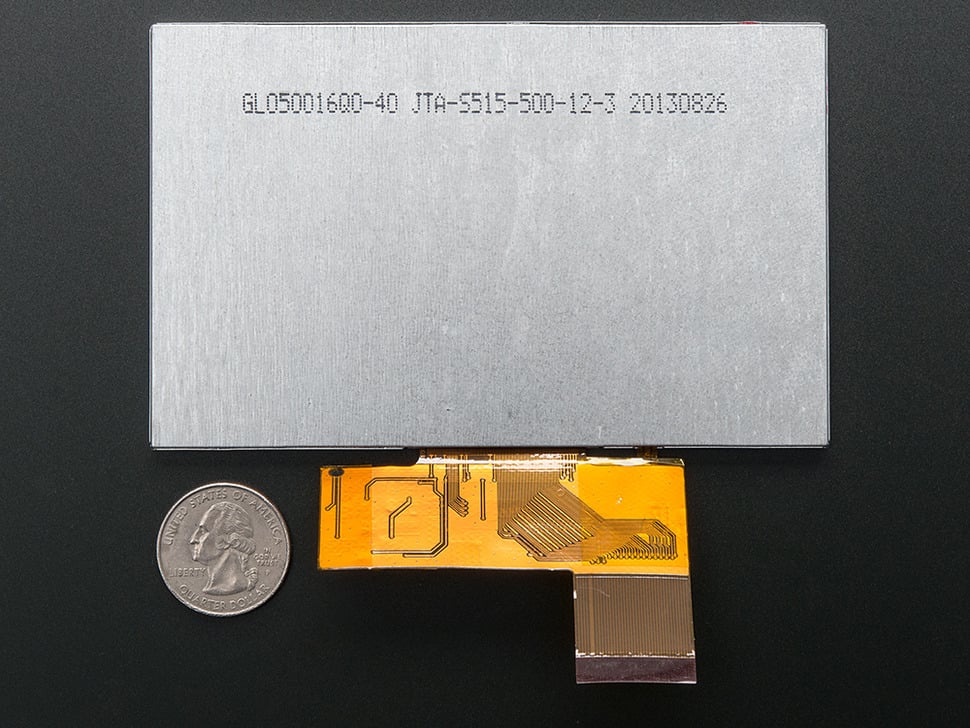

• Dimensions: 121mm x 76mm x 4.2mm
