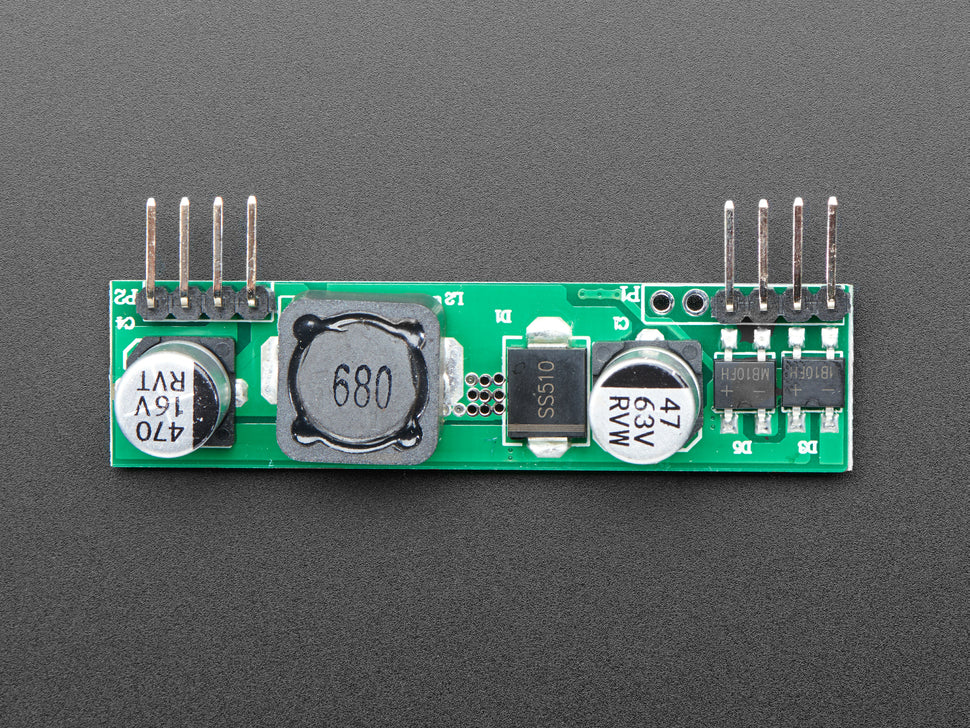

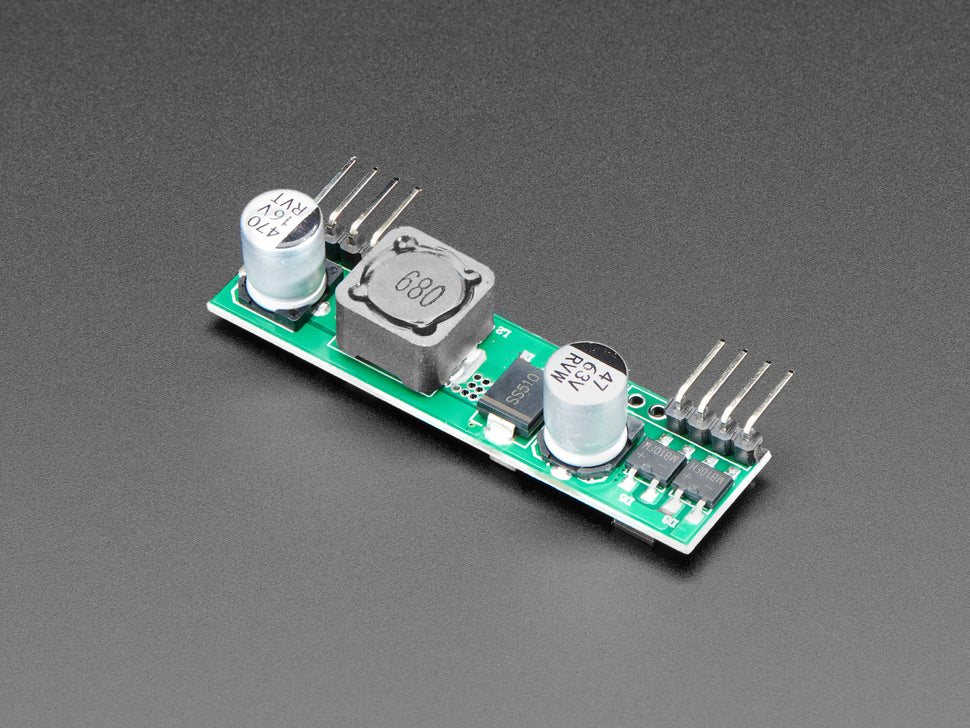

5V 1.5A Output PoE Module for Raspberry Pi 3 B+ or Pi 4

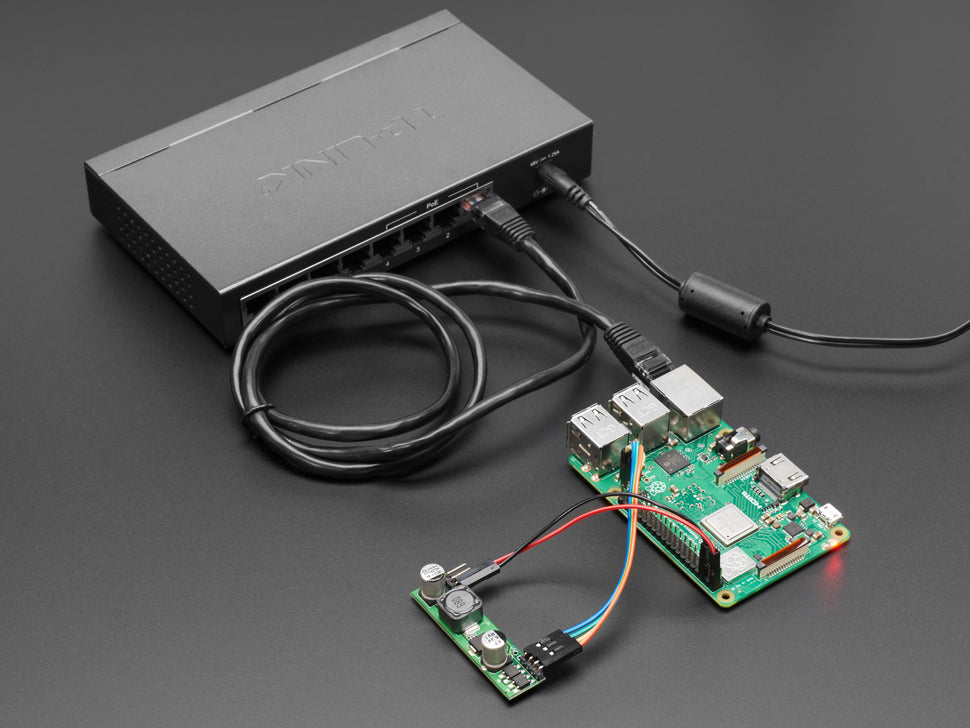

Power over Ethernet (PoE) simplifies project wiring by allowing both data and power to be delivered through a single Ethernet cable. This 5V 1.5A Output PoE Module is designed for use with Raspberry Pi 3 Model B+ and Pi 4, utilizing the Ethernet center-tap pins to provide regulated 5V power at 1.5 amps.

Connecting is straightforward with four input wires linked to Ethernet cables and output pins delivering 5V power and ground. Recommended for projects requiring up to 1.5A current, it accommodates typical Raspberry Pi usage without heavy accessories.

• Compatible with Raspberry Pi 3 B+ and Pi 4 PoE headers
• Provides regulated 5V output at 1.5A
• Easy connection with female-female jumper wires

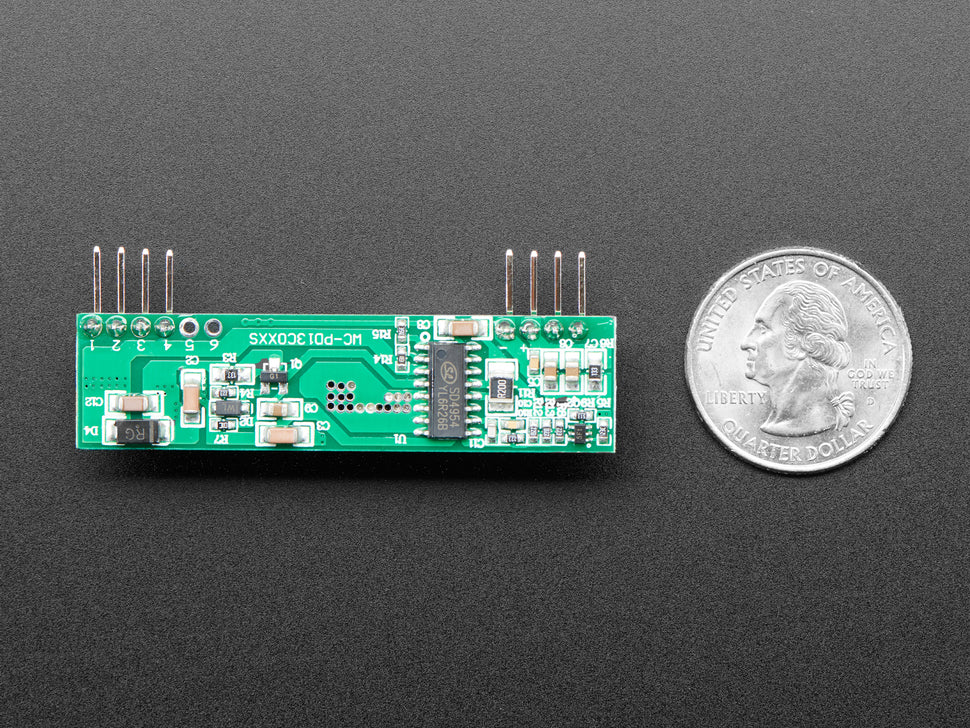

• Compact dimensions: 56.4mm x 20.3mm x 13.2mm
• Lightweight at 9 grams

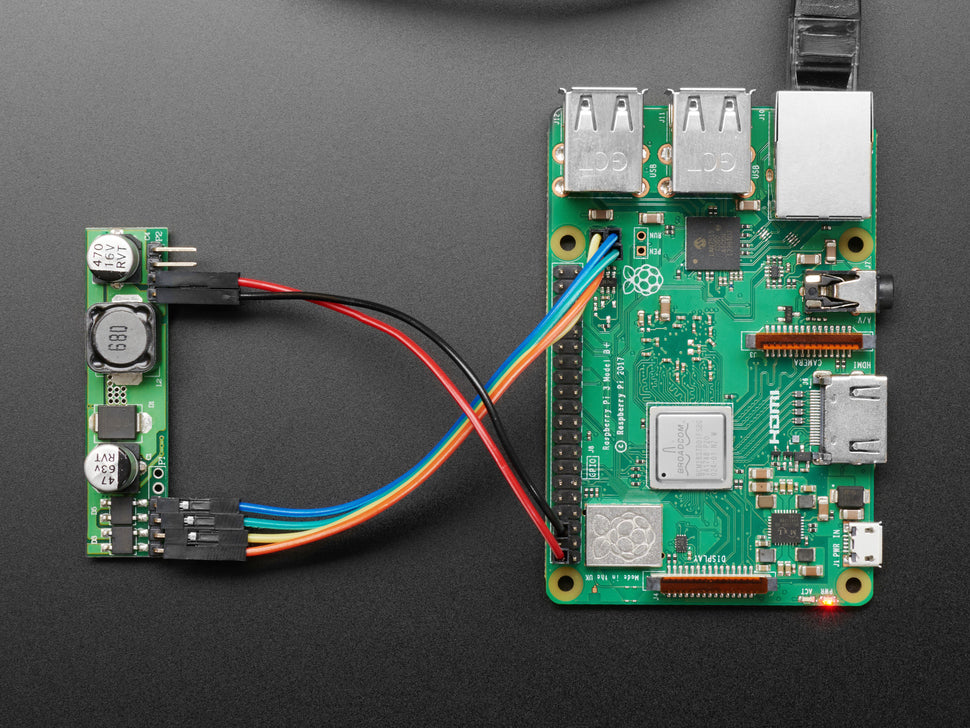

How to Use:

1. Connect pins 1 and 2 to Ethernet wires 4 and 5
2. Connect pins 3 and 4 to Ethernet wires 7 and 8
3. Connect pin labeled (-) to ground output
4. Connect pin labeled (+) to 5V output

For devices without PoE headers, consider Adafruit's 5V microUSB PoE Splitter for easier use. An isolated version of this module is also available for projects requiring electrical separation.
