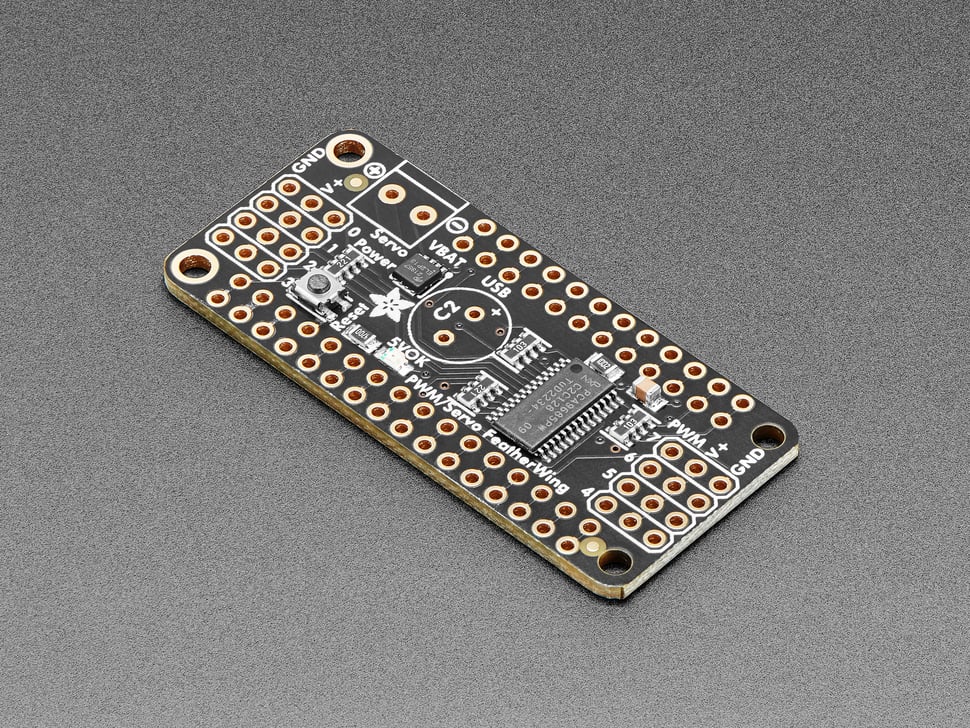

8-Channel PWM or Servo FeatherWing Add-on For All Feather Boards

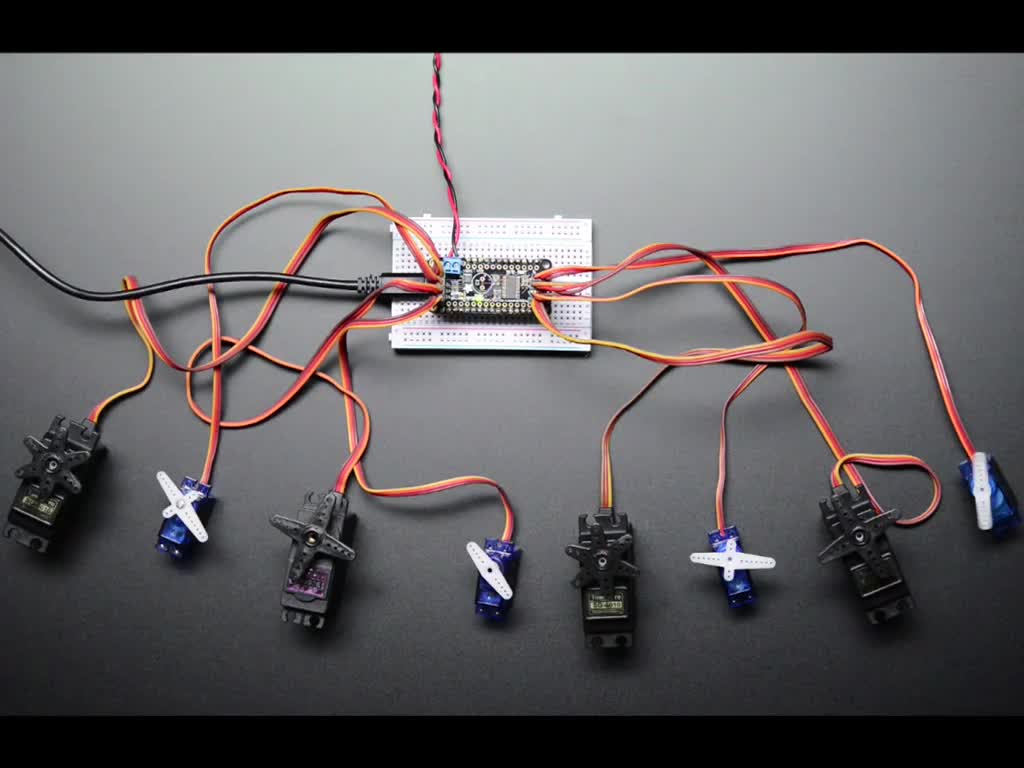

The 8-Channel PWM or Servo FeatherWing is an add-on board that adds 8 channels of 12-bit PWM outputs to any Feather board via I2C. Perfect for controlling servos, LEDs, or other PWM-controlled devices, it enables layered and expandable hardware setups with support for stacking up to 62 wings on a single I2C bus.

Key features include a built-in clock for free-running PWM operation, 5V compliance for controlling output voltage up to 6V safely from a 3.3V Feather board, adjustable PWM frequency up to approximately 1.6 KHz, and 12-bit resolution providing precise control suitable for servo motors. The board includes address select pins for stacking and customizable output configurations for push-pull or open-drain operation.

The FeatherWing is designed with practical extras such as a terminal block for power input with reverse polarity protection, a green power-good LED, 220 ohm series resistors on each output line for LED protection, and a place for a large capacitor to stabilize power. Assembly requires light soldering to install headers and customize the board for your application.

• I2C controlled PWM driver with built-in clock
• 8 x 12-bit PWM outputs
• 5V compliant with 3.3V Feather control
• Up to 62 devices stackable via I2C with unique addresses
• Adjustable PWM frequency up to ~1.6 KHz
• Configurable push-pull or open-drain outputs
• Terminal block for power input with reverse polarity protection
• Green power-good indicator LED
• 220 ohm series resistors on outputs

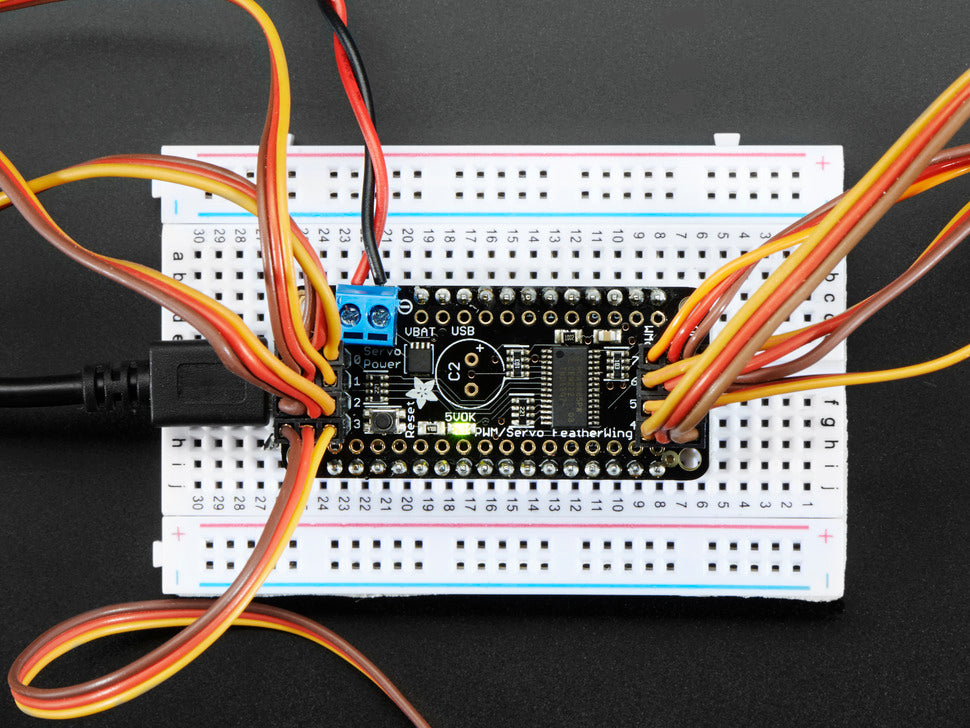

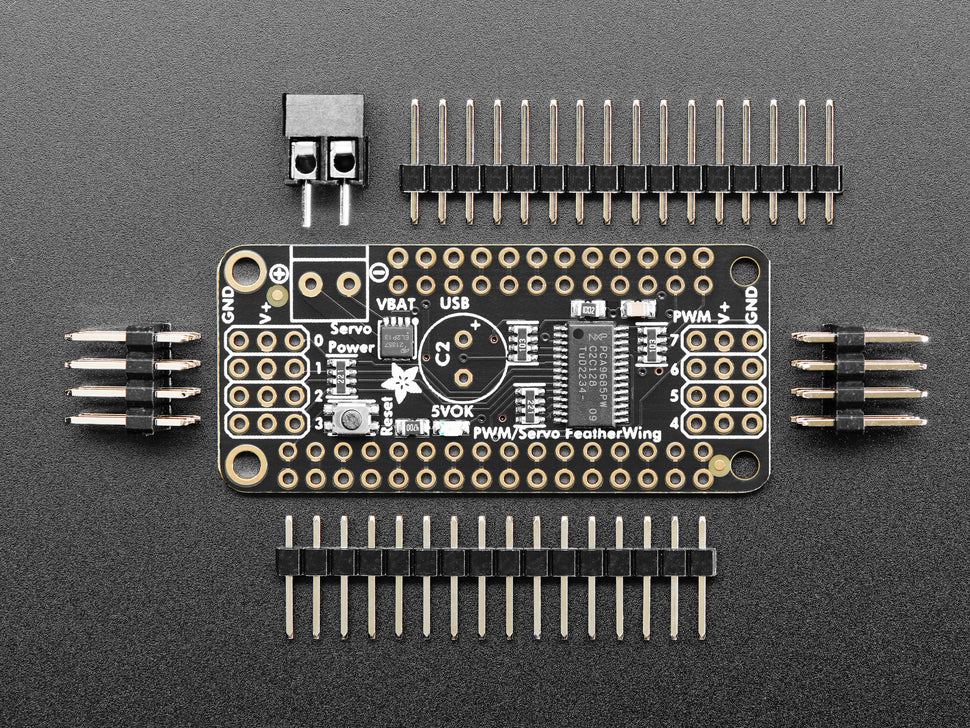

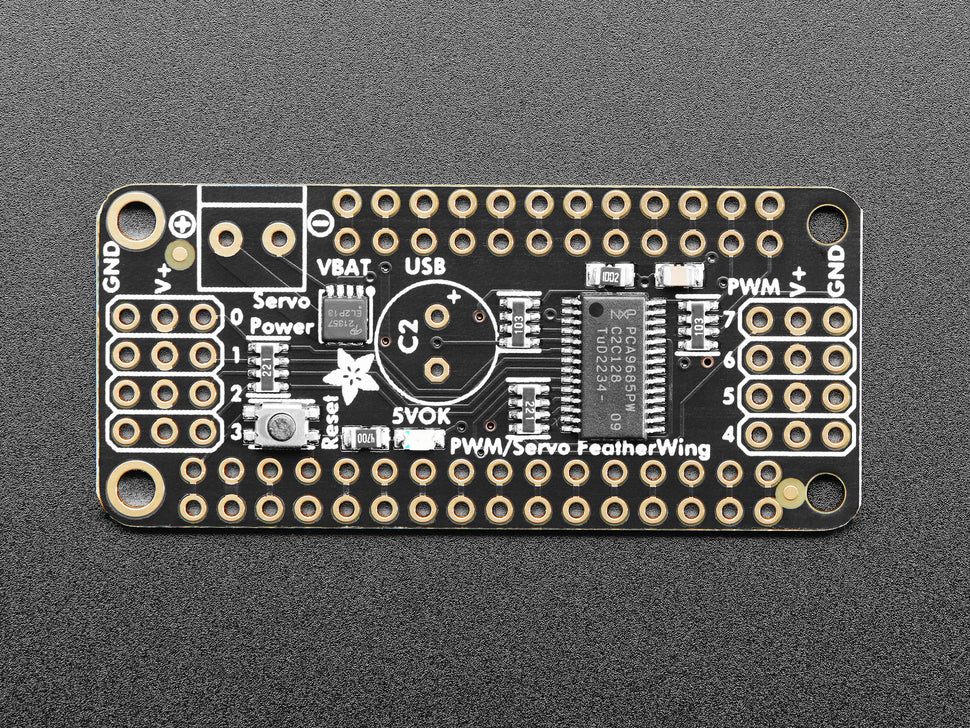

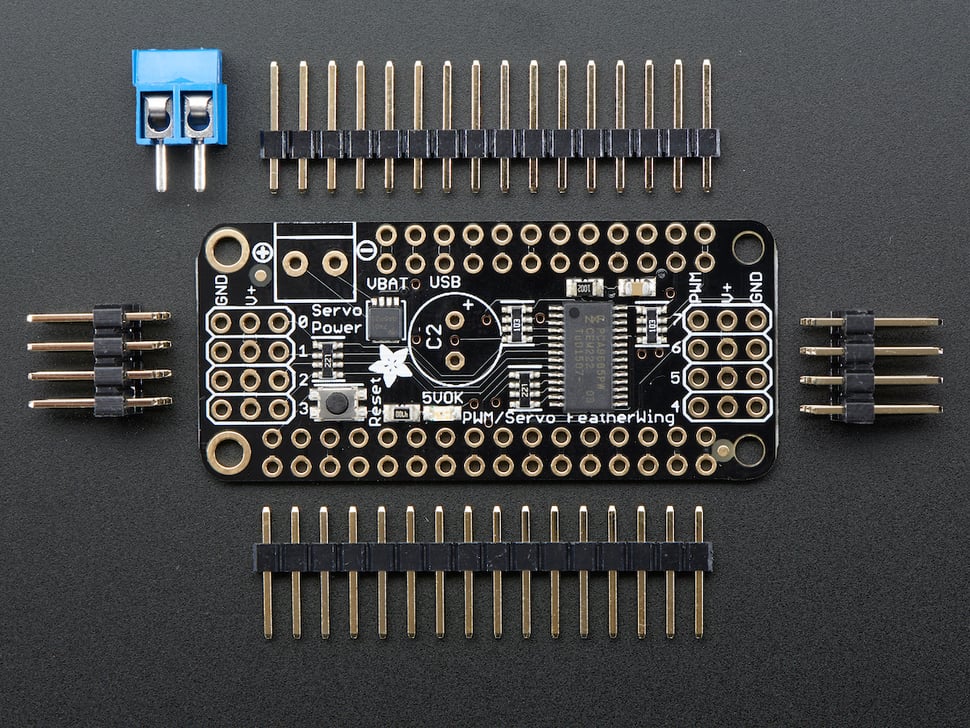

• Includes 2 pieces of 3x4 male straight headers, 2-pin terminal block, and 0.1" header strip
• Dimensions: 50.8mm x 22.9mm x 1.6mm
• Weight: 3.9g

Note: Servos and Feather boards are not included. Some headers require soldering to assemble.

For detailed assembly and usage instructions, visit the Adafruit 8-Channel PWM or Servo FeatherWing tutorial.
