8 MHz Ceramic Resonator / Oscillator

Keep your microcontroller tickin' with a breadboard-friendly 8 MHz Ceramic Resonator / Oscillator featuring 0.1" pin spacing and 0.5% accuracy, ideal for everyday electronics and microcontroller applications such as UART or baud-rate generation.

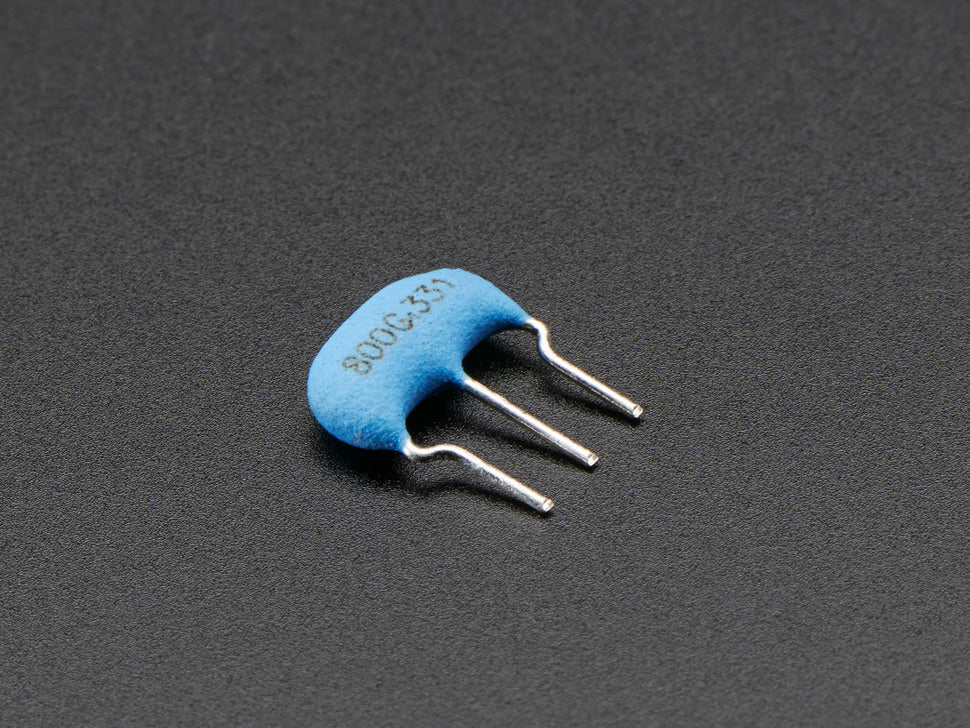

This three-pin resonator has two outer pins for XTAL-in and XTAL-out connections, and the inner pin connects to ground. The symmetric package allows flexibility in pin usage. It is not suited for ultra-high precision needs such as USB timing, long-term time-keeping, or RF/PLL/VCO driving, where a crystal or temperature-compensated oscillator may be required.

• Pin spacing: 0.1" (2.54mm), breadboard compatible
• Accuracy: ±0.5%

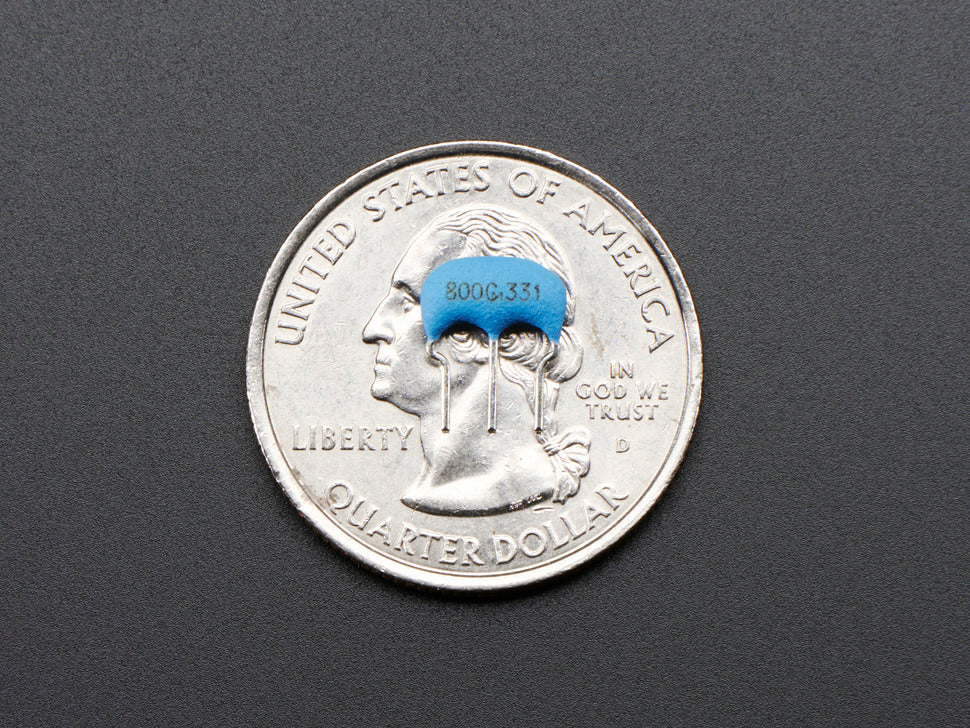

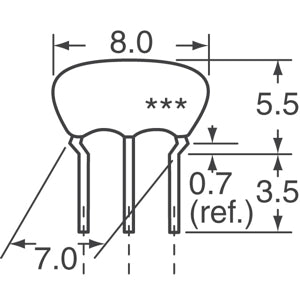

• Total Dimensions: 8mm x 9mm x 2mm (0.3" x 0.4" x 0.08")
• Pin Length: 4.3mm (0.17")
• Three-pin design: two for crystal connections, one for ground
• RoHS 2 compliant

Refer to the datasheet for detailed specifications.
