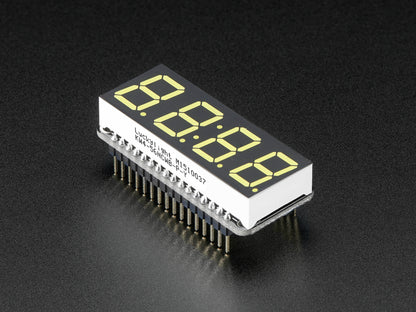

Adafruit 0.56" 4-Digit 7-Segment Display w/ FeatherWing - White

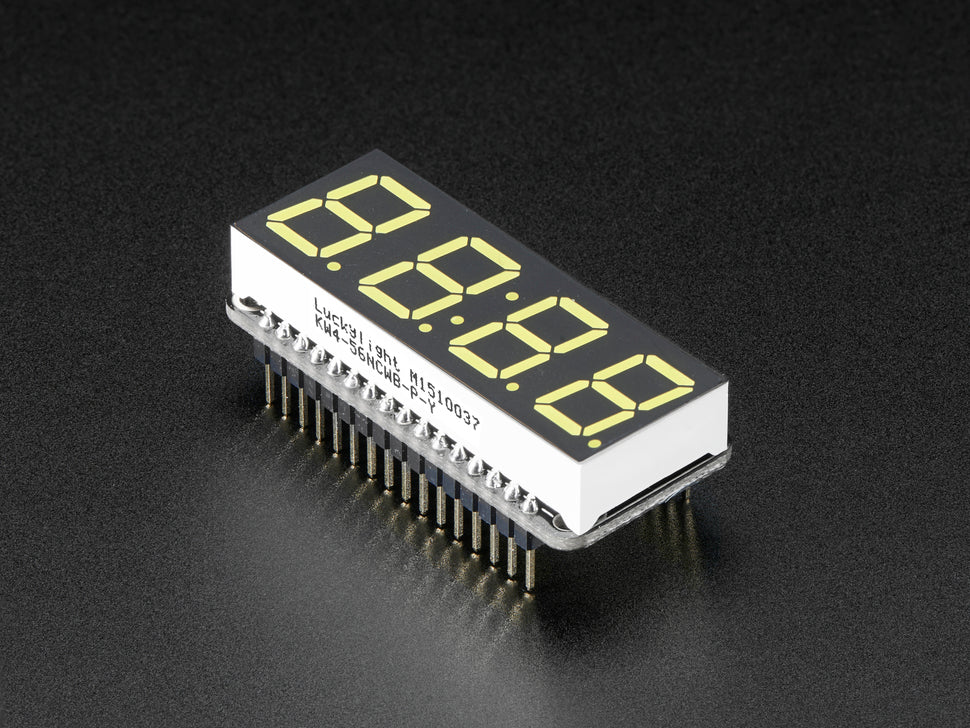

The White Adafruit 0.56" 4-Digit 7-Segment Display w/ FeatherWing Combo Pack offers an easy way to add a 4-digit numeric display with decimal points and colon dots to your Feather projects.

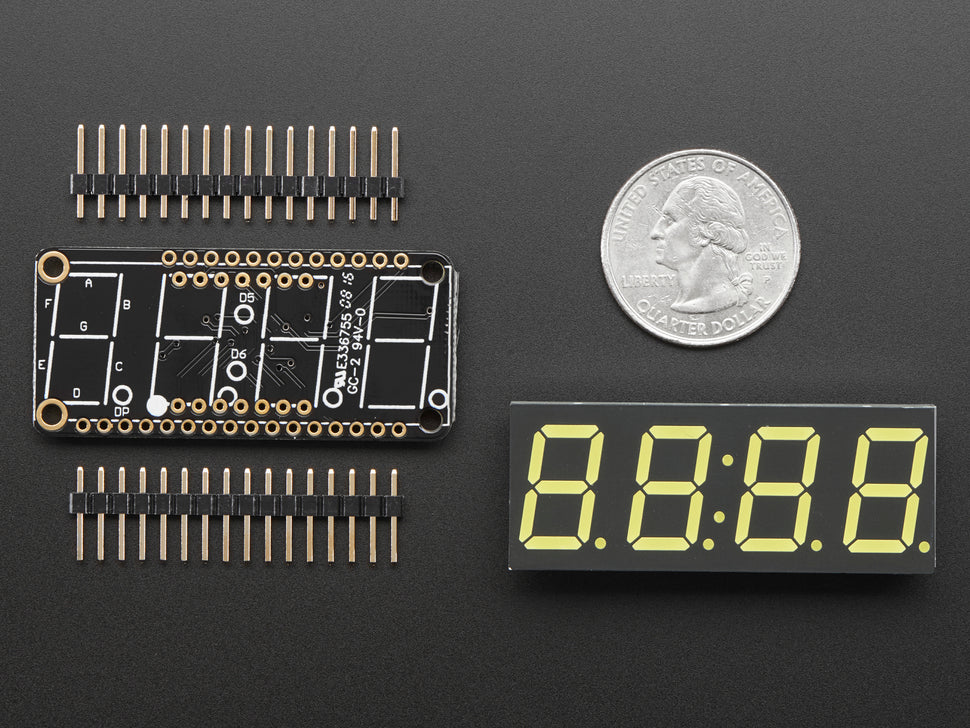

This combo pack includes a fully tested and assembled Adafruit 4-Digit 7-Segment LED Matrix Display FeatherWing, an ultra-bright 0.56" tall white seven-segment display, and two 16-pin headers. Assembly requires a short, straightforward soldering process.

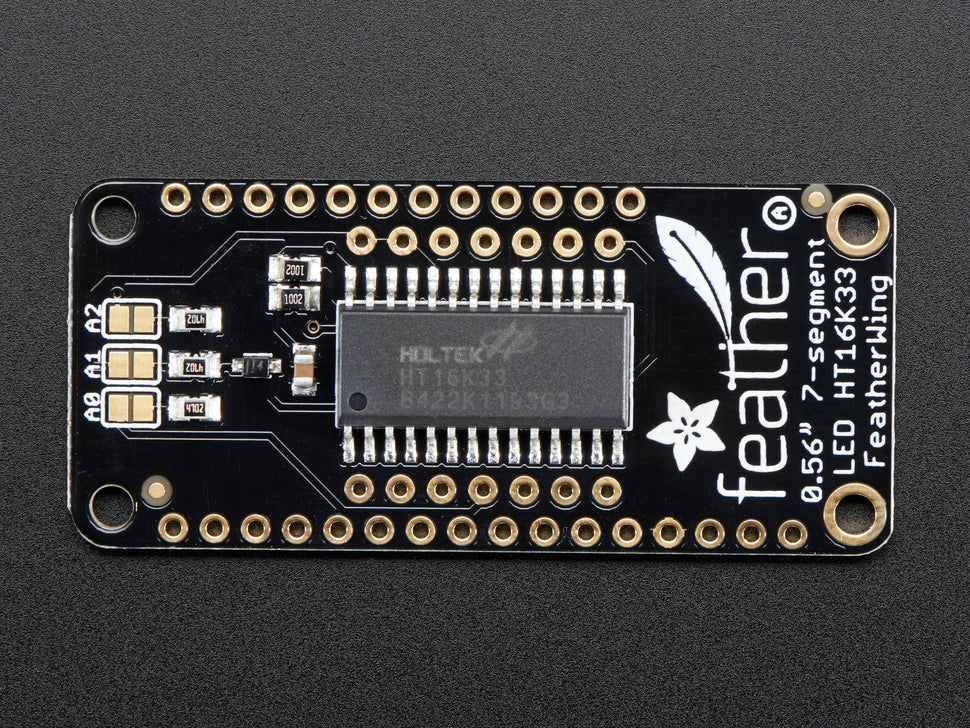

The 7-segment display uses a multiplexed LED matrix controlled by the HT16K33 driver chip, allowing the Feather to control the display via I2C using only a few pins. This minimizes wiring complexity and frees up microcontroller pins. The I2C address is selectable between 0x70-0x77 with jumpers.

Key features:

• 0.56" tall four-digit seven-segment LED display in white color
• Includes FeatherWing LED matrix display with HT16K33 driver chip
• I2C interface for easy integration with any Feather
• Includes two 16-pin headers for easy connection
• Compact and lightweight design
• Compatible with Arduino and CircuitPython (libraries and tutorials available)

Technical specifications:

• FeatherWing Dimensions: 51mm x 23mm x 4.2mm (2.0" x 0.9" x 0.165")
• Backpack Weight: 4.8g
• 7-Segment Display Dimensions: 50mm x 19mm x 14.5mm (2.0" x 0.75" x 0.57")
• 7-Segment Display Weight: 9.1g
• I2C 7-bit address range: 0x70-0x77 (selectable by jumpers)

Learn more via the detailed tutorial covering pinouts, assembly, and software usage for Arduino and CircuitPython: Adafruit 7-Segment LED FeatherWings Guide.
