Adafruit 0.56" 4-Digit 7-Segment FeatherWing Display - Blue

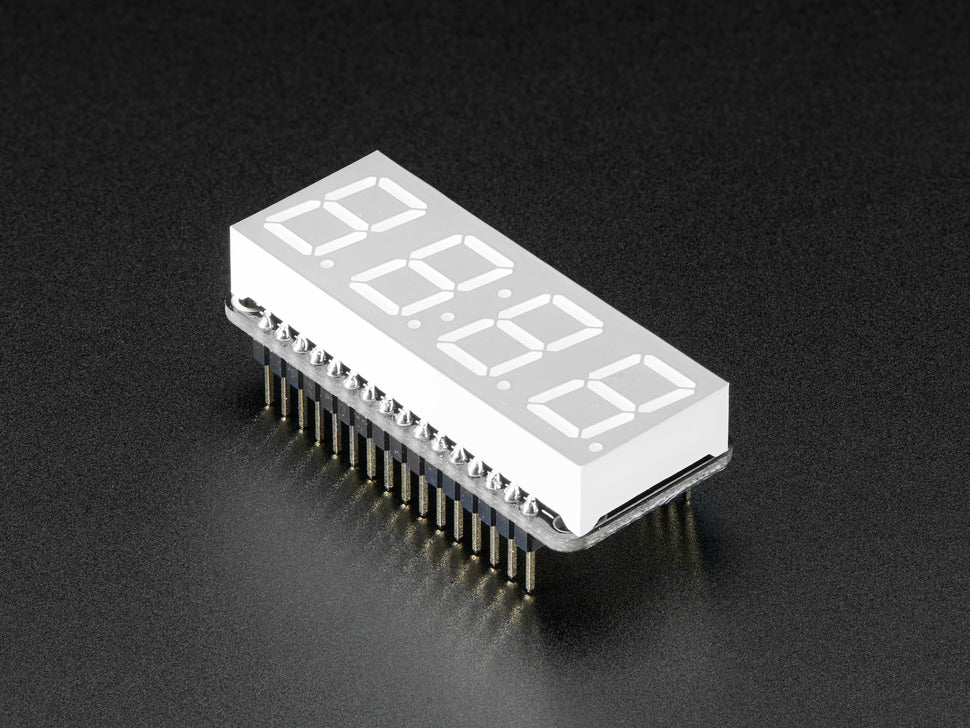

The Adafruit 0.56" 4-Digit 7-Segment FeatherWing Display in blue is an easy-to-use numeric display with decimal points and second colon dots, ideal for clock projects and numeric indicators. This FeatherWing features a multiplexed 7-segment LED matrix controlled by the HT16K33 driver chip, which handles all multiplexing so you only need to communicate via I2C. Compatible with any Feather board, this display shares I2C pins with other sensors or devices.

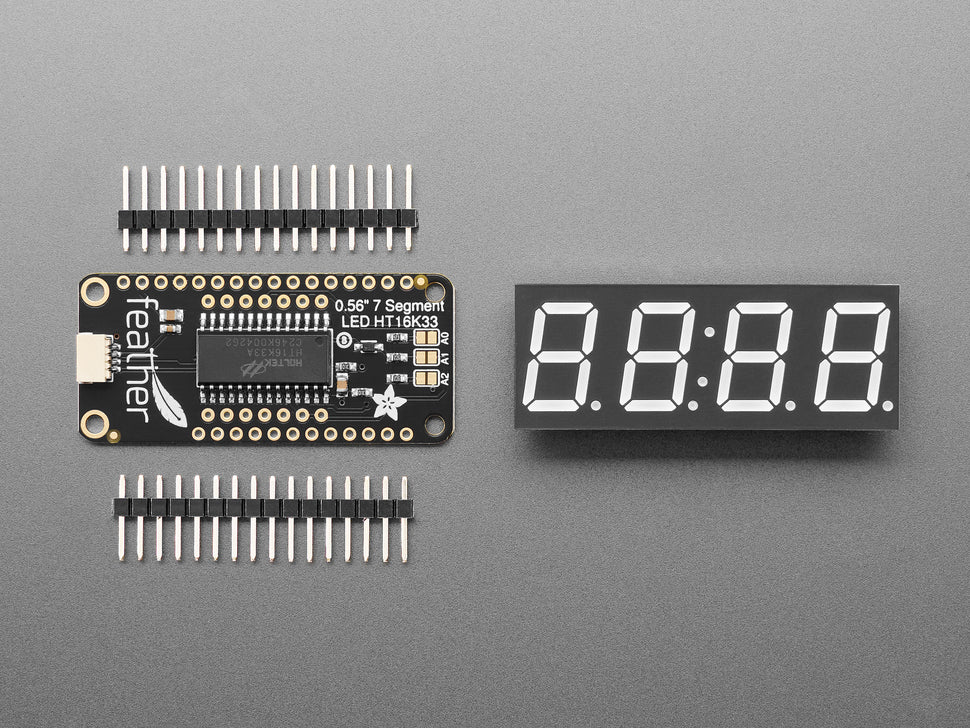

The combo pack includes a fully assembled FeatherWing board with the 4-digit blue 7-segment display and two sixteen-pin headers. Minimal soldering is required to attach the display to the FeatherWing.

Features:

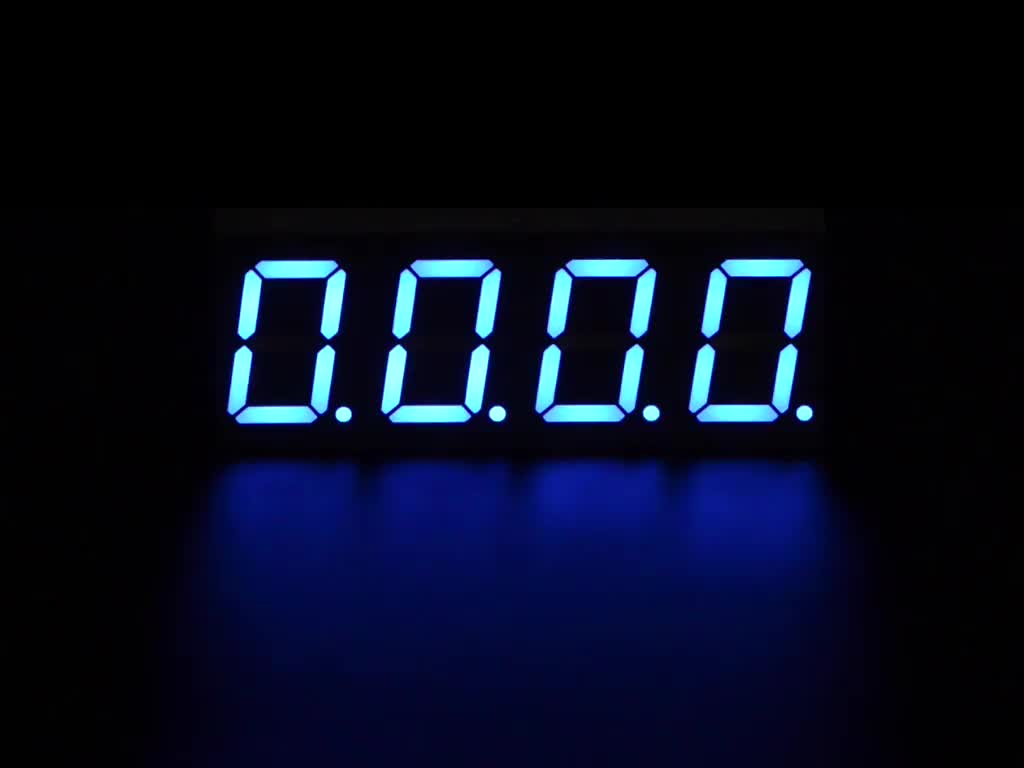

• Ultra-bright 0.56" tall blue 7-segment 4-digit LED display

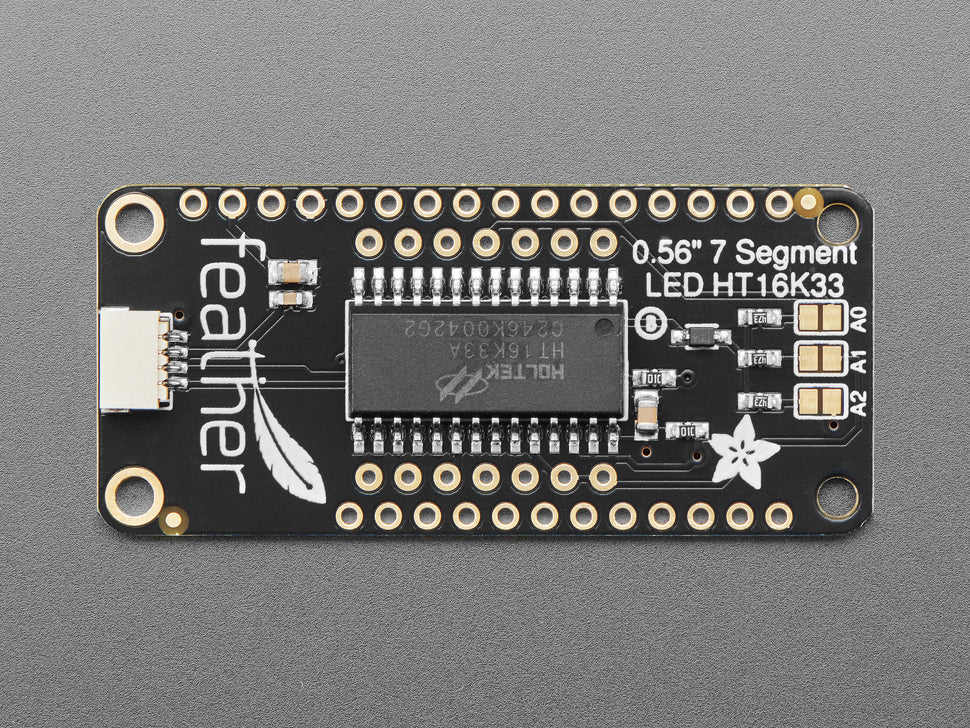

• Uses HT16K33 driver chip with I2C interface for easy integration
• FeatherWing dimensions: 51mm x 23mm x 4.2mm (2.0" x 0.9" x 0.165")
• 7-Segment display dimensions: 50mm x 19mm x 14.5mm (2.0" x 0.75" x 0.57")
• Weight: Backpack 4.8g, 7-Segment display 9.1g
• I2C 7-bit address selectable between 0x70-0x77 via jumpers
• Includes SparkFun qwiic compatible STEMMA QT connector added in 2025 for solderless connection
• Compatible with Arduino and CircuitPython LED Backpack library

Kit Includes:

• Assembled Adafruit 4-Digit 7-Segment LED Matrix Display FeatherWing board

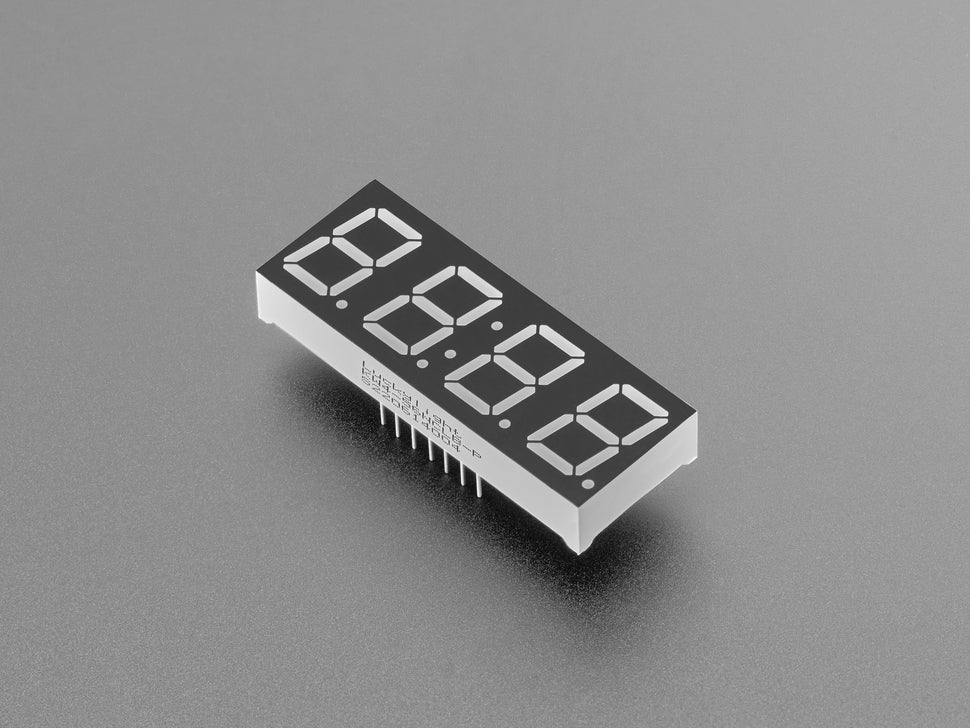

• Ultra-bright 4-digit 0.56" tall blue seven-segment display
• Two sixteen pin headers for assembly

Check out the detailed tutorial for assembly, pinouts, and software usage.
