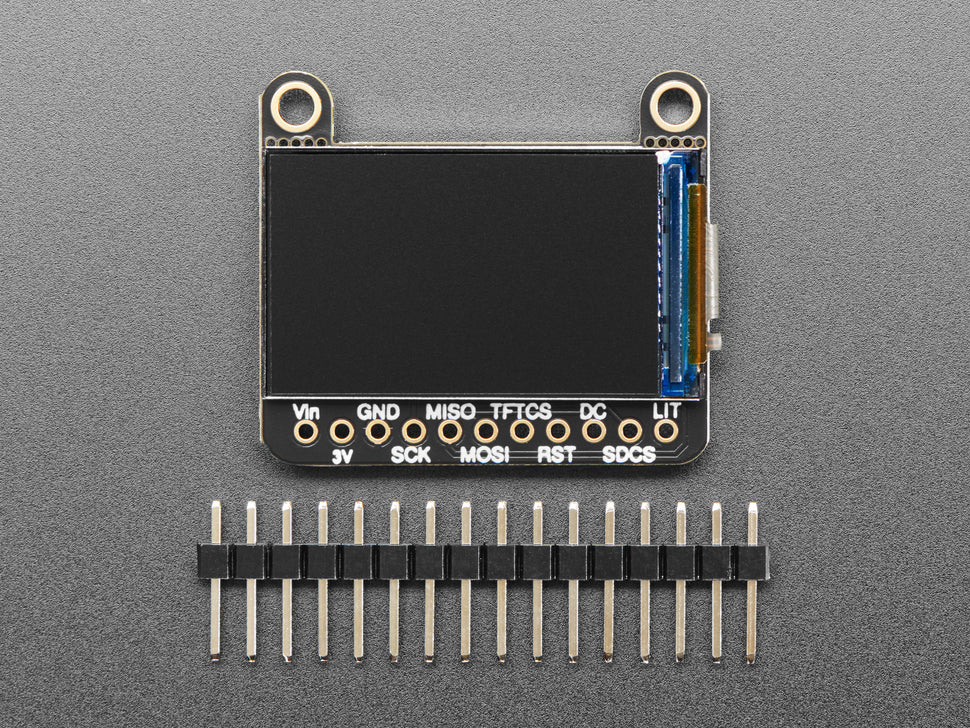

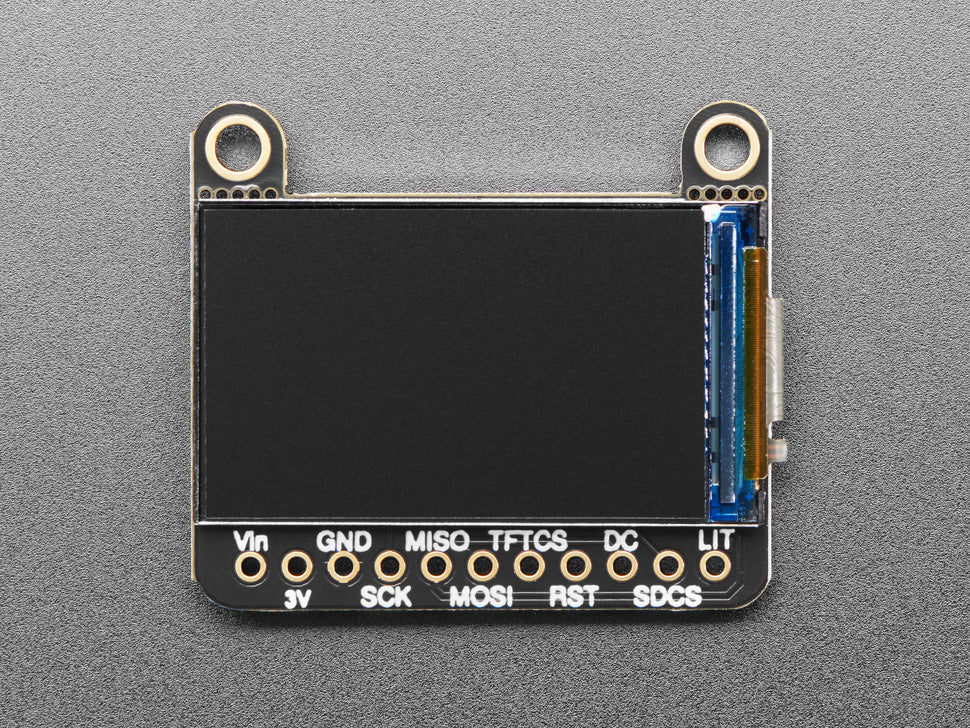

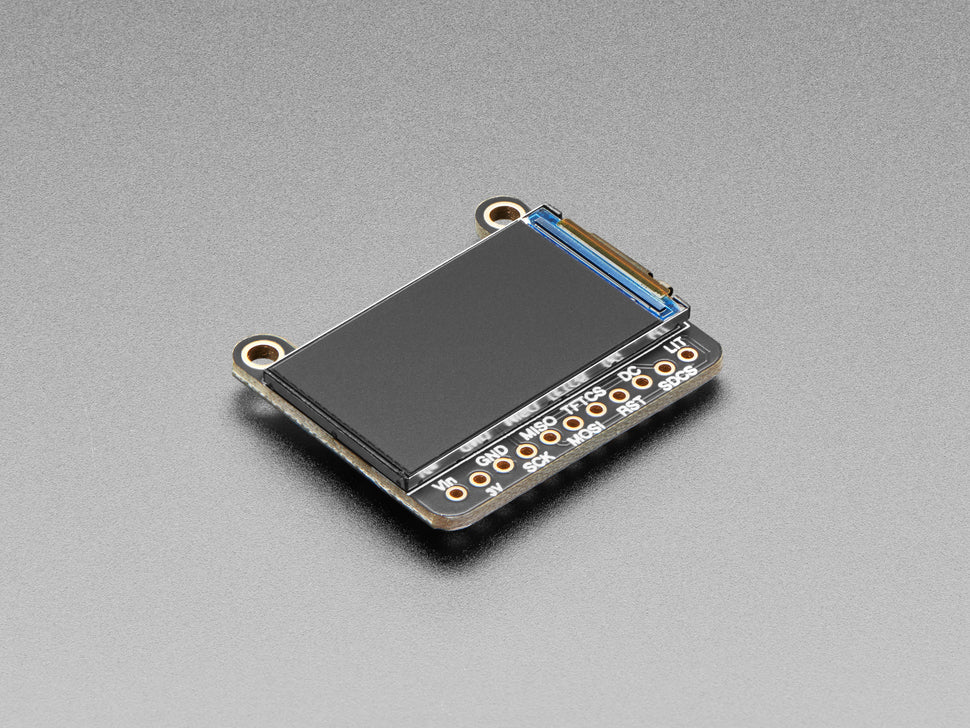

Adafruit 1.14" 240x135 Color TFT Display with MicroSD Card Breakout - ST7789

Say hello to our 1.14" 240x135 Color TFT Display w/ MicroSD Card Breakout – a tiny yet vibrant display that fits the size of your thumbnail with a high resolution of 240x135 full color pixels. This small 1.14" diagonal IPS display features a pixel density of 260 ppi and full-angle viewing up to 80 degrees off-axis, making it ideal for compact, high-density display projects.

The display uses the ST7789 driver and communicates via 4-wire SPI, allowing compatibility with most microcontrollers and microcomputers. It comes with a built-in ultra-low-dropout 3.3V regulator and a 3/5V logic level shifter for flexible power and logic levels.

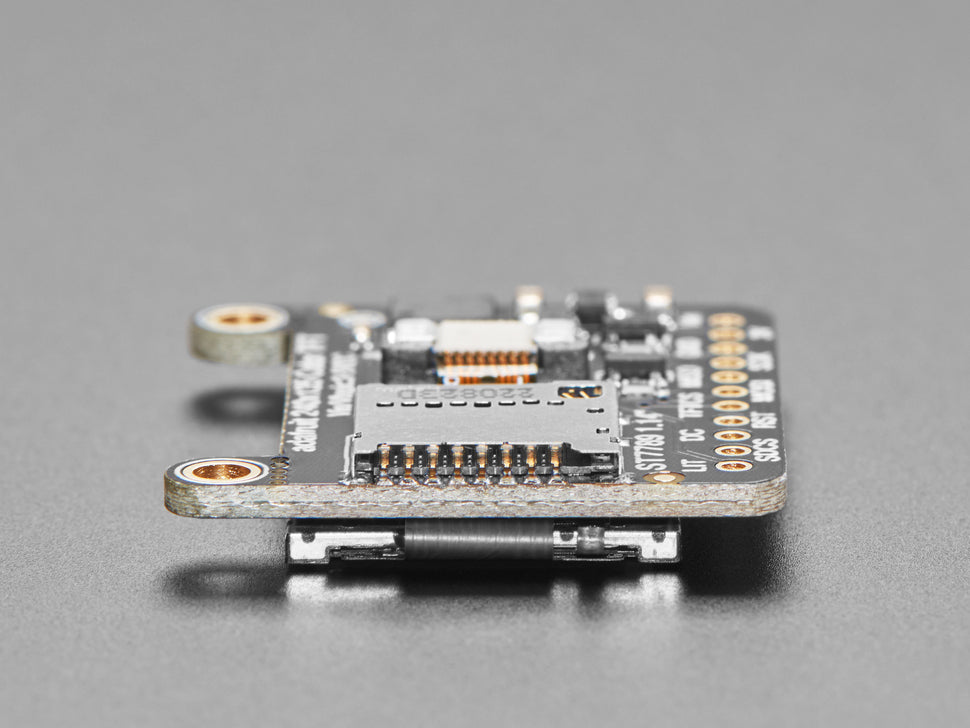

In addition to the vibrant color display, this breakout includes a push-pull microSD card holder for easy loading of full-color bitmap images from a FAT16/FAT32 formatted microSD card (microSD card not included).

Key features include:

• 1.14" diagonal IPS TFT display with 240x135 pixels resolution and 16-bit color depth
• 260 ppi pixel density for crisp visuals
• Wide 80 degree viewing angles
• ST7789 display driver compatible with popular Arduino libraries
• 4-wire SPI interface for easy microcontroller integration
• Onboard ultra-low-dropout 3.3V regulator and 3/5V level shifter
• Push-pull microSD card slot for loading bitmap images
• Compact size: 32.0mm x 27.8mm x 5.7mm
• Weight: 5.0 grams

Whether for smartwatches, small gadgets, or any project requiring a bright and sharp small display, this breakout offers easy integration and high reliability, thanks to its redesigned push-in display connector and improved microSD card holder (updated May 24, 2023).

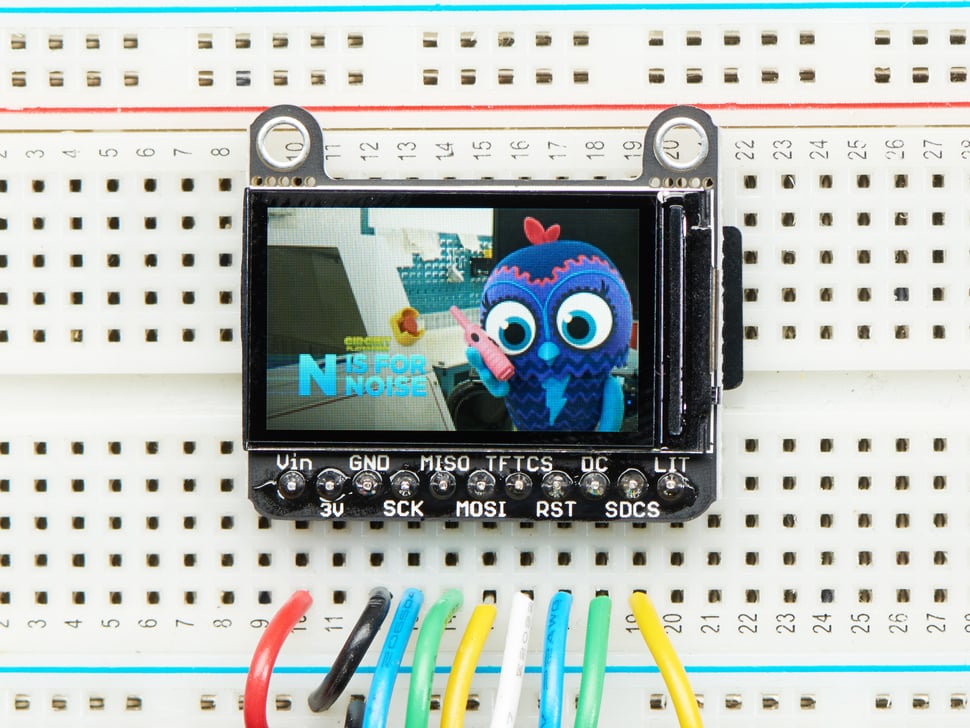

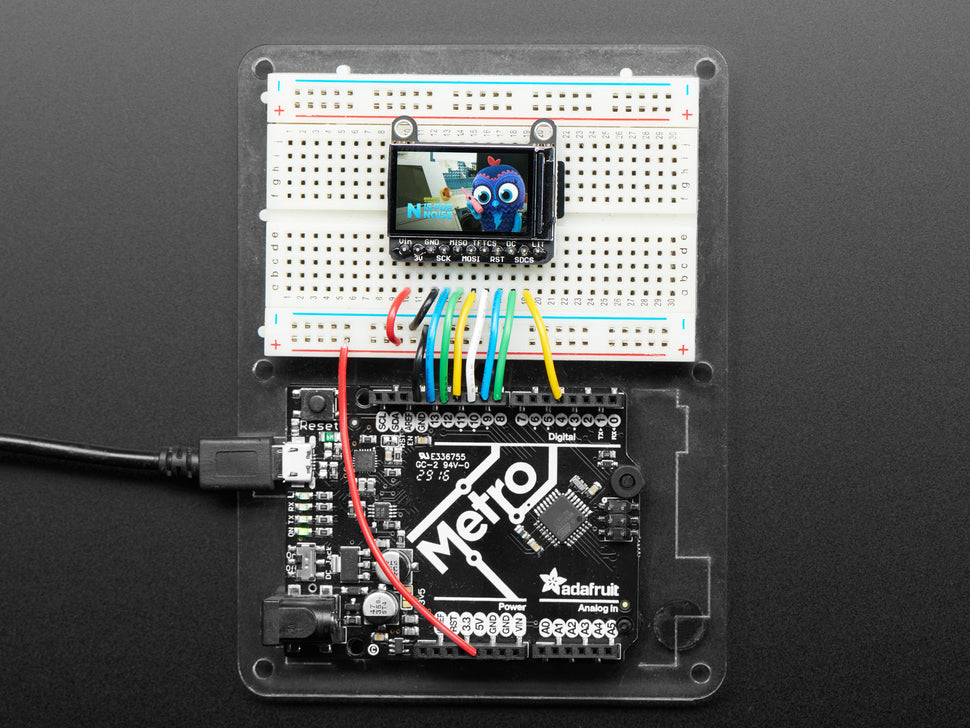

Full open-source graphics library and wiring tutorial available for Arduino IDE and other microcontrollers. Great for showing pixels, lines, shapes, text, and images.
