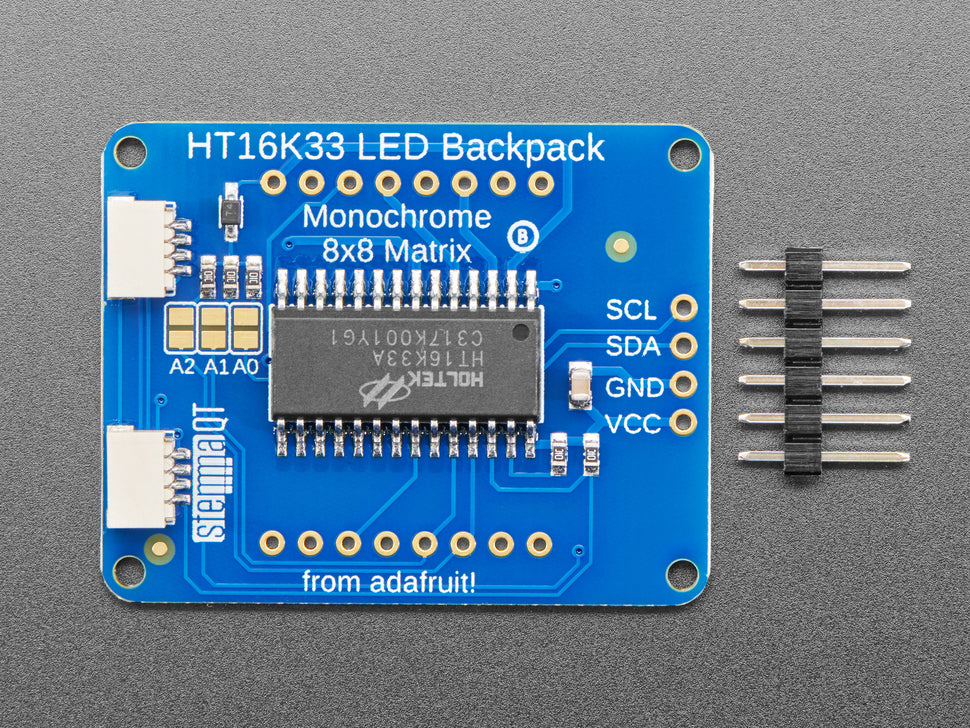

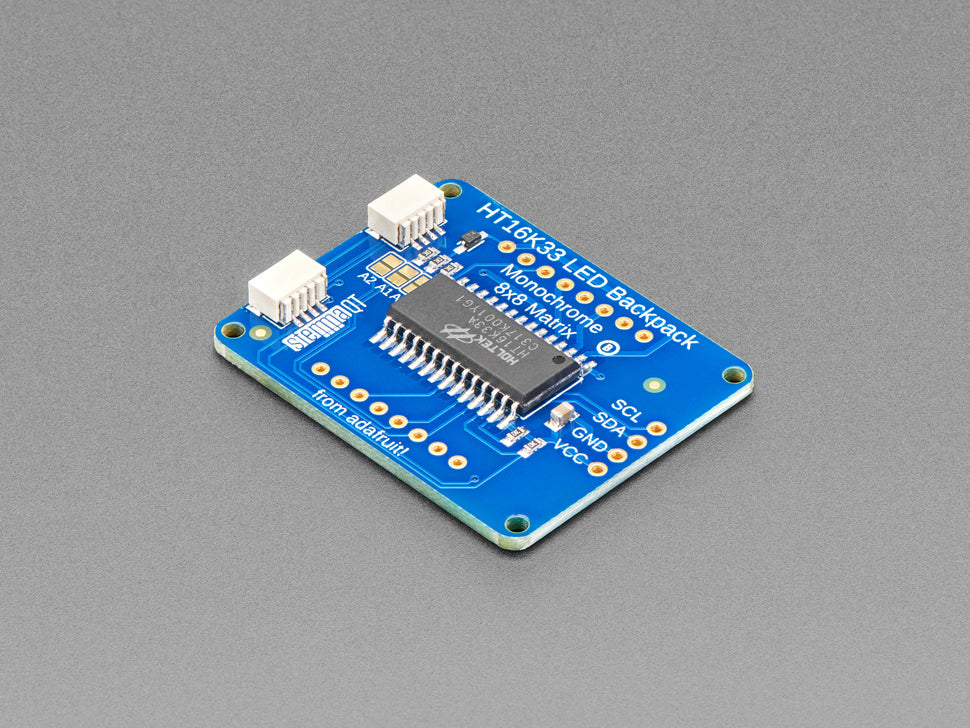

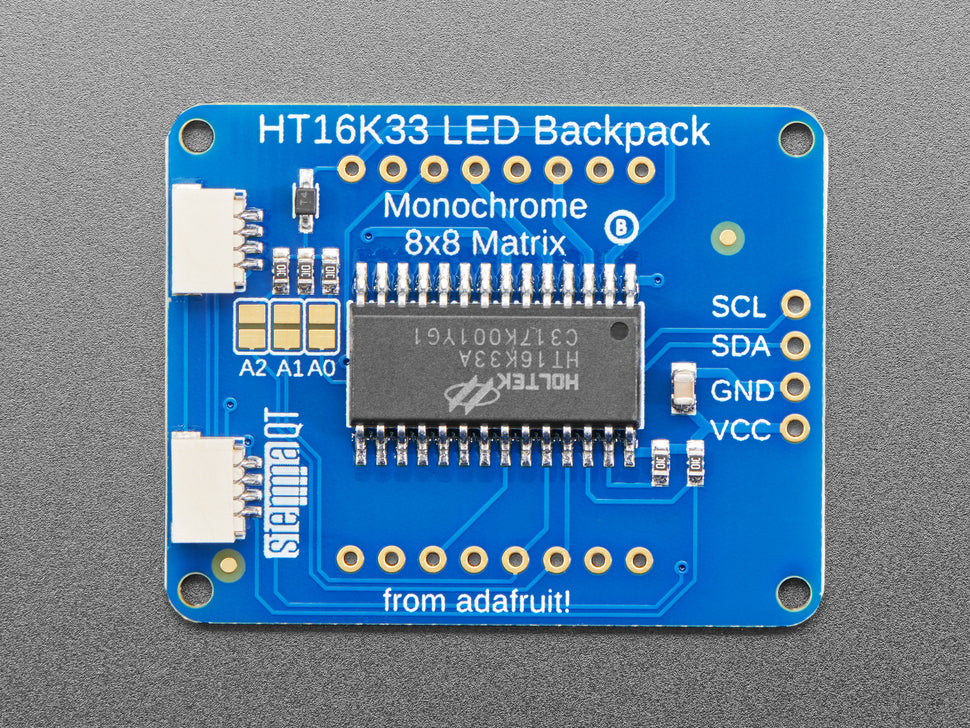

Adafruit 1.2" 8x8 LED Matrix Backpack

By popular request, you can now get our 8x8 LED backpacks without the LEDs! These backpacks feature an HT16K33 I2C LED driver, making them simple and easy to use. With our very nice library for the backpacks, you can get running in under half an hour.

Like our other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

Comes with a fully tested and assembled LED backpack & some header. Some light soldering is required to attach the header and, of course, the display.

A 1.2" 8x8 matrix display is not included, but we have lots of options in the store. This backpack is verified to work with the displays we stock; other 1.2" square 8x8 displays may not be compatible.

Features:

• HT16K33 I2C LED driver for simple control
• Stackable design for up to 8 backpacks sharing two I2C wires

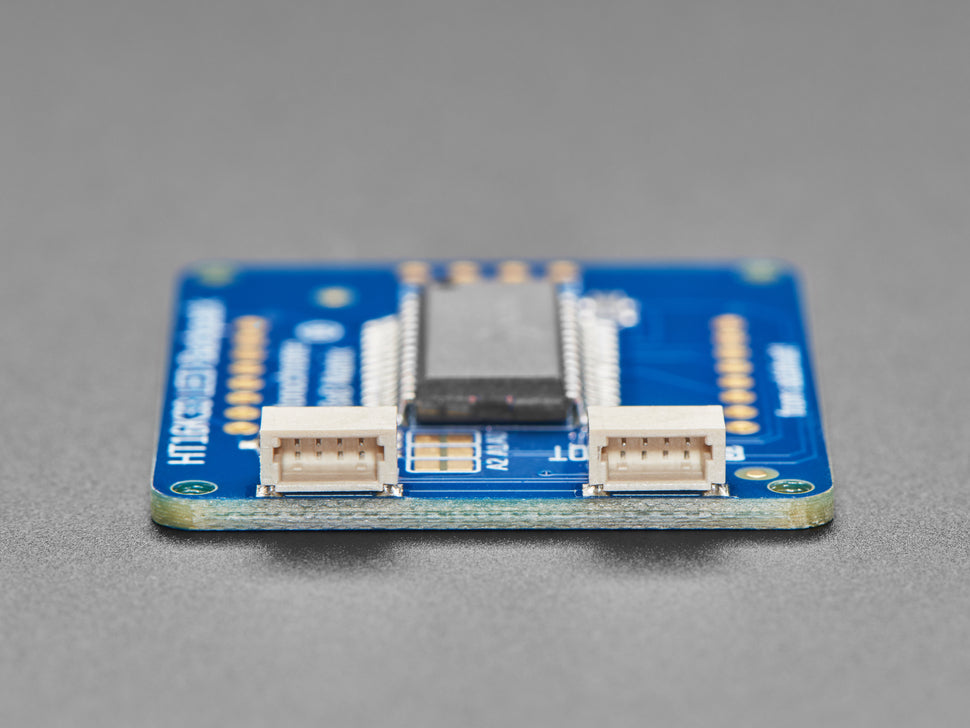

• New PCB revision with Stemma QT connectors for plug-and-play usage
• Updated silkscreen using Adafruit Pinguin

Technical Details:

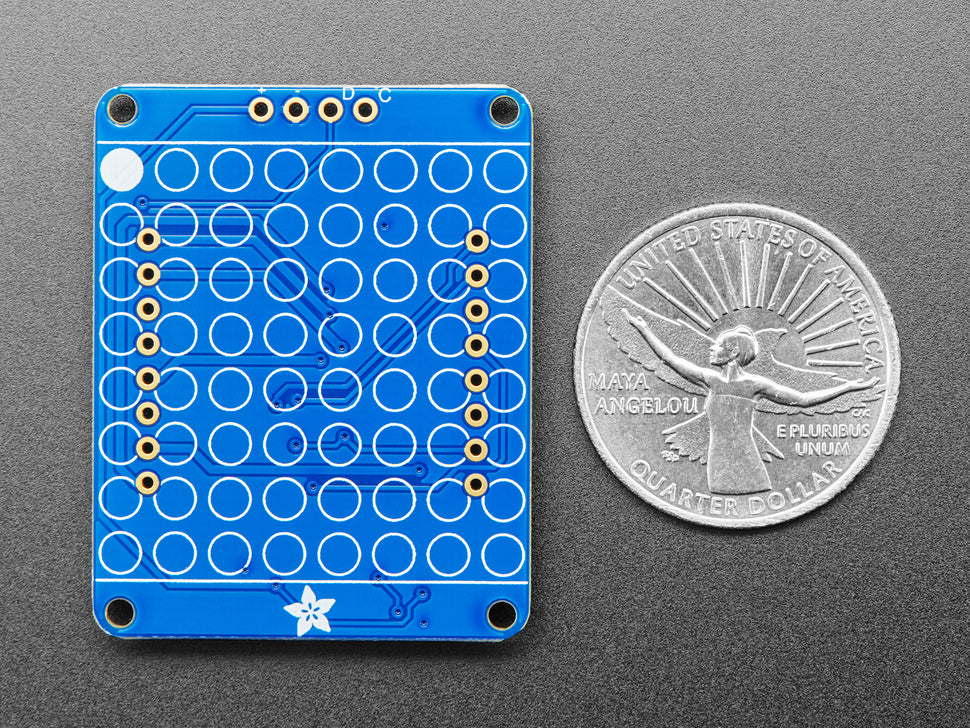

• Product Dimensions: 40.8mm x 32.0mm x 4.1mm (1.6" x 1.3" x 0.2")
• Product Weight: 5.2g (0.2oz)

This product is RoHS 2 2011/65/EU and RoHS 2 2015/863/EU compliant.
