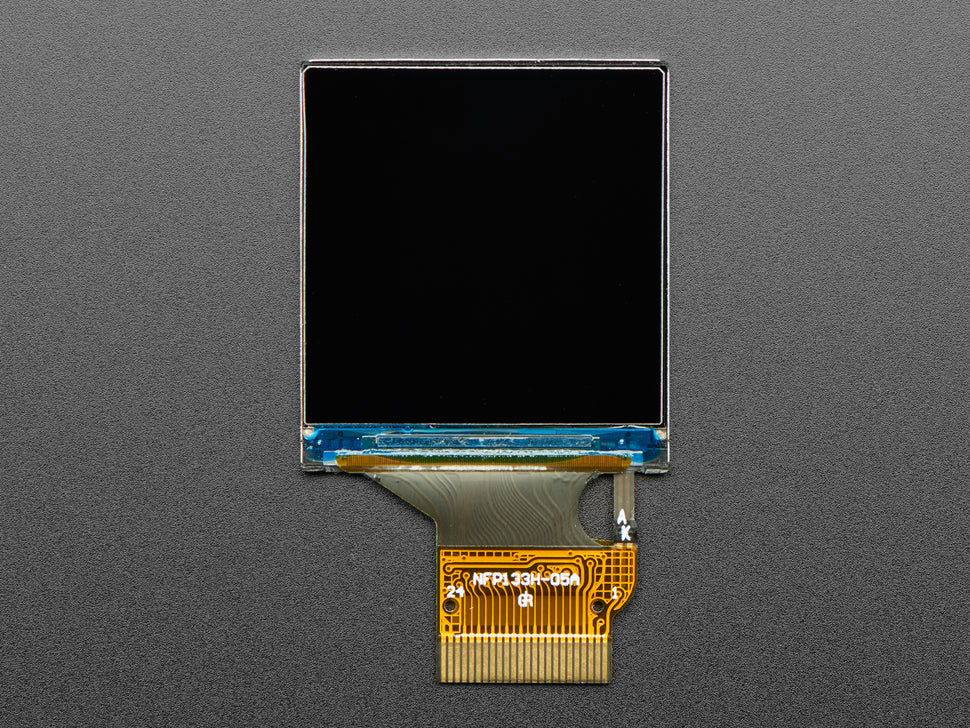

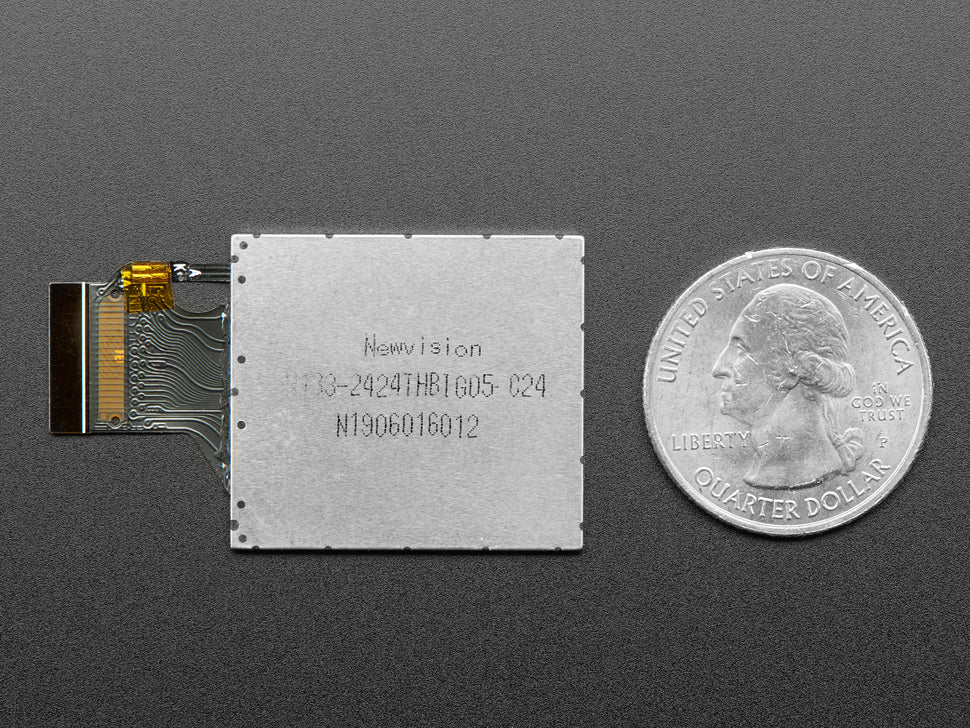

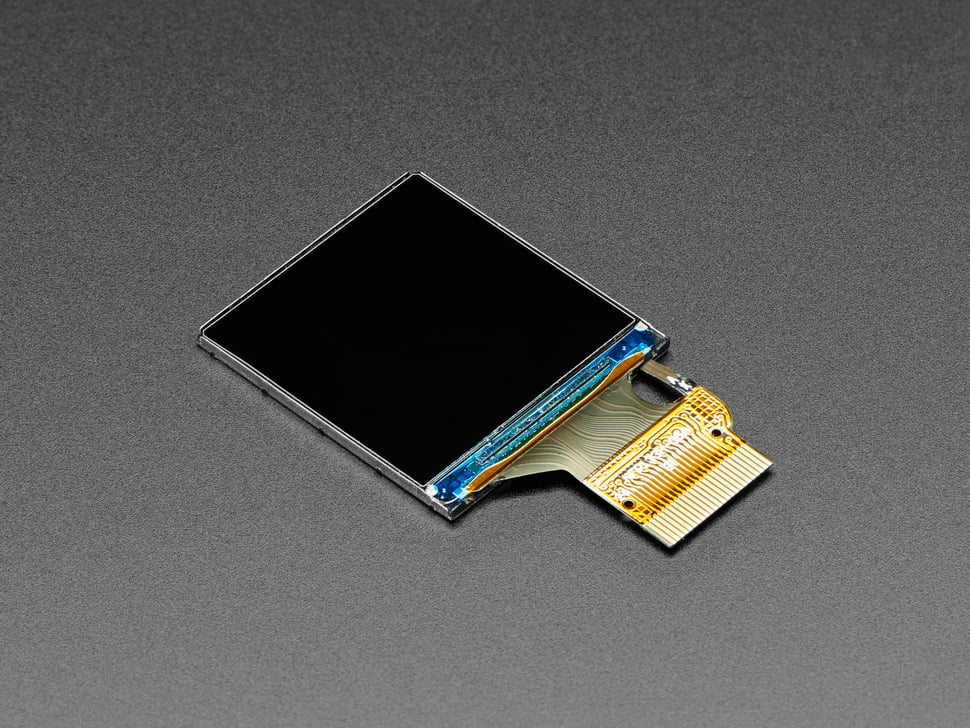

Adafruit 1.3" 240x240 Wide Angle IPS TFT Display

This is a high-quality 1.3" 240x240 pixel IPS TFT display with wide viewing angles and vibrant 16-bit full-color pixels, ideal for advanced makers and hackers who want to integrate a premium screen into their projects. The TFT features an ST7789 driver, similar to the popular ST7735, and is well supported by Adafruit's Arduino graphics library.

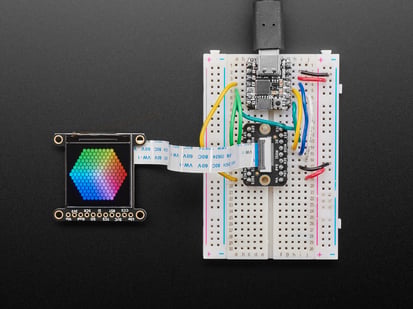

Note: This is the bare display module only, with no PCB included. For easier integration with SPI interface, mounting holes, and level shifting, consider using the Adafruit 1.3" TFT breakout board.

Key features include:

• 1.3" display with 240x240 resolution
• Wide viewing angles thanks to IPS technology (color looks great up to 80° off-axis)
• 16-bit full color (65,536 colors)
• Uses popular ST7789 TFT driver compatible with existing Arduino library support
• Screen size: 26mm x 26mm (1.02" x 1.02")

For the matching connector, a 24-pin 0.5mm pitch bottom contact FPC connector such as Amphenol SFV24R-2STE1HLF is required.

More information, including wiring tutorials and full open-source graphics library, is available on the Adafruit Learning System. Datasheet can be found here.
