Adafruit 12V Bias Voltage Boost Converter - TPS61040

The Adafruit 12V Bias Voltage Boost Converter utilizes the TI TPS61040 chip to generate a stable 12V DC output from an input voltage as low as 2V up to 6V. This compact booster is ideal for applications requiring a small amount of 12V current, such as powering OLED displays, LED string backlights, or reprogramming FLASH or EEPROM memories.

Note that this boost converter is not meant for high-power applications like solenoids, motors, or long LED strips, as it provides a maximum output current of approximately 40mA.

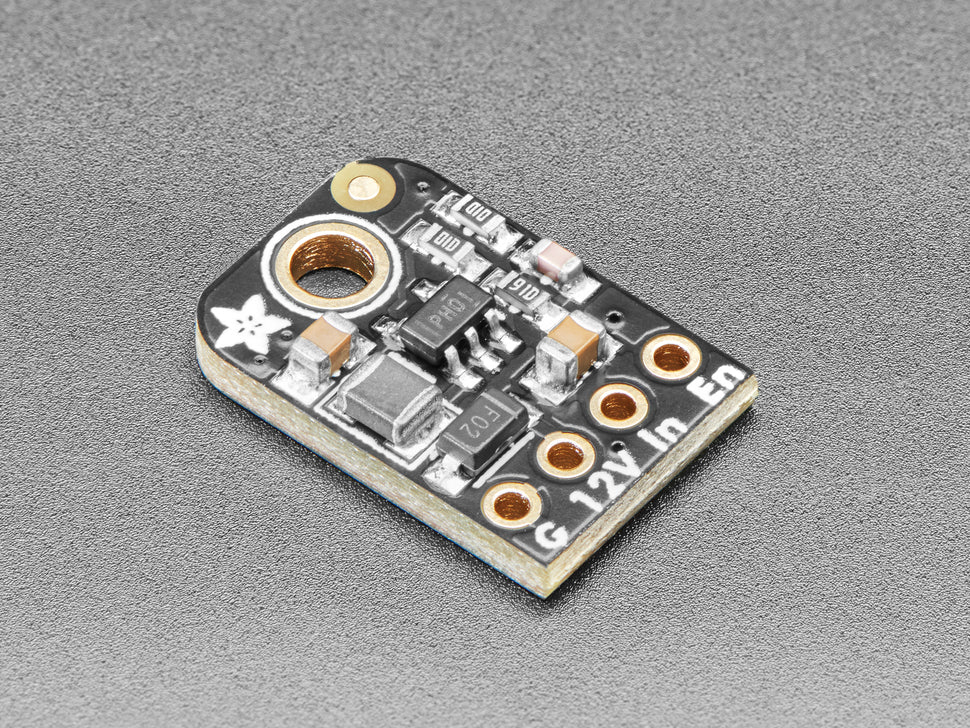

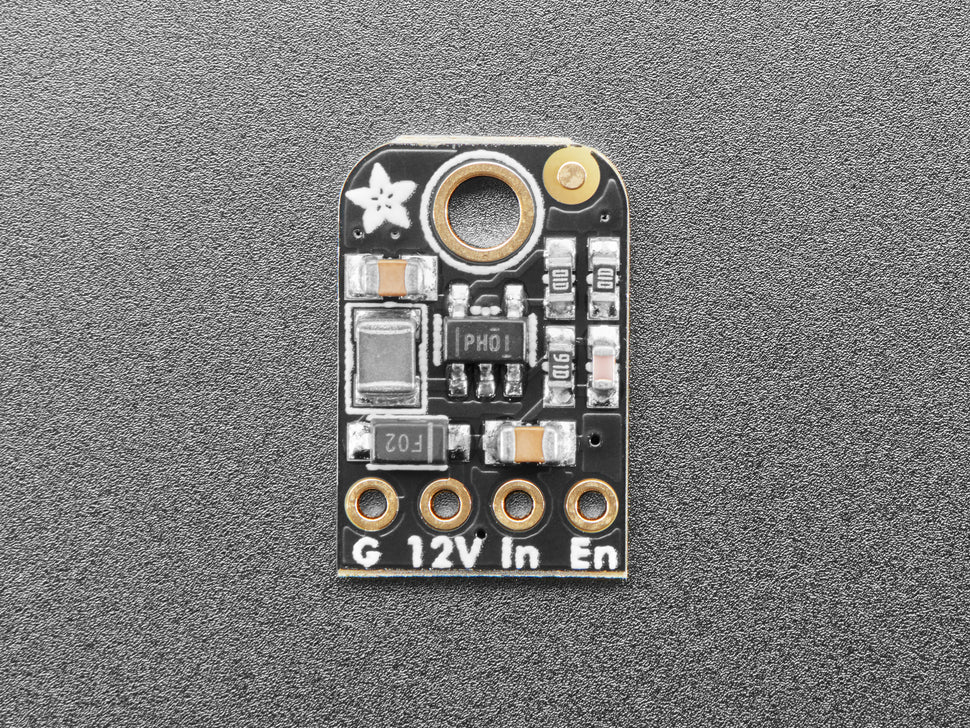

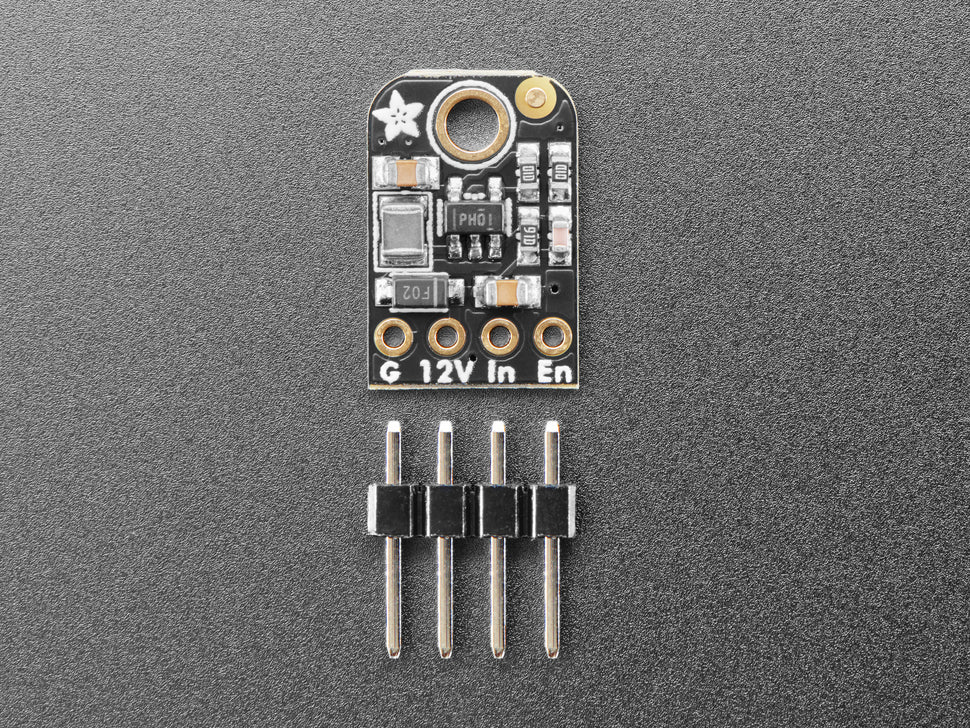

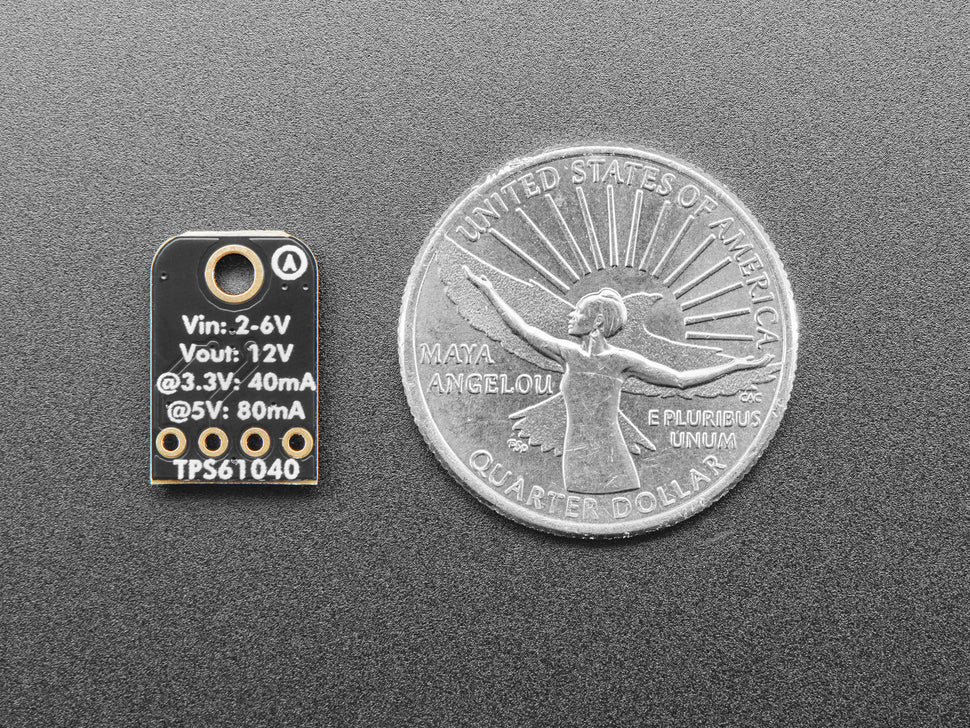

The breakout board comes fully assembled with the TPS61040 chip, passive components, and a small length of header pins. Simply supply 2 to 6V DC to the IN and G round pins, and you will get 12V on the 12V output pin. The Enable (En) pin can be pulled low to disable the output.

Features:

• Generates 12V output from 2-6V input using TPS61040 chip
• Output current up to ~40mA suitable for biasing OLEDs and small loads
• Compact dimensions: 15.2mm x 10.0mm x 2.9mm (0.6" x 0.4" x 0.1")
• Low quiescent current and shutdown current
• Enable pin for easy power control

Technical Specifications:

• Input Voltage Range: 1.8V to 6V
• Fixed Output Voltage: 12V
• Internal Switch Current: 400mA (max)
• Output Current: approx. 40mA max
• Switching Frequency: up to 1 MHz
• No-Load Quiescent Current: 28 µA typical
• Shutdown Current: 1 µA typical
• Soft Start: internal
• Weight: 0.1g

TPS61040 Datasheet PDF

PCB fabrication files are available on GitHub.
