Adafruit 15x7 CharliePlex LED Matrix FeatherWing - Cool White

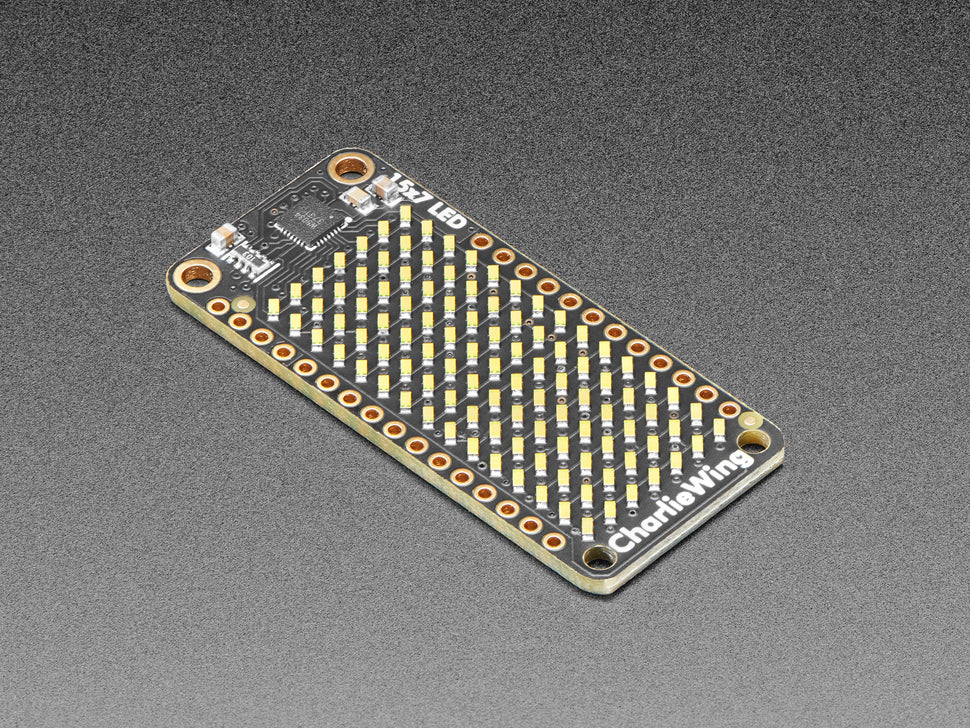

Experience mesmerizing light patterns with the Adafruit 15x7 CharliePlex LED Matrix Display FeatherWing in stunning Cool White. This 15x7 LED matrix features 105 charlieplexed LEDs controlled via a built-in I2C Charlieplex driver.

The IS31FL3731 driver chip enables 8-bit (256 level) PWM dimming for each LED independently, allowing you to create beautiful lighting effects easily from your Feather board using only the I2C pins (SDA/SCL).

Key features include 8 frames of display memory for animations, compatibility with all Feather boards, and a compact design measuring 51.0mm x 23.0mm x 3.0mm (2.0" x 0.9" x 0.1") weighing just 3.8 grams.

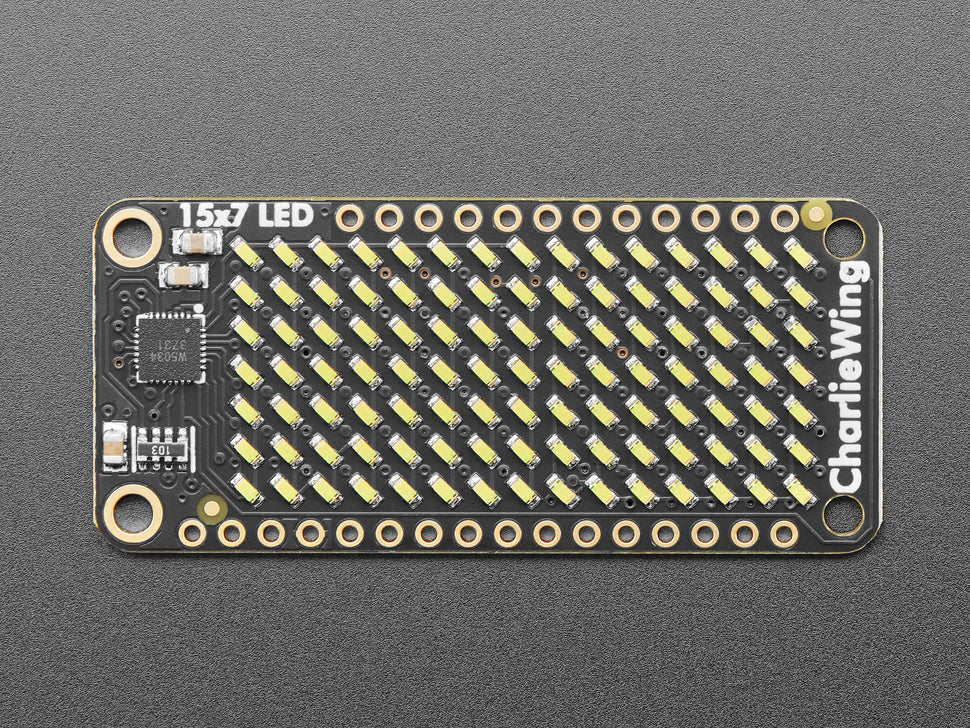

• 105 cool white charlieplexed LEDs in a 15x7 matrix
• Built-in IS31FL3731 I2C LED driver chip supporting PWM brightness control
• 8-bit (256 level) brightness control per LED
• 8 frames of RAM for smooth animations
• Runs on 3.3V power
• Uses only SDA and SCL I2C pins, freeing other pins for peripherals
• Compatible with Adafruit Feather boards
• Updated PCB with beautiful silkscreen and brighter LEDs as of November 2022
• Compact and lightweight: 51.0 x 23.0 x 3.0 mm, 3.8g

The FeatherWing comes with comprehensive libraries for Arduino and CircuitPython, simplifying drawing text, bitmaps, and shapes for engaging LED projects.

Official tutorial with datasheets, schematics, and example code
