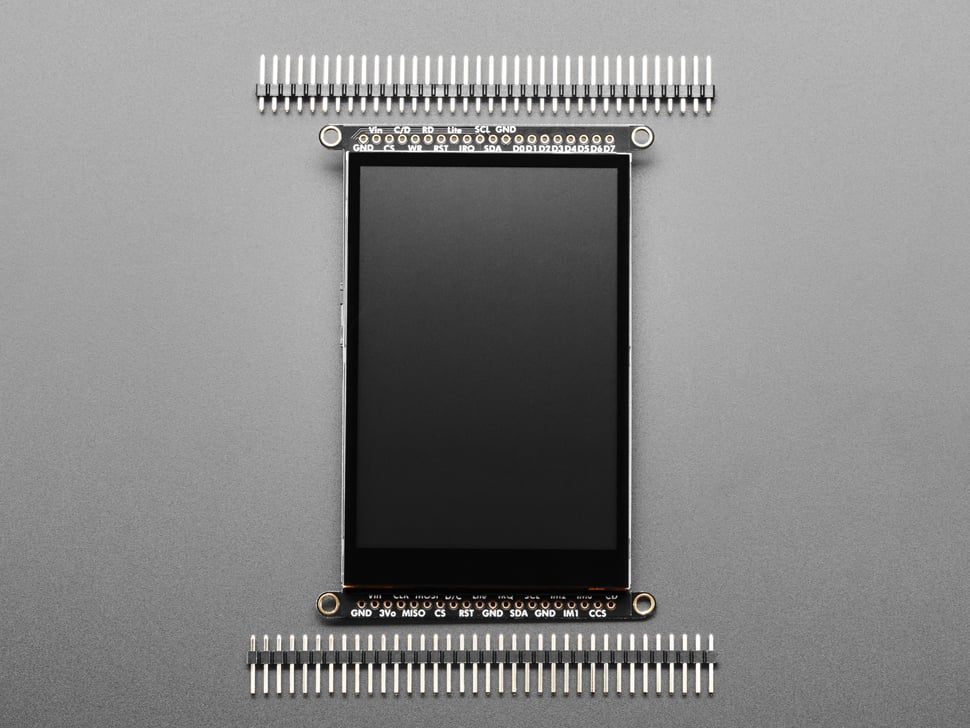

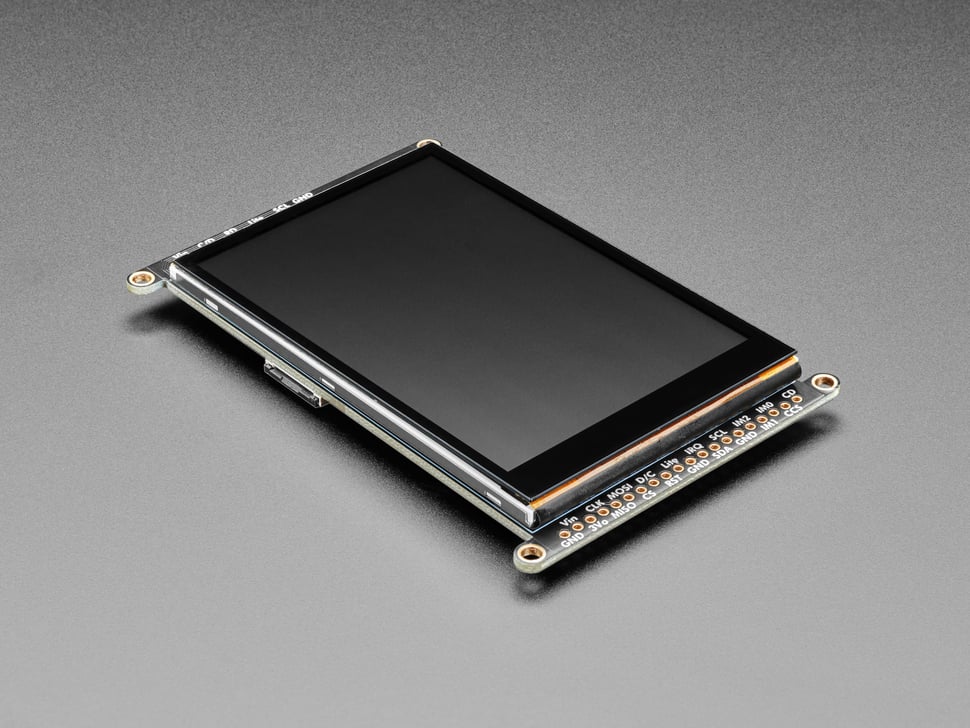

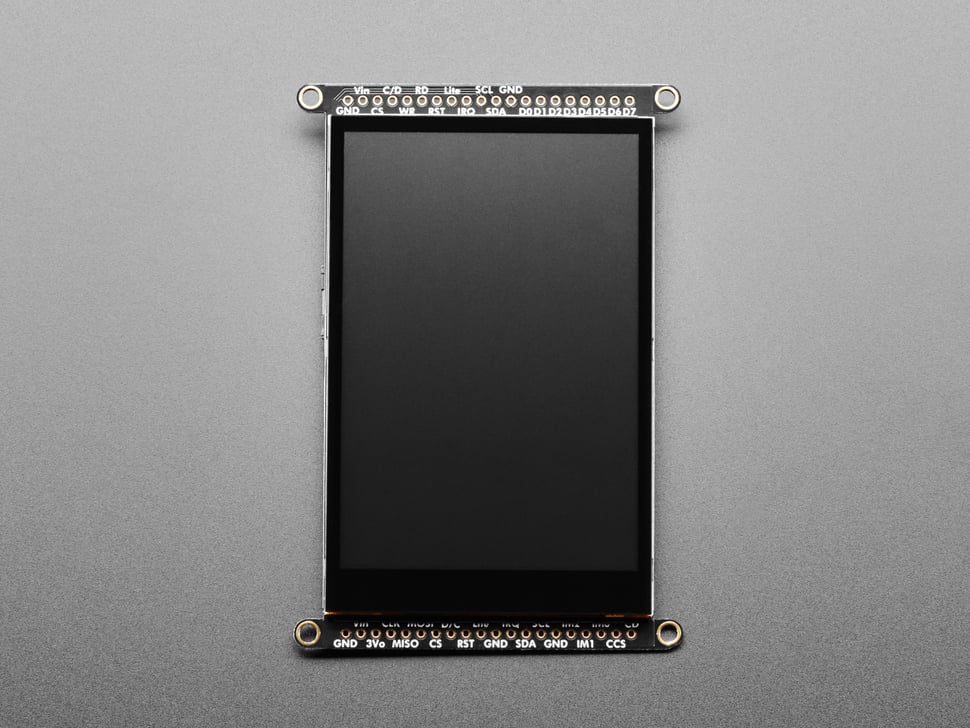

Adafruit 3.5" TFT 320x480 with Capacitive Touch Breakout Board - EYESPI

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (3.5" diagonal), bright (6 white-LED backlight), and colorful! It features 480x320 pixels with individual RGB pixel control - offering way more resolution than a black and white 128x64 display, and double the resolution of our 2.8" TFT.

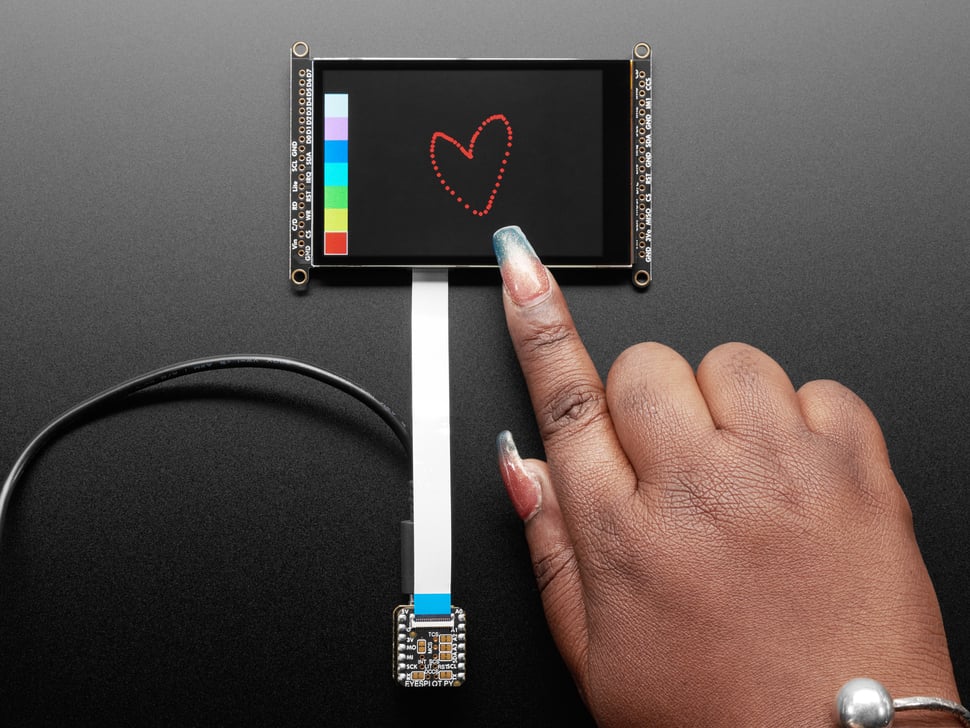

This display includes a capacitive touchscreen attached, allowing you to detect finger presses anywhere on the screen.

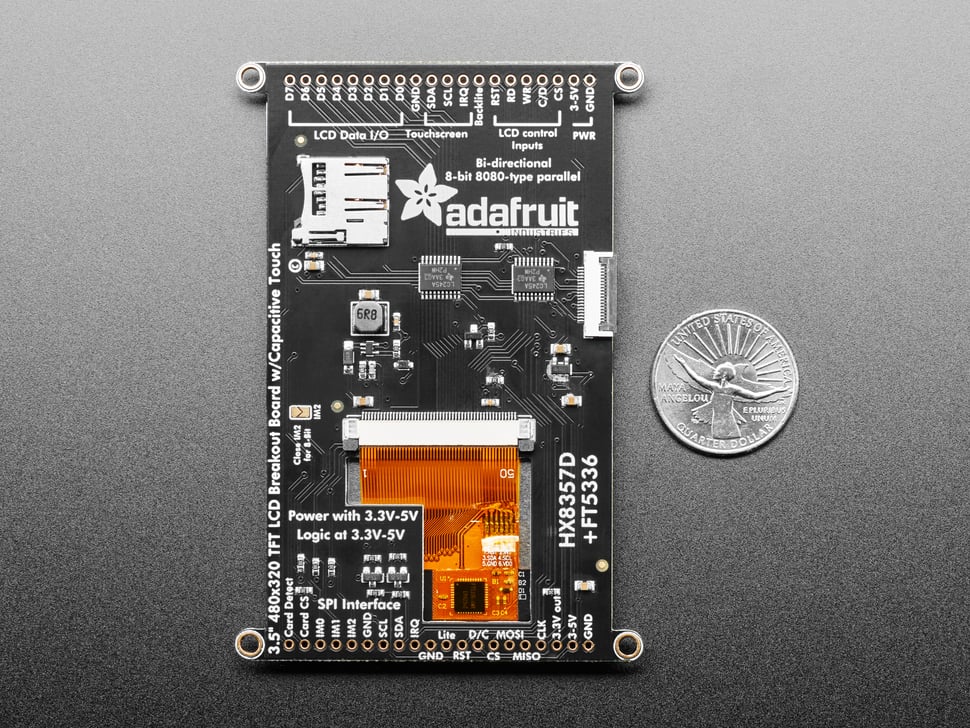

The display has a built-in controller with RAM buffering, so nearly no processing is required by your microcontroller. It can be used in two modes: 8-bit or SPI. 8-bit mode requires 8 digital data lines and 4 or 5 digital control lines (12 lines total). SPI mode uses only 5 pins but is slower.

The touchscreen communicates via I2C pins, with an optional IRQ pin for touch detection. The built-in EYESPI connector allows quick interfacing using just SPI and I2C interfaces.

Extensive tutorials are available for wiring, testing, and example code. There are open source graphics libraries for both 8-bit and SPI modes, as well as a touch screen library supporting up to 5 multi-touch points.

• 3.5" diagonal color TFT display (320x480 pixels)
• 6 white-LED backlight
• Capacitive touchscreen built-in
• Two interface modes: 8-bit or SPI
• I2C communication for touchscreen with optional IRQ pin
• Built-in EYESPI connector for easy wiring
• Open source graphics and touch libraries
• Compatible with multiple microcontroller platforms
