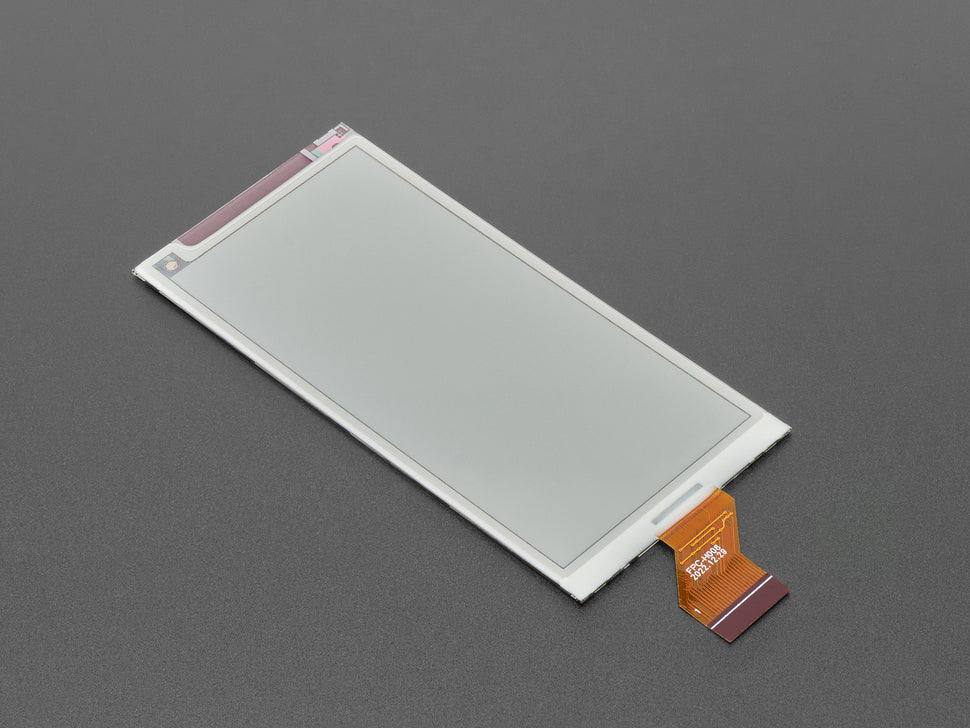

Adafruit 3.52" 340x180 Quad-Color eInk / ePaper Bare Display

Experience the vivid and power-efficient display technology with the Adafruit 3.52" 340x180 Quad-Color eInk / ePaper Bare Display, featuring black, red, yellow, and white colors. This bare display module, with its 340x180 pixel resolution, offers high contrast and daylight readability, reminiscent of printed paper.

Key Features:

• 3.52" Quad-Color eInk / ePaper display with 340x180 pixel resolution
• Colors: black, red, yellow, and white on a white-ish background
• Uses JD79667 chipset – compatible with the Adafruit_EPD Arduino library
• Flipped 24-pin FPC connector (bottom contacts), includes Flex A-B cable and extender for compatible connection
• Static, low-power display: images remain visible even without power
• Comes with a 50mm 24-pin 0.5mm pitch FPC Flex A-B cable and 24-pin 0.5mm FFC / FPC extender

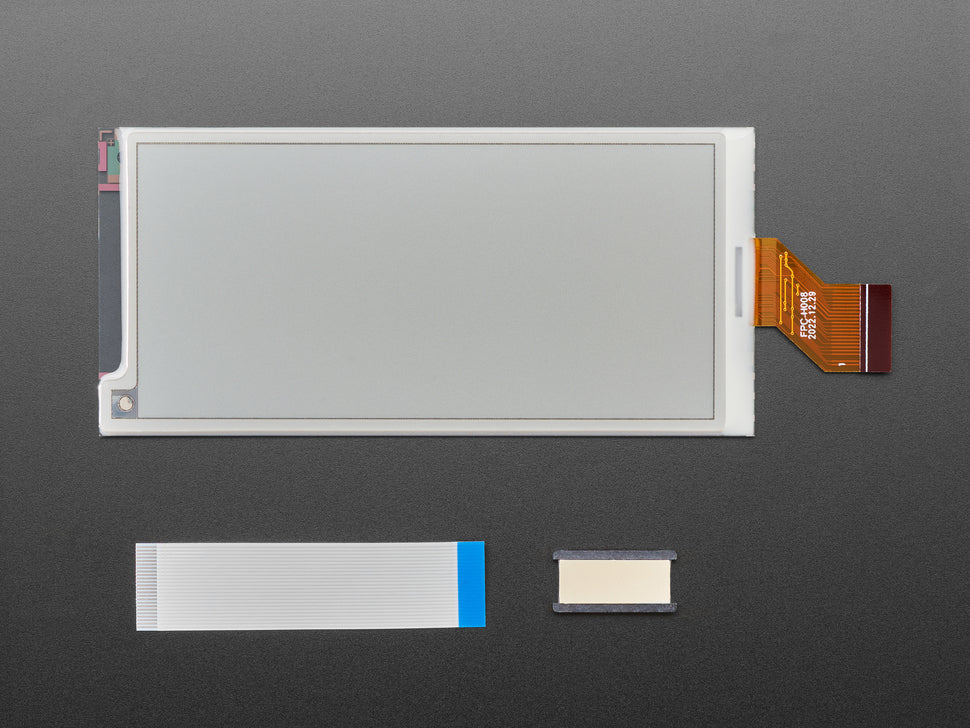

Included Items:

• 3.52" 340x180 Quad-Color eInk / ePaper Bare Display
• 24-pin 0.5mm pitch FPC Flex A-B (D) type Cable - 50mm long
• 24-pin 0.5mm FFC / FPC Extender

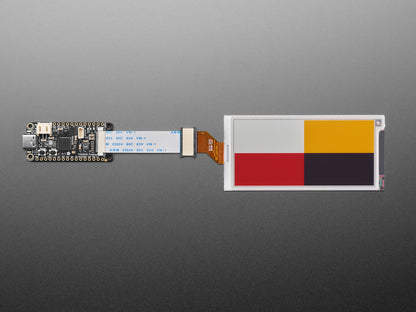

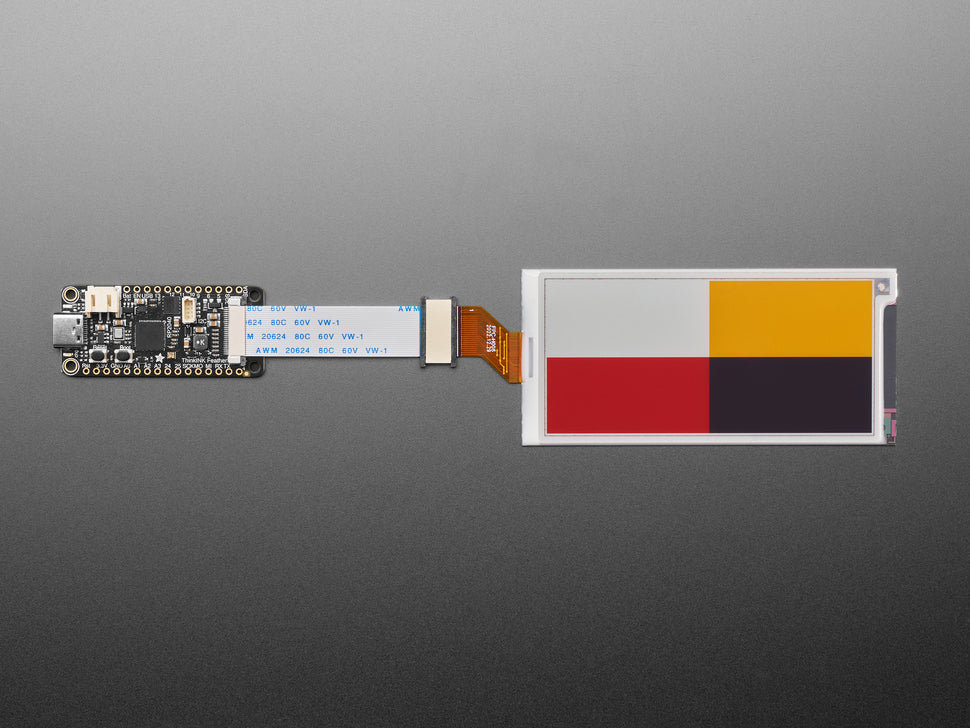

Recommended Driver Boards:

• Feather RP2040 ThinkInk - plug-and-play solution with Arduino or CircuitPython support
• eInk Feather Friend - FeatherWing add-on for any Feather board
• eInk Breakout Friend - breadboard-friendly adapter providing level shifting

Note: This is a bare display only and requires a compatible driver board with a 24-pin FPC e-paper connector. Pixels are exclusive and do not mix colors. For advanced graphics, see our guide on dithering.
