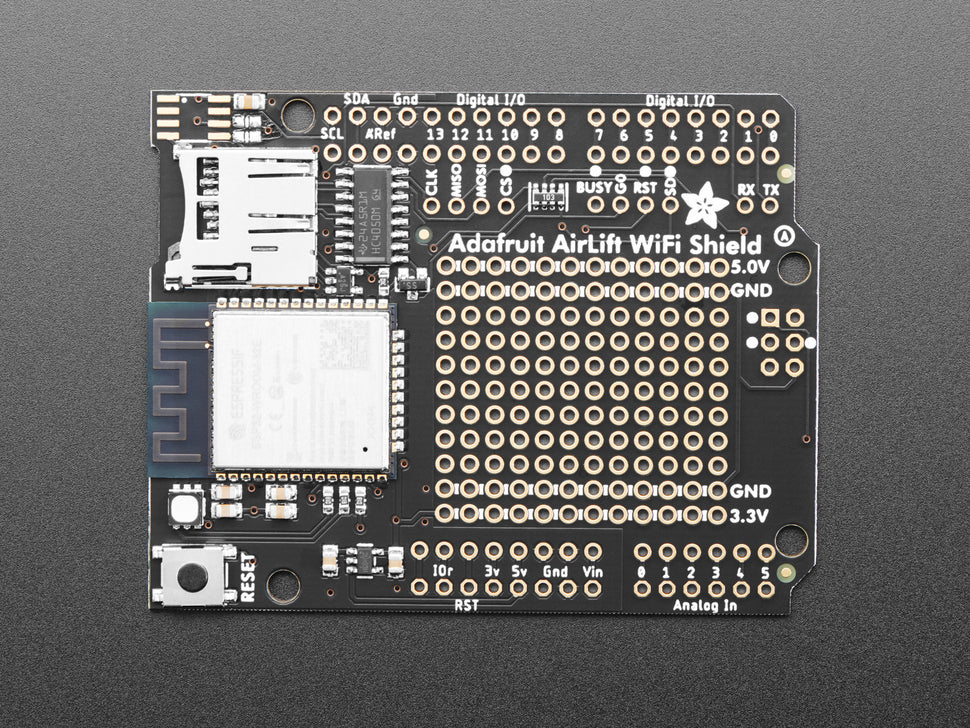

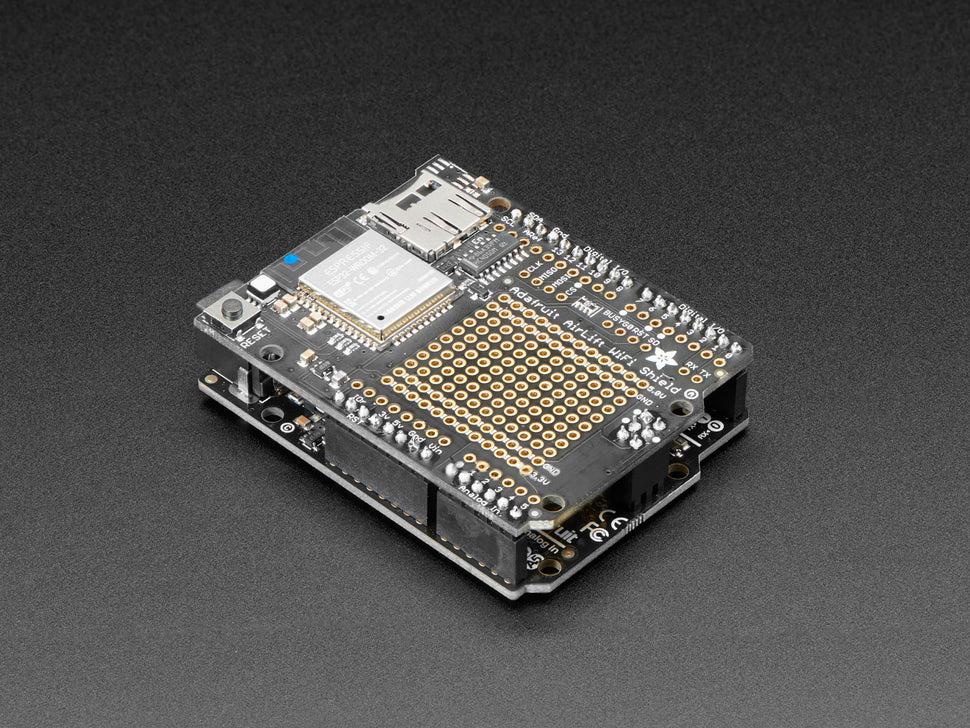

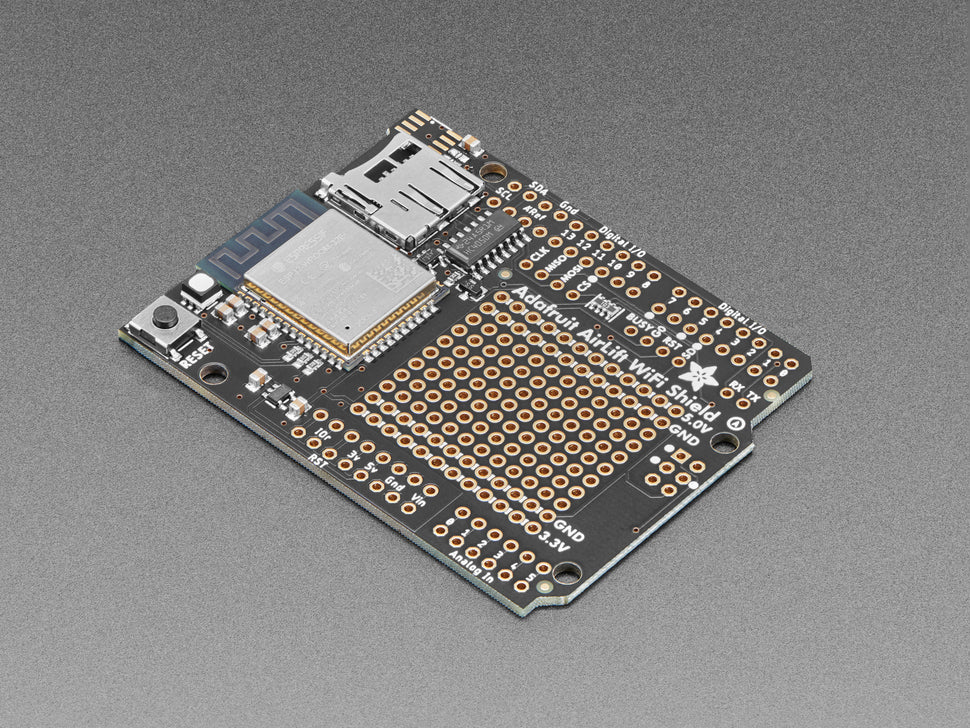

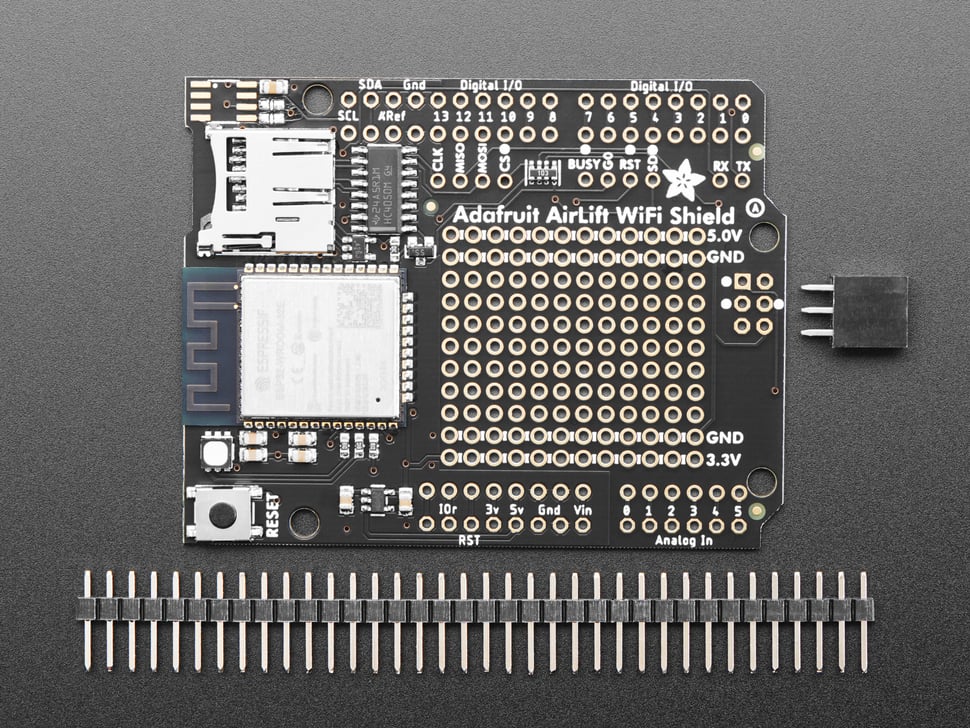

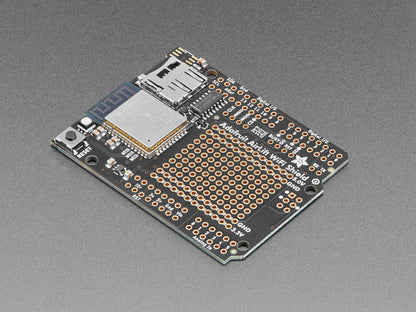

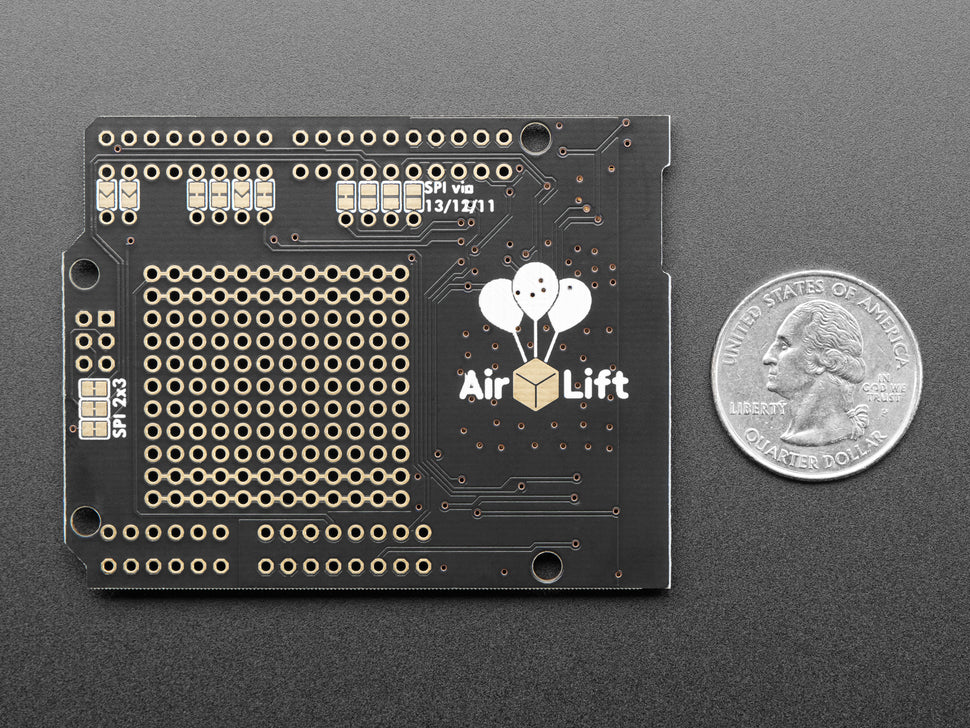

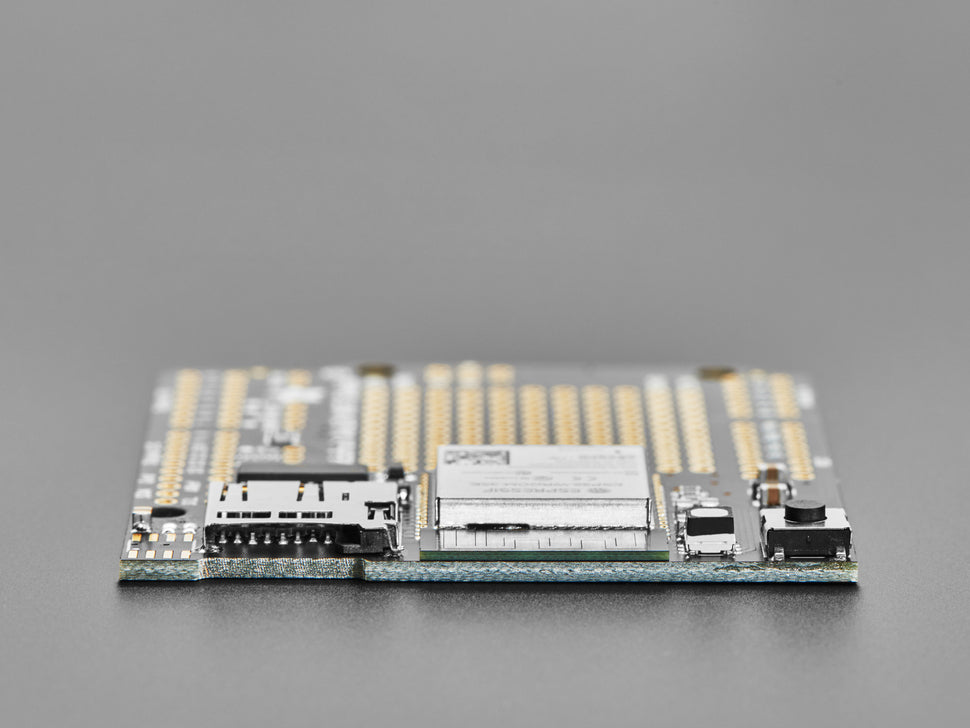

Adafruit AirLift Shield - ESP32 WiFi Co-Processor

Give your Arduino project a lift with the Adafruit AirLift Shield - a shield that lets you use the powerful ESP32 as a WiFi co-processor. Perfect for Arduino-compatible boards like the Metro M4 or Metro 328 without built-in WiFi.

This shield offloads WiFi connectivity tasks to the ESP32, simplifying your code and enabling high-speed data transfer over 8MHz SPI with TLS/SSL encryption and pre-burned root certificates.

Features include:

• ESP32 WiFi co-processor module
• Separate 3.3V regulator
• Tri-state MOSI chip for SPI bus sharing
• Micro SD card socket for hosting or storing internet data
• Compatible with 3V or 5V Arduino and CircuitPython (requires SAMD51/Cortex M4 minimum)

This shield comes fully assembled, tested, and pre-programmed with ESP32 SPI WiFi co-processor firmware compatible with Arduino and CircuitPython. Note: Arduino '328/32u4 have limited RAM for complex tasks or simultaneous SD card use. For best results, use Metro M0 or M4.

Technical Details:

• Product Dimensions: 68.6mm x 53.4mm x 4.8mm (2.7" x 2.1" x 0.2")
• Product Weight: 14.2g (0.5oz)
• Updated silkscreen with Adafruit Pinguin font since November 2022

Note: Enterprise WiFi connections are not supported at this time.

For schematics, files, and to get started, visit our learning guide.
