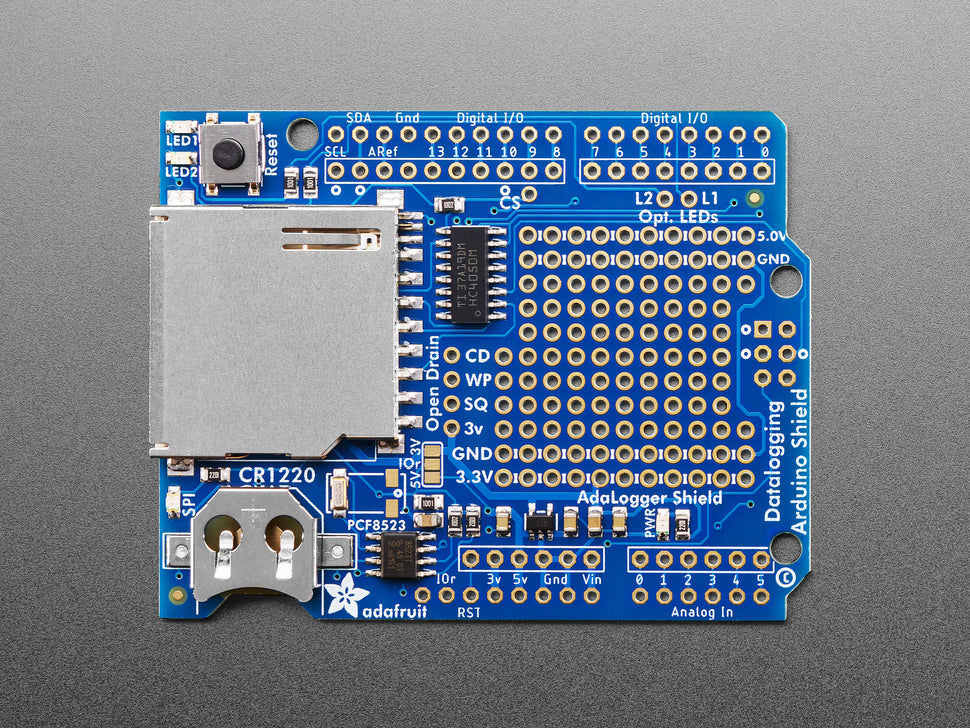

Adafruit Assembled Data Logging Shield for Arduino

The Adafruit Assembled Data Logging Shield is a versatile and well-designed Arduino shield perfect for logging data quickly and easily. It features an SD card slot compatible with FAT16 and FAT32 formatted cards, with 3.3V level shifting to protect your SD cards. An onboard Real Time Clock (RTC) keeps accurate time, even when power is lost, with a battery backup that lasts for years. The shield includes libraries and example code for both the SD card and RTC, enabling fast project development.

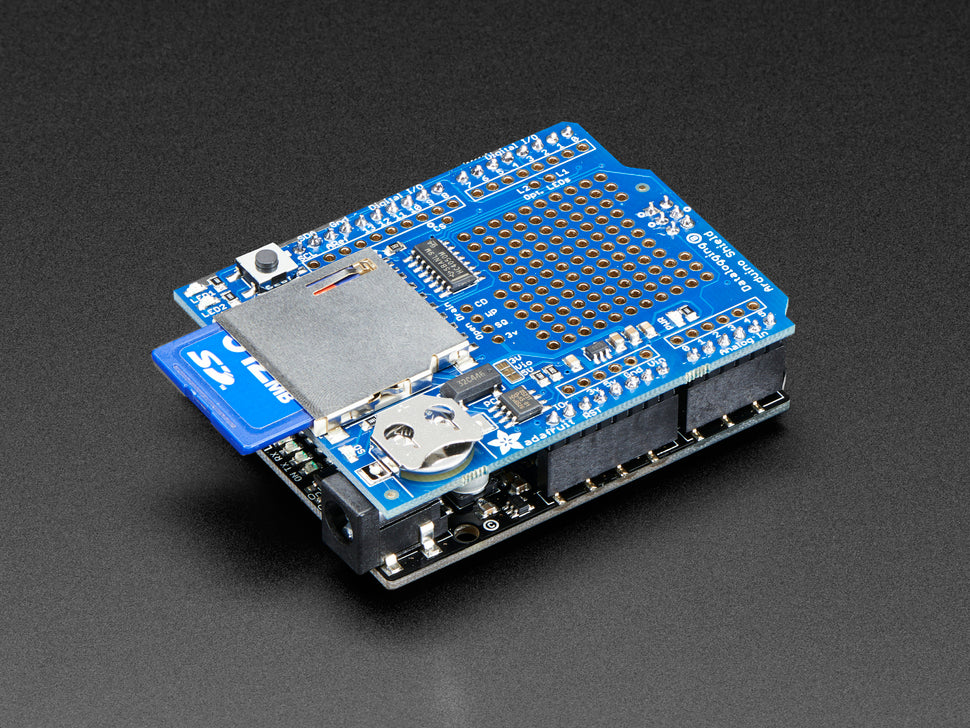

This latest version is fully compatible with Arduino R3 standard and works with various Arduino models including UNO, Leonardo, Mega, Zero, and Due with support for analog channels ranging from 4 to 16 depending on the board. It features a prototyping area for custom circuitry or sensors and has a built-in 3.3V regulator to provide reliable power for the SD card.

• Compatible with FAT16 and FAT32 SD cards with 3.3V level shifting
• Real Time Clock (RTC) for timestamping data with long-lasting battery backup
• Includes libraries and sample code for easy setup and use
• Prototyping area for adding circuits or sensors
• Onboard 3.3V regulator for stable power supply
• Supports multiple Arduino boards including UNO, Leonardo, Mega, Zero, and Due

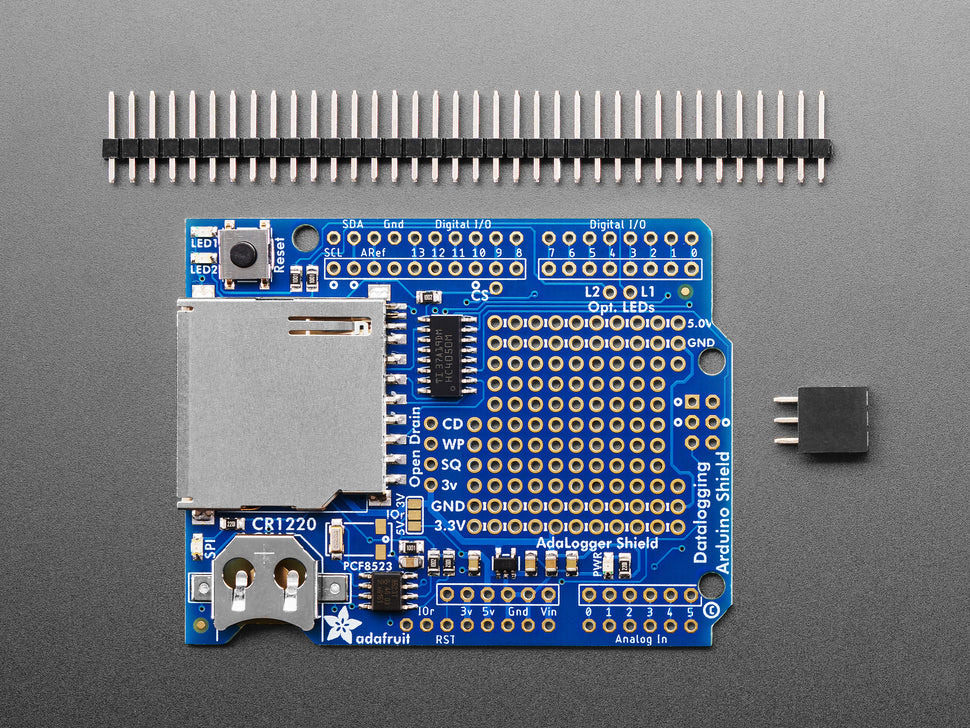

This shield comes assembled and tested but does not include headers, Arduino board, SD card, or coin cell battery. Basic soldering skills are required to install headers.
