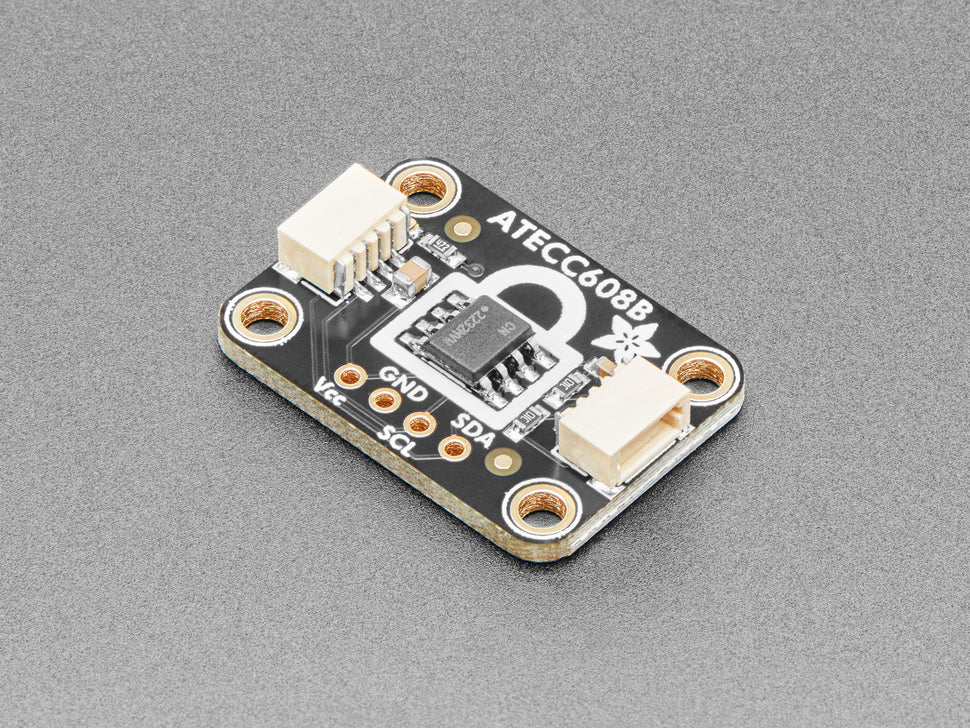

Adafruit ATECC608 Breakout Board - STEMMA QT / Qwiic

The Adafruit ATECC608 Breakout Board is a compact crypto-authentication chip breakout with STEMMA QT / Qwiic connectors designed for secure key storage and cryptographic operations. It provides strong hardware security features to keep your private keys safe with a challenge-response mechanism that prevents secret key extraction even if the device firmware is accessible.

This breakout uses the latest Microchip ATECC608 chip which supports ECDH, AES-128 encrypt/decrypt/signing, hardware random number generation, SHA-256, and HMAC hashing, making it ideal for IoT and security-conscious projects. The board is compatible with 3.3V or 5V power/logic and connects via I2C (fixed address 0x60) with recommended 400kHz bus speed for reliability.

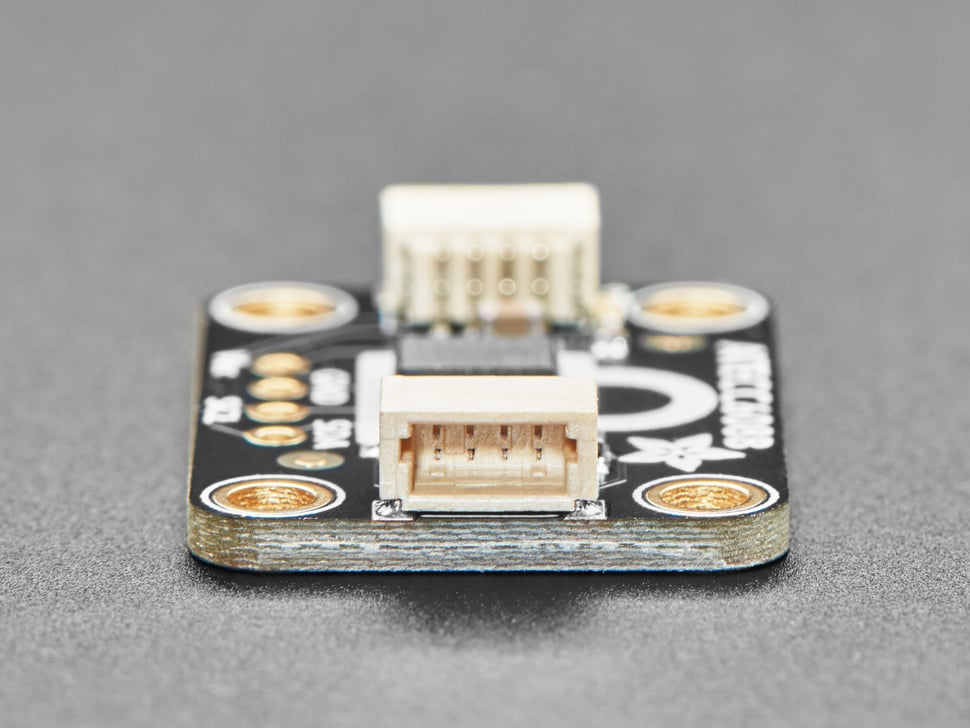

The board includes required support circuitry and a STEMMA QT connector for easy plug-and-play compatibility with other STEMMA QT / Qwiic enabled boards and peripherals without soldering.

• Microchip ATECC608 crypto-authentication chip
• I2C interface at fixed address 0x60, recommended 400kHz
• Supports ECDH, AES-128, SHA-256, HMAC, and hardware RNG
• Compatible with 3.3V and 5V logic levels
• STEMMA QT / Qwiic connector for easy connectivity
• Compact breakout PCB (25.5mm x 17.7mm x 4.7mm)
• Lightweight - 1.8g

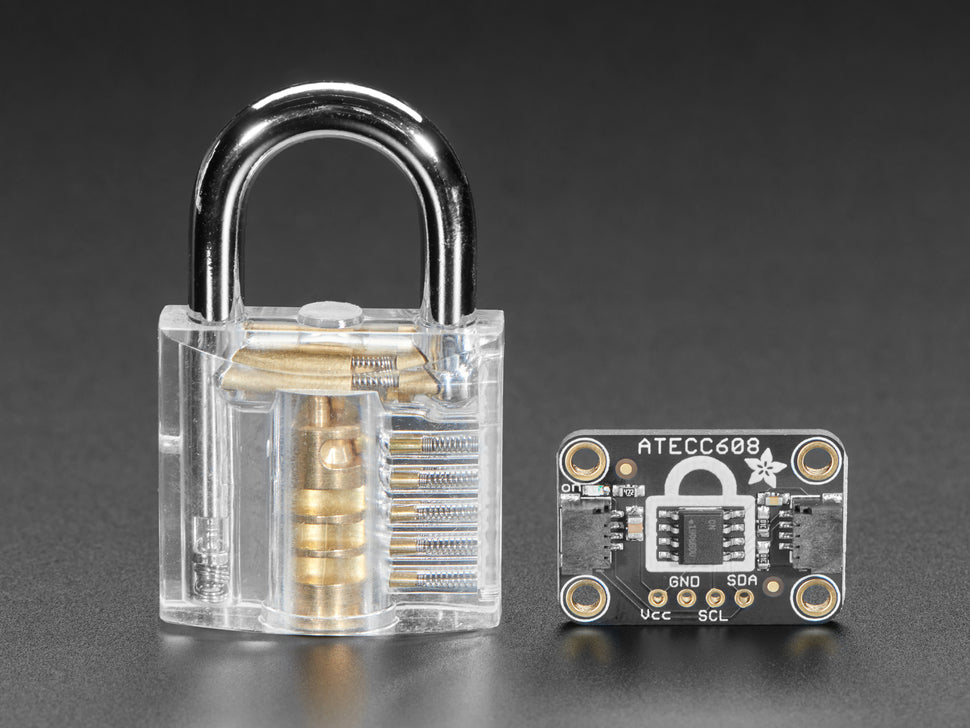

Note: Clear Padlock and STEMMA QT cable sold separately. Refer to Microchip datasheets for ATECC508A and ATECC608A for detailed chip information. Software support available via Arduino and Microchip Cryptoauthlib libraries.

This product is currently Out of Stock. You can purchase from DigiKey or join the notification list to receive an email when available.
