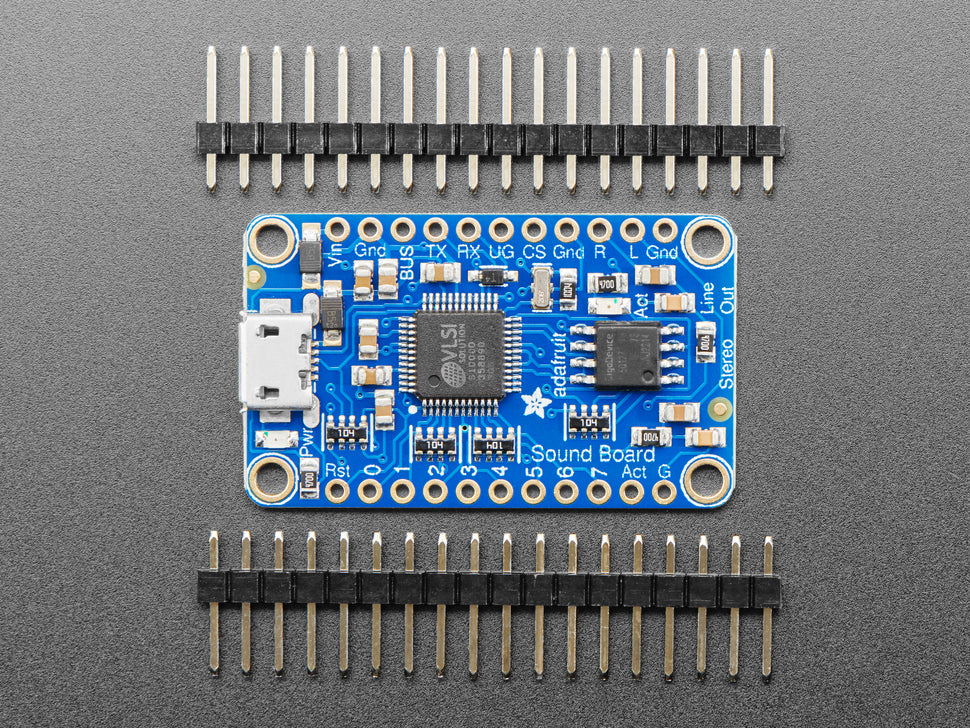

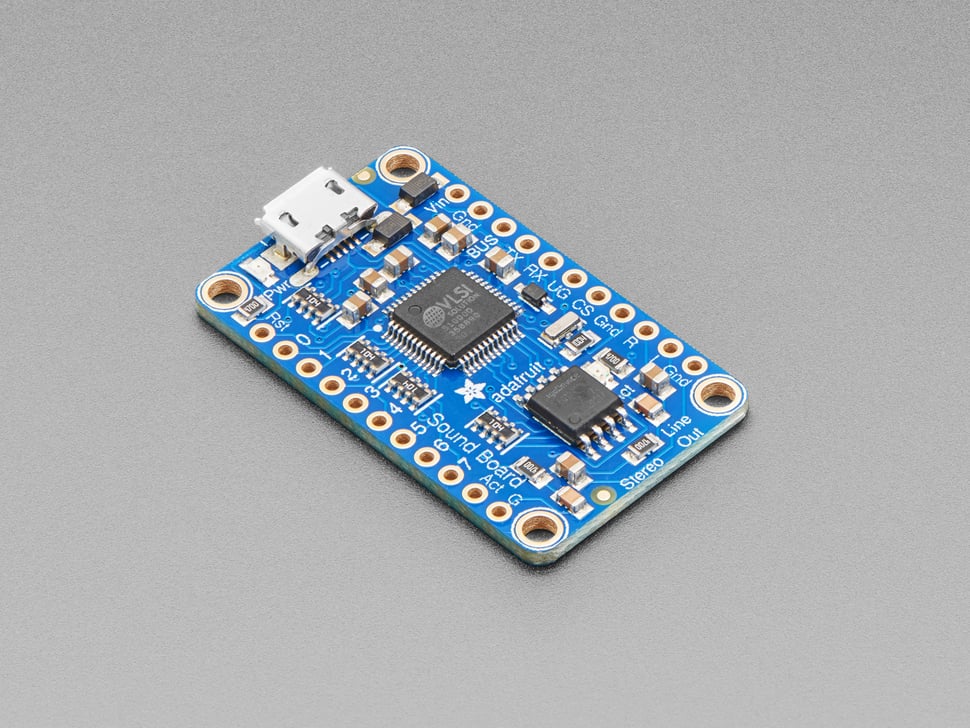

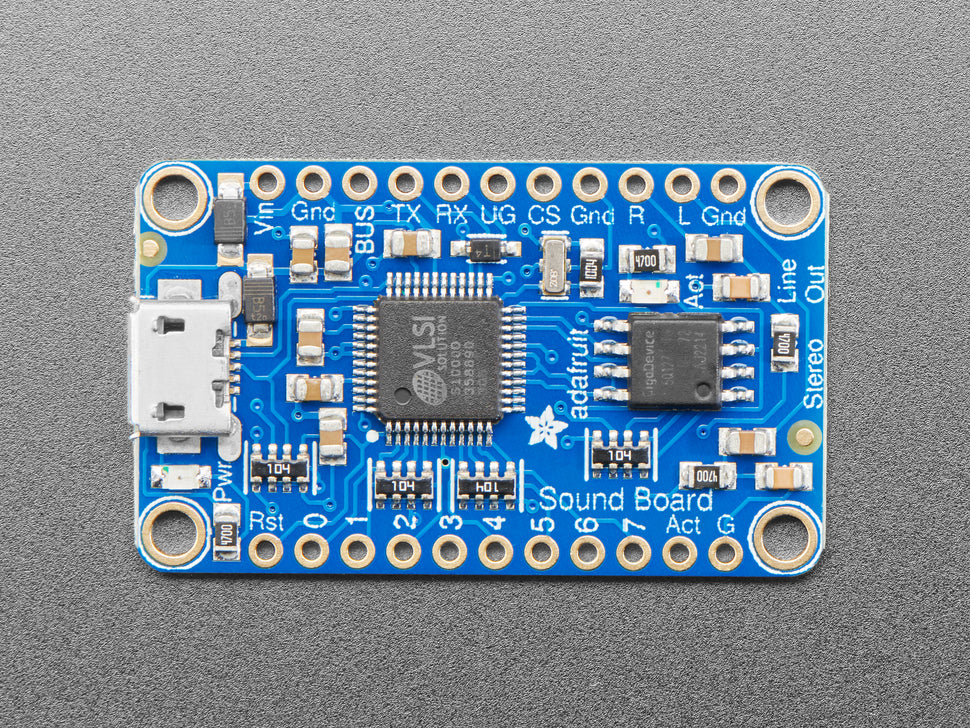

Adafruit Audio FX Mini Sound Board - WAV/OGG Trigger 16MB Flash

The Adafruit Audio FX Mini Sound Board is a compact and powerful audio effects trigger board designed for adding sound effects to your projects without needing an Arduino or programming skills.

Key Features:

• No microcontroller required: Standalone operation with just a 3 to 5.5V DC power source.
• Compact Size: Small footprint of 1.5" x 0.9" (38mm x 23mm).
• Built-In Storage: 16MB of onboard flash memory for approximately 15 minutes of compressed stereo audio.

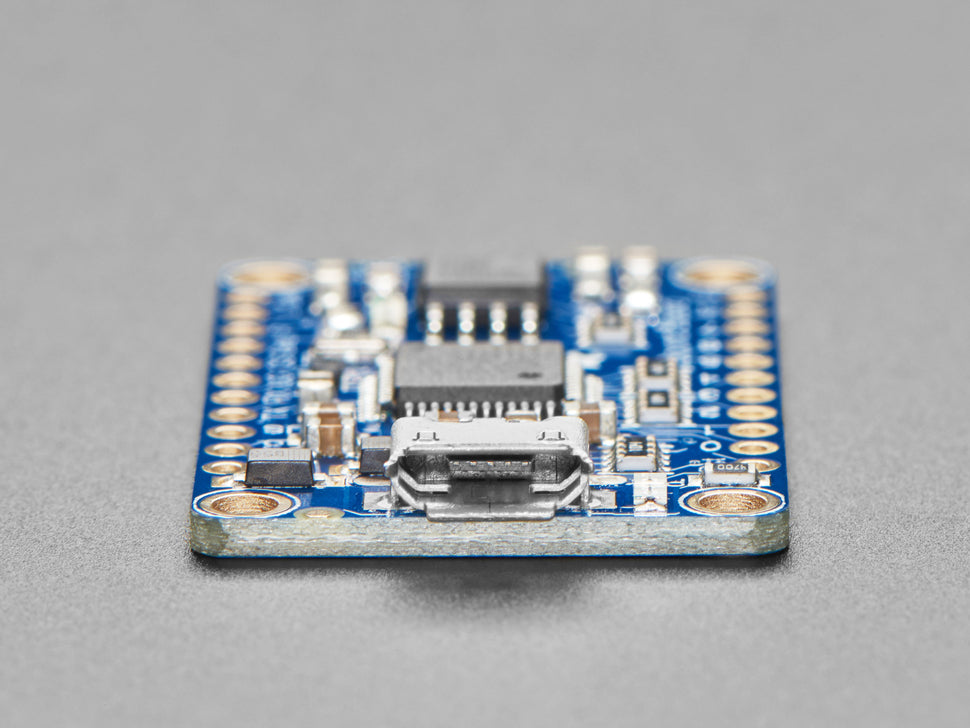

• USB Mass Storage: Easily drag and drop audio files via micro USB connection.
• Audio Formats: Supports compressed OGG and uncompressed WAV files with high quality 44.1KHz 16-bit stereo output.
• Multiple Triggers: Supports up to 8 triggers, each able to play different sound files.
• Stereo Line Out: Connect headphones, powered speakers, or amplifiers for audio output.

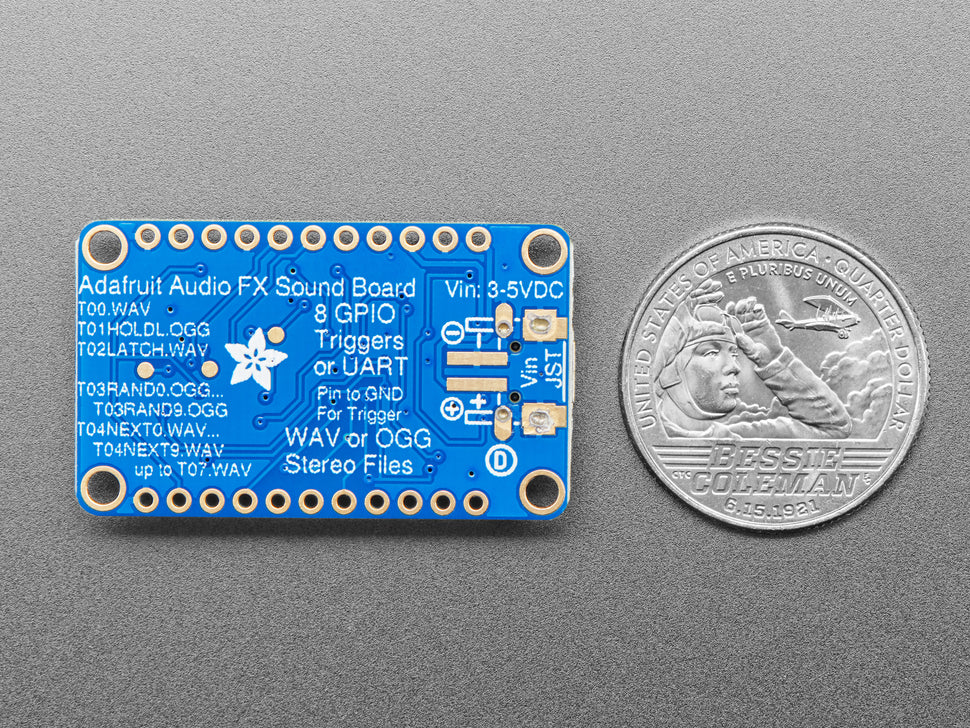

• Flexible Trigger Effects: Five types of triggers including basic, hold looping, latching loop, play next, and play random are easily implemented by file naming conventions.

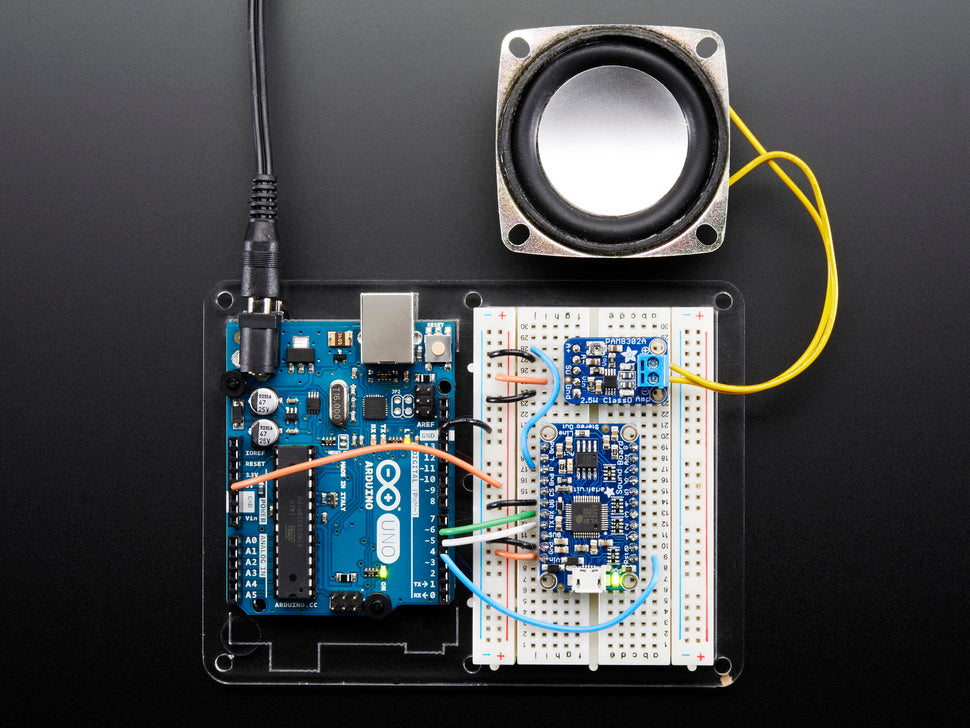

• UART Control: Control over serial UART at 9600 baud for playback and volume (Arduino library available).
• Lightweight: Weighs approximately 3.6 grams.

This board is ideal for props, costumes, toys, and portable projects needing straightforward sound playback without complexity or programming.

Technical Specifications:

• Board Dimensions: 38mm x 23mm x 4mm (1.5" x 0.9" x 0.2")
• Weight: 3.6 grams

Learn more through the Adafruit Audio FX Sound Board tutorial which includes schematics, datasheets, and project ideas.

Note: This product is currently out of stock.
