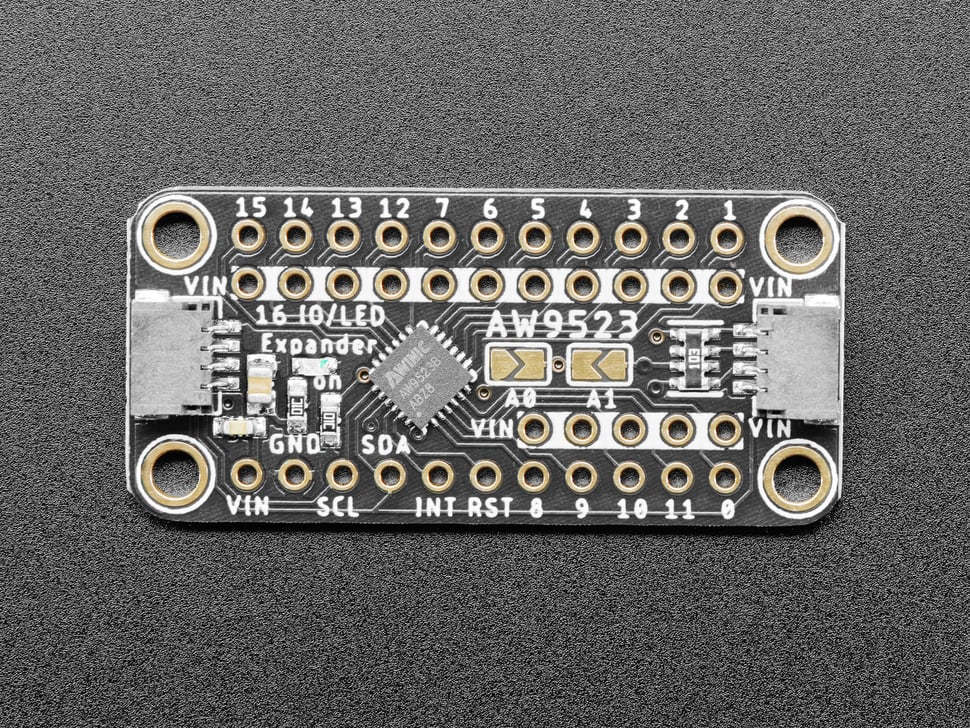

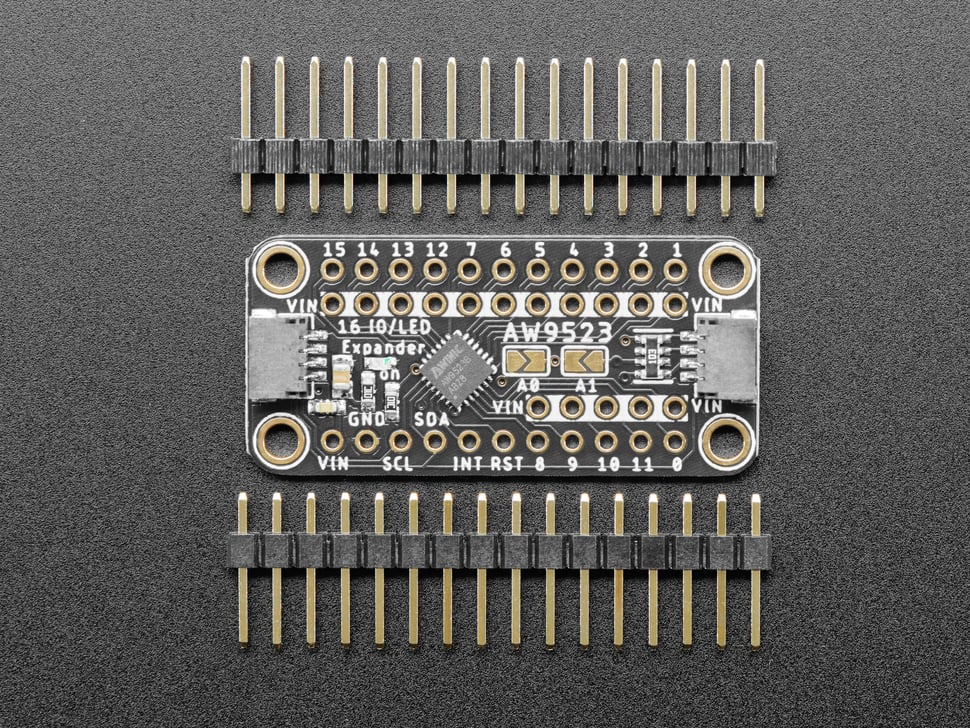

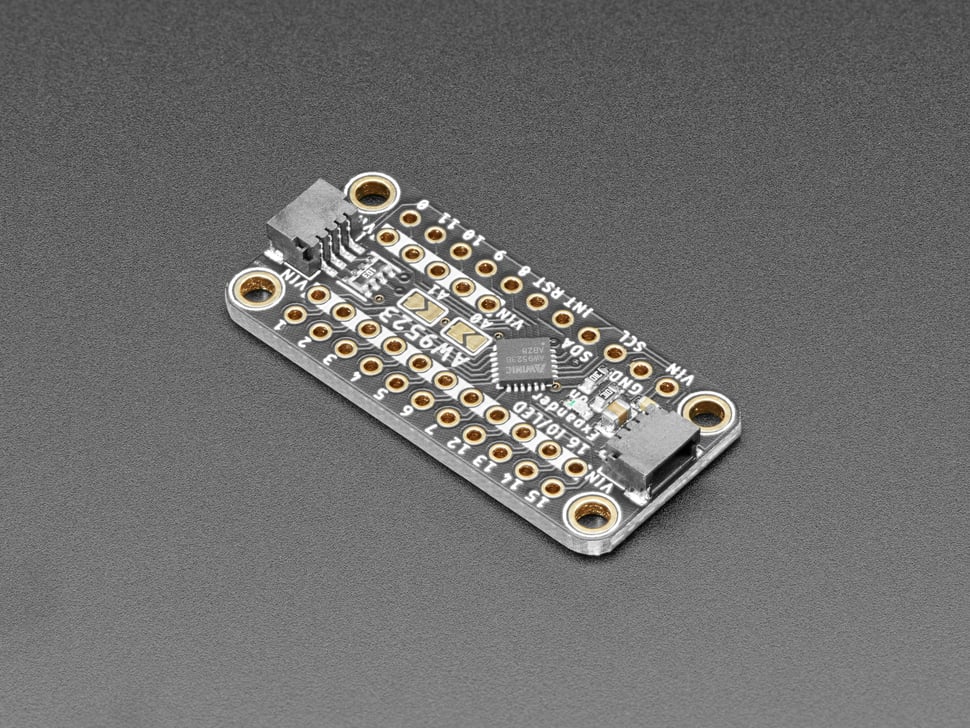

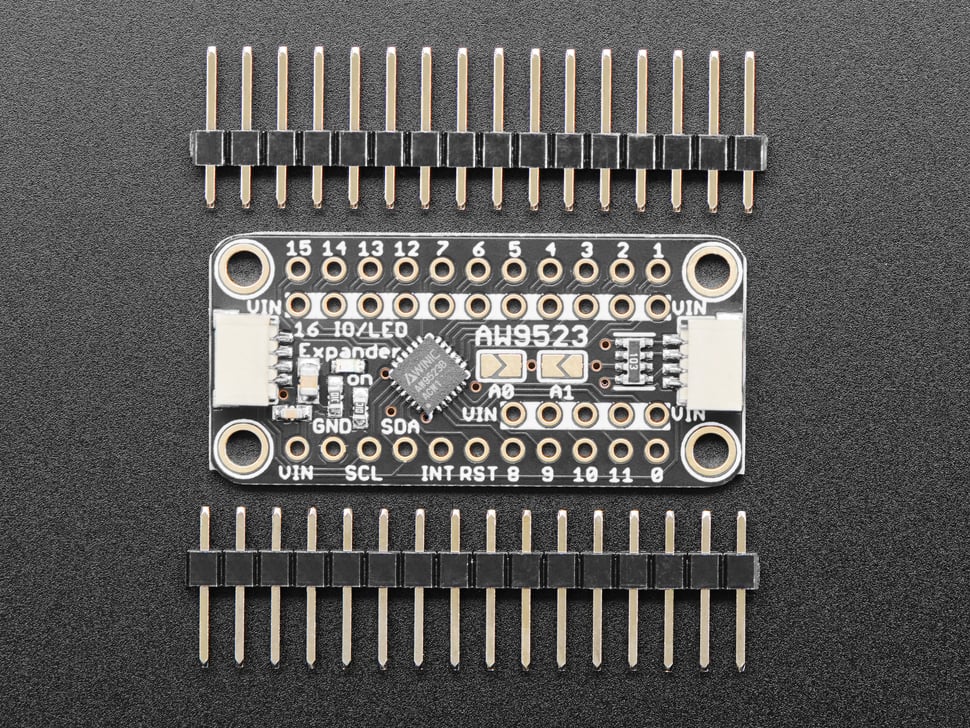

Adafruit AW9523 GPIO Expander and LED Driver Breakout - STEMMA QT / Qwiic

Expand your project possibilities with the Adafruit AW9523 GPIO Expander and LED Driver Breakout - a compact and powerful I2C expander with multiple features to control GPIO pins and LEDs efficiently.

This breakout board allows you to expand the number of GPIO pins in your project via an I2C interface, making it ideal for adding more buttons or LEDs without upgrading to a larger board. Featuring 16 multifunction I/O pins configurable as inputs or outputs, the AW9523 supports LED current-source dimming and GPIO modes with 256 steps of linear dimming resolution.

• Affordable 16 I/O pins, doubling most boards' GPIO count
• Four selectable I2C addresses to connect up to 4 expanders on one bus
• Each pin configurable as input or output independently
• IRQ output for input pin change alerts
• 8-bit linear constant-current LED dimming for resistor-less LED connection
• First 8 pins can be configured as open drain as a group
• No internal pull-up or pull-down resistors; external resistors required if needed
• Compatible with Arduino and CircuitPython/Python libraries for easy integration

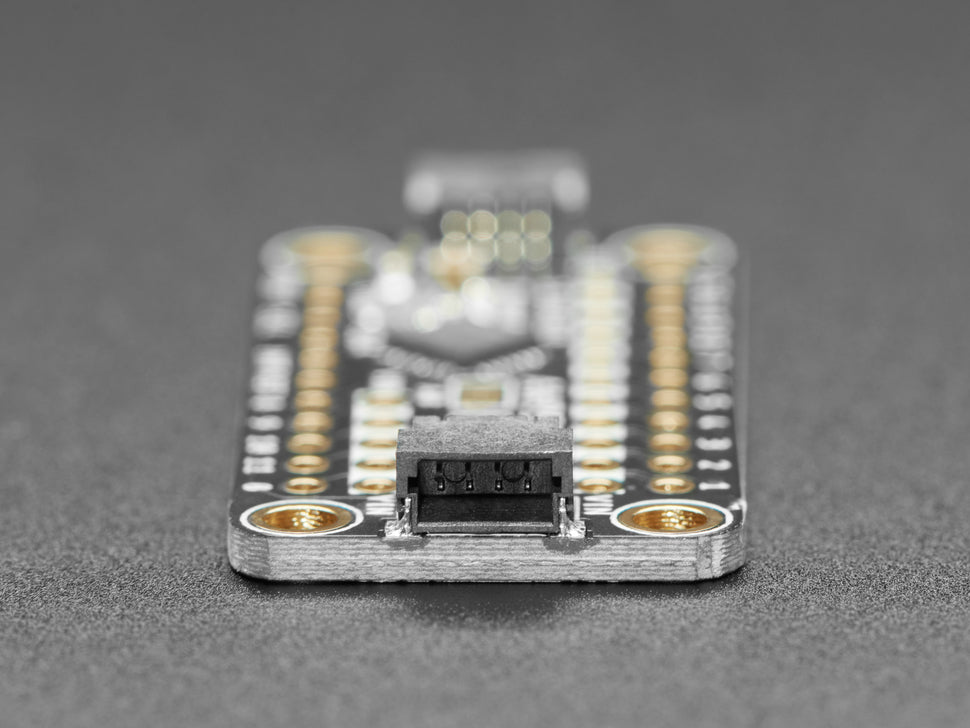

• STEMMA QT / Qwiic form factor for seamless I2C connectivity using compatible cables (sold separately)

Technical Details:

• 16 multifunction I/O pins
• 256 steps linear LED dimming
• Interrupt support with 8us deglitch
• Standard I2C interface with address options 0x58, 0x59, 0x5A, 0x5B
• Operating voltage range: 2.5V to 5.5V
• ESD protection: ±4000V HBM

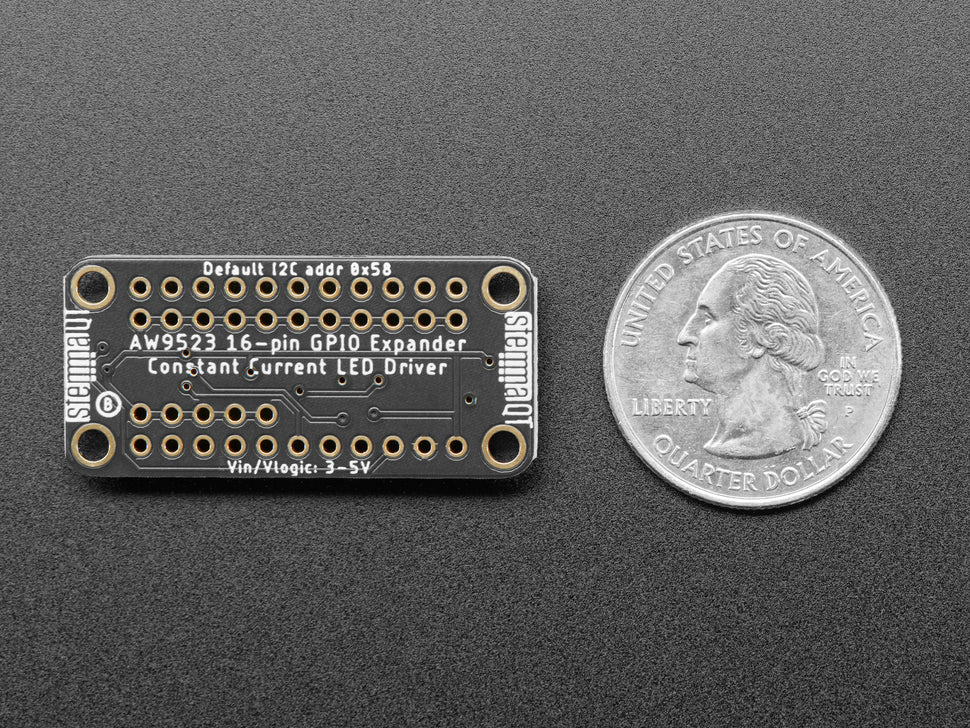

• Dimensions: 38.0mm x 17.8mm x 4.5mm
• Weight: 2.5g

Note: The breakout does not include STEMMA QT cables. JST connector color may be off-white or black.
