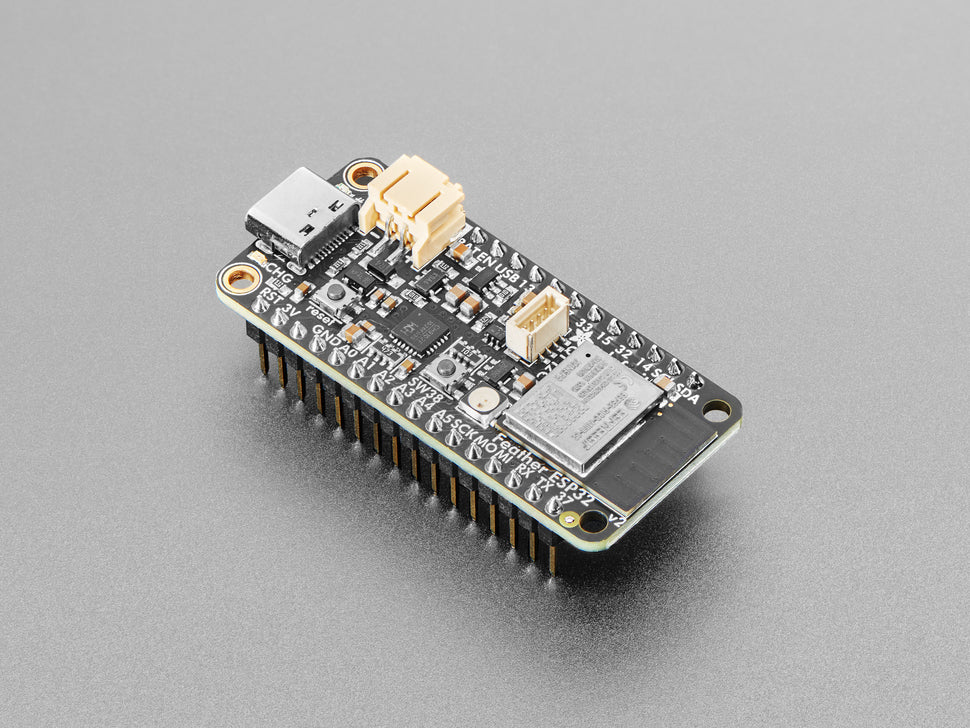

Adafruit ESP32 Feather V2 with Headers - 8MB Flash + 2MB PSRAM - STEMMA QT

The Adafruit ESP32 Feather V2 is a powerful and versatile development board designed with the ESP32 Pico module. This version features pre-soldered headers for immediate breadboard compatibility and includes significant upgrades over the original Feather.

The board combines WiFi and Bluetooth® support with enhanced memory, low power consumption, and convenient features for makers and developers.

• ESP32 Dual core 240MHz Xtensa® processor for robust performance
• 8MB Flash and 2MB PSRAM providing ample space for data buffers and complex tasks

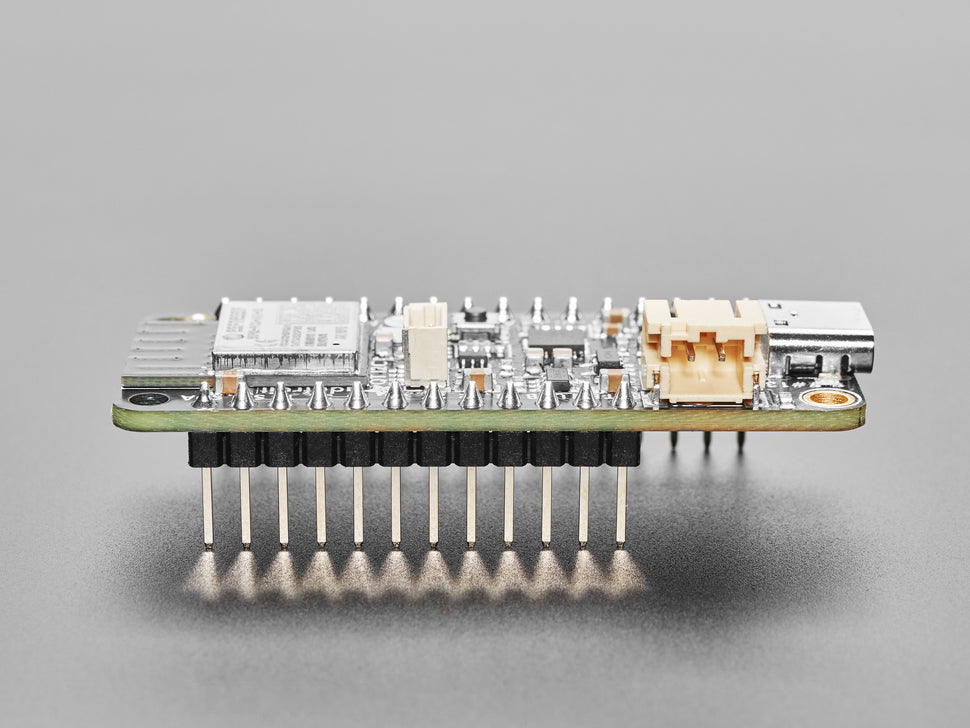

• Pre-soldered headers for solder-free usage on breadboards
• Miniature module with FCC/CE certification
• USB Type C connector for modern connectivity
• Additional user button tactile switch on input pin 38
• Integrated NeoPixel mini RGB LED with controllable power
• STEMMA QT port for plug-and-play I2C sensor connections with switchable power supply
• Built-in LiPoly battery charging and monitoring circuit
• Low power operation capability, drawing as low as 70µA in deep sleep mode
• Improved USB to serial converter (CH9102F) for fast and reliable firmware uploads

The board maintains compatibility within the Feather ecosystem, allowing seamless integration with the wide range of FeatherWings and accessories. Note that some pin assignments have changed from the original Feather V1; ensure firmware and code use updated pin mappings or names.

This version is shipped fully assembled and tested. Battery and USB cable are not included but available separately.
