Adafruit ESP32-S2 Reverse TFT Feather with w.FL Antenna

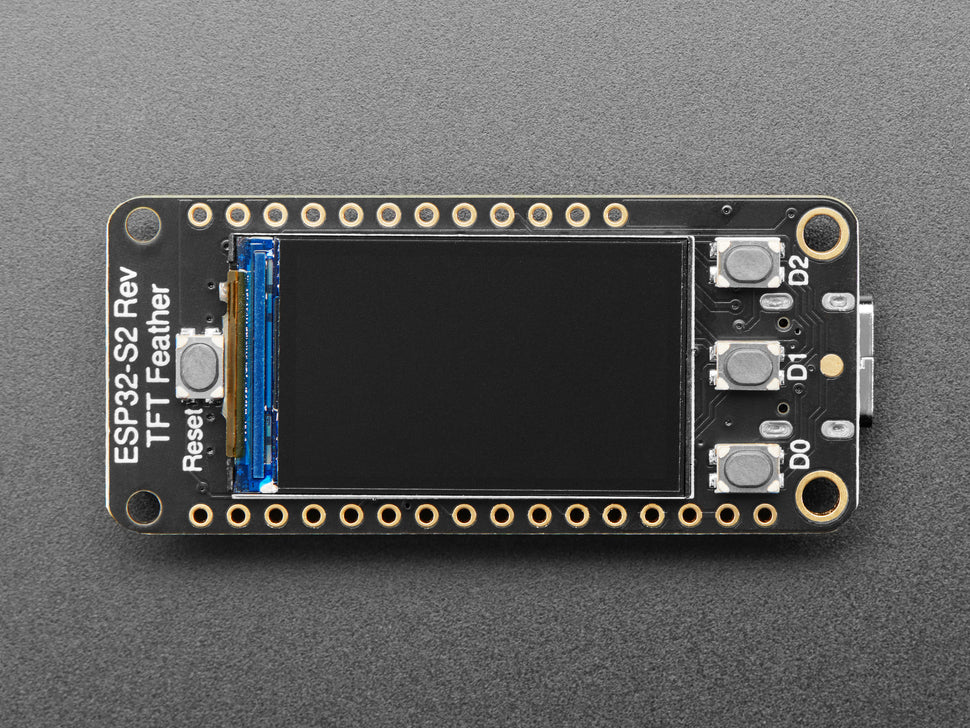

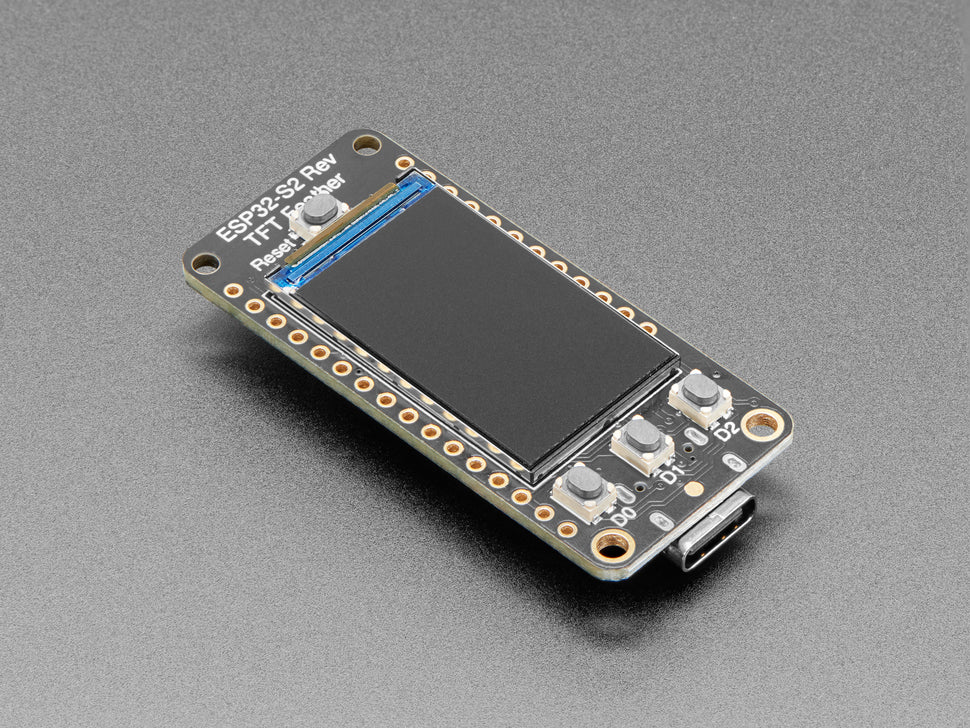

The Adafruit ESP32-S2 Reverse TFT Feather is a versatile development board featuring the ESP32-S2 240MHz Tensilica processor with native USB capability. This unique version places a bright and colorful 1.14" IPS TFT display with 240x135 pixels on the reverse side, making it ideal for panel-mounted projects. It supports USB-C power or LiPoly battery input and includes built-in battery charging and monitoring.

Perfect for IoT and wearable electronics projects, this Feather includes 4 MB flash and 2 MB PSRAM, enabling large data buffers. Native USB allows it to function as keyboard, mouse, MIDI, or disk drive. The board also supports Arduino and CircuitPython for easy development.

Features:

• ESP32-S2 240MHz Tensilica processor with native USB
• Mini module with FCC/CE certification, 4 MB flash and 2 MB PSRAM
• 1.14" Color IPS TFT display, 240x135 pixels (ST7789 chipset)
• Three user tactile buttons (D0/BOOT0, D1, D2)
• Power via USB-C or LiPoly battery with built-in charging
• LiPoly battery monitor with MAX17048 chip for voltage and state of charge via I2C
• Reset and DFU (BOOT0) buttons
• Serial debug output pin
• STEMMA QT connector with switchable power for I2C devices
• Status NeoPixel and LEDs with pin-controlled power for low power usage
• Low power consumption: ~40-50uA in deep sleep mode
• Compatible with Arduino and CircuitPython

Technical Details:

• Dimensions: 52 mm x 23 mm x 9.7 mm (2.0" x 0.9" x 0.4")
• Weight: 8.2 g

This board is out of stock, but you can sign up to be notified when it becomes available.
