Adafruit ESP32-S3 Reverse TFT Feather with w.FL Antenna

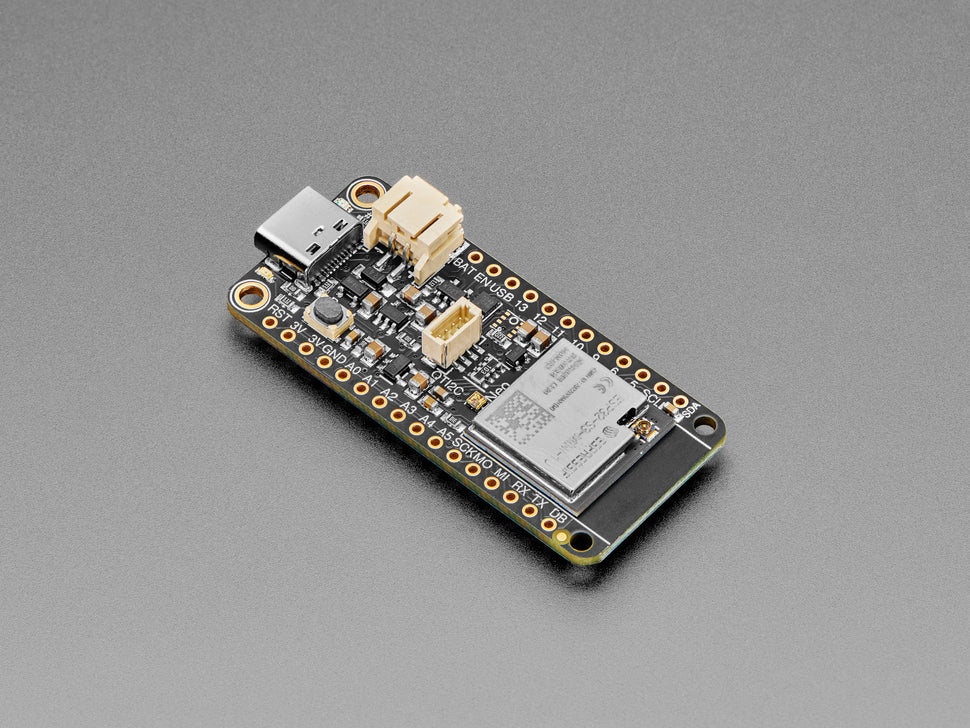

The Adafruit ESP32-S3 Reverse TFT Feather with w.FL Antenna is a versatile development board designed for panel-mounted projects, featuring a 240x135 IPS color TFT display mounted on the back-side, ideal for all-in-one display interfaces powered by the ESP32-S3 WiFi module.

This Feather board includes a native USB interface and is equipped with 4 MB Flash and 2 MB PSRAM, making it perfect for CircuitPython or Arduino use with low-cost WiFi connectivity. The ESP32-S3 SoC provides dual-core 240 MHz processing power, Bluetooth LE support, and advanced features such as AI acceleration and Time of Flight distance measurements.

The 1.14-inch 240x135 pixel IPS TFT display with ST7789 chipset ensures bright and colorful visuals viewable from any angle, while the w.FL antenna connector allows for external antenna connection (antenna and adapter sold separately).

Key features include three user tactile buttons, USB Type-C and LiPoly battery power options with built-in charging, a LiPoly battery monitor via MAX17048 chip, and a STEMMA QT I2C connector with switchable power for low power applications. Low power operation reaches about 40-50µA in deep sleep mode.

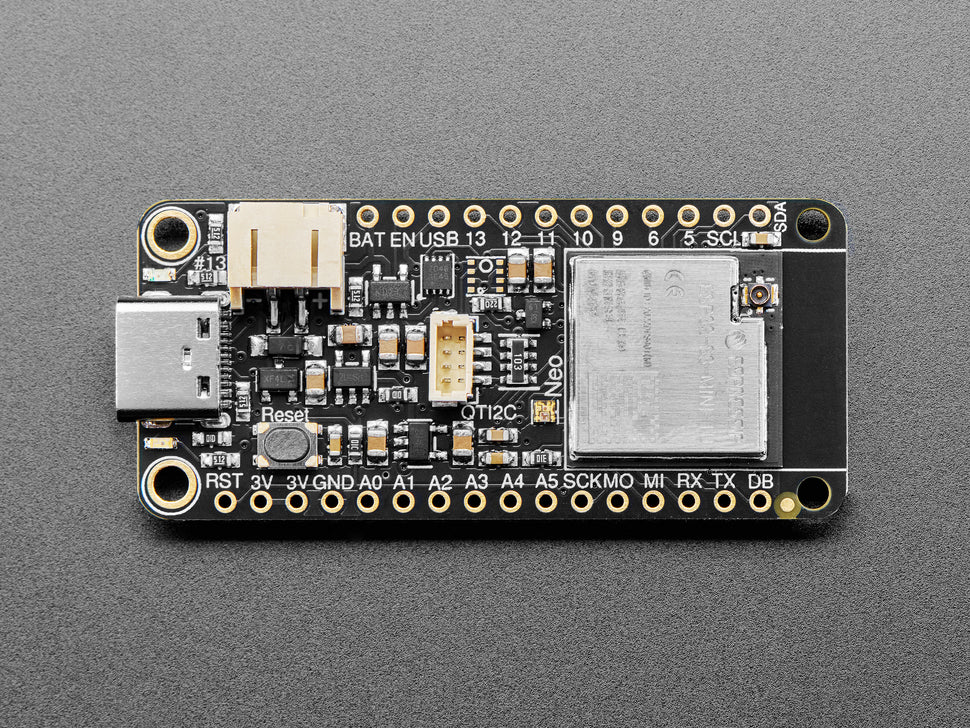

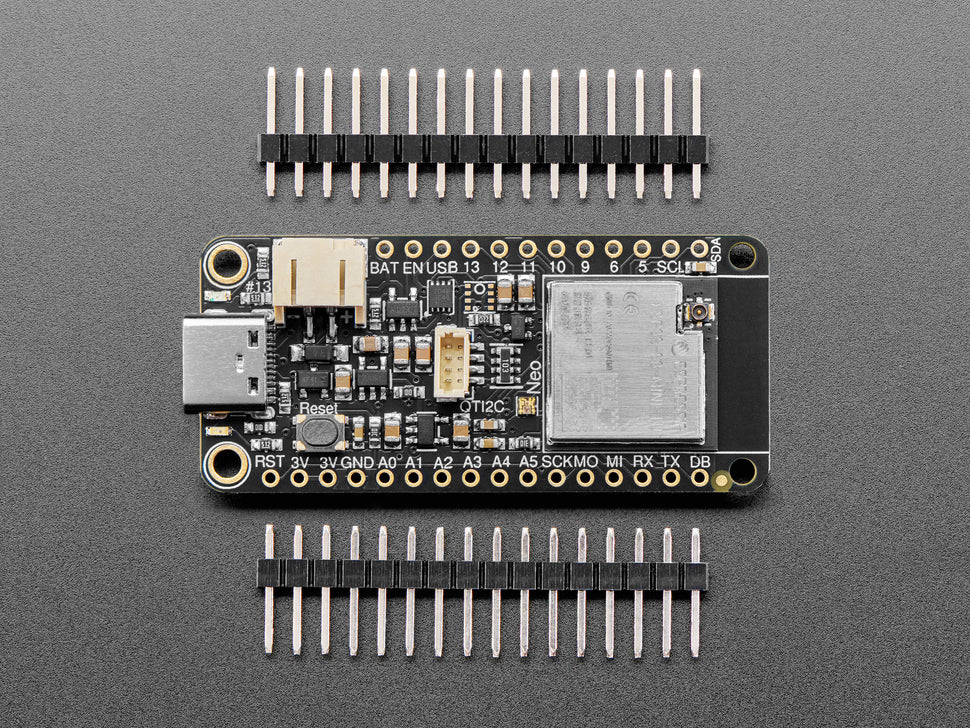

• ESP32-S3 dual-core 240MHz Tensilica processor with native USB for HID device emulation
• Mini module with FCC/CE certification, 4MB Flash, and 2MB PSRAM
• 1.14" IPS TFT color display (240x135 pixels) using ST7789 chipset

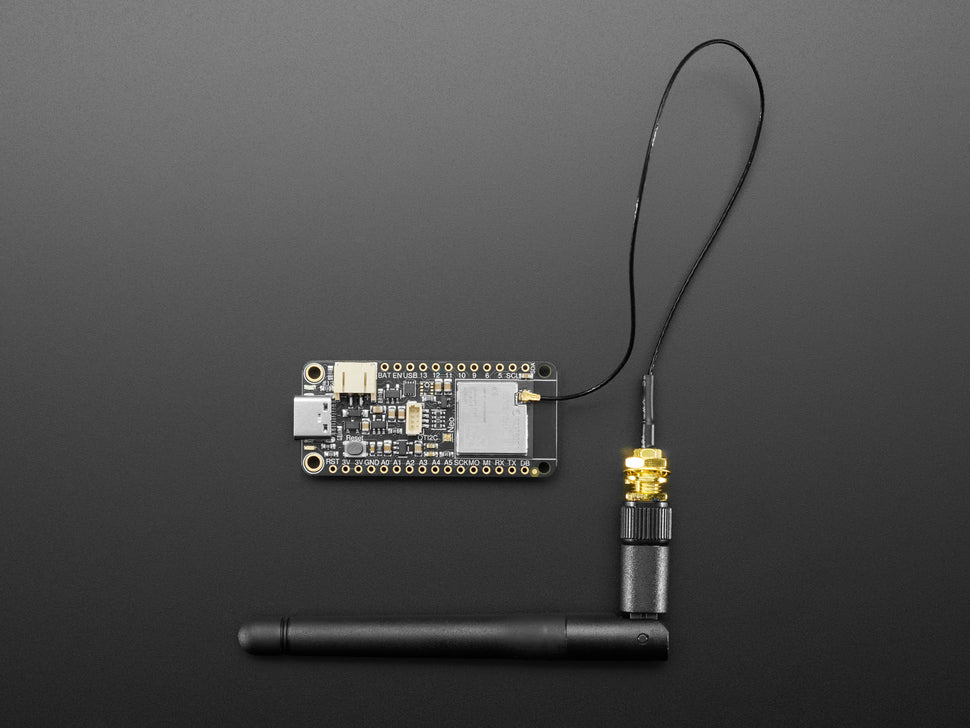

• w.FL external antenna connector (antenna not included)
• Three user tactile buttons (D0/BOOT0, D1, D2)

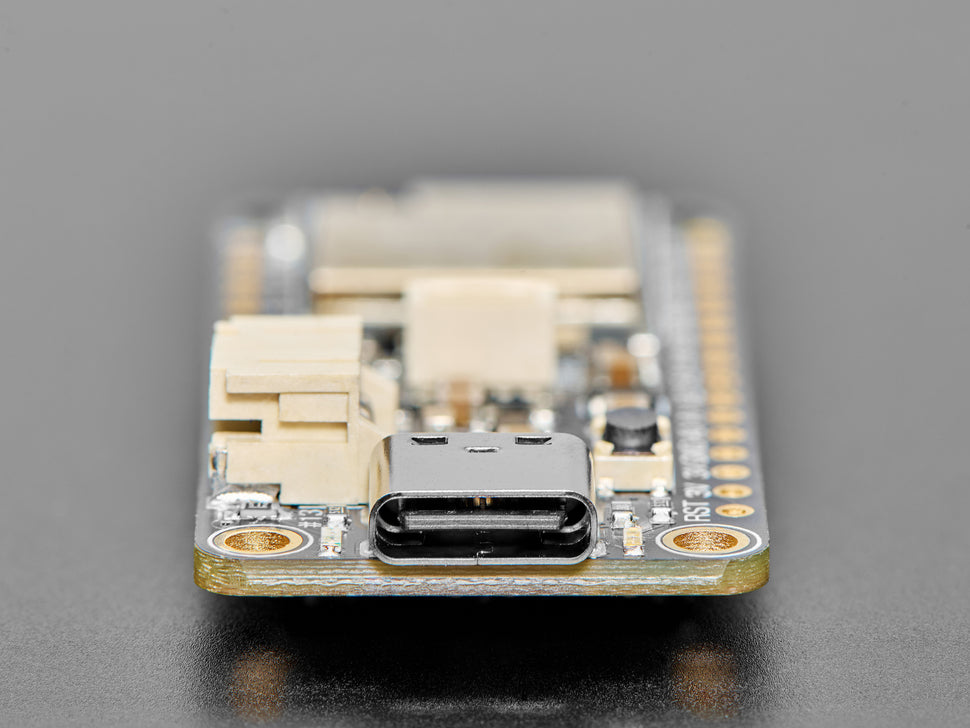

• Power options: USB Type-C or LiPoly battery with built-in charging
• LiPoly battery monitor chip (MAX17048) reporting charge status over I2C
• Reset and DFU (BOOT0) buttons for USB serial bootloader access
• Serial debug output pin for hardware debugging (optional)
• STEMMA QT connector for I2C devices with switchable power
• Onboard status and user LEDs plus NeoPixel with controllable power
• Low power design with deep sleep current approx 40-50µA
• Compatible with Arduino and CircuitPython

Note: The w.FL antenna and adapter are not included and must be purchased separately.

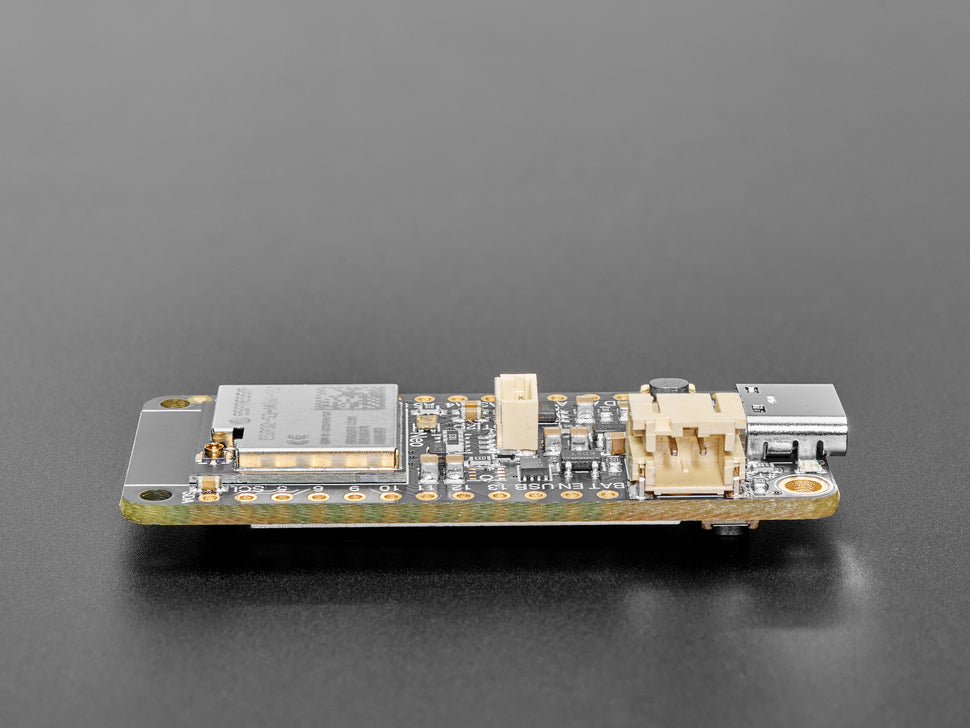

Dimensions: 52.2mm x 22.8mm x 9.8mm (2.1" x 0.9" x 0.4"), Weight: 8.0g.
