Adafruit FeatherWing OLED 128x32 OLED Add-on For Feather

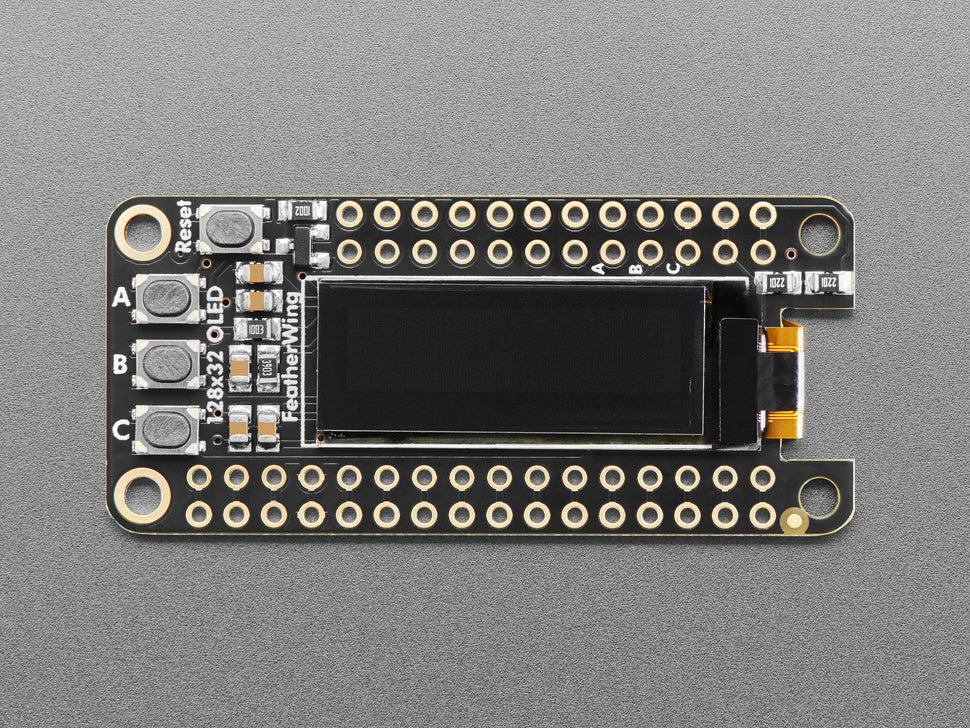

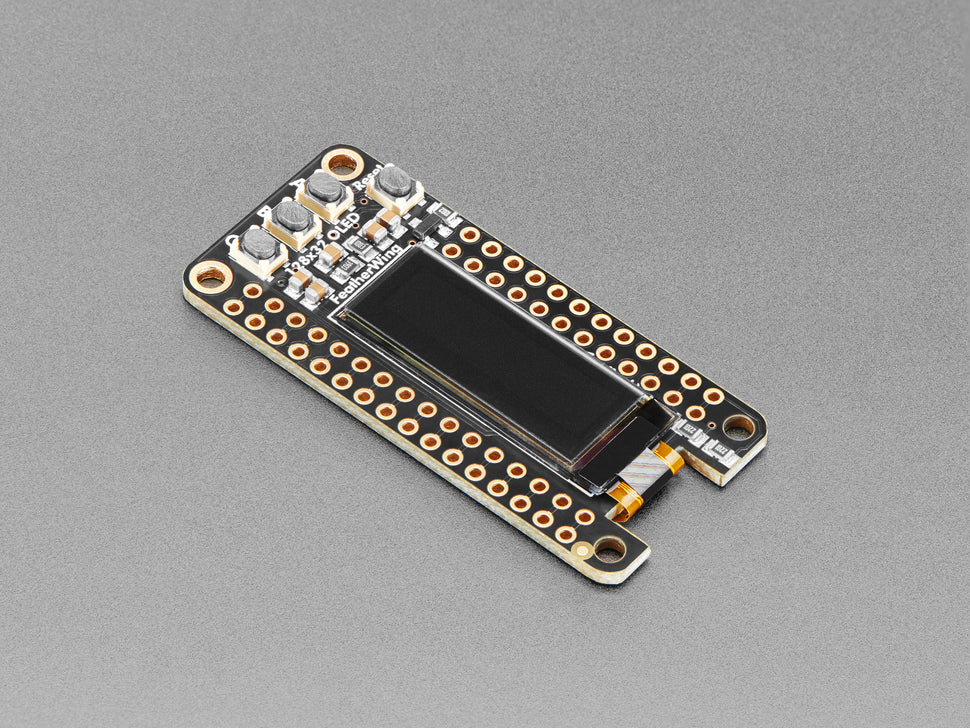

The Adafruit FeatherWing OLED is a compact 128x32 monochrome OLED display add-on designed for all Feather main boards. It features a crisp and clear OLED display of 128x32 white pixels, providing high contrast visuals without the need for backlighting—ideal for low-power usage.

This FeatherWing includes three user buttons labeled A, B, and C, enabling you to add a mini user interface to your Feather setup. The display and buttons interface through I2C, allowing compatibility with virtually all Feather boards and coexistence with other I2C FeatherWings.

Features include:

• 128x32 SSD1306 OLED display with I2C address 0x3C
• Three tactile user buttons (A, B, and C)
• Compact PCB size of 22.9mm x 50.9mm (~0.9" x 2")
• Lightweight design at 4.8 grams
• High contrast OLED display with no backlight required

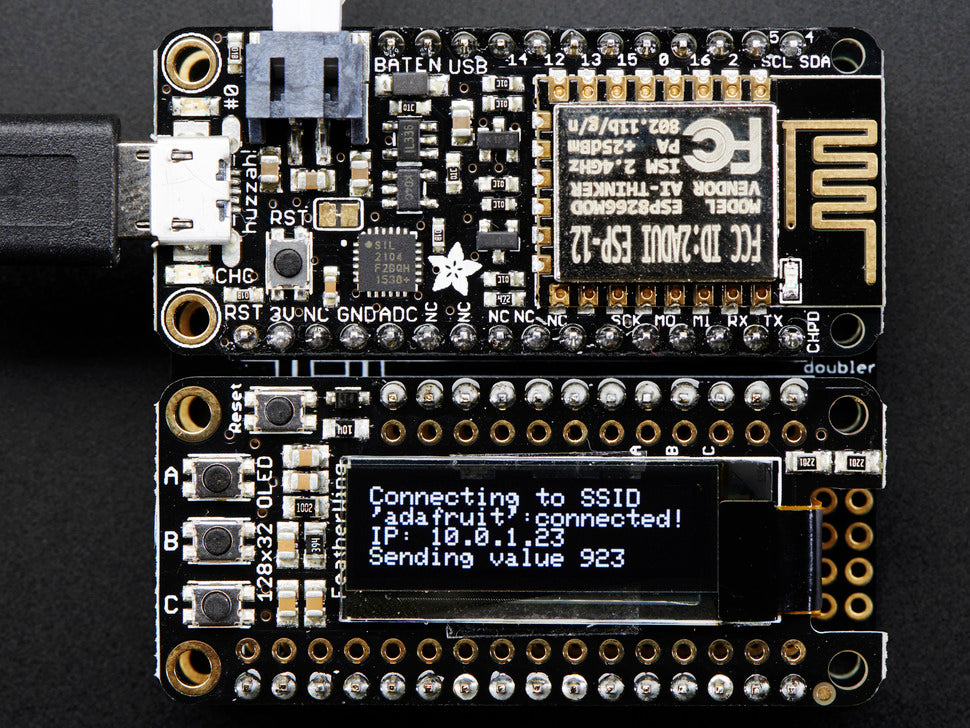

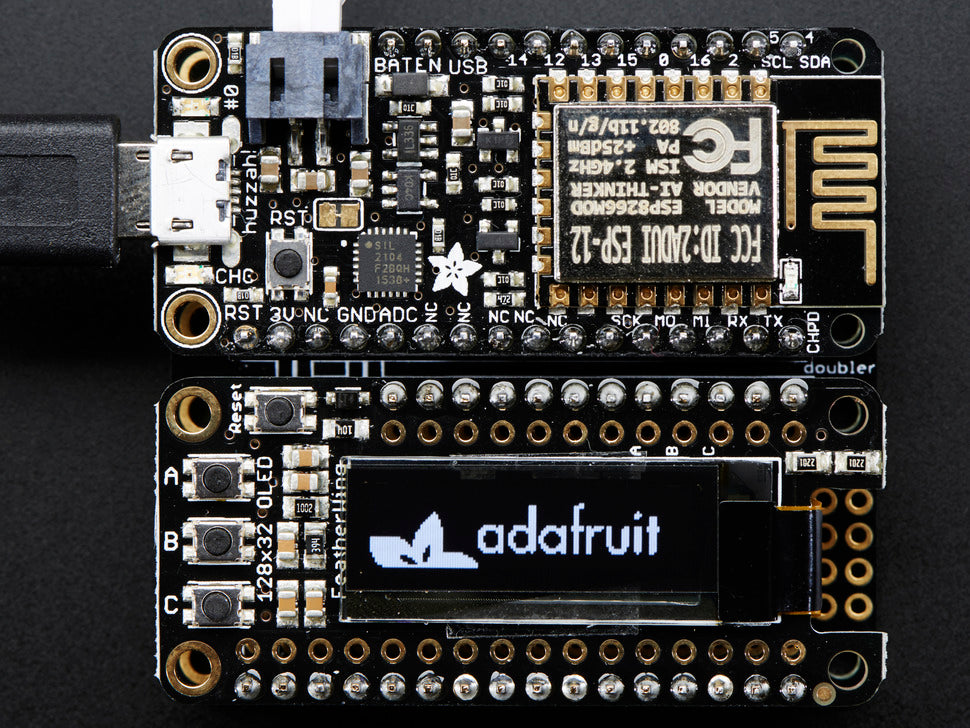

• Compatible with all Feather main boards via stacking or female headers
• Includes reset button

Please note that OLED pixels may dim if kept on continuously for over 1000 hours. To maintain uniform brightness, turn off the display pixels when not in use.

Get started quickly with complete tutorials, schematics, datasheets, EAGLE CAD files, and code examples provided in our product tutorial.
