Adafruit FeatherWing OLED - 128x64 OLED Add-on For Feather - STEMMA QT / Qwiic

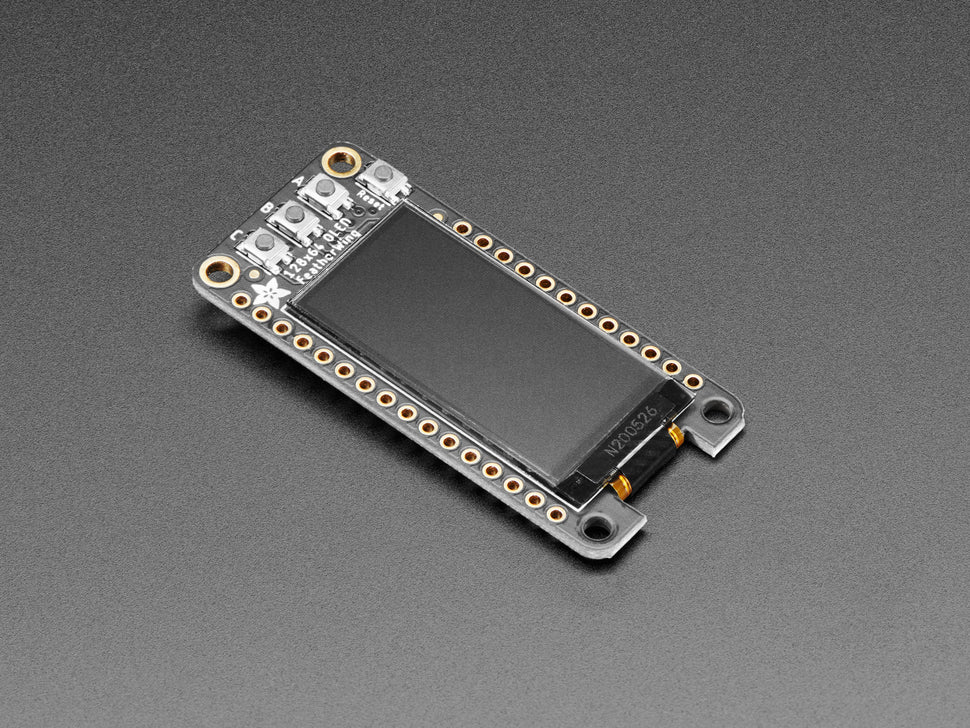

The Adafruit FeatherWing OLED - 128x64 OLED Add-on is a compact, high-contrast monochrome OLED display add-on designed to enhance any Feather main board. It features a crisp 128x64 resolution white OLED screen that requires no backlight, delivering sharp and vivid visuals with minimal power consumption.

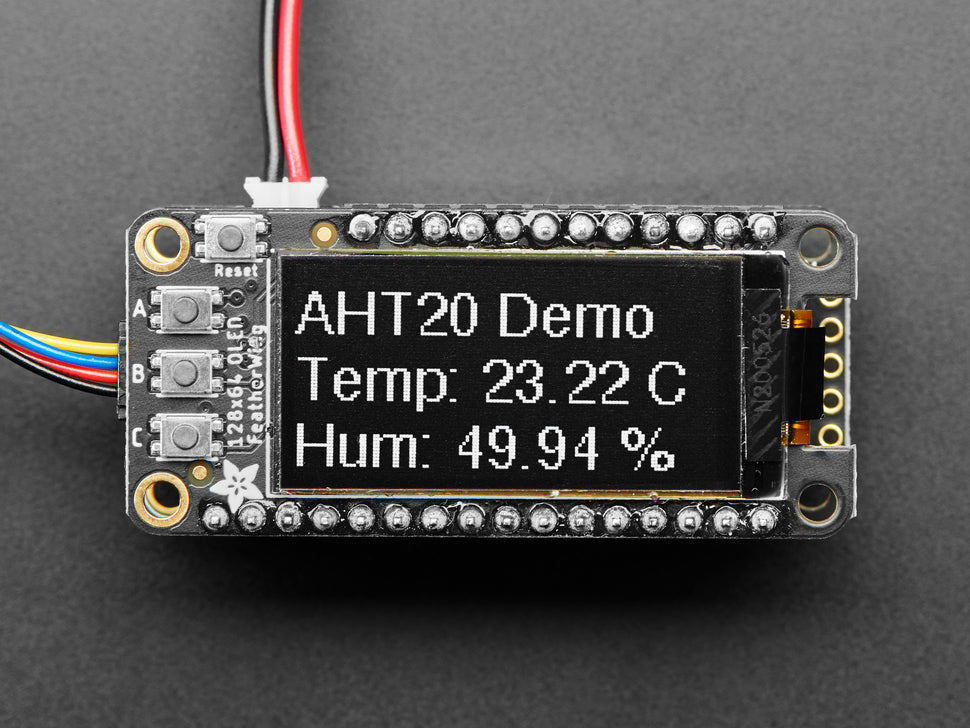

Integrated with the display are three user buttons (A, B, and C) providing a simple interface for user interaction. The board includes a reset button and uses only I2C communication via a STEMMA QT / Qwiic compatible JST SH 4-pin connector, allowing easy plug-and-play connectivity with a variety of I2C sensors and peripherals.

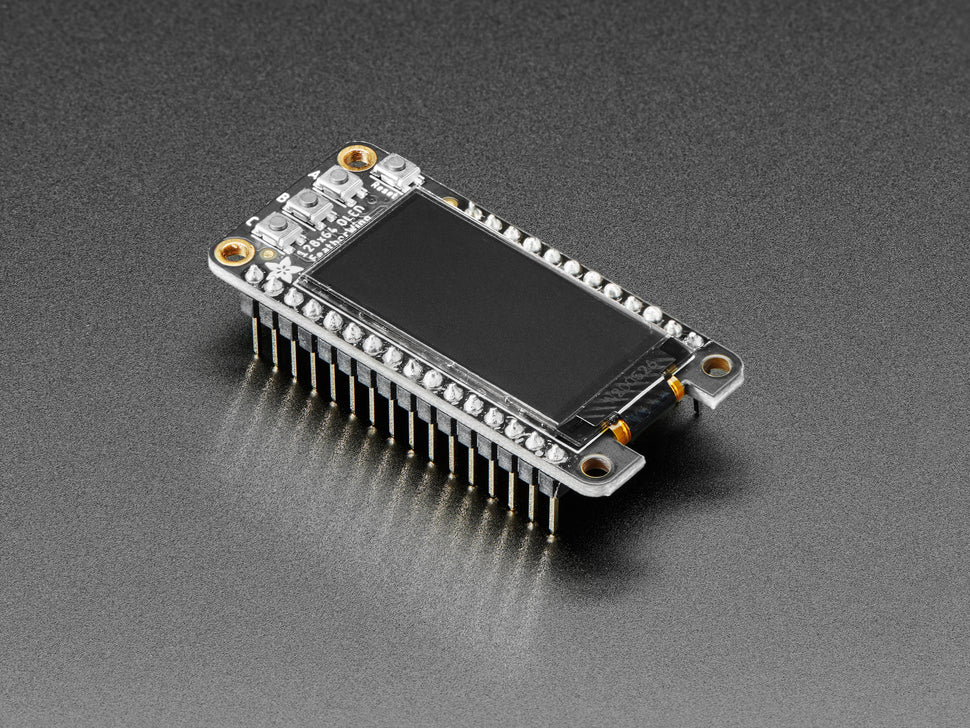

This FeatherWing is pin compatible with the 128x32 OLED FeatherWing for an easy upgrade but requires new code due to the SH1107 OLED driver. It comes with solderable 0.1" headers for connecting to the Feather board.

Features:

• 128x64 white monochrome OLED display, 1.3" diagonal size
• High-contrast OLED requiring no backlight
• Three user buttons (A, B, and C) and one reset button

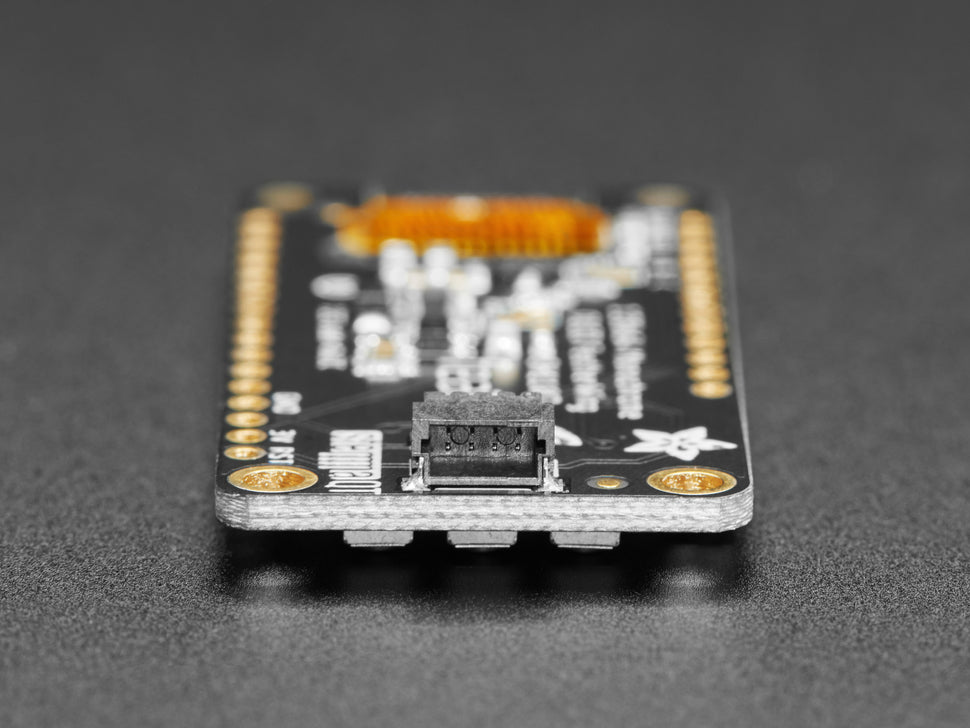

• I2C communication using STEMMA QT / Qwiic JST SH 4-pin connector
• Compatible with all Feather boards
• Pin compatible with 128x32 OLED FeatherWing (requires updated code)

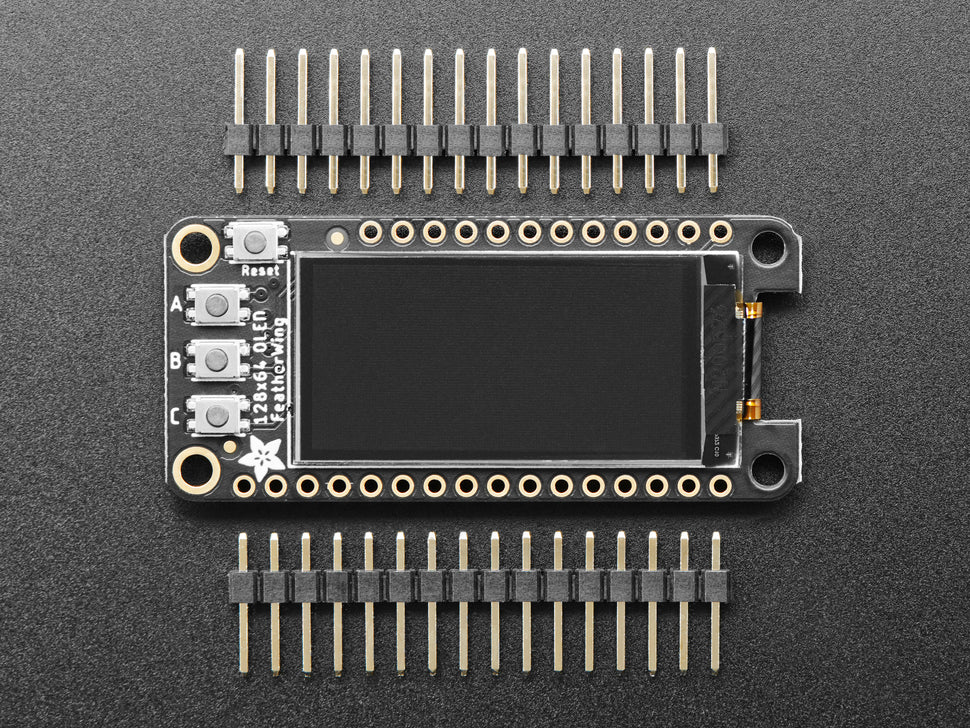

• Comes with solderable 0.1" headers
• PCB dimensions: 22.9mm x 50.9mm (0.9" x 2")
• Display area: ~25.8mm (~1.0")
• Updated silkscreen for legibility (June 17, 2024 revision)

Specifications:

• Display Type: OLED
• Resolution: 128x64 pixels
• Display Driver: SH1107
• Display Size: 1.3" diagonal
• Interface: I2C
• Connector: STEMMA QT / Qwiic JST SH 4-pin
• PCB Size: 22.9mm x 50.9mm

For detailed schematics, example code, and tutorial, please visit the product guide.
