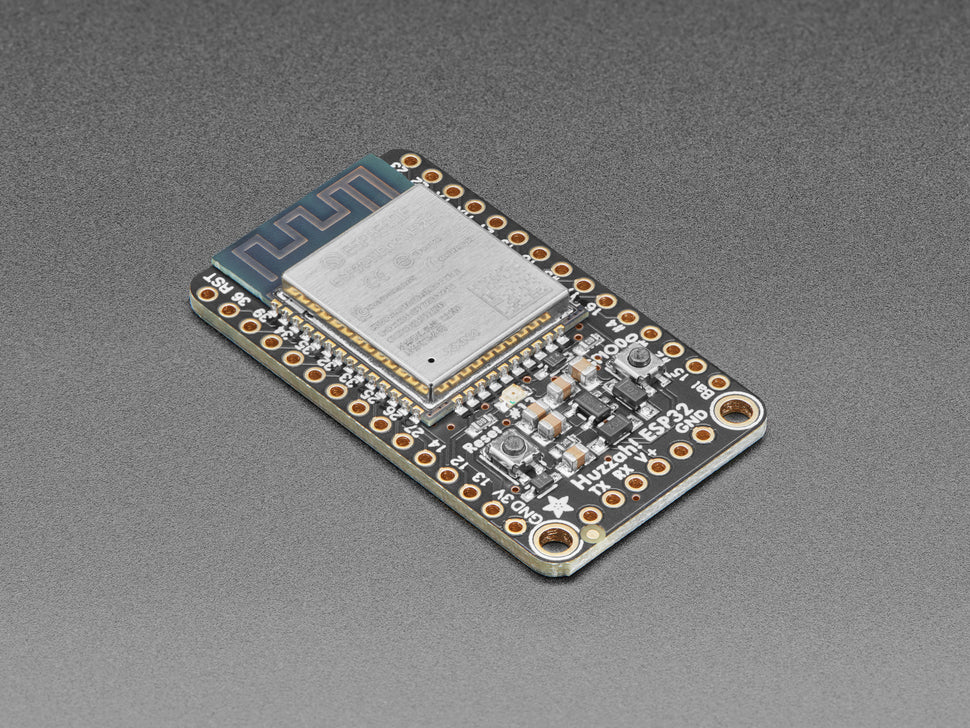

Adafruit HUZZAH32 ESP32 Breakout Board

Squeeeeze down your next ESP32 project to its bare-bones essential with the Adafruit HUZZAH32 Breakout. This breakout is the 'big sister' of our HUZZAH 8266, featuring the ESP32 chip. It is a pared-down version of the popular Feather ESP32, removing the battery charger and USB-serial converter to keep size and price to a minimum.

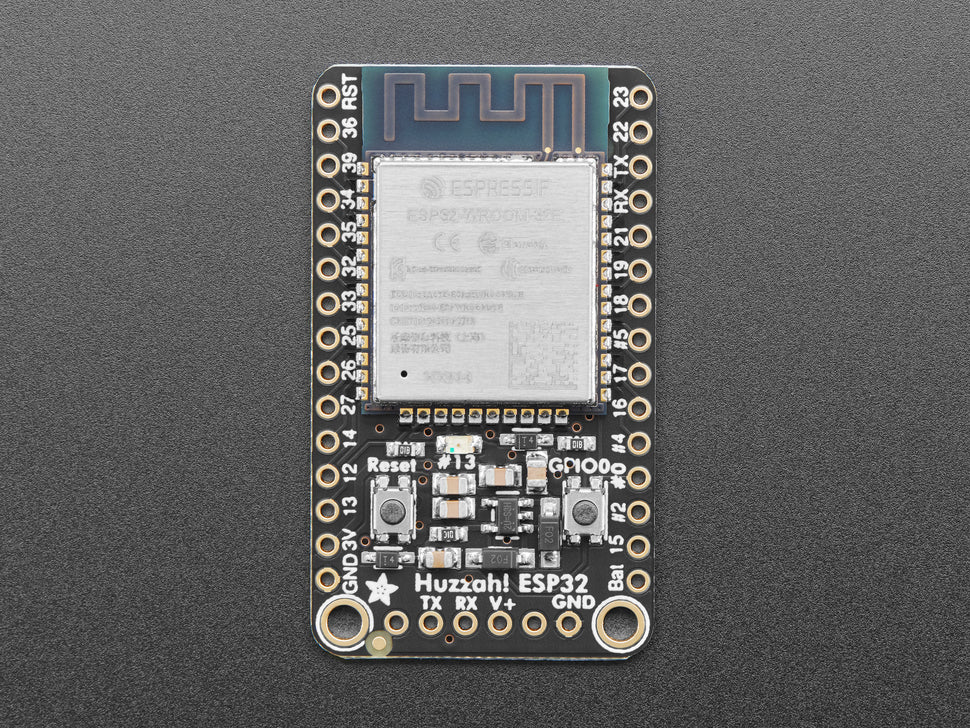

The board includes a regulator, protection diodes, two buttons, and an LED. It requires an external USB-to-serial converter such as a CP2104 Friend or FTDI cable to program. To upload code, hold down GPIO #0 button and click Reset, then release GPIO #0 to enter bootloader mode.

The ESP32 module includes a dual-core, 240 MHz Tensilica LX6 microcontroller with 600 DMIPS, 4 MB SPI Flash, integrated WiFi (802.11b/g/n HT40), Bluetooth Classic and BLE support, an onboard PCB antenna, ultra-low noise analog amplifier, hall sensor, capacitive touch interfaces, multiple UARTs, SPI, I2C, ADC channels, DAC outputs, PWM/timer IO, and more.

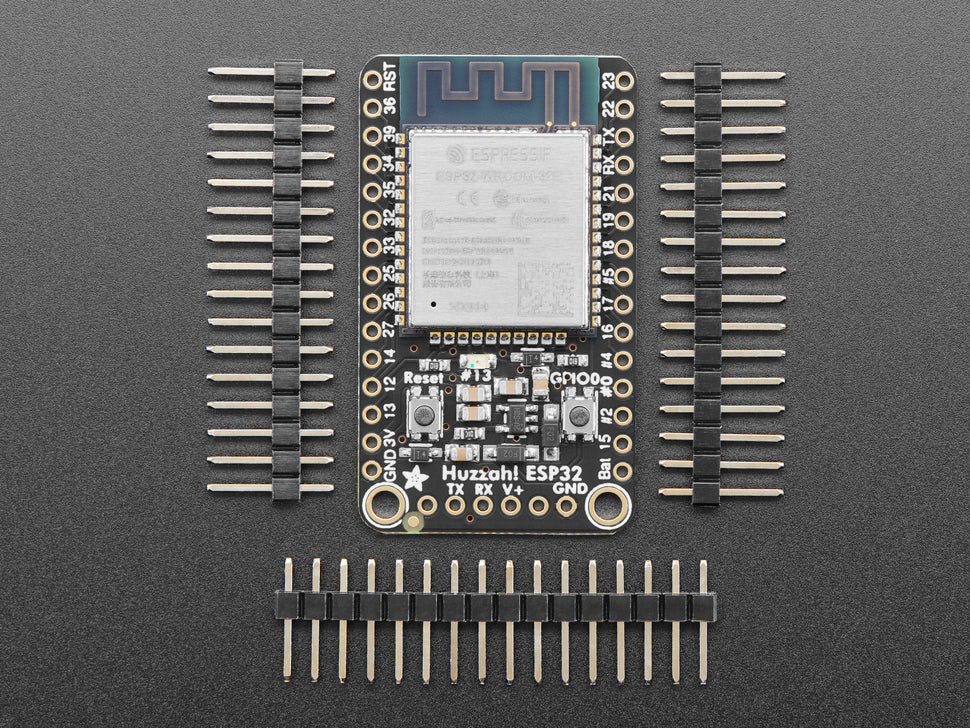

This board comes fully assembled and tested, ready to use. Headers are included for easy soldering and breadboard compatibility.

Features:

• Dual-core Tensilica LX6 240 MHz microcontroller
• 4 MB SPI flash included in WROOM32 module
• Integrated WiFi 802.11b/g/n and Bluetooth Classic/LE
• On-board PCB antenna
• Multiple interfaces: UART, SPI, I2C, ADC, DAC, PWM
• Two user buttons and an onboard LED
• Requires external USB-to-serial converter for programming
• Compact dimensions: 44.0mm x 25.5mm x 4.8mm
• Weight: 5.8g

Technical Specifications:

• Processor: Dual-core Tensilica LX6 @ 240 MHz
• Memory: 520 KB SRAM
• Flash: 4 MB SPI Flash
• Wireless: 802.11b/g/n WiFi, Bluetooth Classic/LE
• GPIO and Interfaces: UART (3), SPI (3), I2C (2), ADC inputs (12), DAC outputs (2), PWMs on every GPIO pin
• Dimensions: 44.0mm x 25.5mm x 4.8mm
• Weight: 5.8 grams

See also the primary guide for usage and programming.
