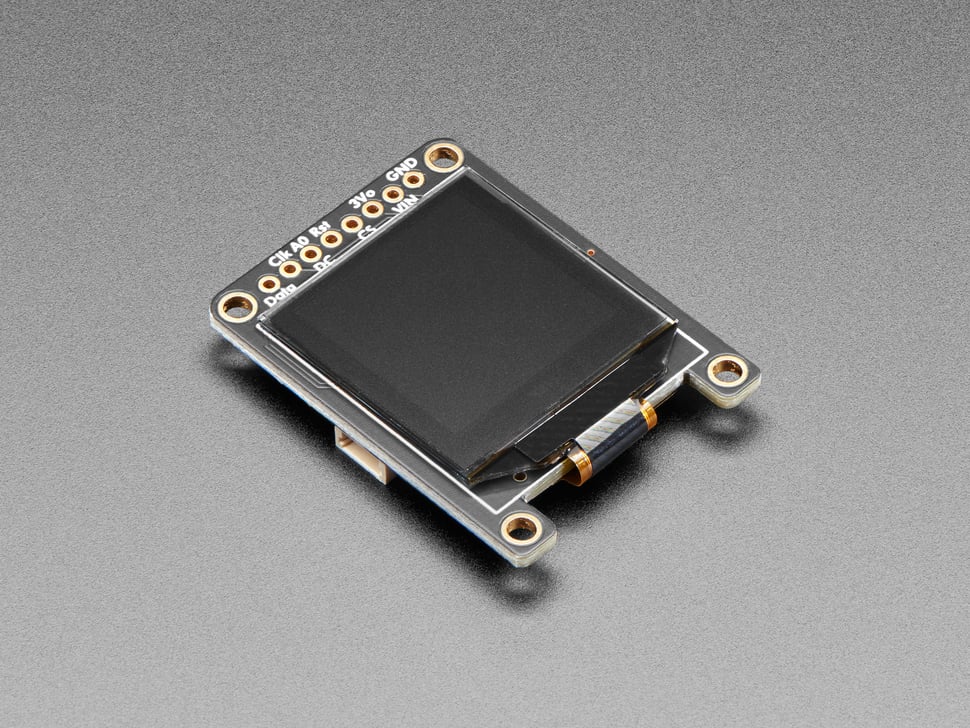

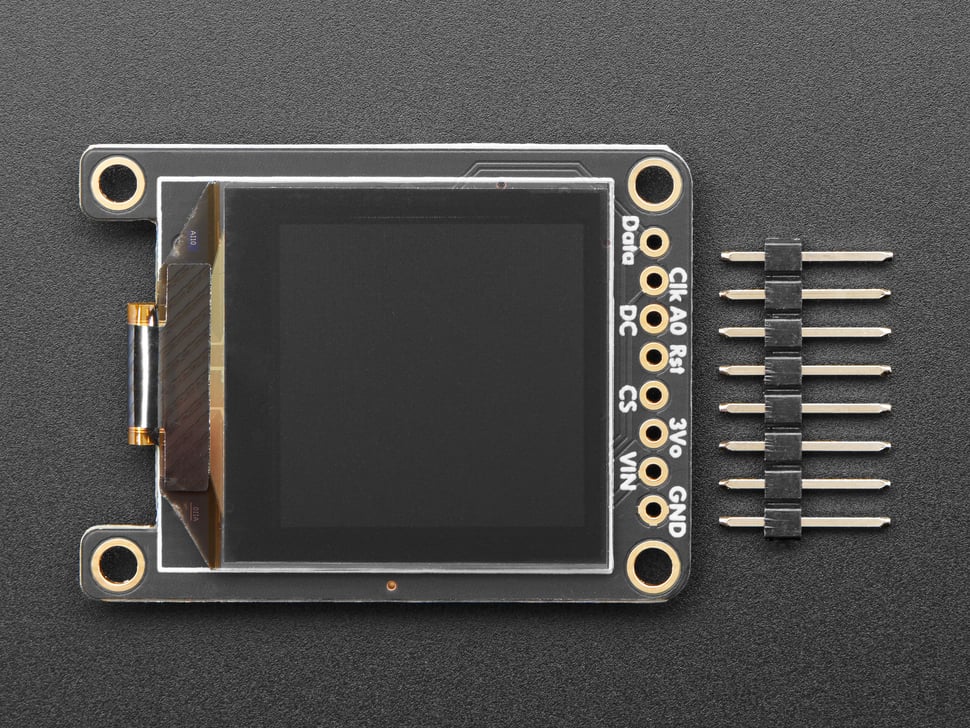

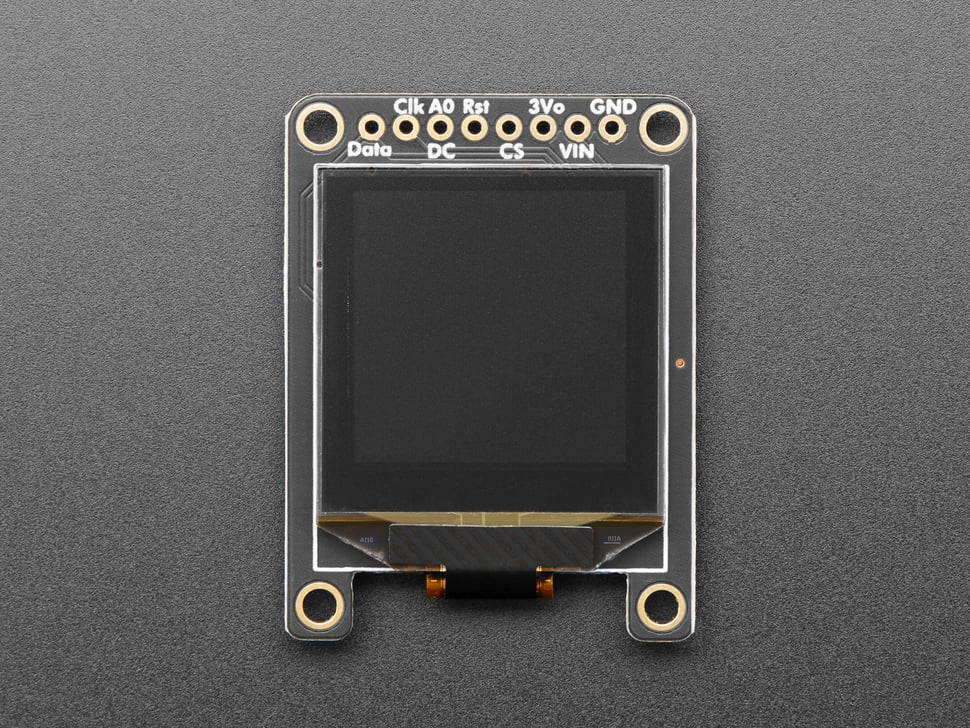

Adafruit Monochrome 1.12" 128x128 OLED Graphic Display - STEMMA QT / Qwiic

This OLED is perfect for those who want more pixels in a smaller size with a high-contrast monochrome 128x128 pixel display. The petite 1.12" diagonal display requires no backlight and offers crisp readability thanks to its white OLED pixels that each can be turned on or off by the controller chip.

The display uses the SSD1107 driver chip supporting both I2C and SPI communication protocols. It requires 3.3V and 12V power supplies and 3.3V logic levels. A 3.3V regulator and 12V boost converter are included, and pins are level shifted for compatibility with 3V or 5V devices.

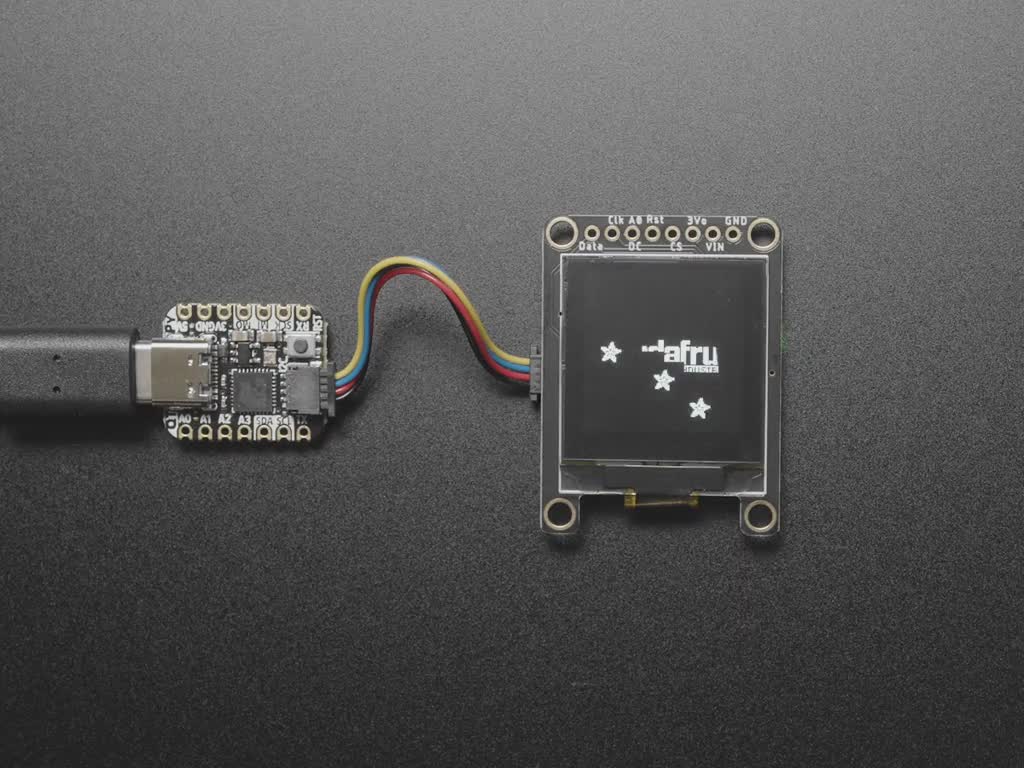

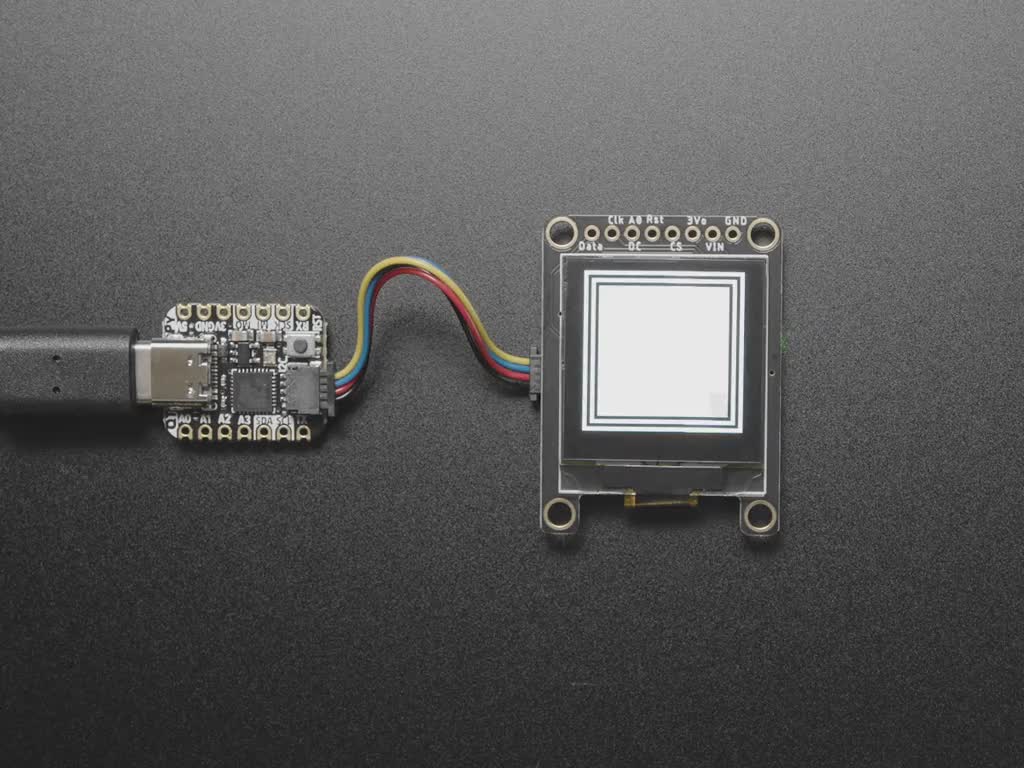

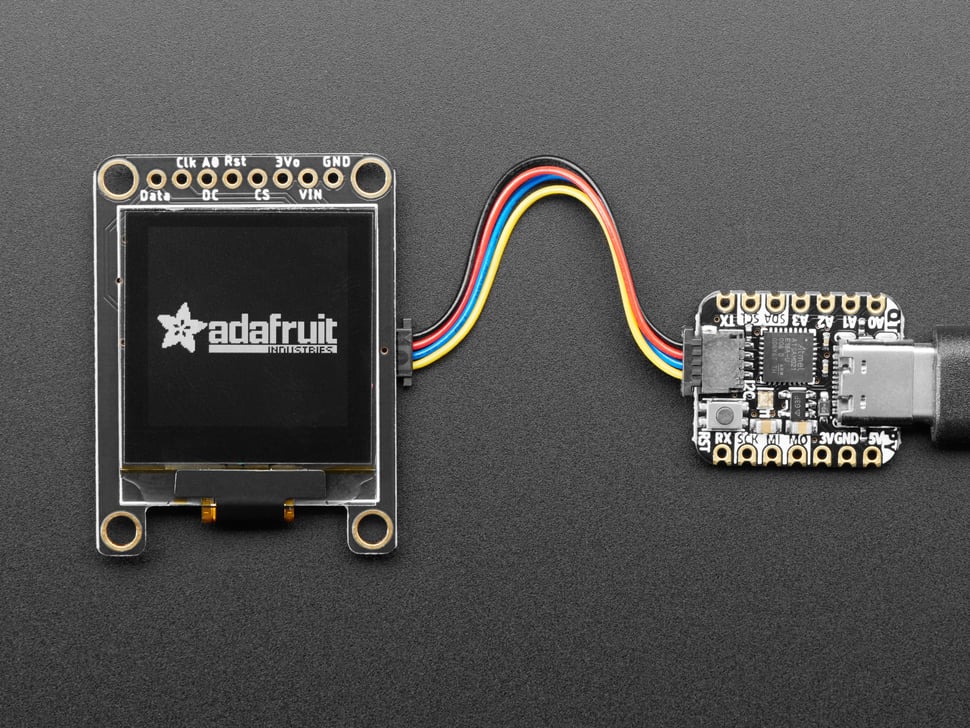

Featuring SparkFun Qwiic compatible STEMMA QT connectors for I2C, no soldering is needed—simply plug and play with any Qwiic or STEMMA QT compatible board (STEMMA QT cable not included).

This 128x128 pixel display requires at least 2KB SRAM for buffering and is compatible with microcontrollers that have 16KB+ RAM (e.g., SAMD21, SAMD51, ESP, nRF52, Teensy). Although SPI offers faster speed, I2C allows for fewer pins.

Adafruit provides Arduino and CircuitPython libraries supporting the SH1107 chipset.

Important note: OLED pixels are organic LEDs which may dim after being lit continuously for over 1000 hours. To maintain brightness consistency, turn off the display when not in use.

Features

• 1.12" diagonal 128x128 monochrome OLED display (white pixels)
• SSD1107 driver chip with I2C and SPI support
• Includes 3.3V regulator and 12V boost converter; level shifting for 3.3V/5V compatibility
• SparkFun Qwiic / STEMMA QT connectors for plug-and-play I2C connectivity (cable not included)
• Requires microcontroller with 16KB+ RAM (not compatible with small chips like Arduino UNO)
• High contrast display with self-emissive OLED pixels (no backlight needed)
• Arduino and CircuitPython library support available

Technical Specifications

• Diagonal Screen Size: 1.12"
• Resolution: 128 × 128 pixels
• Color Depth: Monochrome (White)
• Module Construction: COG
• Active Area: 20mm x 20mm
• Pixel Size: 0.15 x 0.15 mm
• Duty: 1/64
• Brightness (Typ): 100 cd/m² @ 12V
• Typical current draw: ~35mA (depends on pixels lit)
• Product Dimensions: 40.5mm x 30.5mm x 6.0mm
• Product Weight: 6.4g

Datasheets: SH1107 Datasheet, OLED Module Datasheet
