Adafruit MONSTER M4SK DIY Electronic Eyes Mask

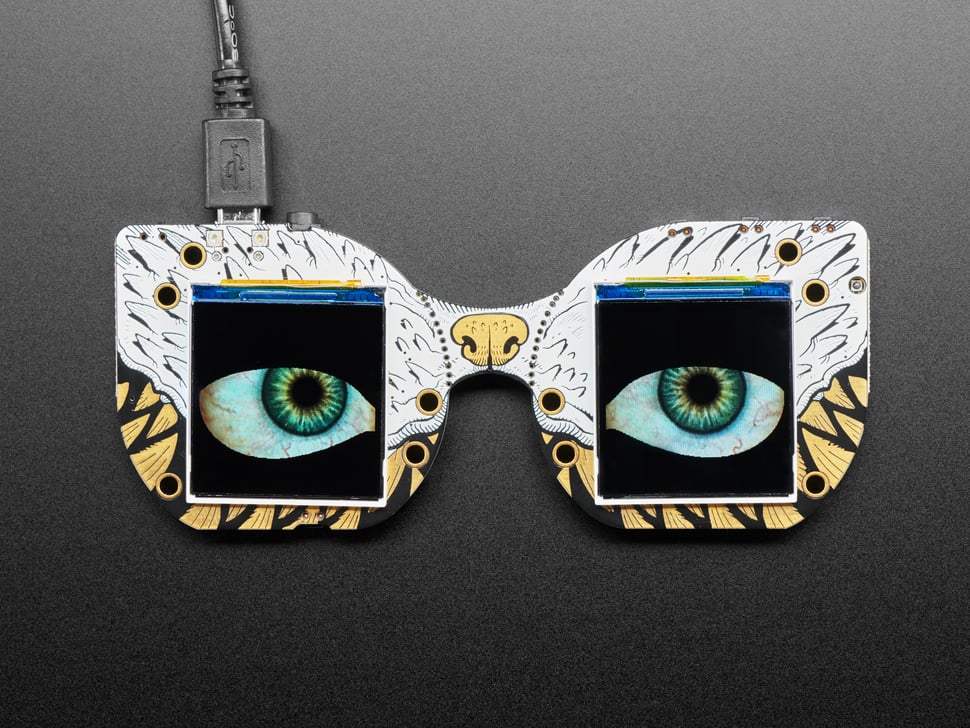

The Adafruit MONSTER M4SK is a unique DIY electronic eyes mask that features two 240x240 pixel IPS TFT displays driven by a 120MHz Cortex M4 processor. It offers stunning animated eyes that blink and dart, perfect for costumes and creative projects.

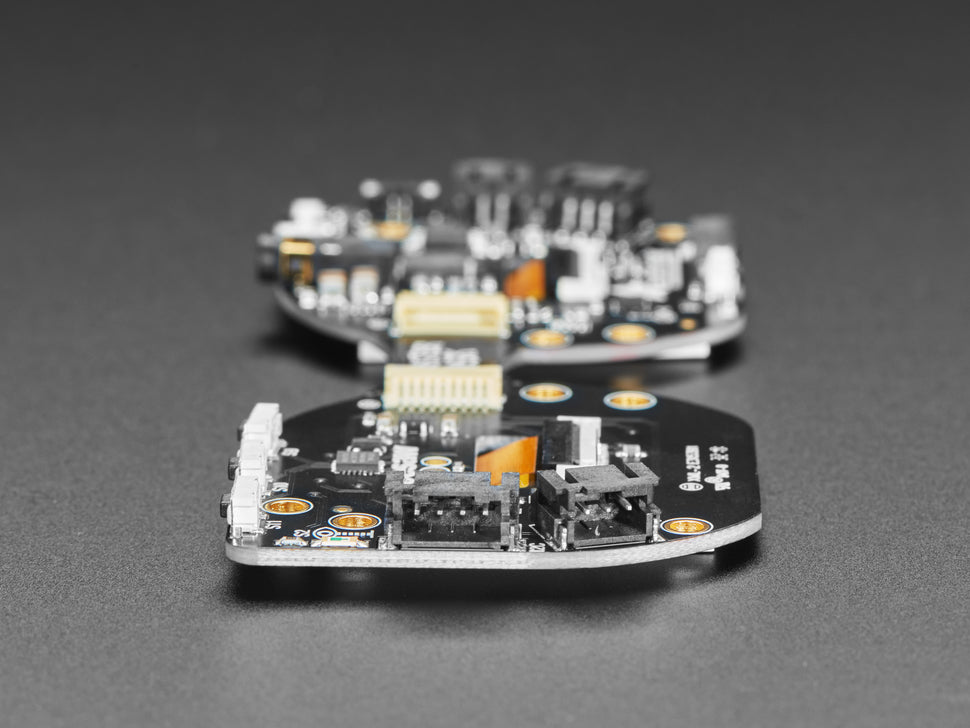

This board is equipped with an ATSAMD51G19 Cortex M4 microcontroller with 512KB Flash and 192KB RAM, and 8MB QSPI flash for storing graphics and sound effects. The nose section can be modified to reposition the eyes using a 9-pin JST SH cable.

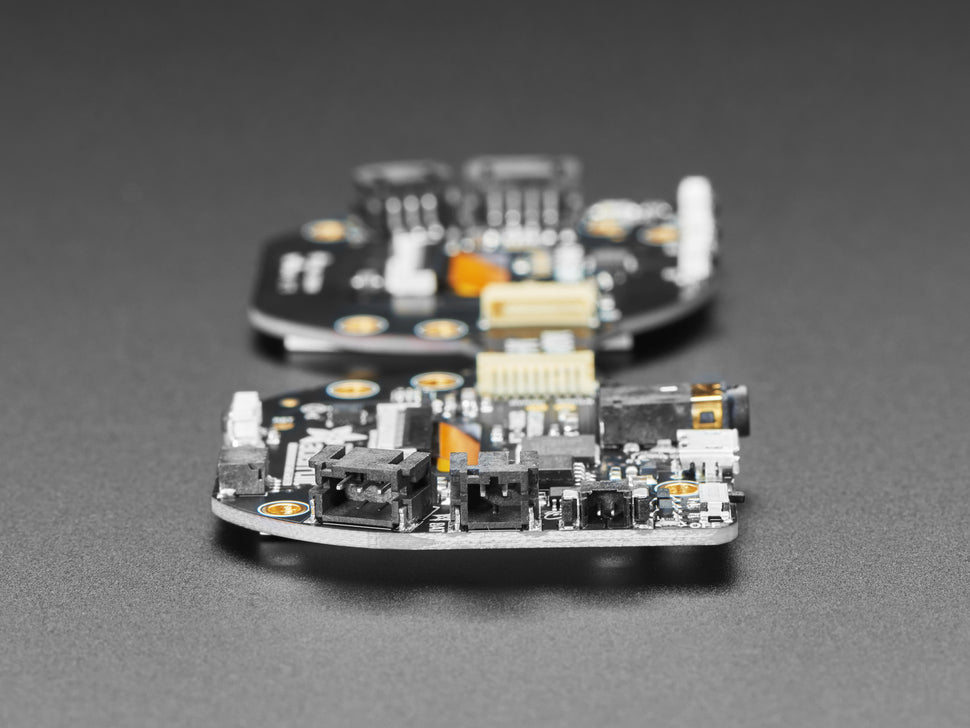

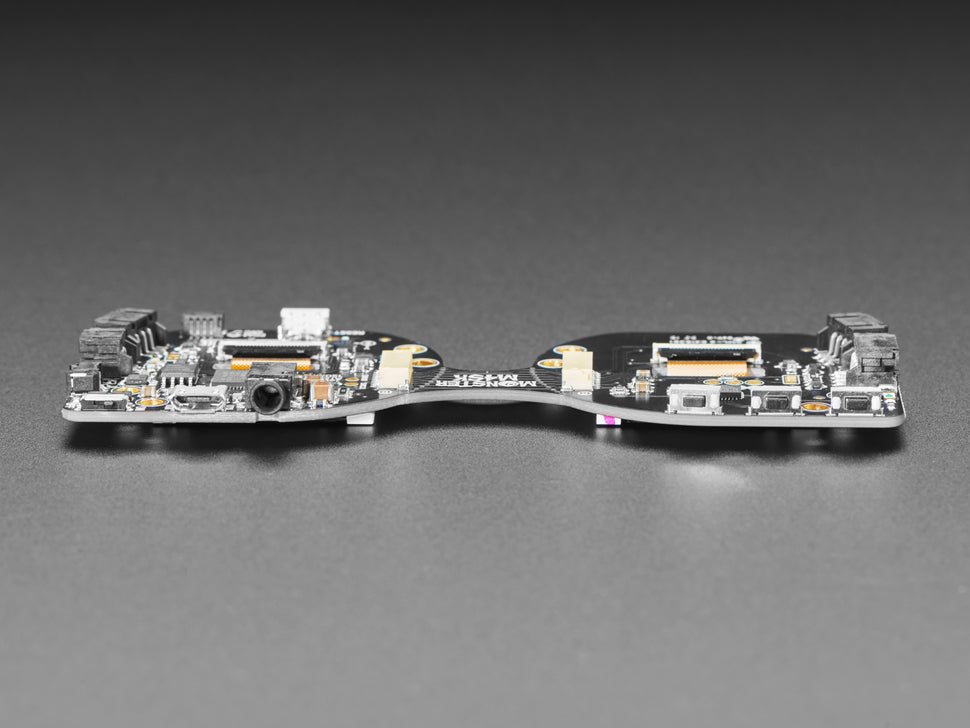

Additional features include a class D audio amp, stereo headphone jack, mono speaker driver, various JST connectors for sensors and accessories, a capacitive touch pad on the nose, light sensor, three tactile buttons, and on/off and reset buttons.

• 120MHz ATSAMD51G19 Cortex M4 microcontroller with 512KB Flash and 192KB RAM

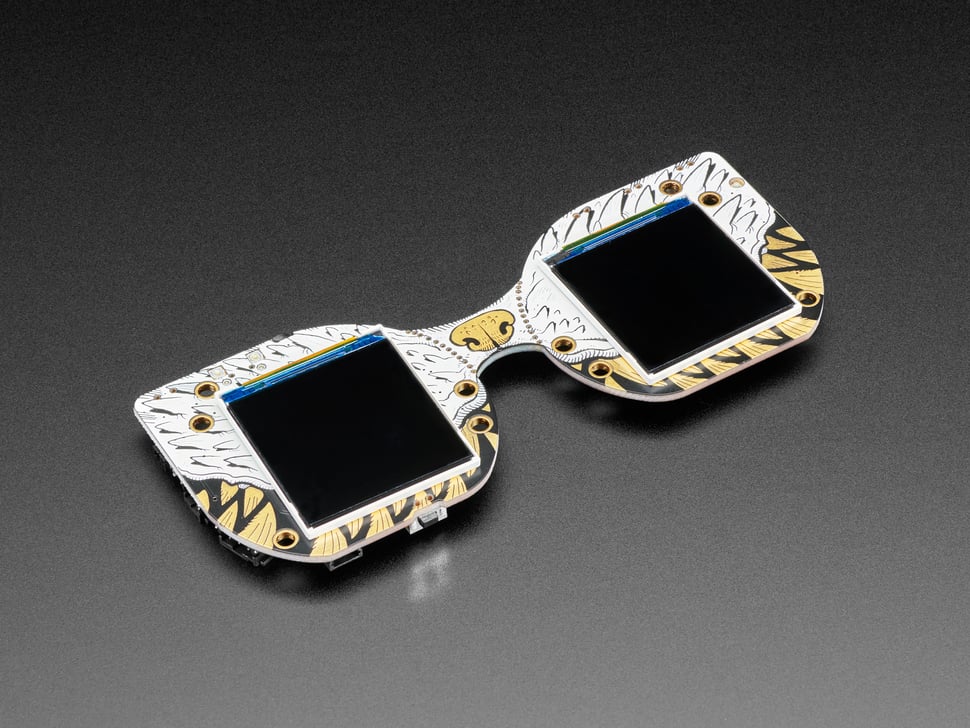

• Two 240x240 IPS TFT displays, each on separate SPI buses
• 8 MB QSPI flash memory
• Capacitive touch pad on the nose
• Lipo battery charger circuit for portable use
• Stereo headphone jack and mono speaker driver (8 ohm, 1W)
• One 4-pin STEMMA JST connector for I2C (Grove compatible)
• Two 3-pin STEMMA JST connectors for digital/analog/PWM devices
• One 4-pin JST SH port for PDM microphone
• Backlight controls, three tactile buttons, and light sensor
• On/off switch and reset button

Note: Currently, code support is available only for Arduino, as CircuitPython is not fast enough for the 3D animation techniques used.

The silkscreen design is by Miss Monster, adding a unique artistic touch. Pair the mask with 40mm glass or plastic lenses (sold separately) for enhanced eye effects.

Product Dimensions: 118.3mm x 48.0mm x 9.7mm (4.7" x 1.9" x 0.4")
