Adafruit NeoTrellis M4 Mainboard featuring SAMD51

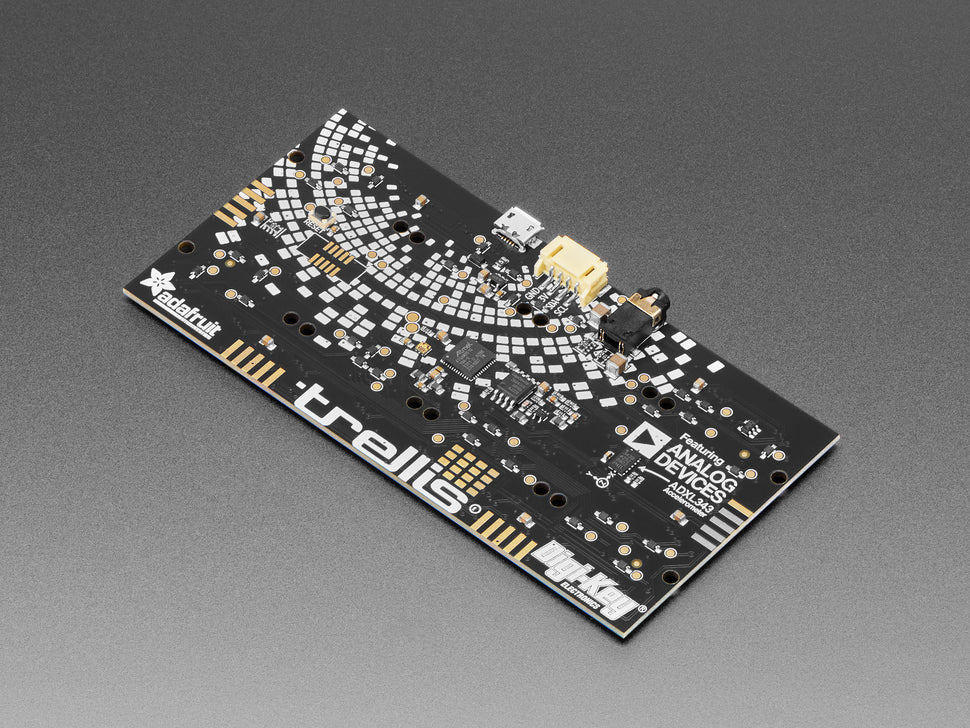

The Adafruit NeoTrellis M4 is an all-in-one USB, NeoPixel, Elastomer, and Audio development board powered by the SAMD51 Cortex M4 core running at 120 MHz. This feature-packed board includes 512KB flash and 192KB SRAM, along with an additional 8MB SPI flash chip for ample file and audio clip storage. Perfect for CircuitPython and Arduino projects, it offers hardware DSP, floating point support, and dual 12-bit DACs for audio output.

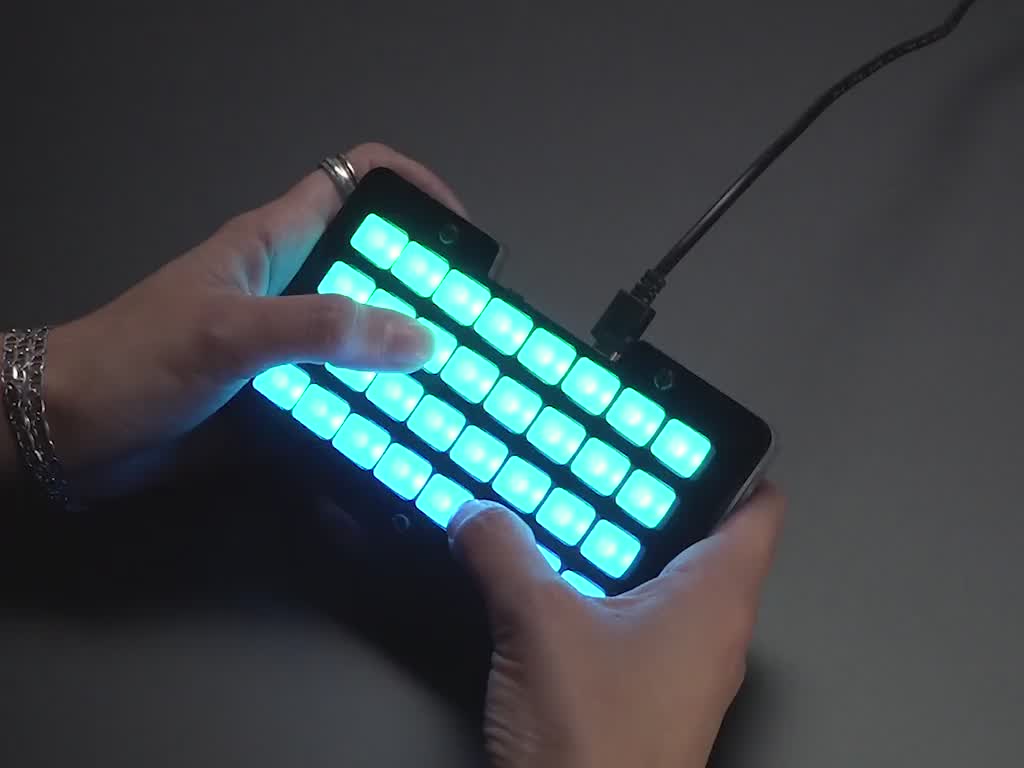

The board features a 4x8 grid of fully diode-protected elastomer button pads, each with a NeoPixel in the center for vibrant 24-bit color lighting. Buttons are translucent and glow beautifully when lit. The native USB port supports USB MIDI device functionality.

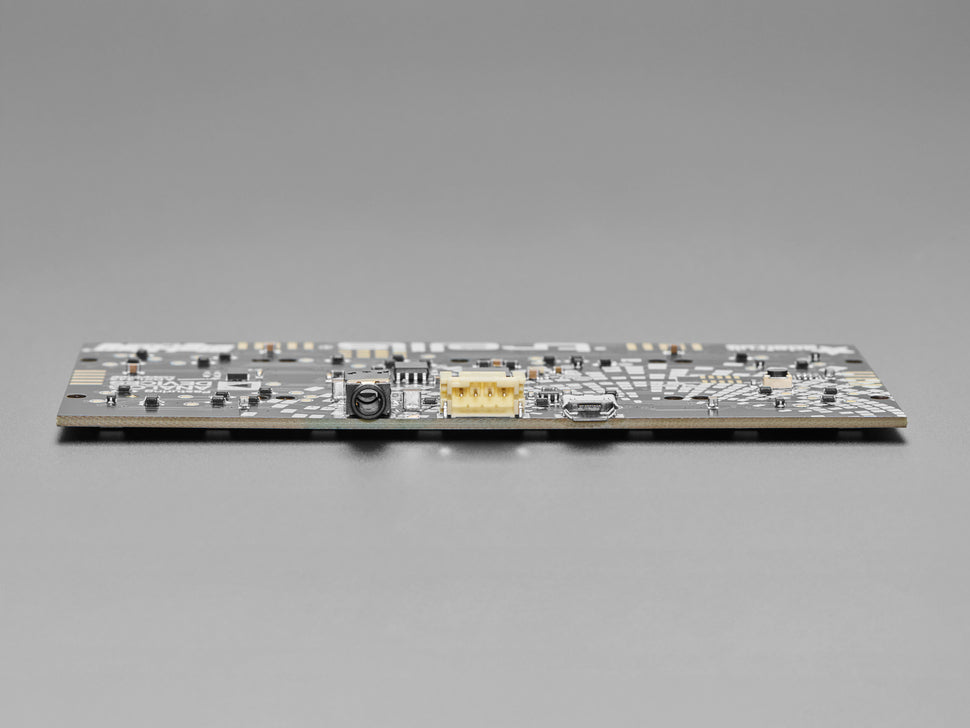

Audio capabilities include stereo DAC outputs on a headphone jack and an electret microphone amplifier suitable for mobile phone headsets. The 4th pin on the headphone jack serves as microphone or line input.

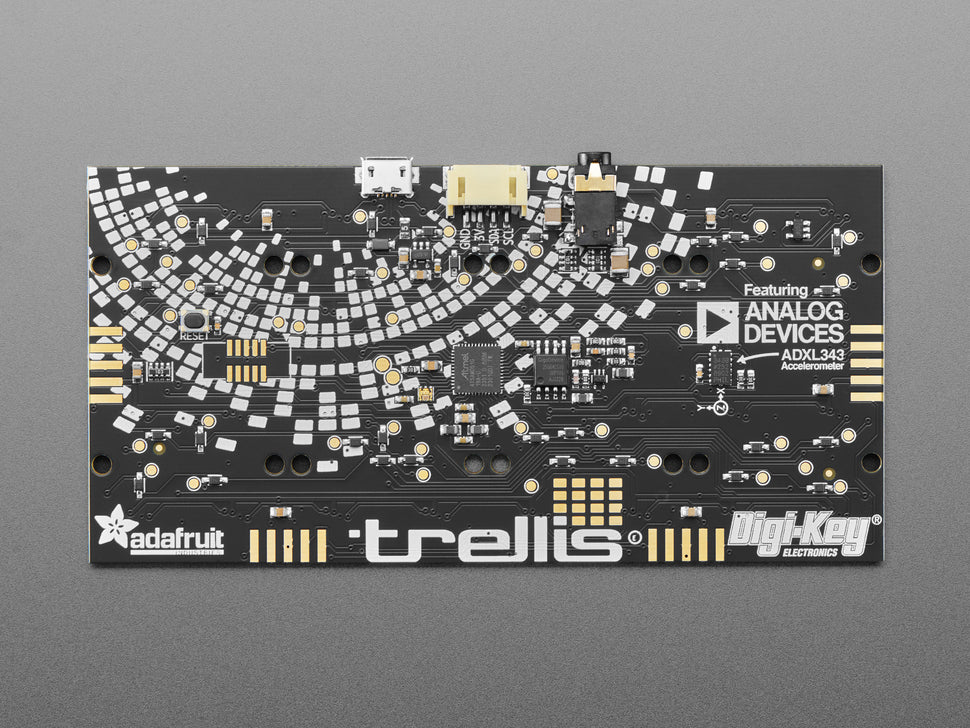

An Analog Devices ADXL343 triple-axis accelerometer provides tilt, motion, and tap sensing for added interactivity. Additionally, a 4-pin JST STEMMA/Grove compatible hacking port offers power, ground, and two GPIO pins configurable as I2C, ADC, or UART for sensor expansion or other uses.

• Powered by ATSAMD51 32-bit Cortex M4 core at 120 MHz
• 512KB flash memory and 192KB RAM with 8MB SPI flash chip for storage

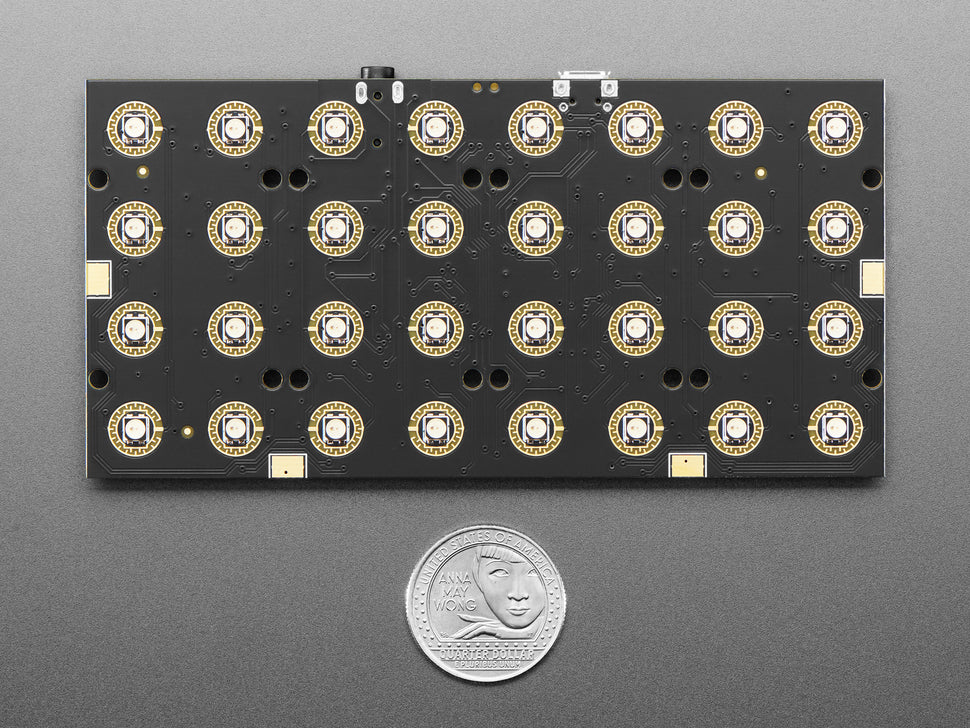

• 4x8 elastomer pads with NeoPixel LEDs, fully diode matrix for no ghosting
• Native USB port with USB MIDI support
• Stereo DAC outputs and electret mic amplifier on headphone jack
• ADXL343 triple-axis accelerometer for motion sensing
• 4-pin JST STEMMA/Grove compatible port for expansion
• Compatible with CircuitPython and Arduino platforms

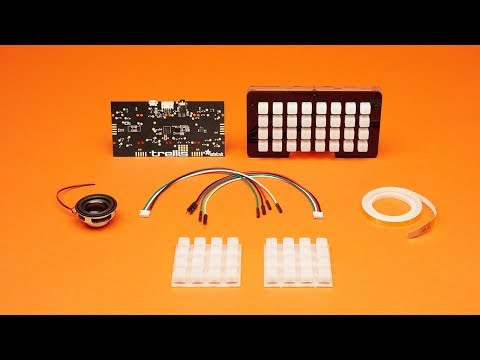

Note: This listing is for the mainboard only. Silicone elastomer 4x4 pads and enclosure are sold separately.
