Adafruit Proto Doubler PiCowbell for Pico and PicoW

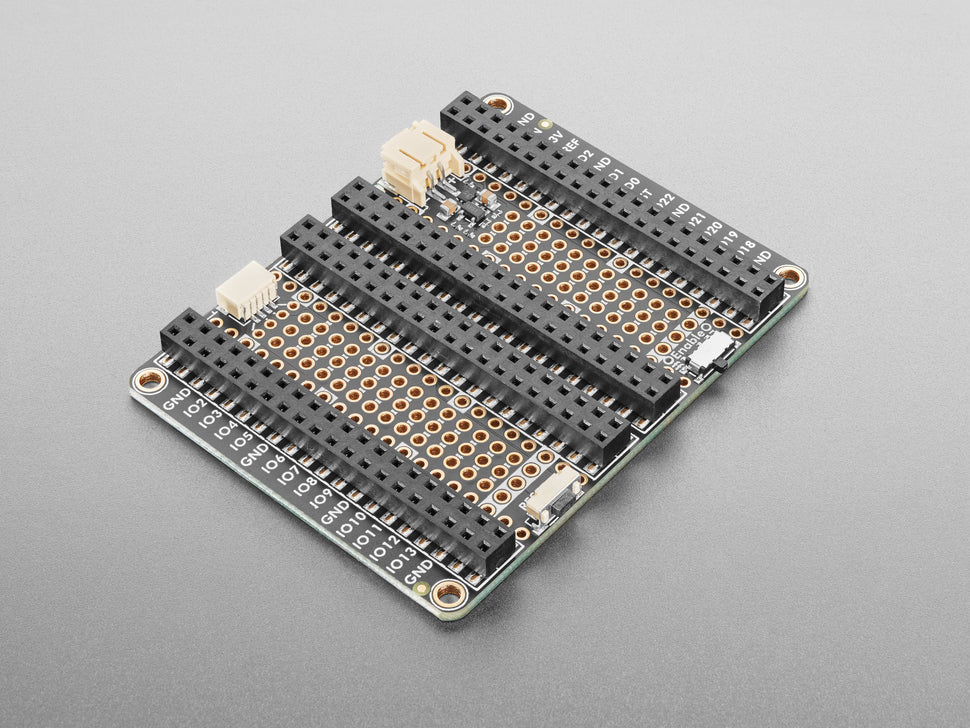

The Adafruit Proto Doubler PiCowBell is a mini solder-less proto plate designed to simplify programming and sensor connectivity for your Raspberry Pi Pico or Pico W board. It features a reset button, STEMMA QT / Qwiic connector for fast I2C, and battery support with recharging and on/off switch. Plug-and-play compatibility with Pico H or Pico WH allows use without soldering headers.

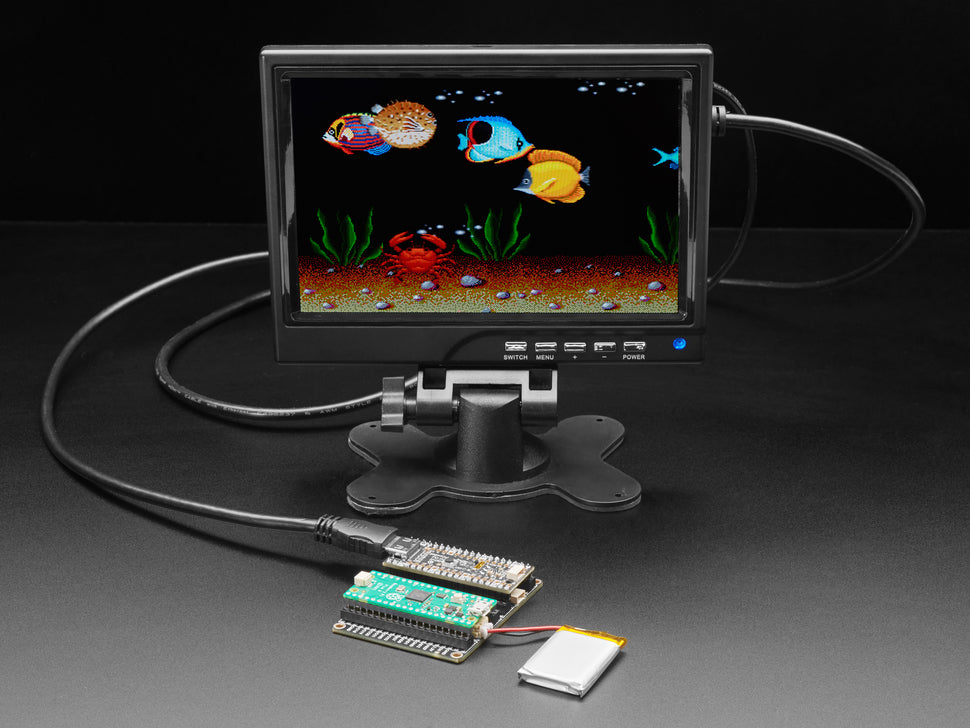

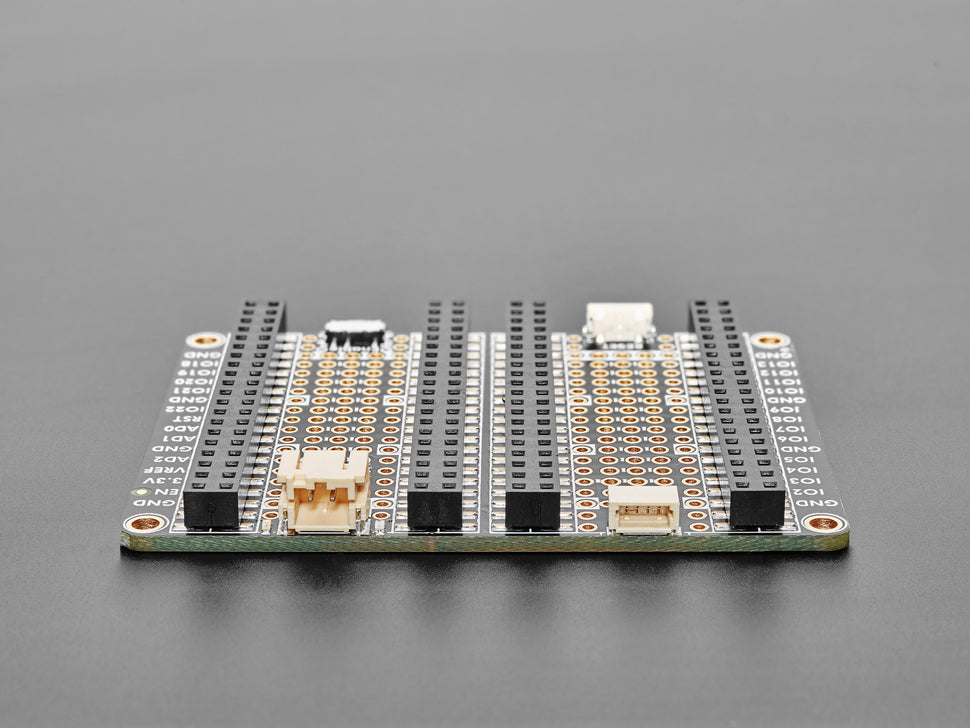

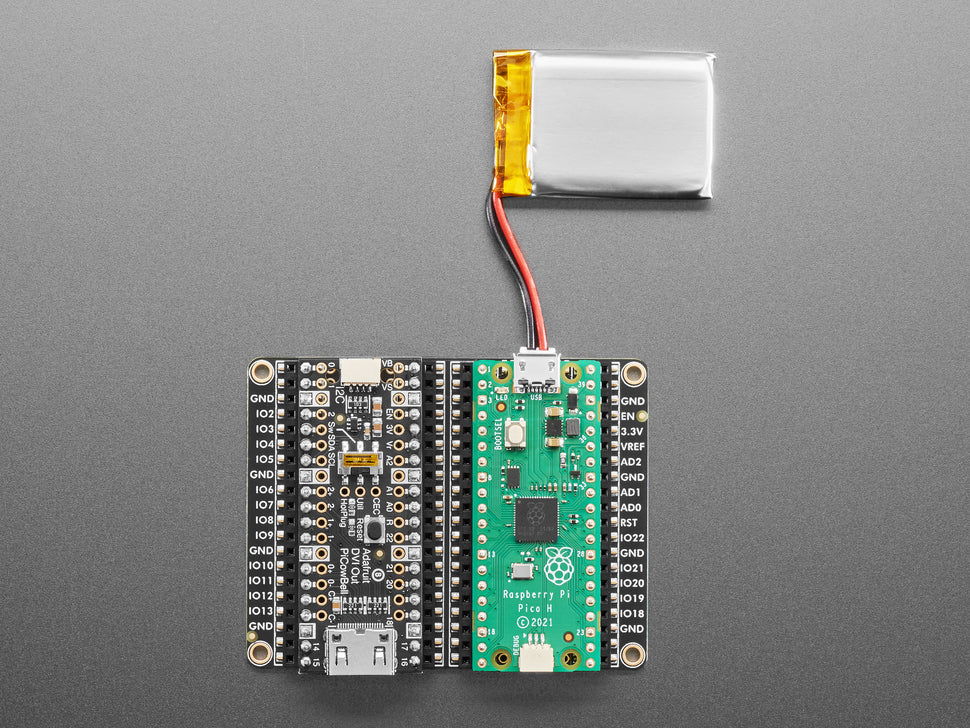

This board provides dual 2x20 slim socket headers for side-by-side slots, enabling addition of accessories without soldering. It supports LiPoly/LiIon battery charging circuitry for any 3.7V/4.2V single-cell battery via JST 2-PH connector, with 500mA default charge rate (can be reduced to 250mA). It includes a slide switch connected to the Pico Enable pin to disable the 3.3V power supply and a reset button accessible at the board end.

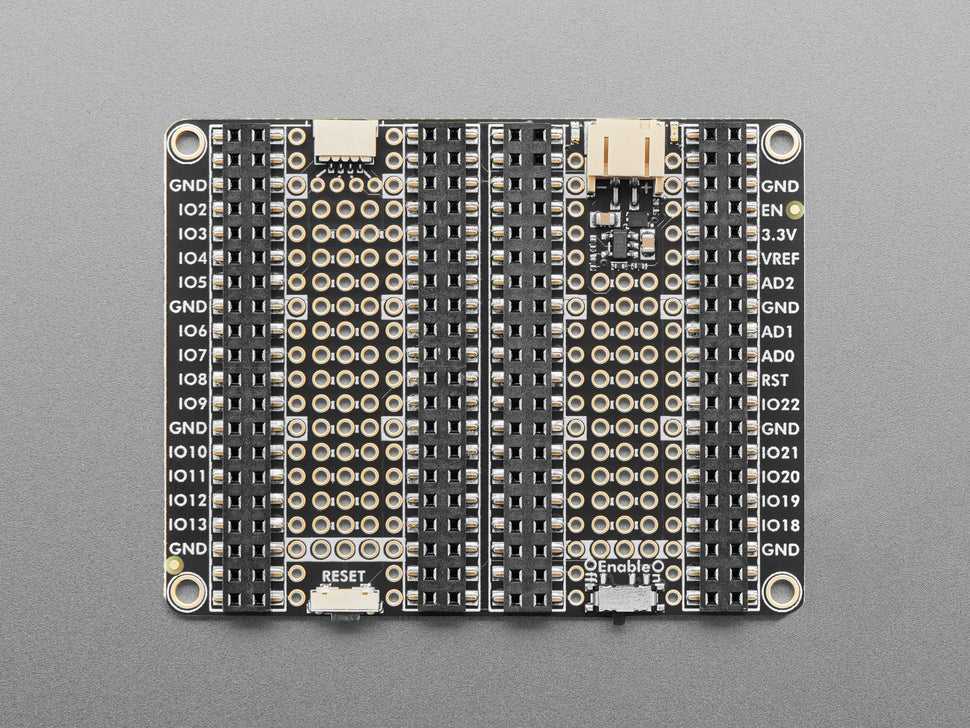

Alkaline/NiMH battery pack support is available by cutting a jumper to disable charging circuitry. The board includes double socket headers for direct Pico and 'Bell board connections, with extra prototyping area and a second row of sockets for easy wiring. All sockets are labeled, and four mounting holes are provided.

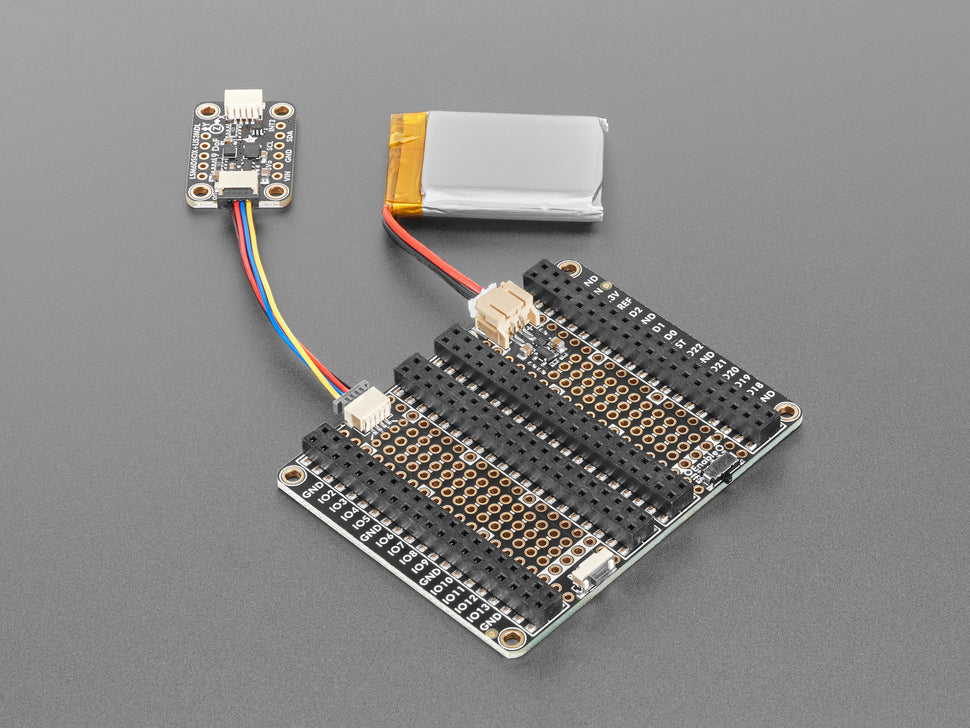

Additional features include a JST SH connector for I2C / Stemma QT / Qwiic connection providing 3V, GND, IO4 (SDA), and IO5 (SCL), with extra breakout holes for additional I2C connections or reassignment. The prototyping area features connected hole strips and duplicate solder-jumper pads, with white silkscreen to identify ground pads and a 3.3V power strip. Gold-plated pads facilitate soldering.

• Two 2x20 slim socket headers for Pico and accessories
• JST PH connector for LiIon/LiPoly or Alkaline/NiMH batteries
• LiPoly/LiIon charging circuitry with 500mA or 250mA charge rate options
• Slide switch to disable 3.3V power supply
• Reset button accessible at board end
• JST SH connector for I2C / Stemma QT / Qwiic with additional breakout holes
• Prototyping area with connected strips and duplicate pads
• Gold-plated pads and labeled ground and power pads

The board measures 67.3mm x 52.0mm x 5.6mm (2.6" x 2.0" x 0.2") and is RoHS compliant.

Note: No I2C pull-ups are provided on the board; these are typically available on Qwiic/QT breakout boards.
