Adafruit RS-232 Full Pinout Level-Shifter Breakout DE-9 Female

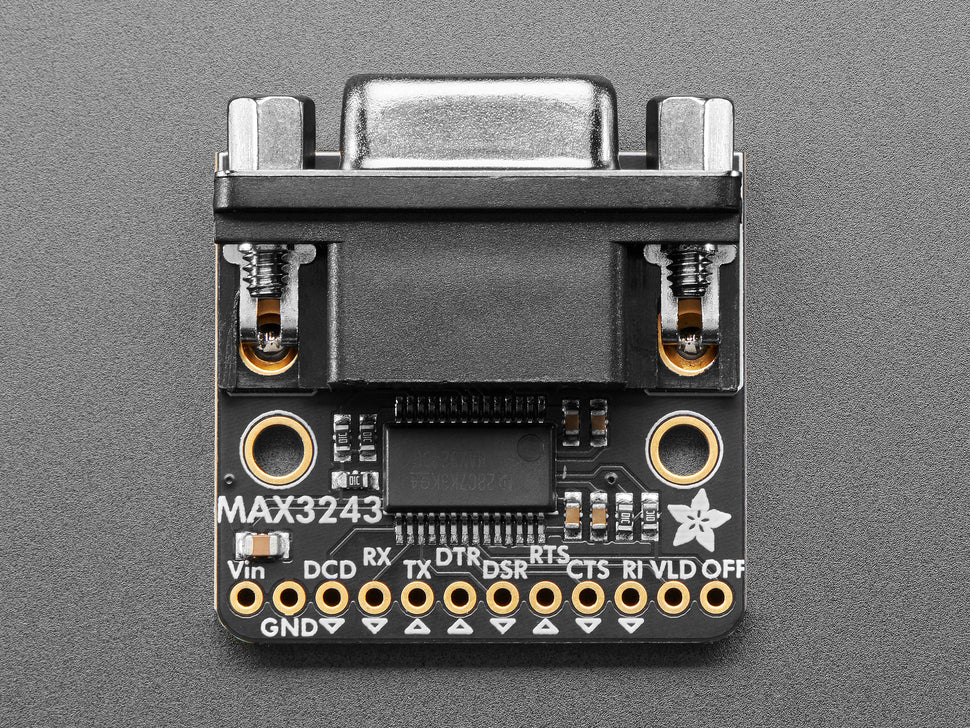

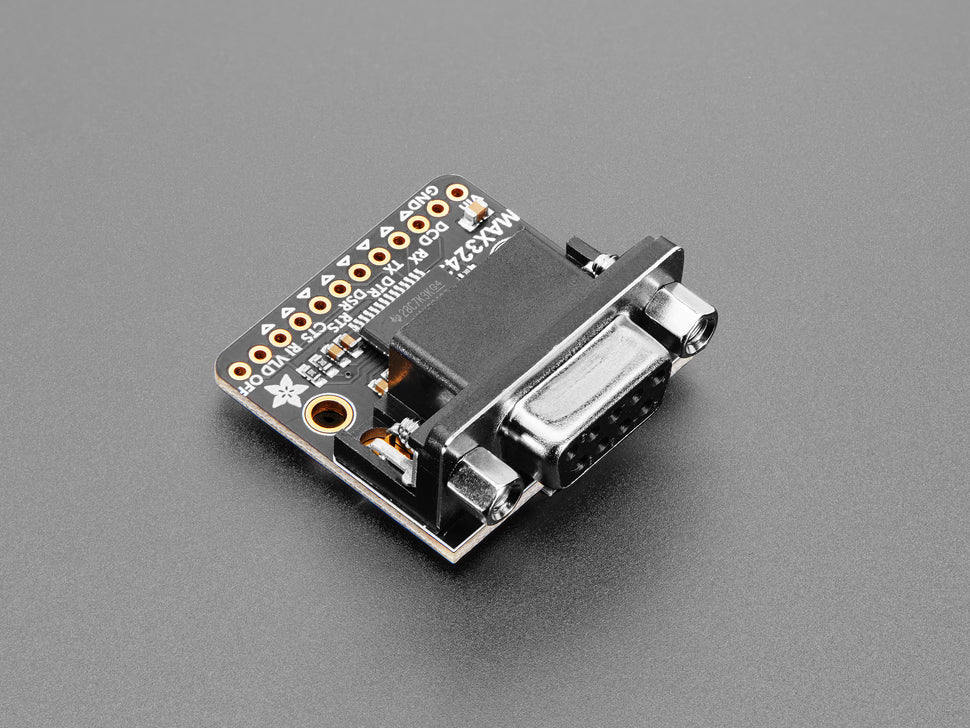

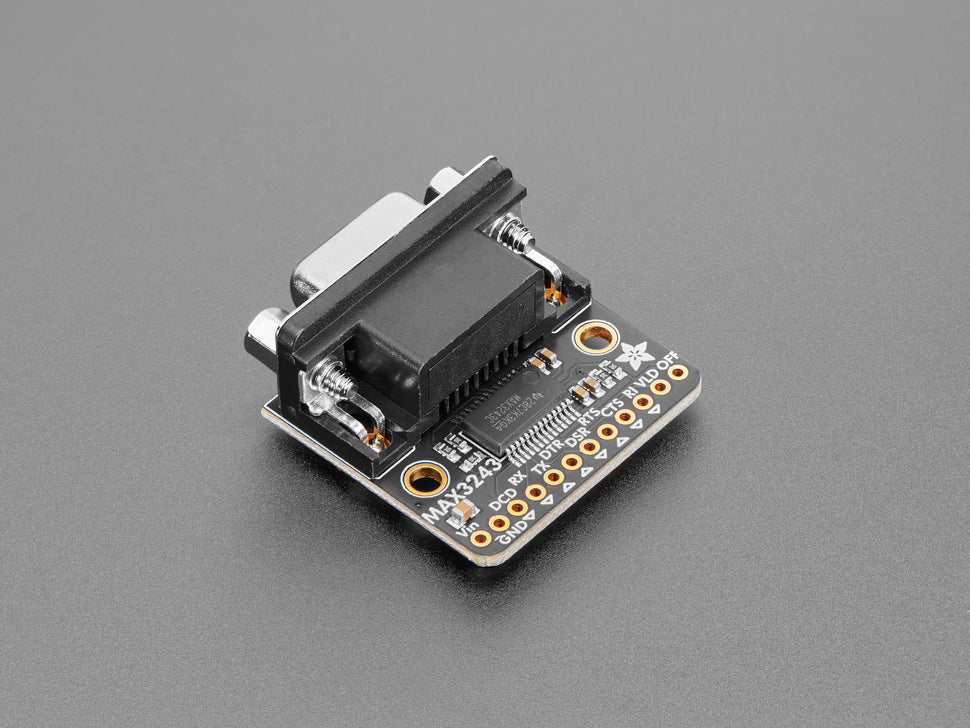

If you want to interface with telco, retro, or industrial equipment, the Adafruit RS-232 Full Pinout Breakout with 8 Channels of UART to RS-232 Level Shifters is your friend in such cases. It provides 5 input and 3 output channels of level shifting and manages high/negative voltage generation all in a low-cost breakout board using the classic MAX3243 chip from TI.

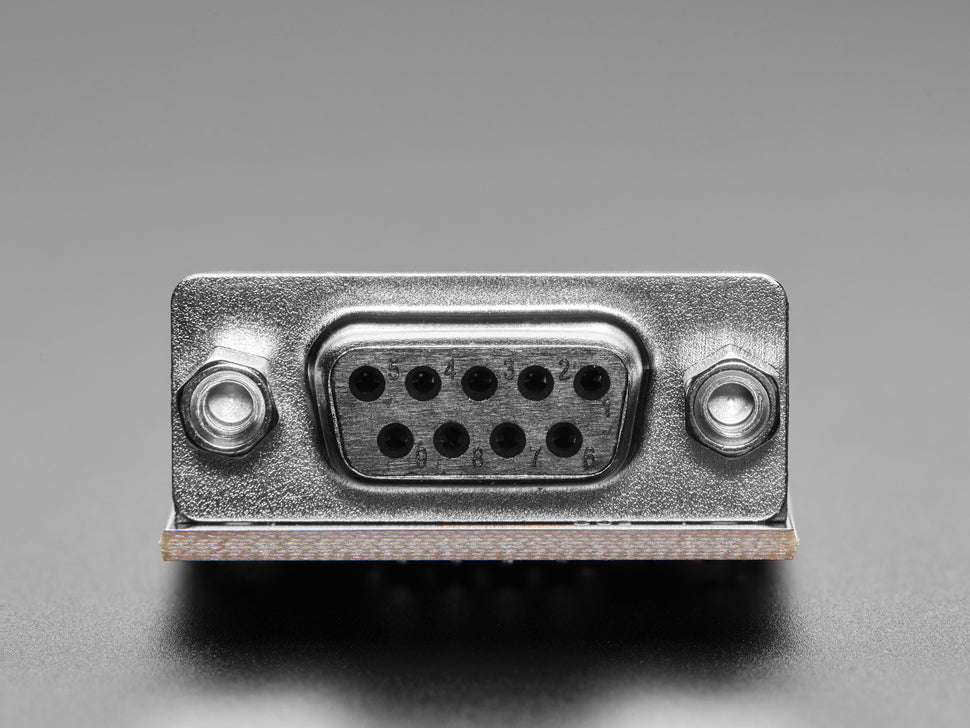

This version has a DE-9 Female socket connector soldered in, suitable for devices or cables requiring a female connector.

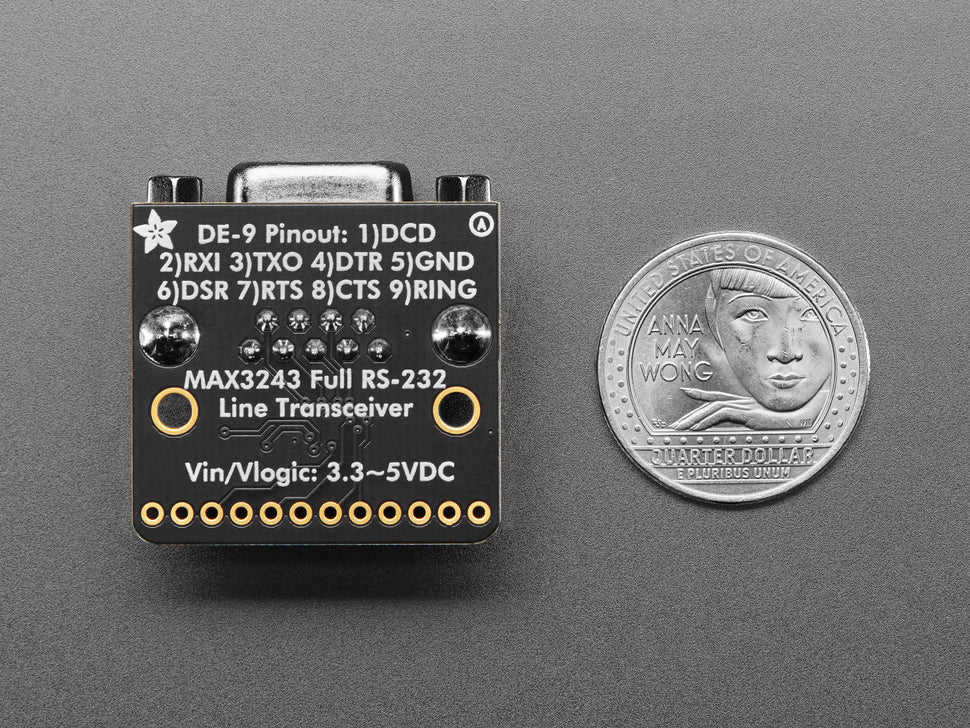

RS-232 is a legacy serial communication standard, historically used for mice, modems, barcode scanners, teletypes, and other industrial equipment. Many devices still use RS-232 ports today. This breakout runs on 3.3V power and logic and handles all 8 data pins enabling full use of flow control signals such as RTS, CTS, DTR, DSR, DCD, and RI.

The breakout includes two additional lines 'Valid' and 'Off': the Valid output goes high when the chip detects signal voltages, indicating a connection, while the Off pin can tri-state all pins to reduce power consumption.

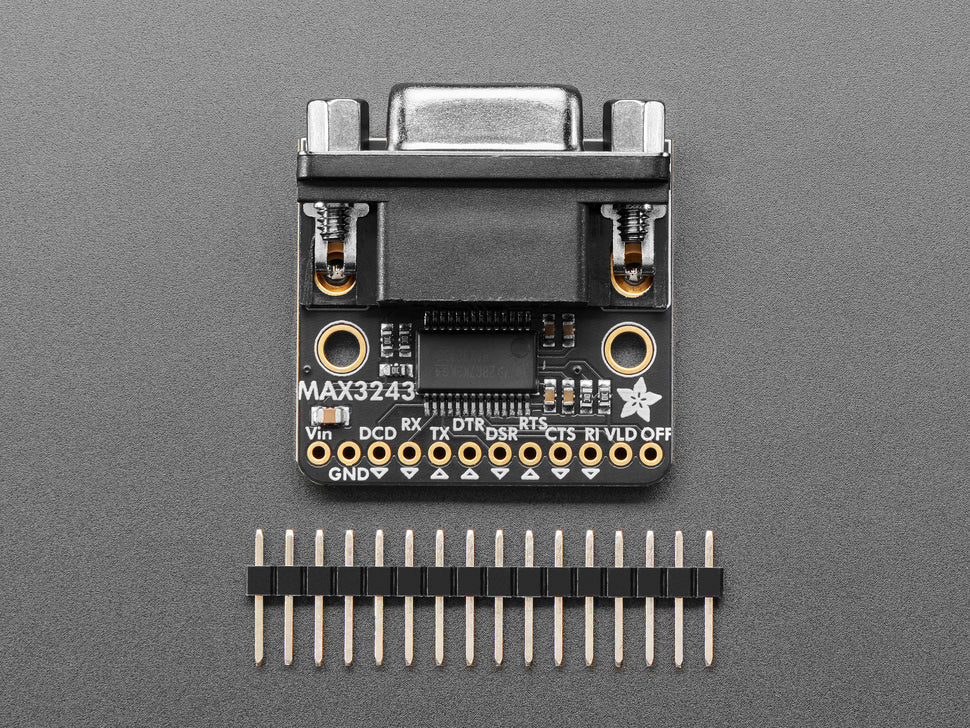

The product comes fully assembled with UART low-voltage side and DE-9F RS-232 high-voltage side, and includes headers for soldering to breadboards.

• Operates With 3V to 5.5V VCC Supply
• Single-Chip Interface for PC/AT Serial Port
• RS-232 Bus Pin ESD Protection ±15 kV (HBM)
• Meets TIA/EIA-232-F and ITU V.28 Standards
• Three Drivers and Five Receivers
• Supports Up To 250 kbit/s
• Low Active Current: 300 μA Typical
• Low Standby Current: 1 μA Typical
• Accepts 5V Logic Input with 3.3V Supply
• Serial-Mouse Driveability

Product Dimensions: 33.6mm x 32.0mm x 14.1mm (1.3" x 1.3" x 0.6")

Product Weight: 11.2g
