Adafruit TFT FeatherWing - 3.5" 480x320 Capacitive Touchscreen - STEMMA QT / Qwiic

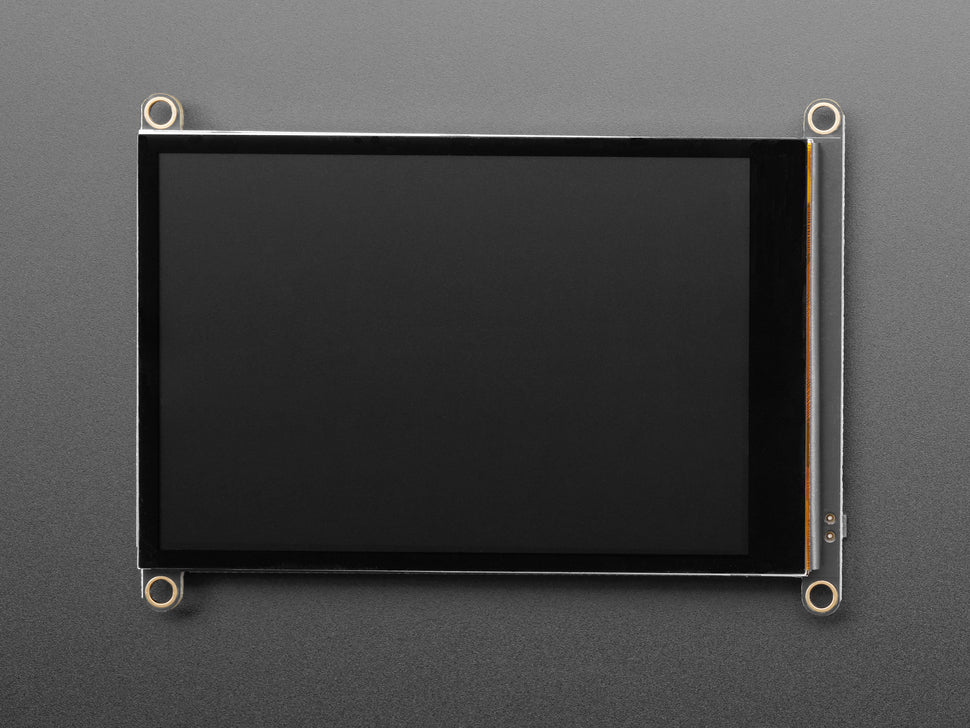

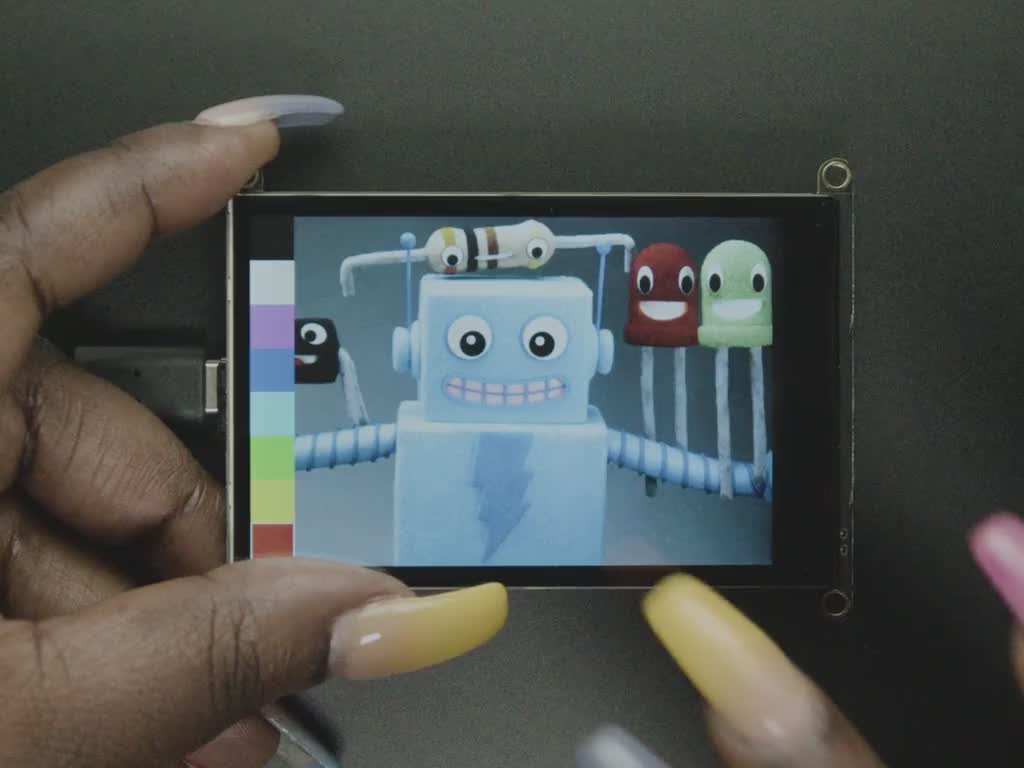

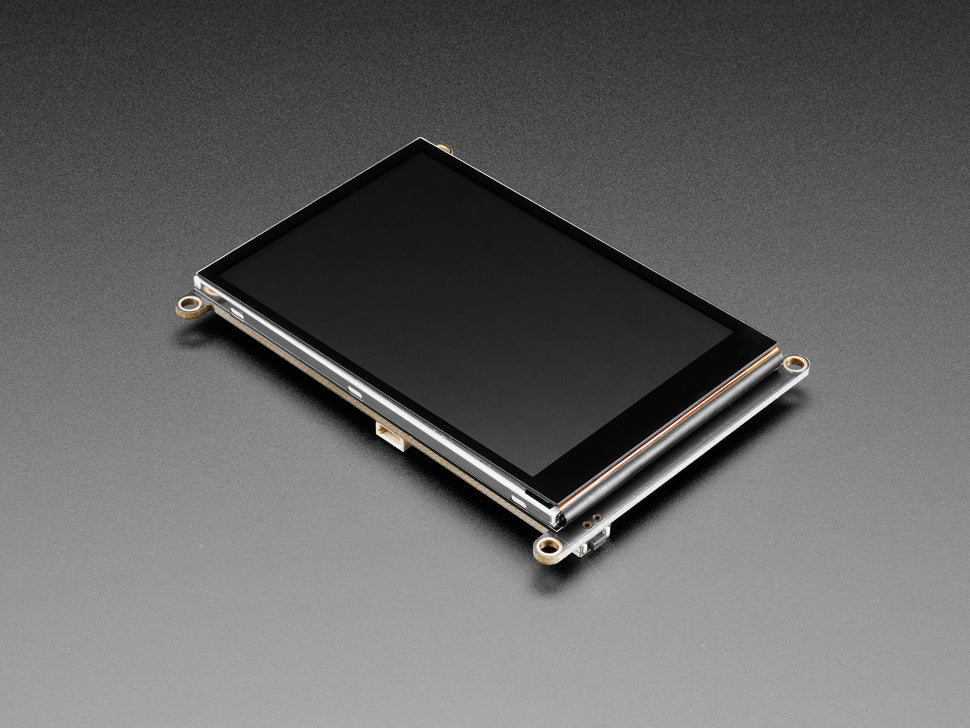

Bedeck your Feather project with the beautiful Adafruit TFT FeatherWing, featuring a 3.5" 480x320 capacitive touchscreen with a bright white-LED backlight and built-in microSD card socket. This high-resolution 480x320 pixel display offers individual 16-bit color pixel control, providing a clear and vibrant visual experience far superior to smaller displays.

Enjoy multi-touch capability with up to 5 finger presses detected anywhere on the screen thanks to the integrated capacitive touchscreen controller via I2C. The FeatherWing uses SPI for the display and SD card socket, and I2C for the touch interface, making it compatible with all Feather boards, especially faster ones like nRF52, RP2040, ESP32, M0, and M4.

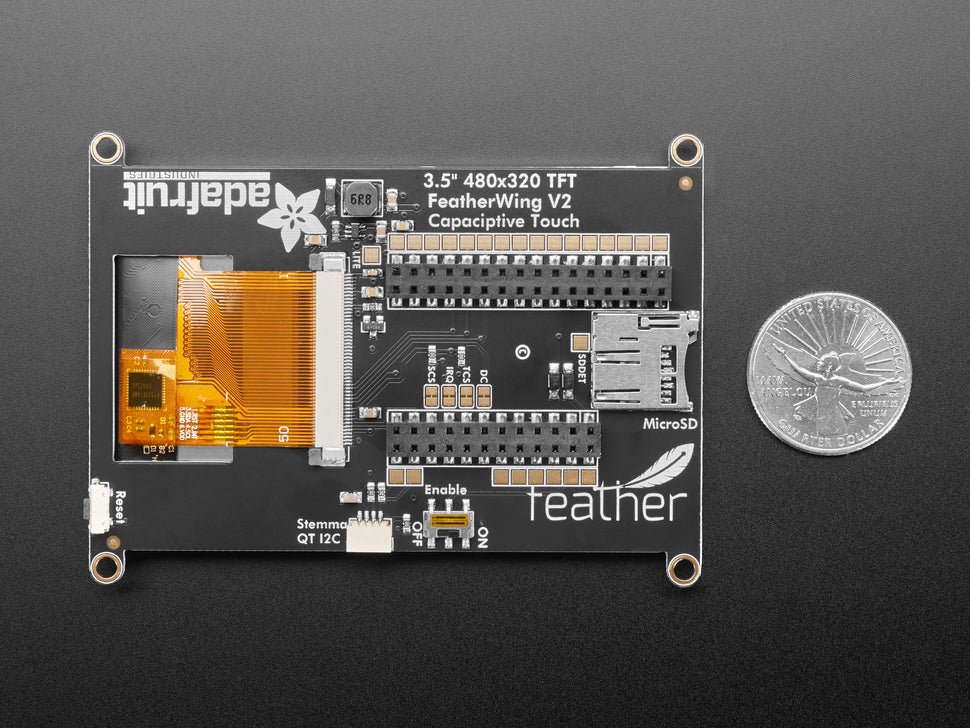

This Wing comes fully assembled with dual sockets for easy Feather board connection and includes large square pads for optional direct soldering. The TFT display is compatible with the HX8357D chipset and supported by both Arduino and CircuitPython libraries. The touch controller (FT5336) also supports 5-point multi-touch with corresponding libraries available.

Check out our comprehensive tutorial guide for setup, code, schematics, and examples.

• 3.5" diagonal TFT display with 480x320 resolution
• Bright white-LED backlight
• Built-in microSD card socket
• Multi-touch capacitive touchscreen (5 finger support)
• Uses SPI for display and SD card, I2C for touch
• Compatible with all Feather boards, optimized for high-speed Feather boards
• Dual Feather sockets and soldering pads for wire connections
• Supported by Arduino and CircuitPython libraries for display and touch
