Adafruit TFT FeatherWing - 3.5" 480x320 Touchscreen for Feathers - V2 with TSC2007

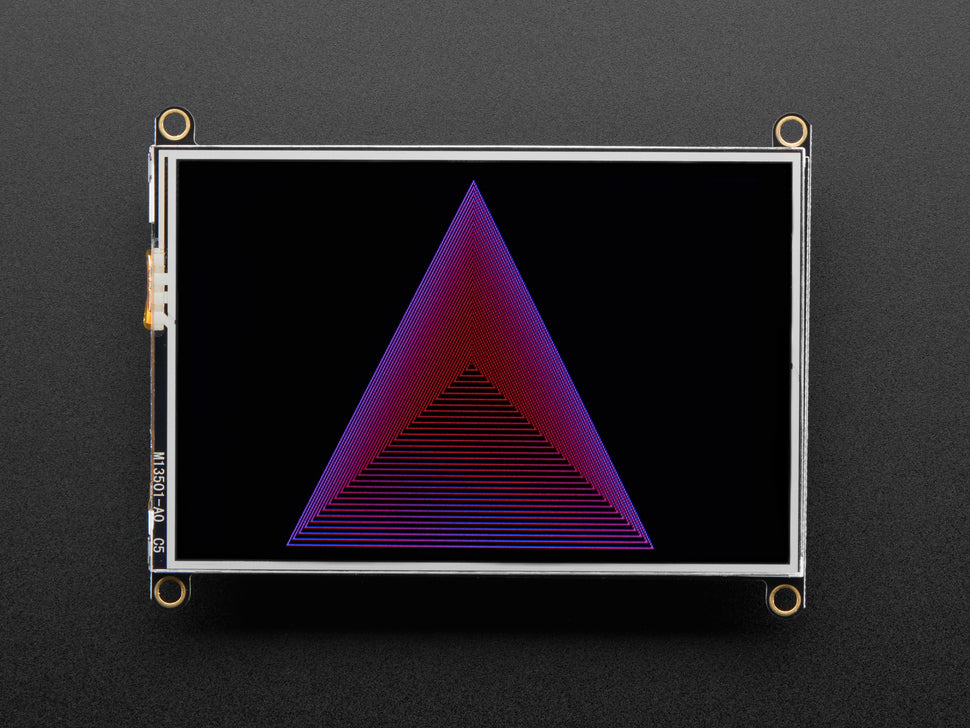

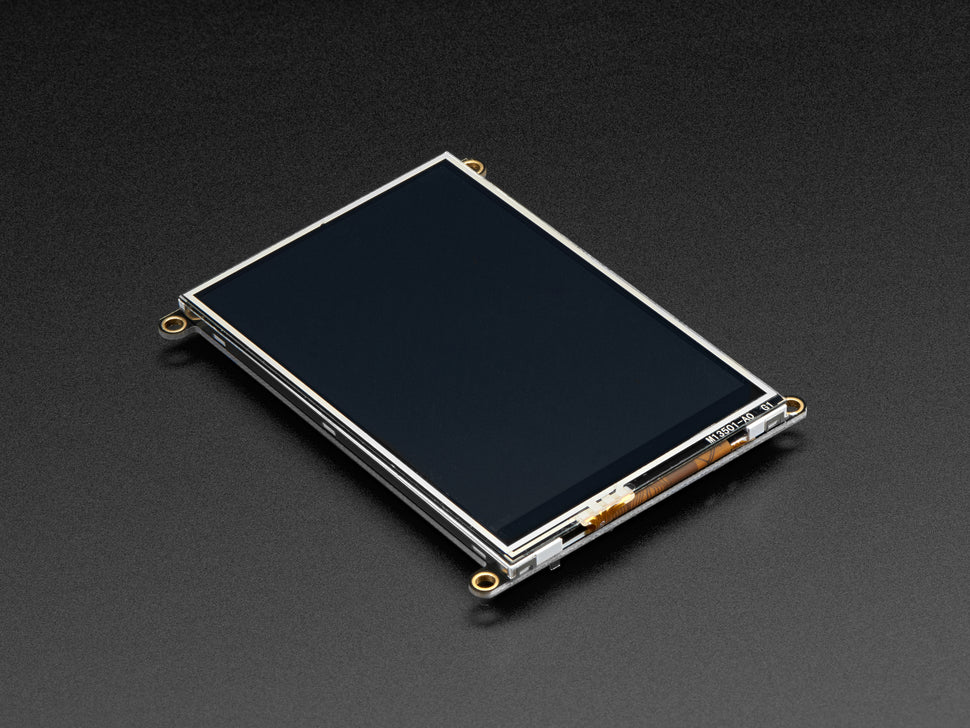

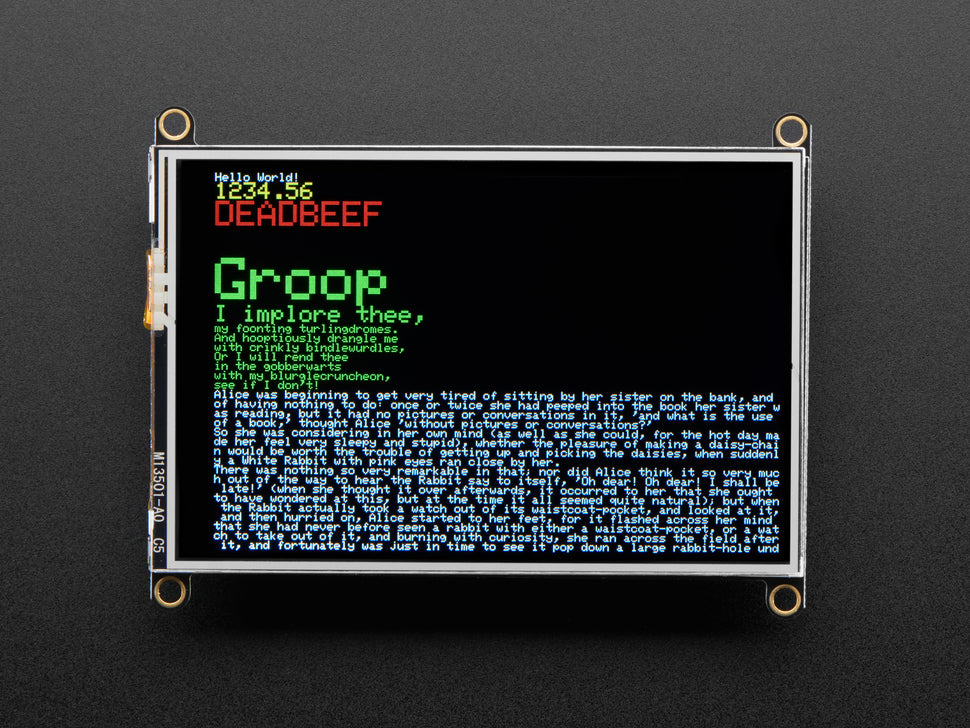

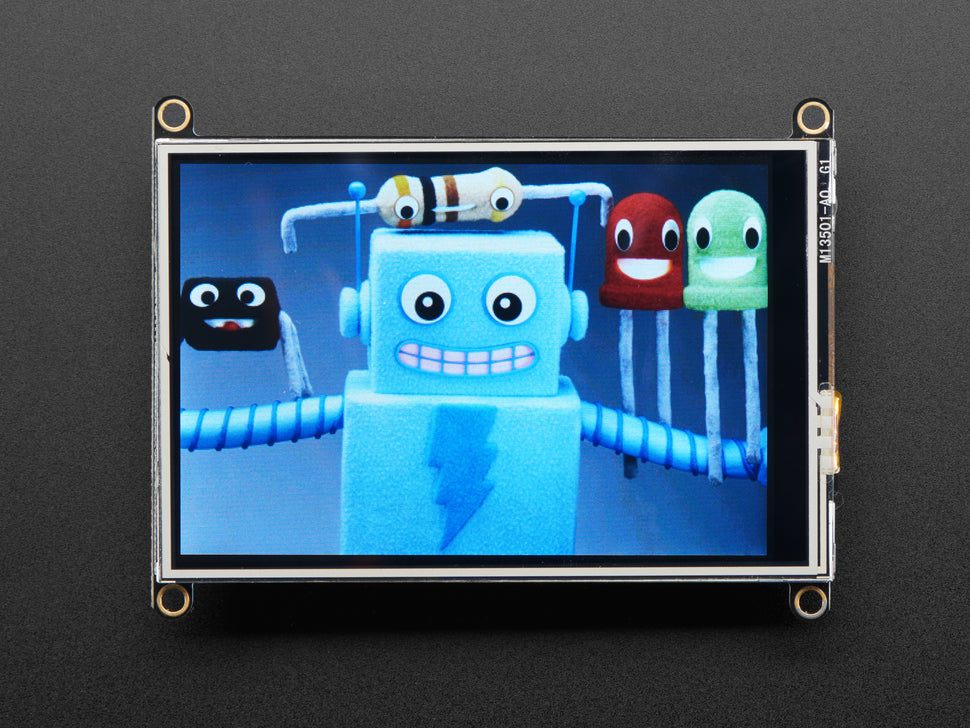

Spice up your Feather project with a beautiful 3.5" touchscreen display shield featuring a built-in microSD card socket. This TFT display has a 3.5" diagonal with a bright 6 white-LED backlight, delivering a massive 480x320 pixel resolution with individual 16-bit color pixel control. It offers significantly more resolution than a 128x64 black and white display, and twice as much as the 2.4" TFT FeatherWing.

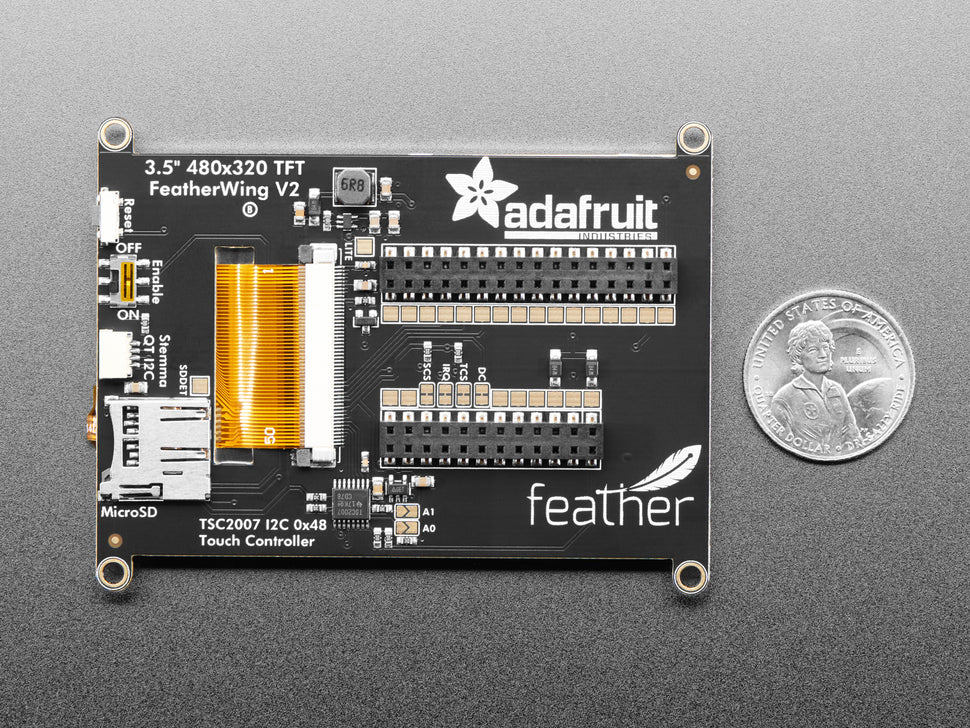

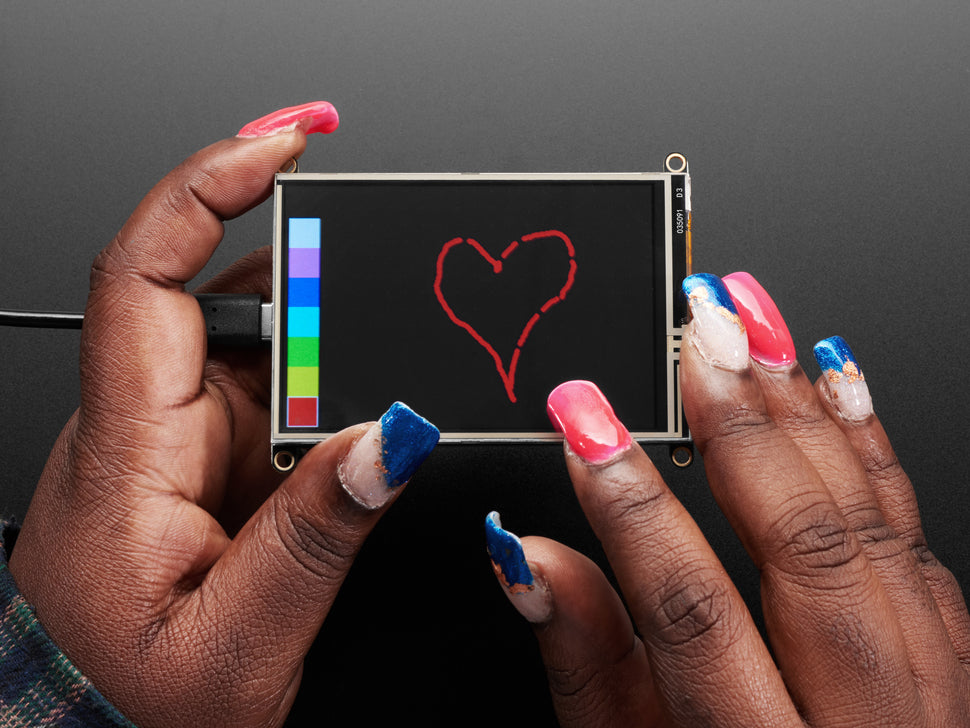

This version features a resistive touchscreen attached, allowing detection of finger presses anywhere on the screen. As of November 15, 2023, this version uses the TSC2007 touchscreen controller, replacing the discontinued STMPE811. The reset button has been updated to a right-angle design and includes a STEMMA QT port.

The FeatherWing uses an SPI display, touchscreen, and SD card socket, compatible with all Feather boards. It works best with faster boards such as the nRF52, ESP8266, ESP32, M0, M4, WICED, and Teensy. The included SPI resistive touchscreen controller requires only one additional pin. The SD card socket offers extra storage for images or other files.

This Wing comes fully assembled with dual sockets for easy Feather plug-in. Each pin has a large square pad on the PCB for direct soldering or wiring.

Get started with the handy tutorial guide including code, schematics, libraries, and examples.
