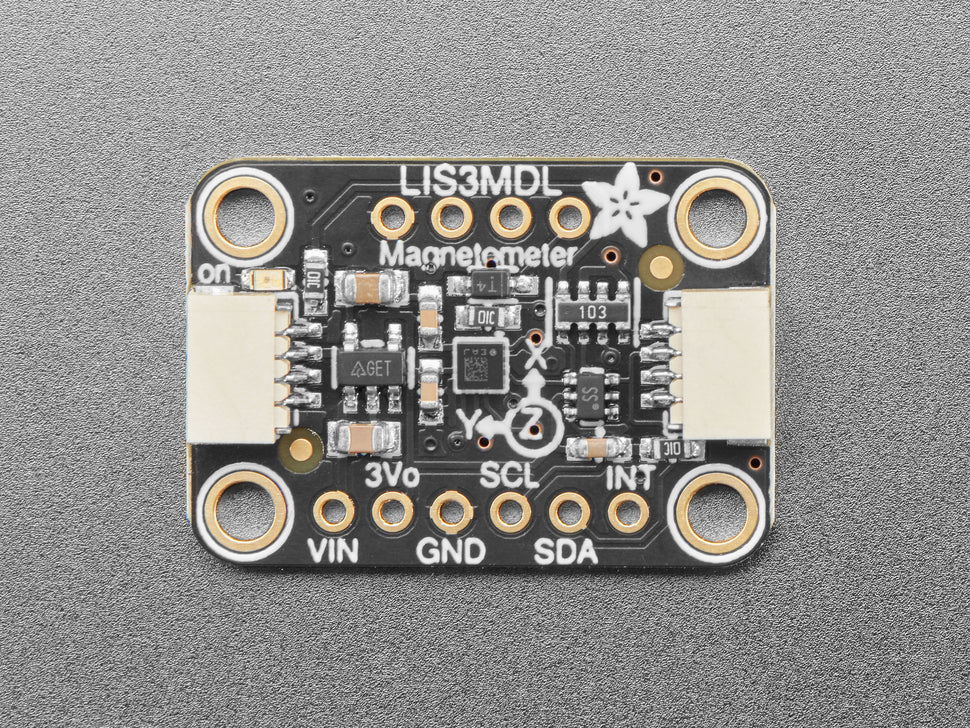

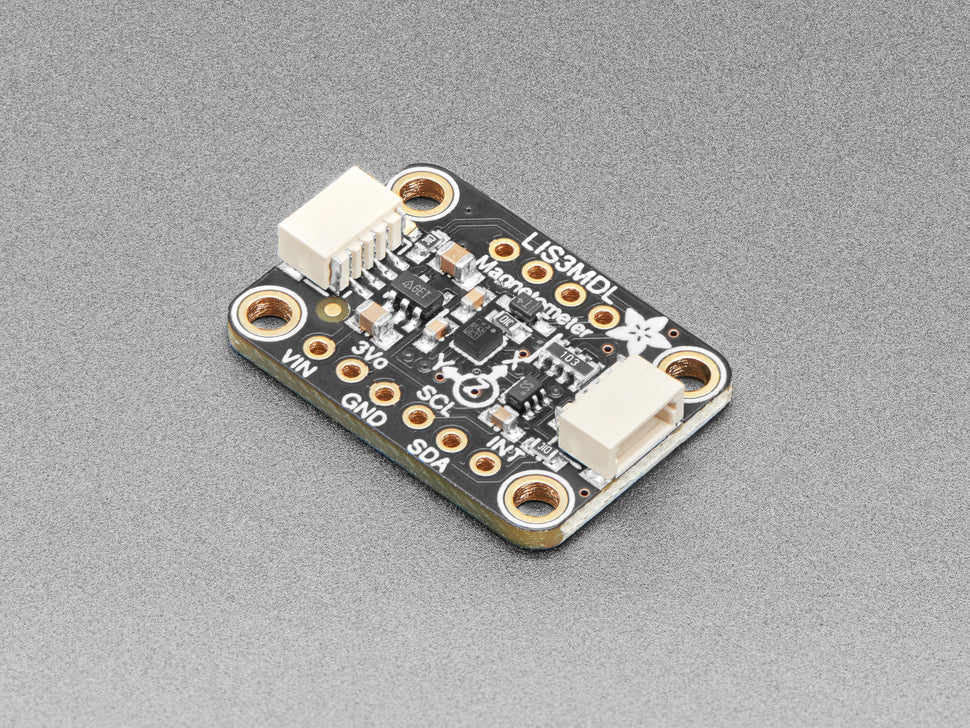

Adafruit Triple-axis Magnetometer - LIS3MDL - STEMMA QT / Qwiic

Sense the magnetic fields that surround us with this handy triple-axis magnetometer (compass) module based on ST's LIS3MDL sensor. This compact sensor uses I2C to communicate and is easy to use. It can detect magnetic field ranges from ±4 gauss up to ±16 gauss, with update rates from 0.625 to 1000 Hz. With STEMMA QT connectors, it supports a solderless connection to compatible devices.

Perfect for use with a 6-DoF accelerometer/gyroscope like the Adafruit LSM6DSOX to create a 9-DoF inertial measurement unit to accurately detect orientation in real space.

• Triple-axis magnetic sensing for compass/magnetic measurements
• I2C communication with optional SPI
• Selectable full scales: ±4/±8/±12/±16 gauss
• Update rate from 0.625 to 1000 Hz
• 16-bit data output
• Interrupt generator and self-test mode

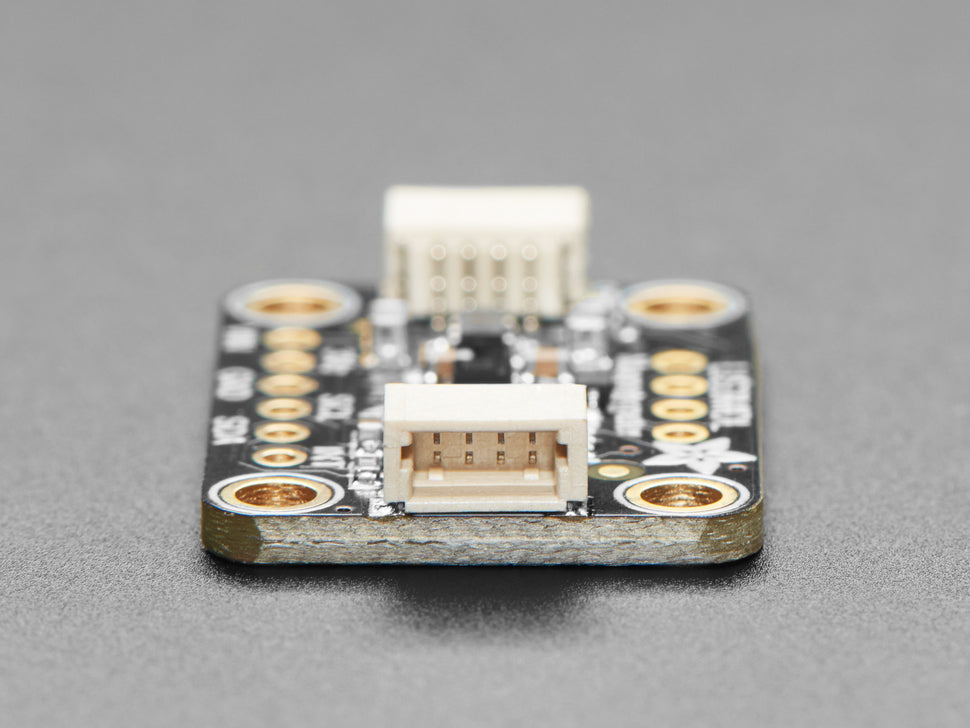

• STEMMA QT / Qwiic compatible connectors for easy wiring
• Supports both 3.3V and 5V logic levels
• Comes fully assembled and tested

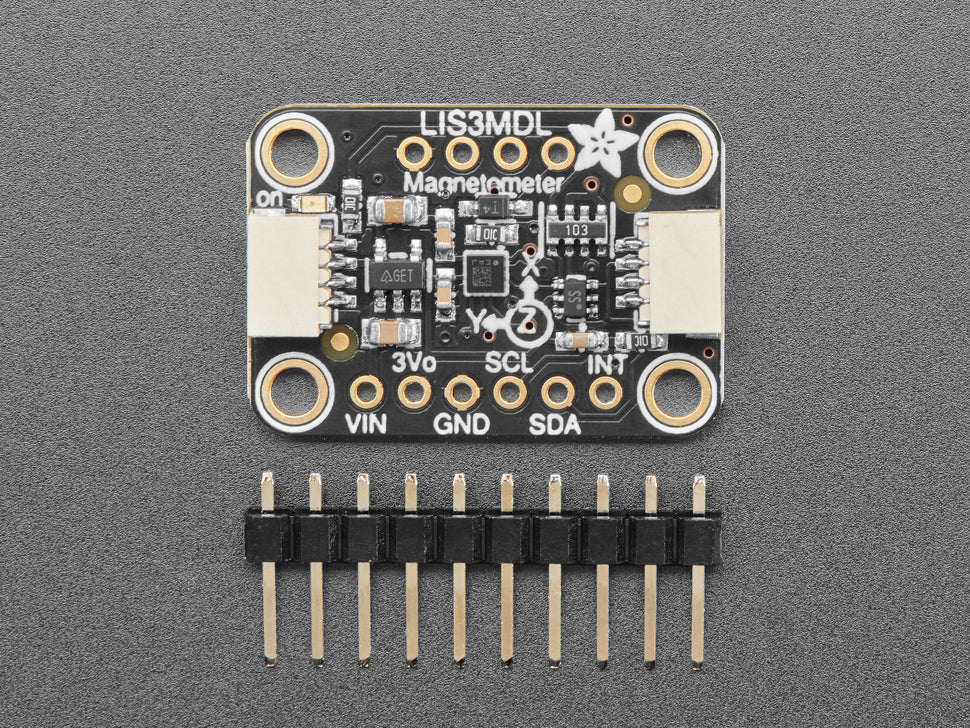

• Includes 0.1" standard header and four mounting holes

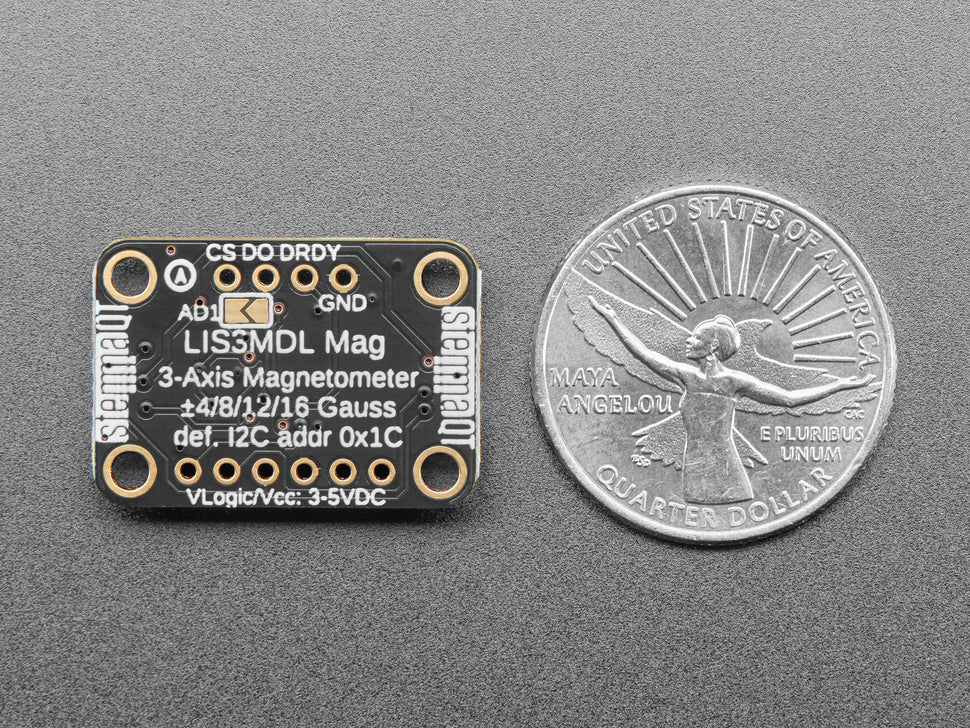

Dimensions: 25.7mm x 17.8mm x 4.6mm

Weight: 1.5g

See our primary guide for more details and project ideas.
