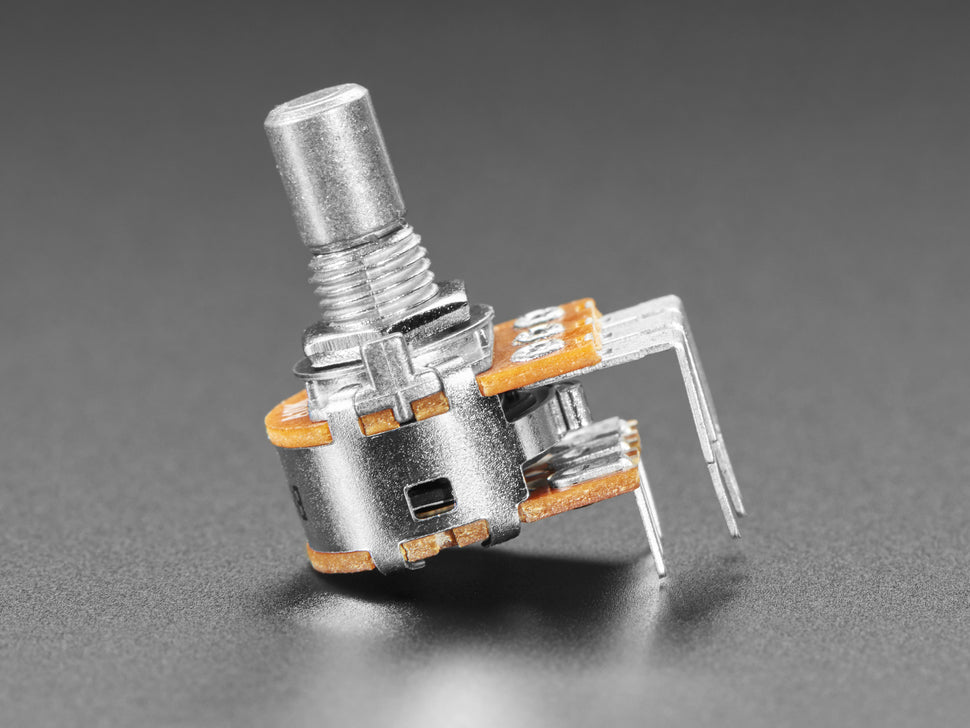

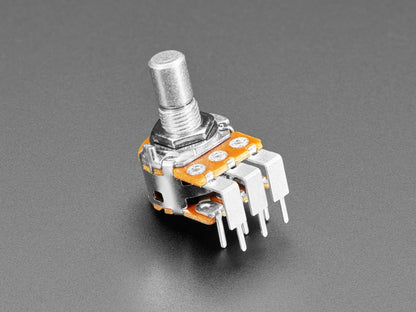

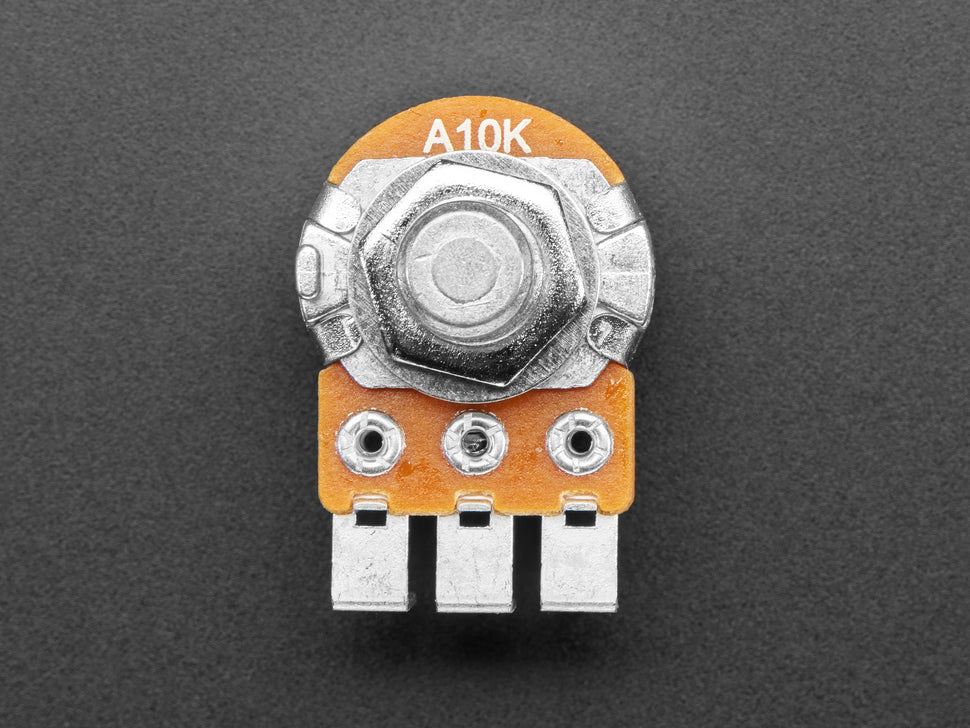

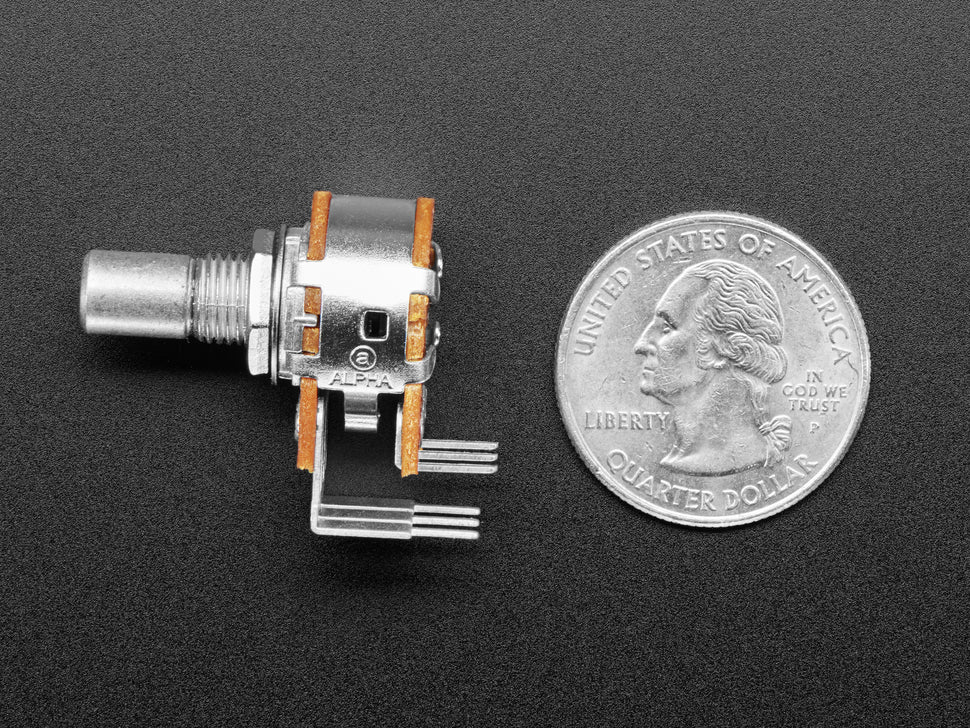

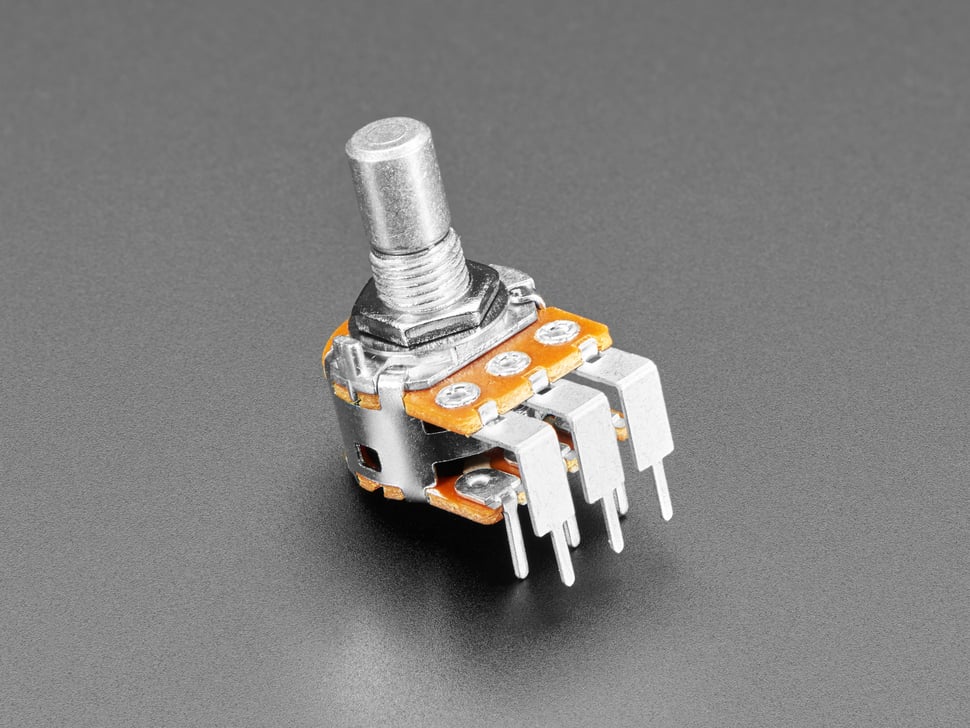

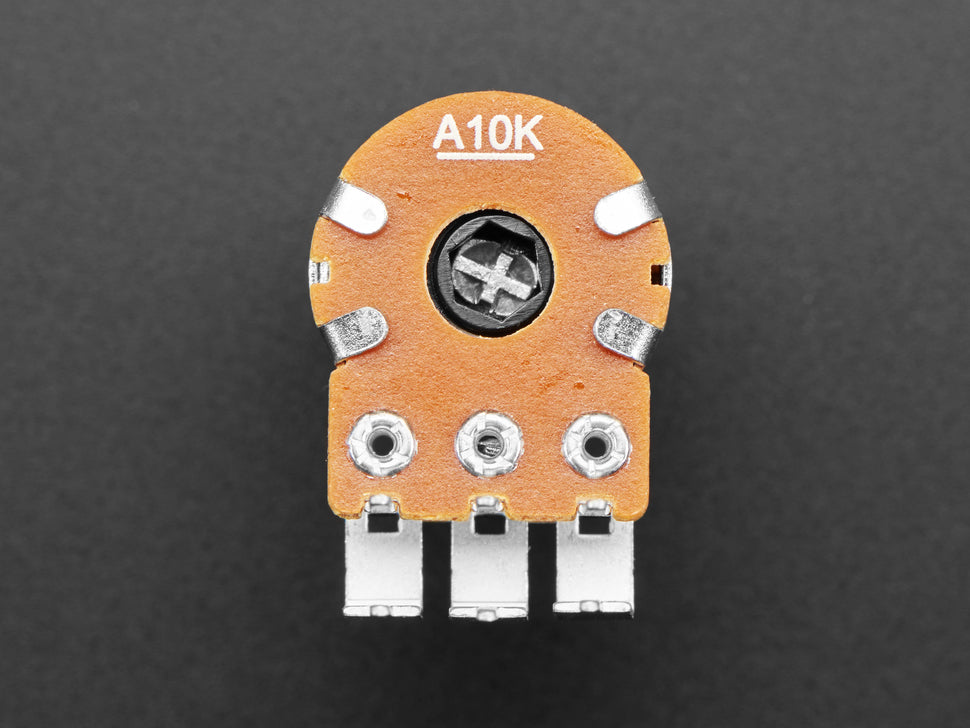

Alpha Dual-Gang 16mm Right-angle PC Mount 10K Audio Potentiometer

The Alpha Dual-Gang 10K Audio potentiometer is a dual stacked potentiometer providing independent stereo control. It features two 10K audio/log taper potentiometers, operated with a single shared knob.

This potentiometer offers smooth, reliable rotation that is neither too loose nor too tight, making it ideal for audio applications. The legs are spaced 0.2" apart with pin-point tips, suitable for perfboard plugging.

The shaft is round with a nominal diameter of 6mm (measured at 6.3mm). The potentiometer can be securely mounted into project enclosures using the included washer and hex nut.

• Dual 10K audio/log taper potentiometers stacked
• Stereo control with single knob
• 0.2" spaced pin-point legs for perfboard compatibility
• 6mm round shaft diameter
• Includes mounting washer and hex nut for panel mounting
• Reliable Alpha brand quality

This potentiometer comes in multiple versions with various resistance values available, including 1K, 5K, 10K, 25K, 50K, 100K, 250K, 500K, and 1M ohms. Pricing varies slightly for options other than 10K.

Datasheet available here.
