Alpha Dual-Gang 16mm Right-angle PC Mount - 25K Audio Potentiometer

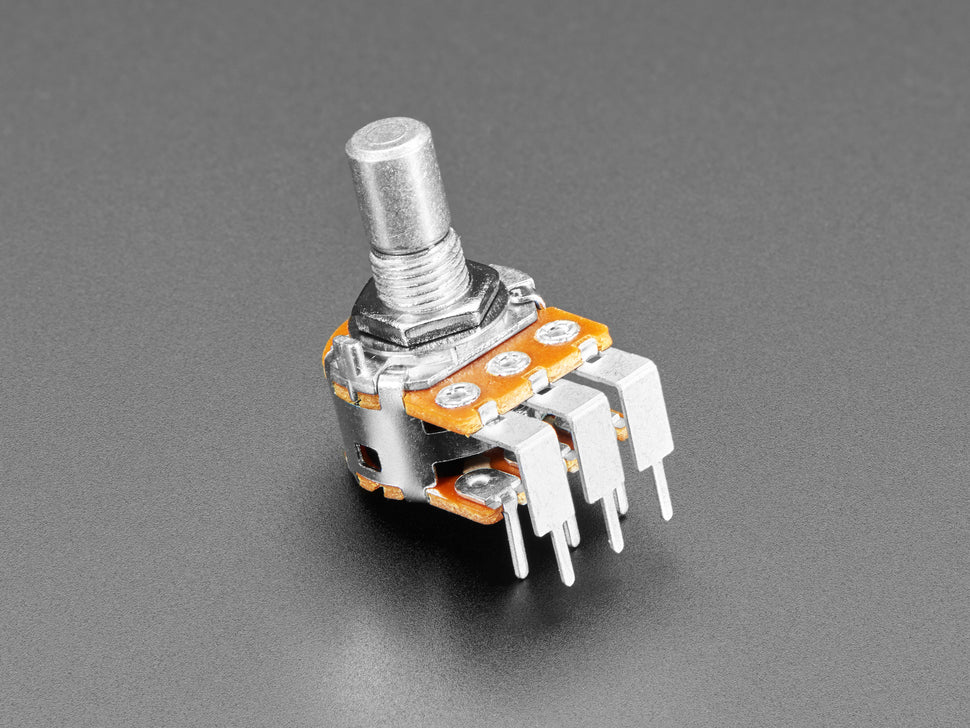

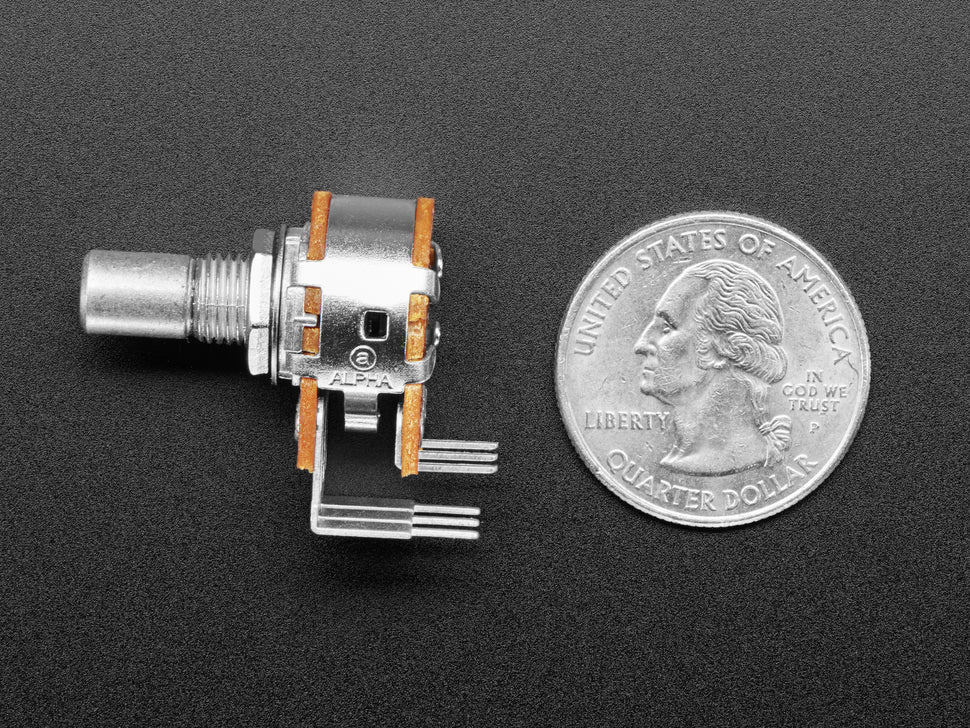

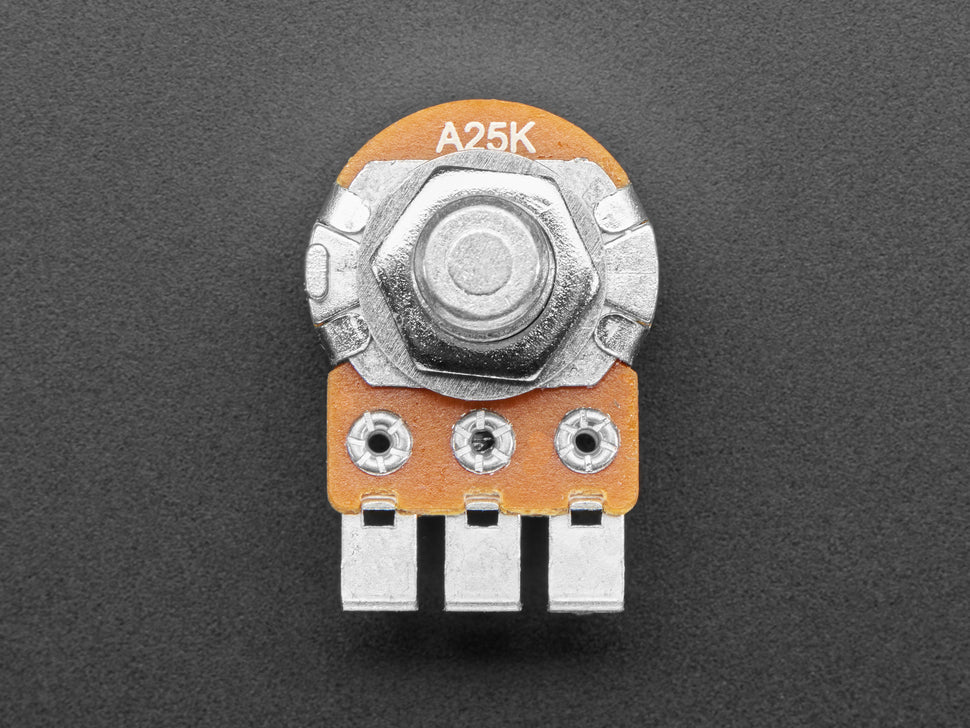

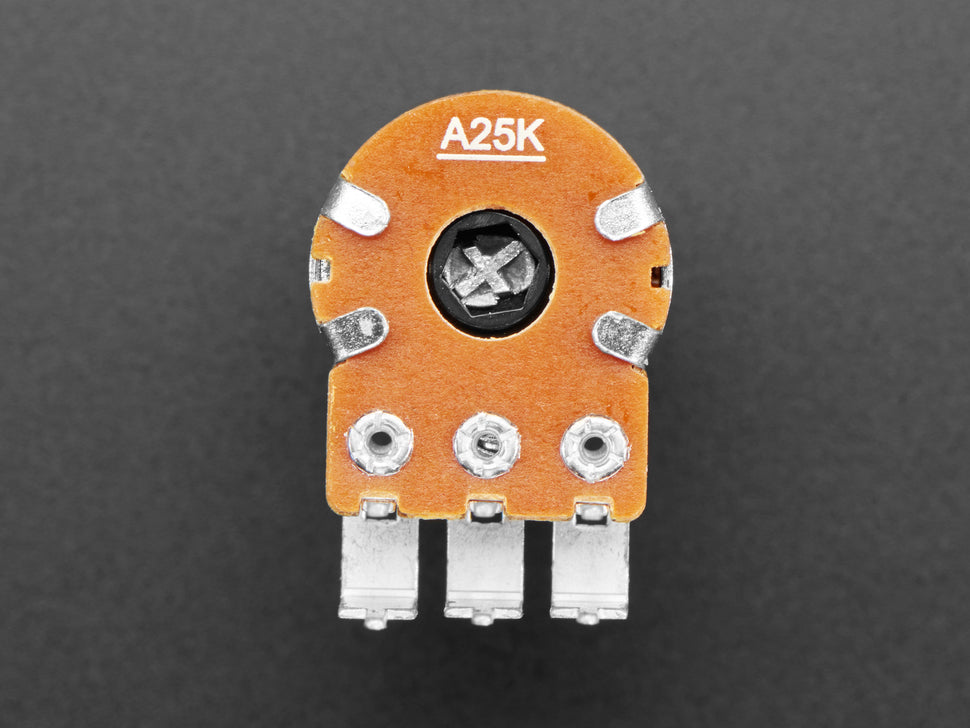

The Alpha Dual-Gang 25K Audio potentiometer is a two-in-one potentiometer stack designed for independent stereo control. Each half features an audio/log taper 25K potentiometer controlled via a single shared knob. The potentiometer rotates smoothly and maintains firm control without drifting.

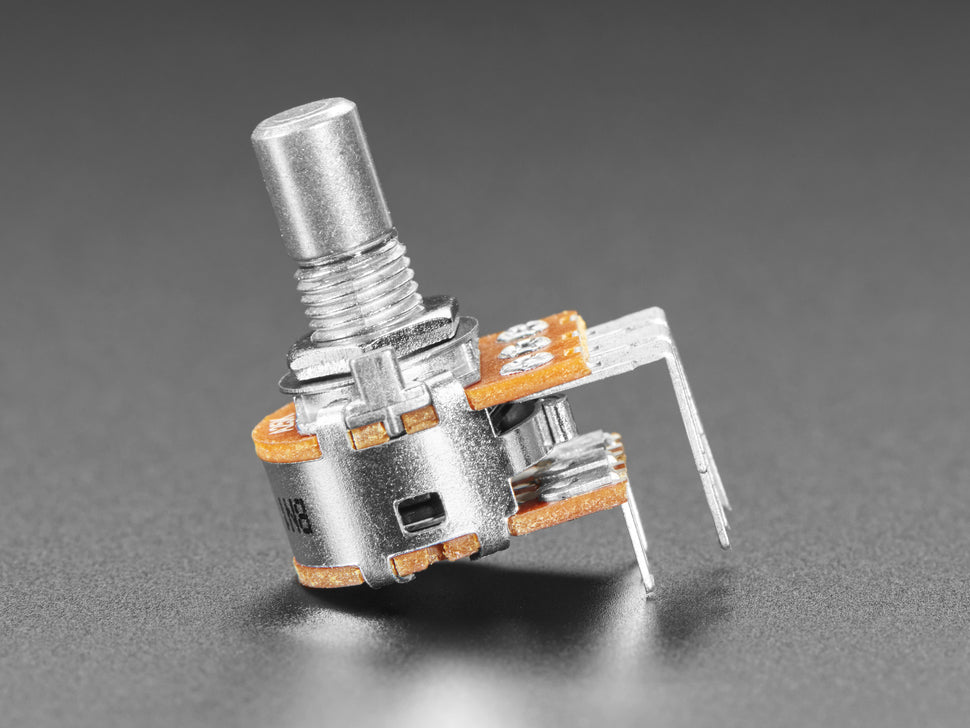

Designed with legs spaced 0.2" apart and featuring pin-point terminals, this potentiometer fits perfboards easily. The shaft is round with a nominal diameter of 6mm (measured approx. 6.3mm). Mounting is easy with the included washer and hex nut for securing into your project enclosure.

Alpha pots are well-regarded for their reliability and quality, making this a cost-effective solution for audio control applications.

Features

• Dual-gang design for stereo control
• Audio/log taper with 25K resistance per half
• Smooth rotary action with firm knob control
• Pin-point terminals spaced 0.2" apart, perfboard compatible
• Round 6mm diameter shaft
• Includes washer and hex nut for panel mounting
• Reliable, high-quality Alpha brand potentiometer

Technical Details

• Datasheet
• RoHS 2 2011 65 EU Compliant
• RoHS 2 2015 863 EU Compliant
