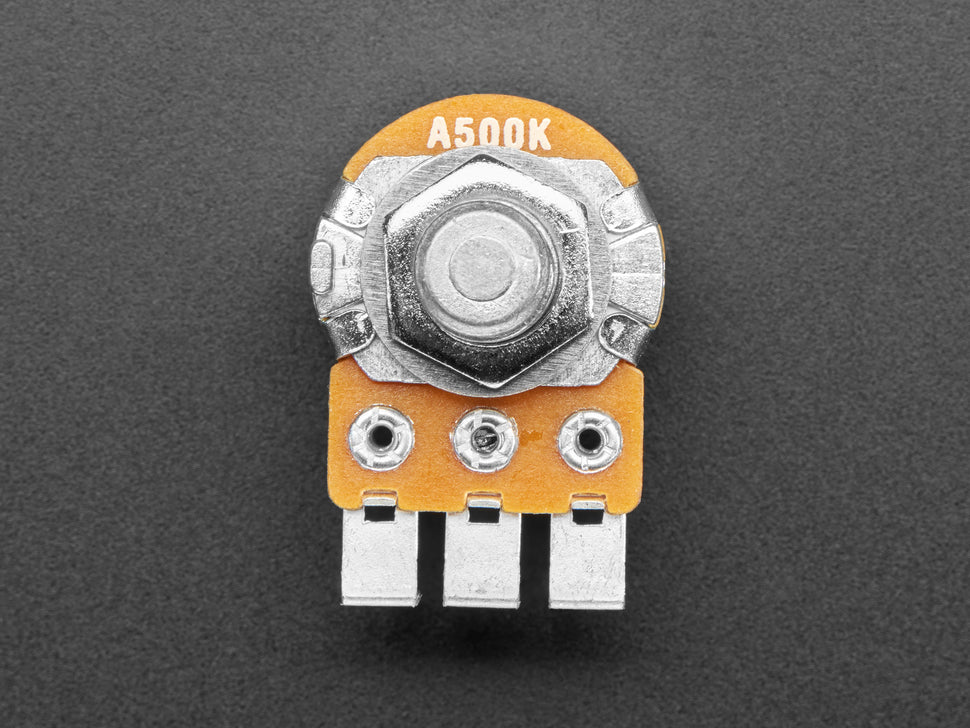

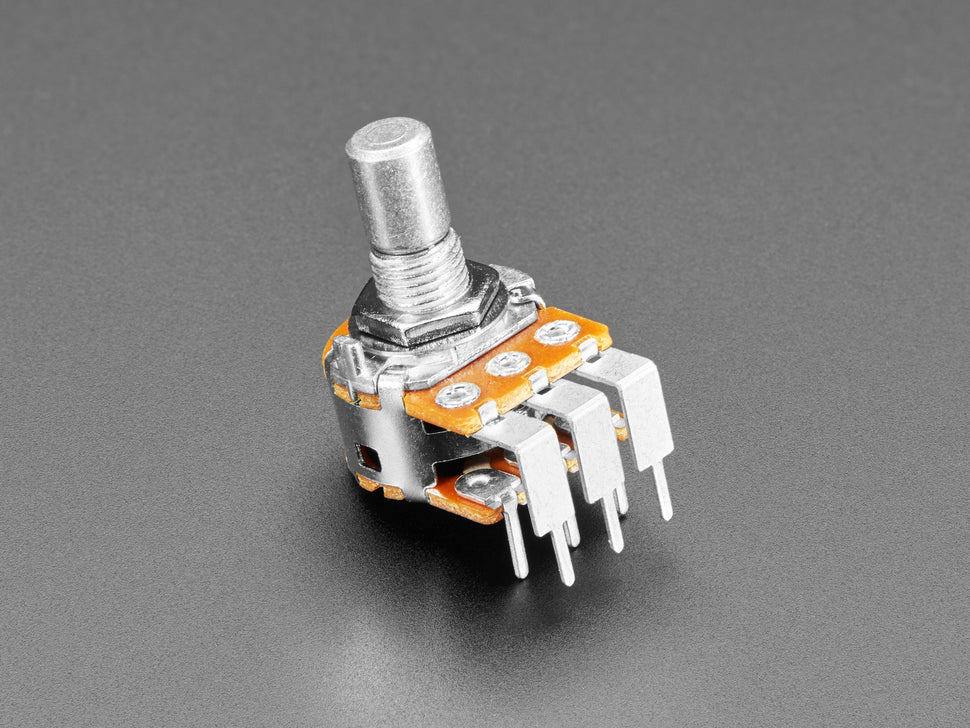

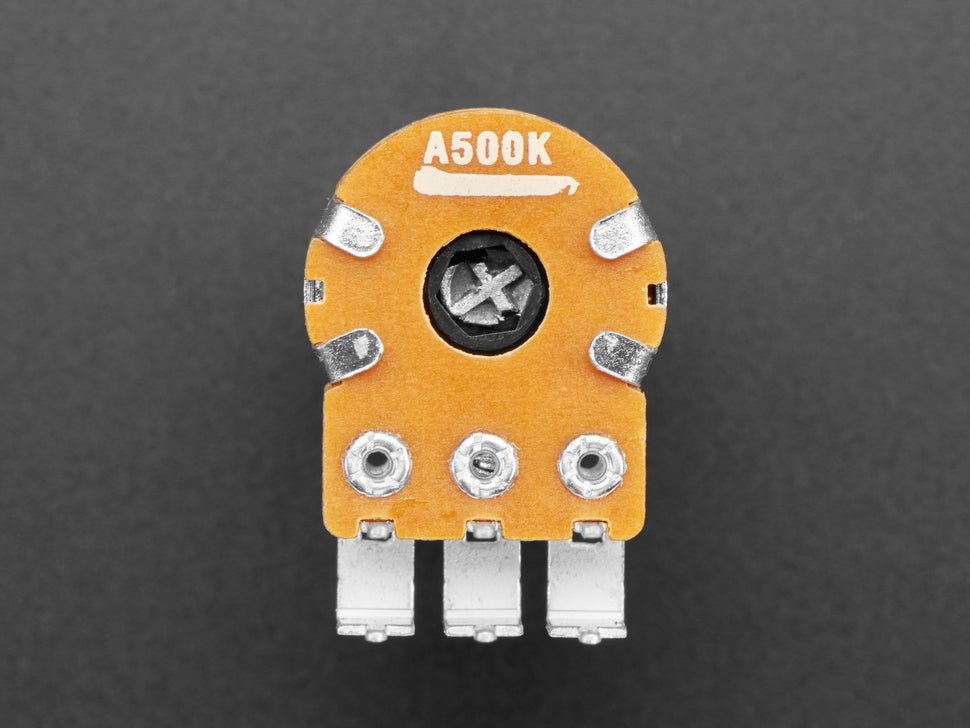

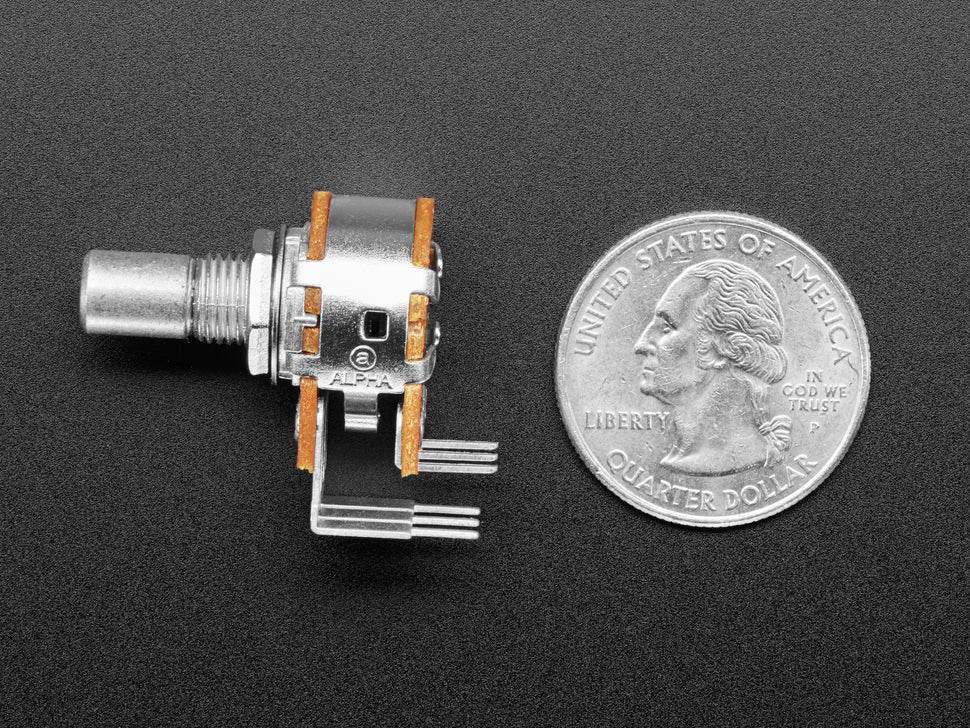

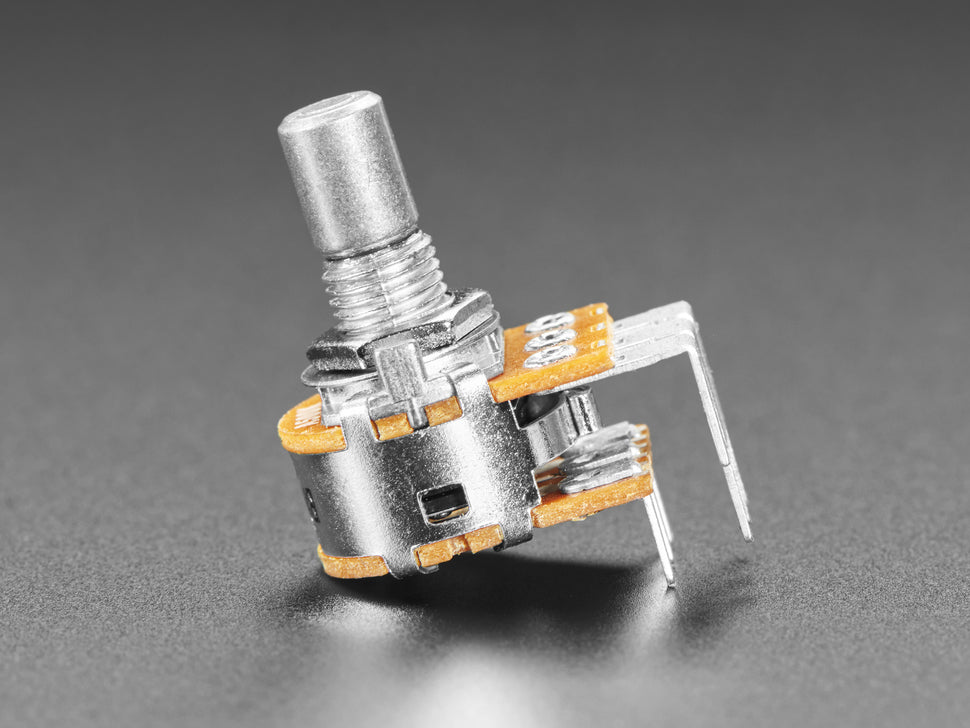

Alpha Dual-Gang 16mm Right-angle PC Mount 500K Audio Potentiometer

This Alpha Dual-Gang 500K Linear potentiometer is a dual potentiometer stack designed for independent stereo control. Each half contains a 500K audio/log taper potentiometer controlled by a single shared knob. The potentiometer features a smooth, reliable turn that is not too loose to shift unintentionally.

The legs are spaced 0.2" apart with pin-points suitable for perfboard insertion. The shaft is round with a nominal diameter of 6mm measured at 6.3mm. After prototyping, the potentiometer can be securely mounted into a project enclosure using the included washer and hex nut.

Alpha potentiometers are valued for their reliability, high quality, and cost-effectiveness, making this an excellent choice for audio and electronics projects.

• Dual-gang 500K audio/log taper potentiometer
• Two-in-one potentiometer stack with independent stereo control
• Smooth, consistent turning action
• 0.2" spaced legs with pin-points for perfboard compatibility
• Round 6mm diameter shaft (measured at 6.3mm)
• Includes washer and hex nut for panel mounting
• High quality from Alpha, known for reliability
