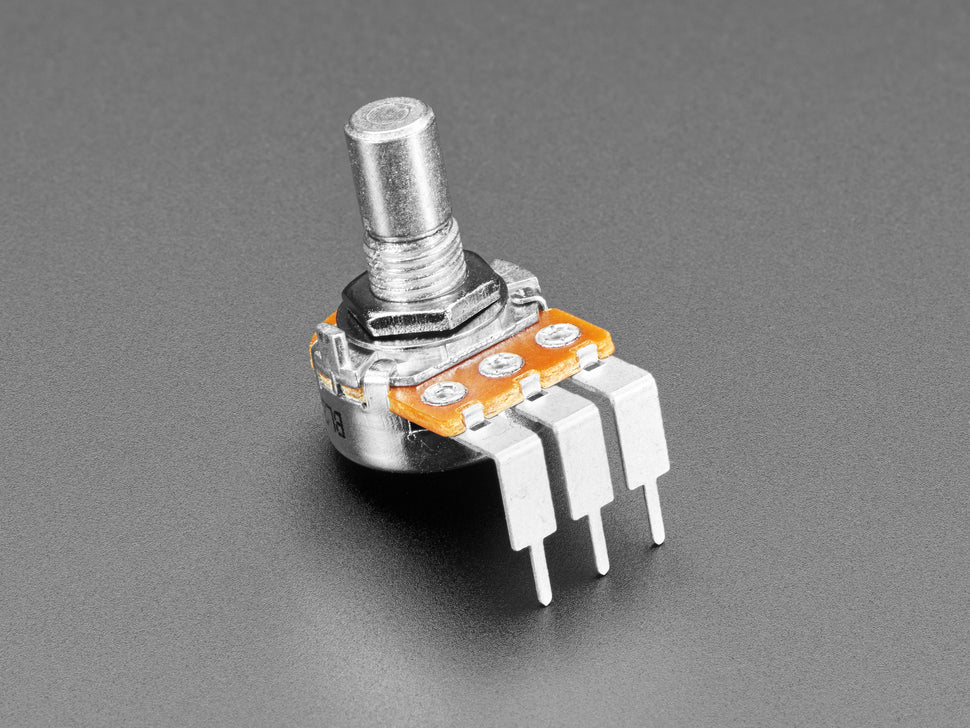

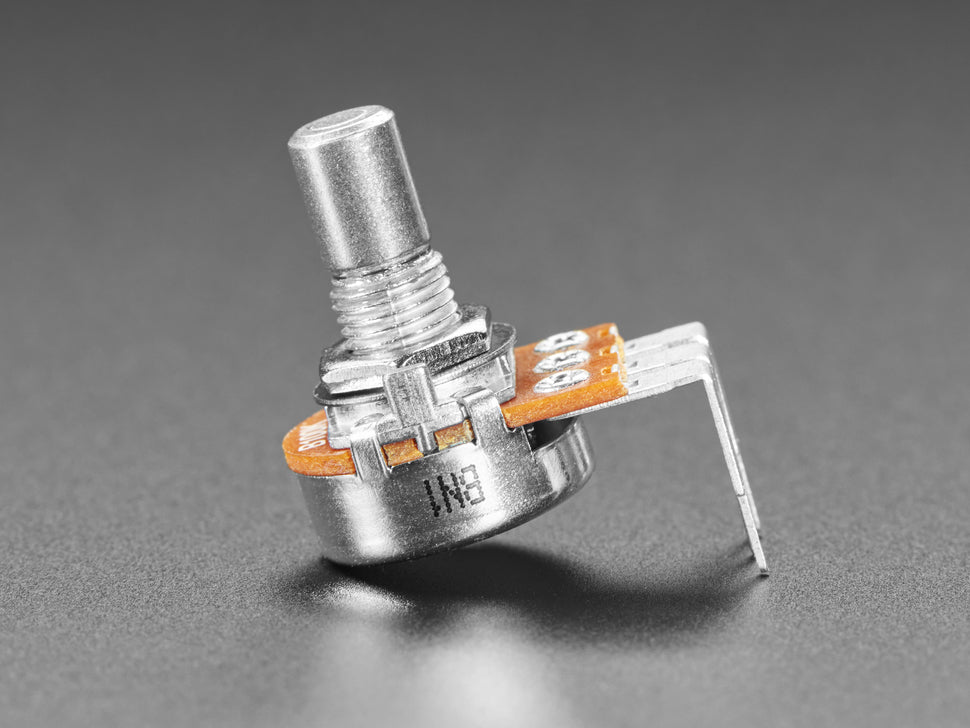

Alpha Single-Gang 16mm Right-angle PC Mount 100K Linear Potentiometer

This Alpha 100K Linear potentiometer is a two-in-one component, suitable for use in a breadboard or mounted on a panel. It features a standard linear taper with 100K ohm resistance. The potentiometer is smooth and easy to turn without feeling loose, preventing unintentional shifting.

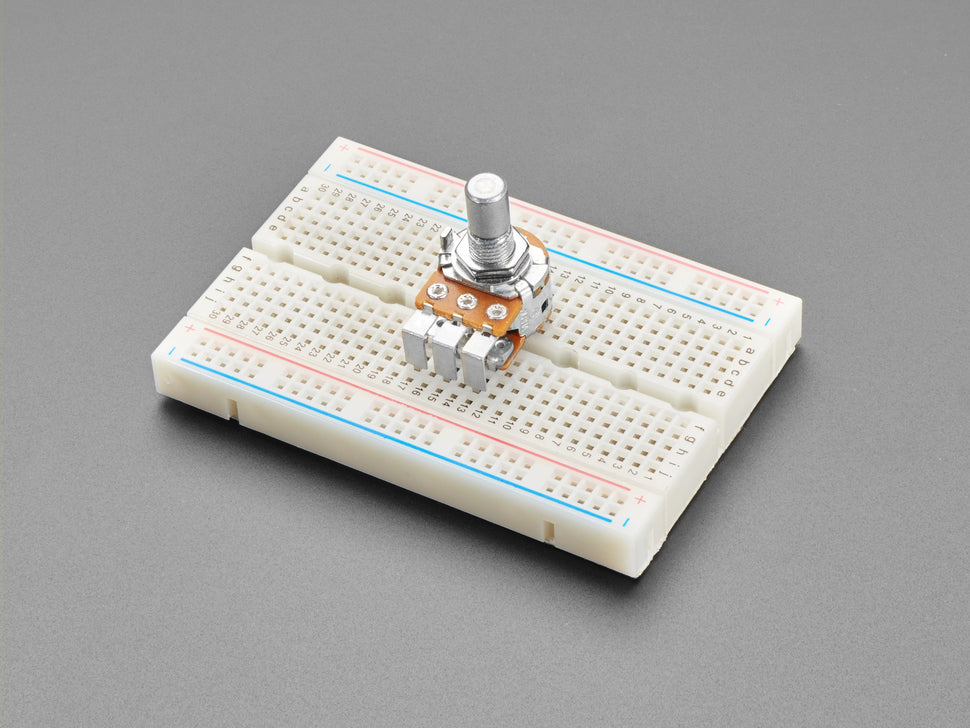

The legs have a 0.2" spacing with pin-pointed ends, making it easy to plug into breadboards or perfboards. Alpha potentiometers are well-regarded for their reliability and consistency, offering a high-quality, low-cost solution.

The shaft has a round profile (not T18 or flattened) with an approximate diameter of 6mm (measured 6.3mm).

For permanent installation, drill a hole into your project enclosure and mount the potentiometer using the included washer and hex nut.

Key Features:

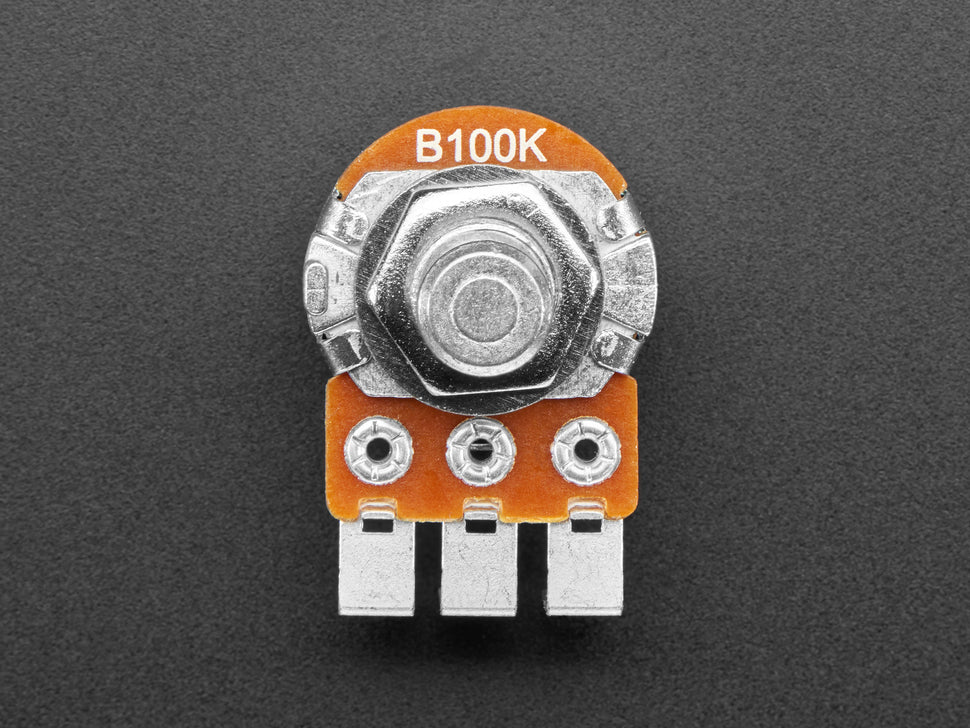

• 100K ohm linear taper potentiometer
• Two-in-one design: breadboard and panel mount compatible
• 0.2" spaced pin-point legs for easy prototyping
• Smooth rotary action
• Round 6mm diameter shaft
• Includes mounting washer and hex nut

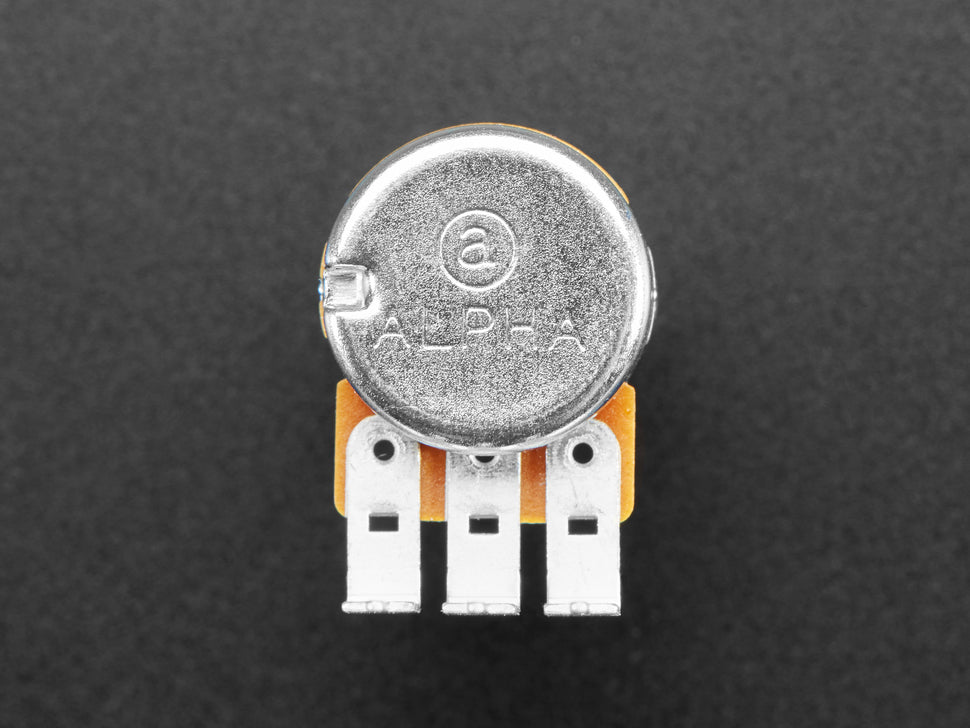

• Alpha brand known for reliability and consistency

Technical Details:

• Datasheet
• RoHS 2 2011/65/EU compliant
• RoHS 2 2015/863/EU compliant
