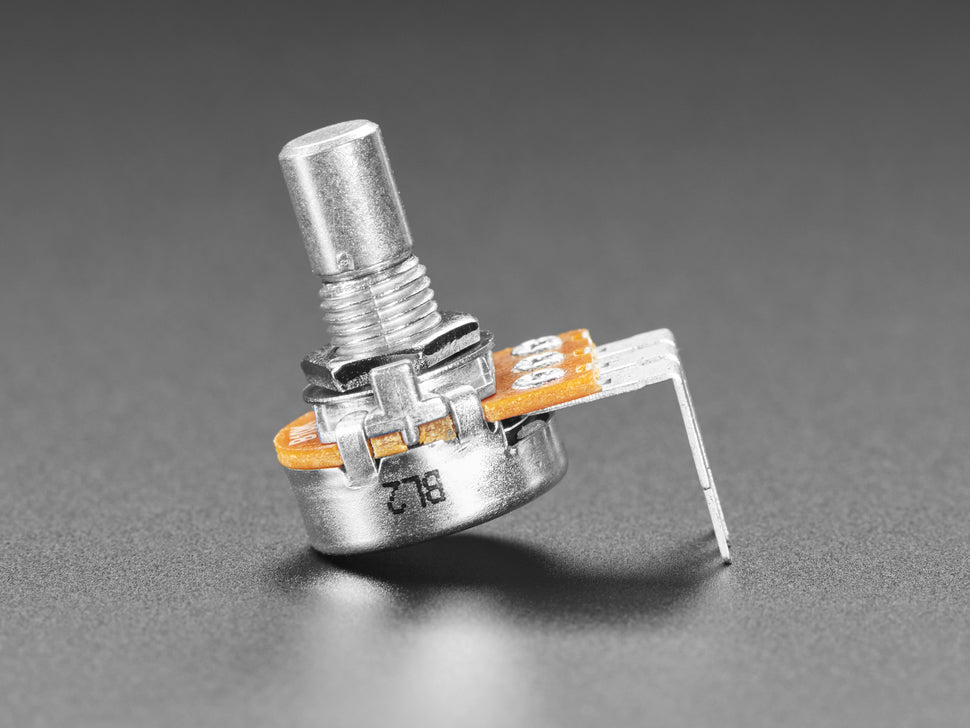

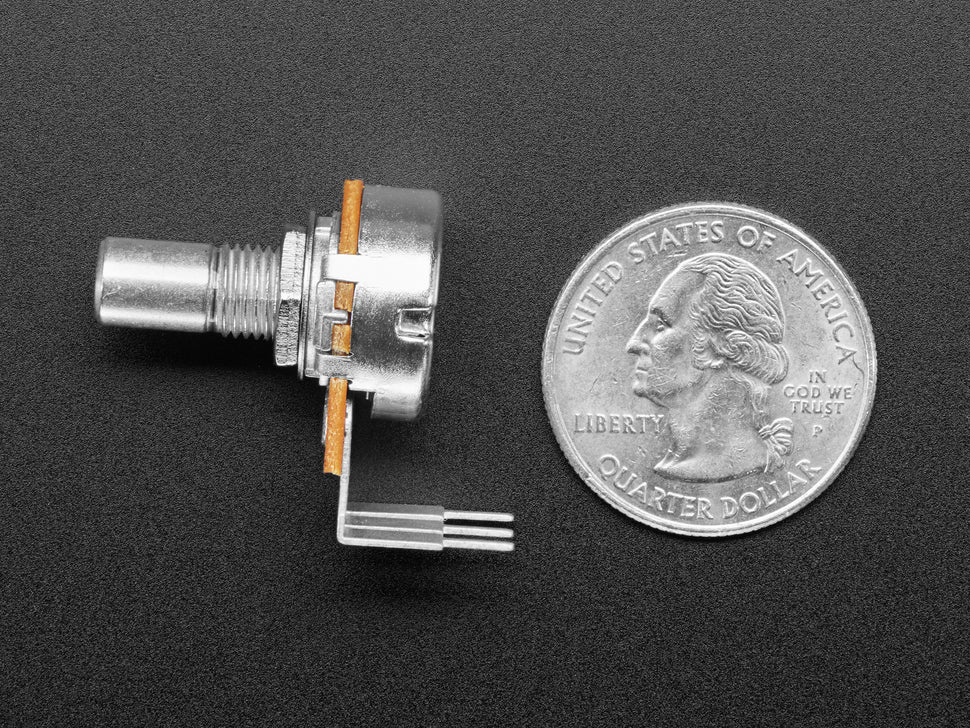

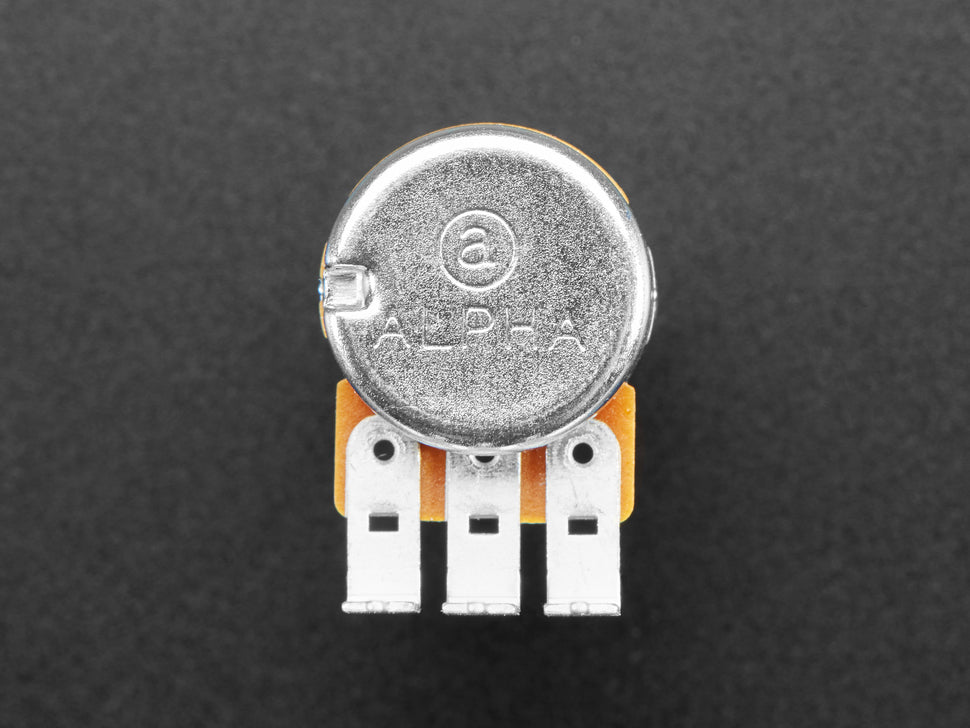

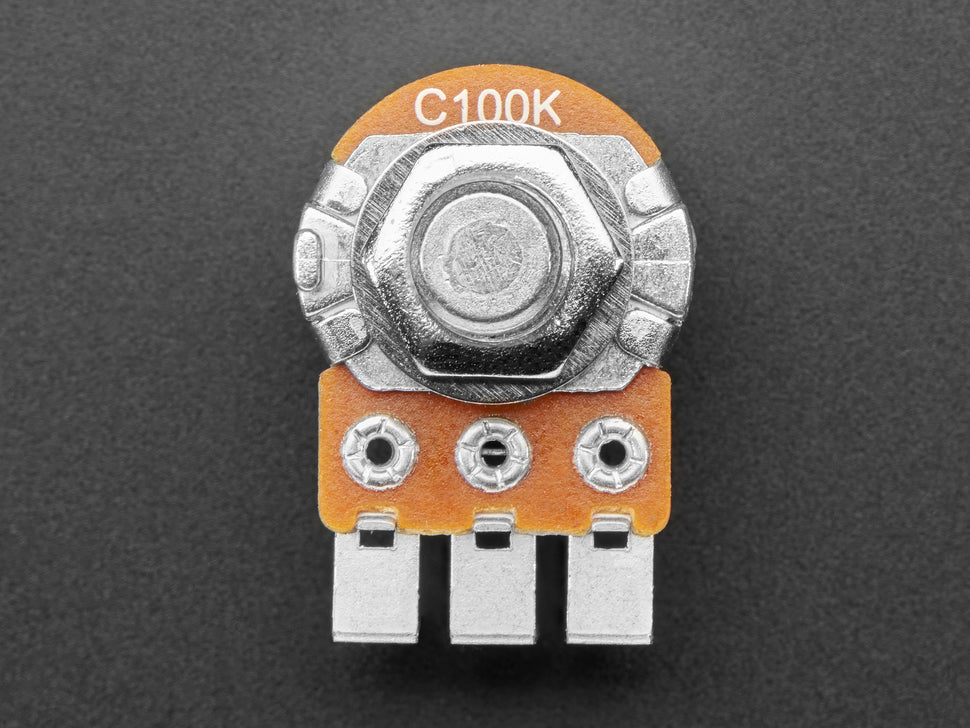

Alpha Single-Gang 16mm Right-angle PC Mount - 100K Reverse Audio Potentiometer

The Alpha 100K Reverse Audio potentiometer is a reliable and high-quality rotary potentiometer ideal for breadboard and panel mounting. Featuring a unique reverse audio taper, this 100K ohm potentiometer offers smooth and precise control without being overly loose.

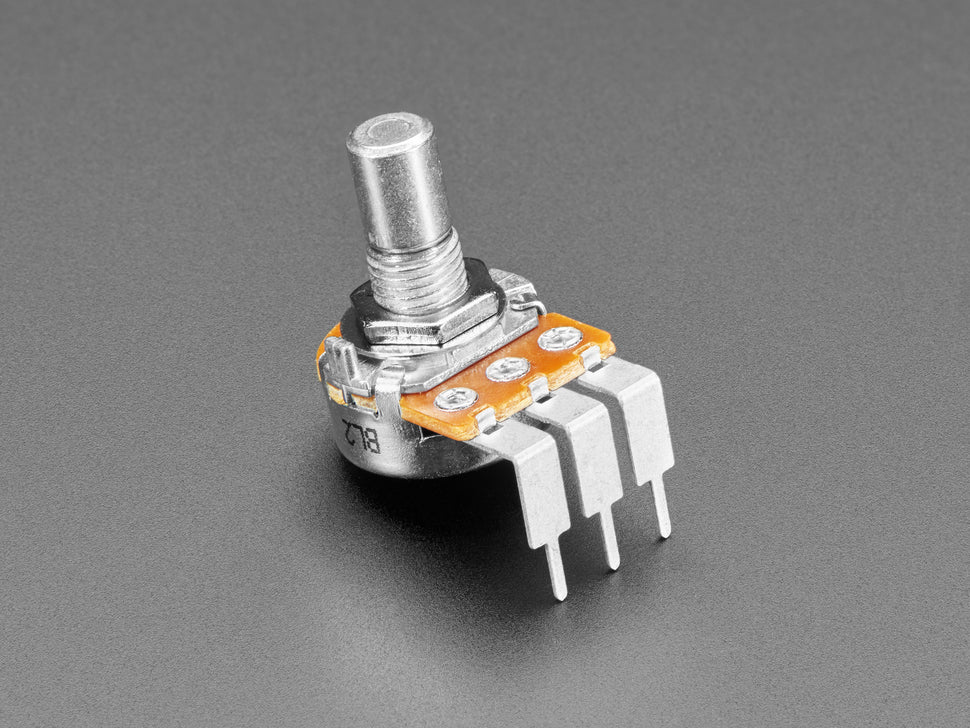

Its legs are spaced 0.2" apart with pin-points, making it breadboard and perfboard friendly. The shaft has a round 6mm diameter (approximately 6.3mm measured), and it comes with a washer and hex nut for secure panel mounting once prototyping is complete.

• Reverse audio taper 100K ohm potentiometer
• Smooth rotation, not loose

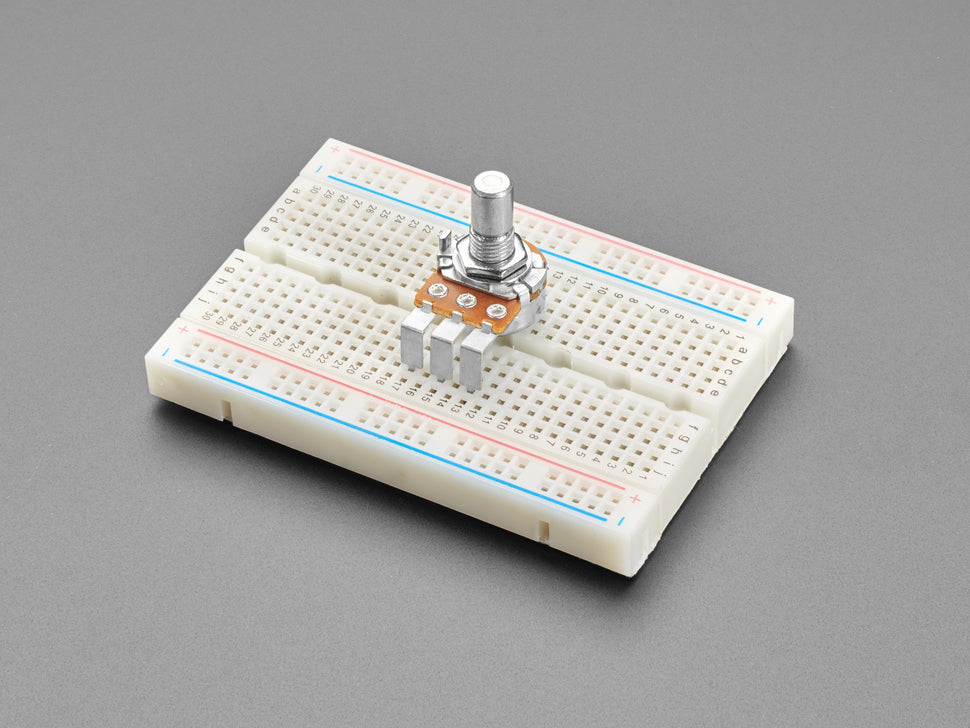

• Breadboard and perfboard compatible (0.2" leg spacing with pin-points)
• Round shaft approximately 6mm diameter
• Includes washer and hex nut for panel mounting
• High reliability and consistent performance by Alpha

Datasheet
