Arcade Button and Switch Quick-Connect Wires - 0.25" (10-pack)

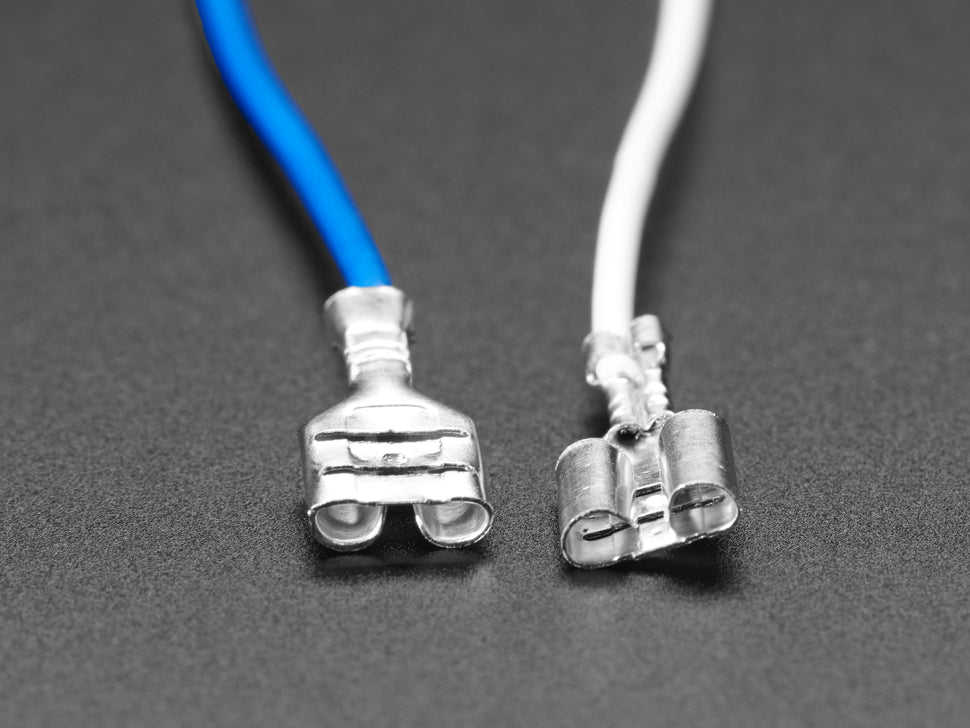

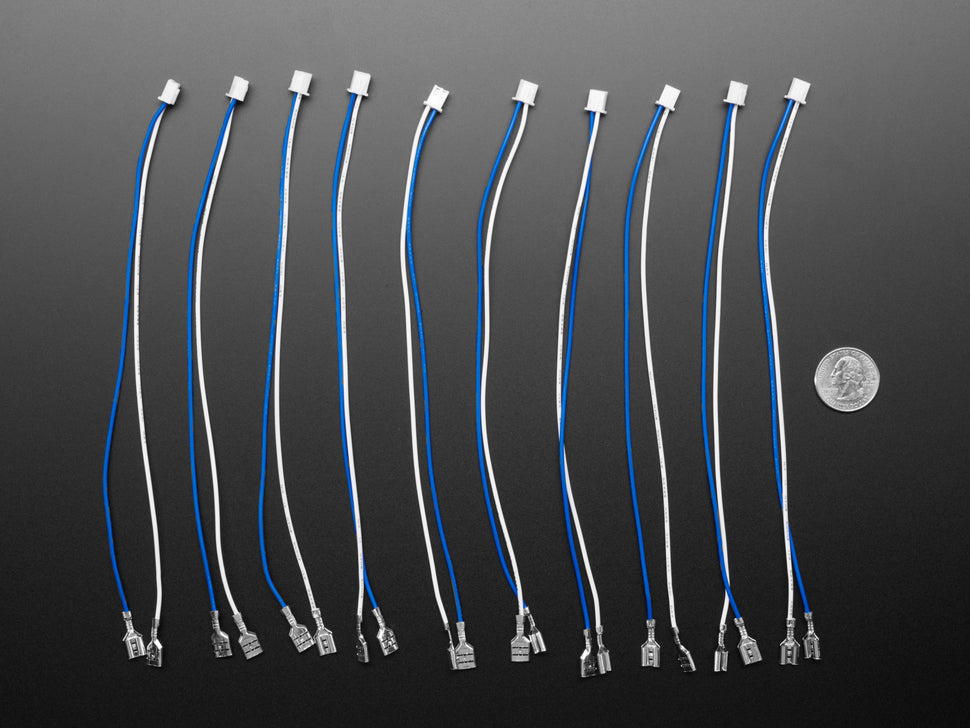

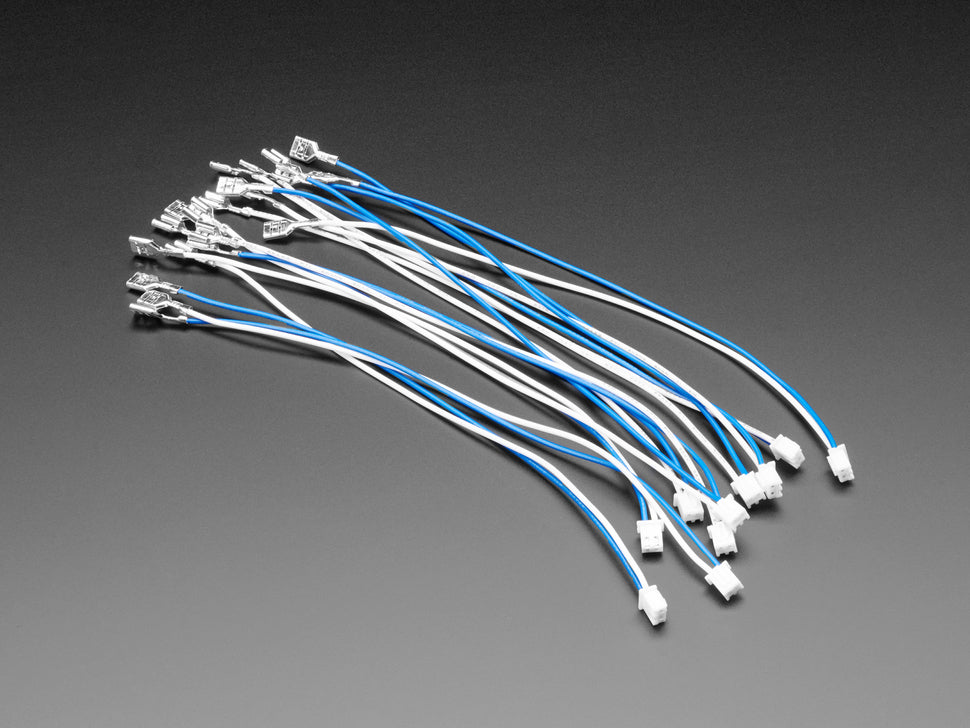

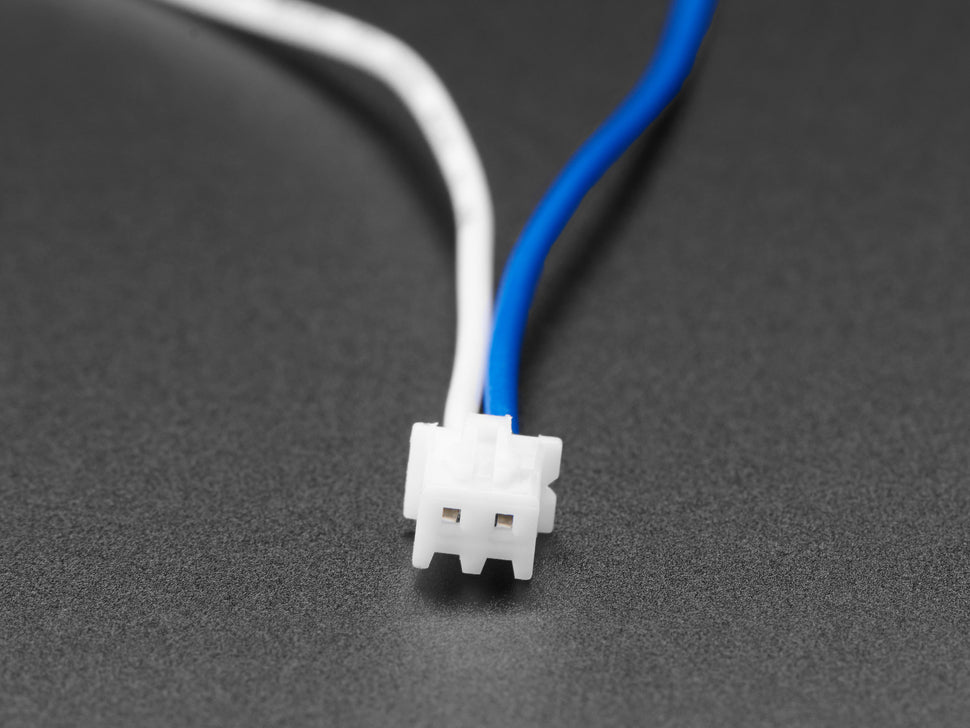

Quick connector wire sets make wiring up our arcade-style or metal buttons quick and easy. Each wire comes as a pair with two 0.25" quick-connects pre-crimped. The wires are terminated together in a JST 2.5mm 2-pin connector. This connector fits into 0.1" headers, making it breadboard compatible, or you can stick two wires into the end. You can also trim off the connector if it's not needed.

If you need a connector for the other side, you can use the JST XH series connectors.

These wires are compatible with:

• Massive Arcade Buttons (fit both LED and switch contacts)
• Large Arcade Buttons (fit both LED and switch contacts)

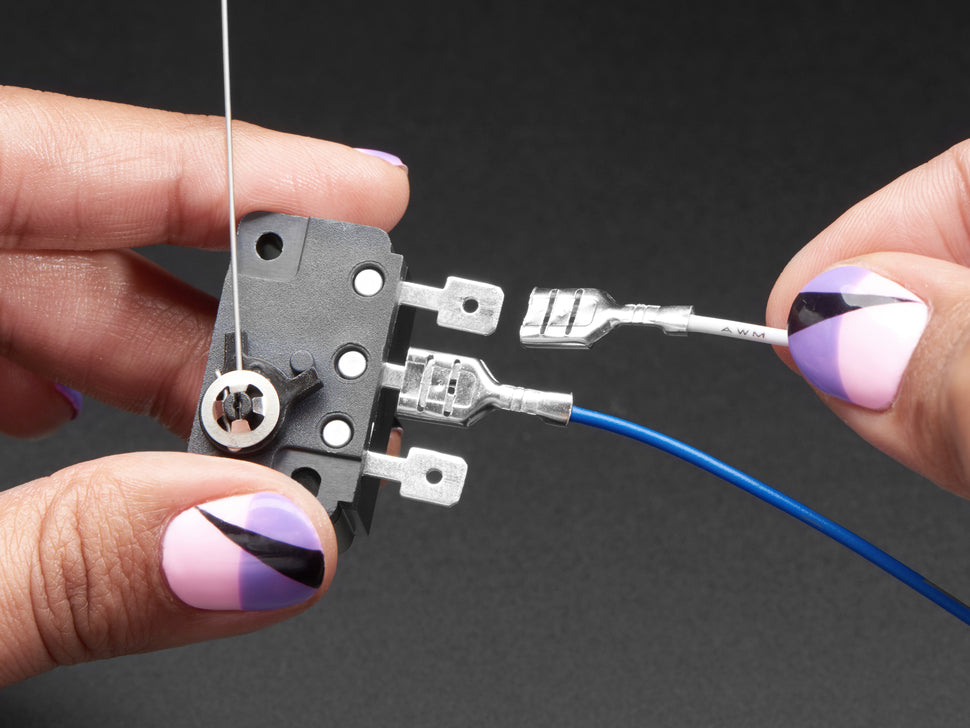

• Micro Switch with Wire

Note: These are not compatible with smaller LED and mini arcade buttons. For those, consider the 0.11" or 0.187" quick-connect wire pairs.

Technical Details

• Wire length (including connectors): 215mm / ~8.5"
• Wire gauge: 22AWG
