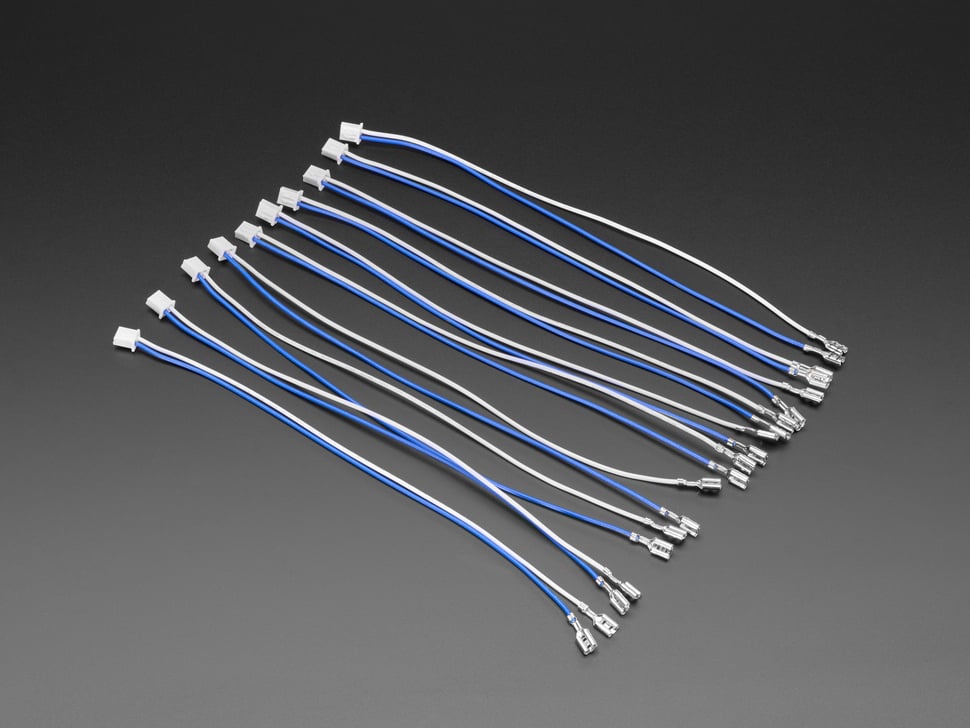

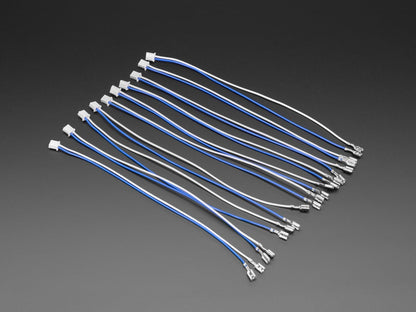

Arcade Button and Switch Quick-Connect Wires - 0.187" (10-pack)

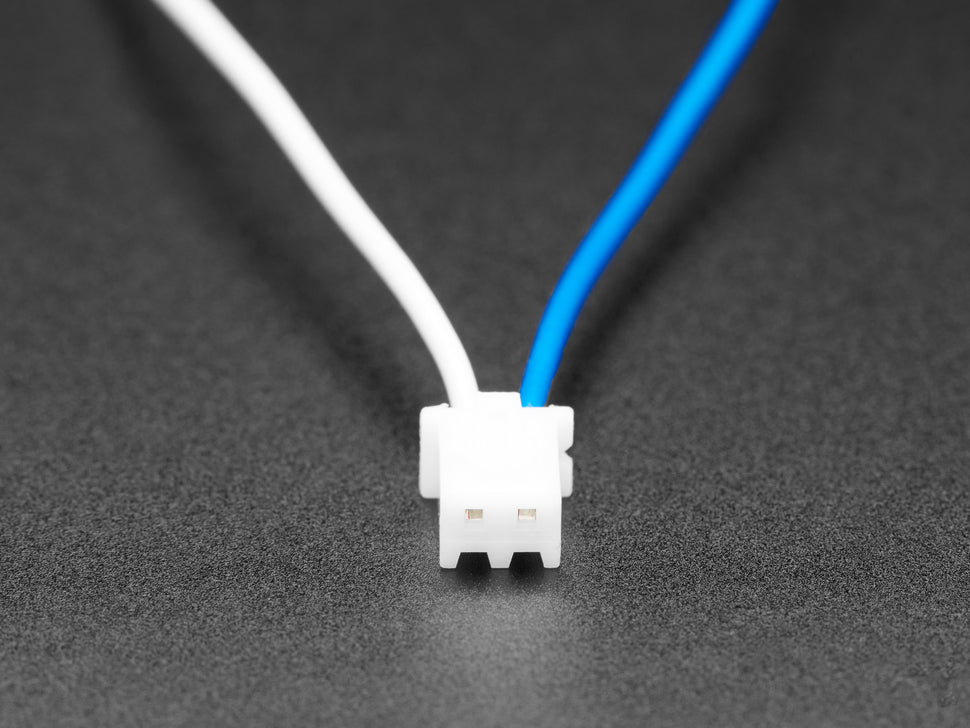

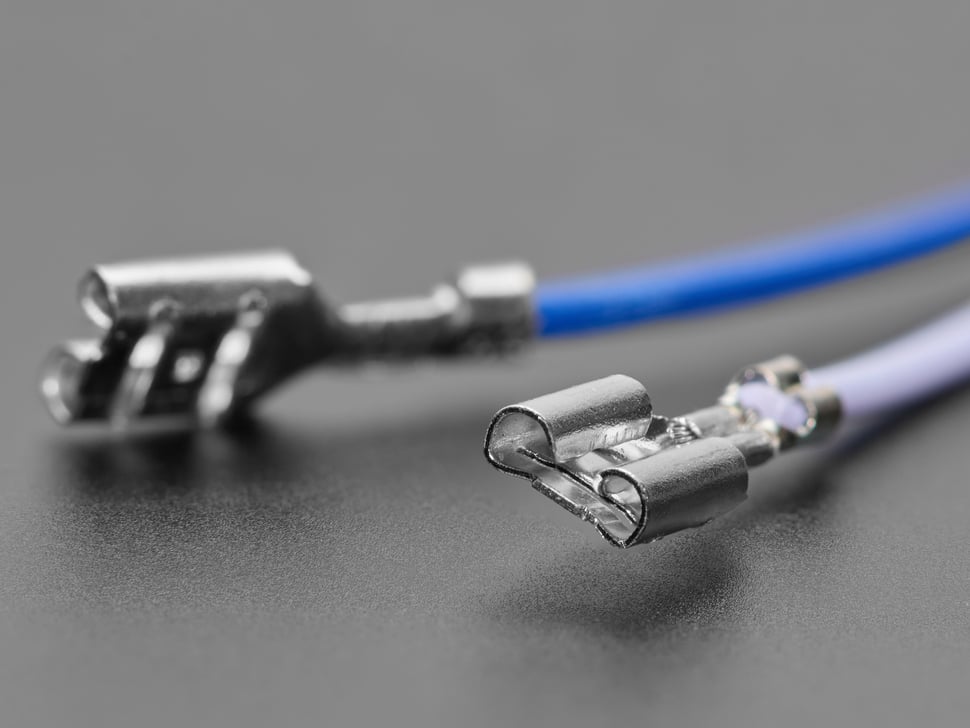

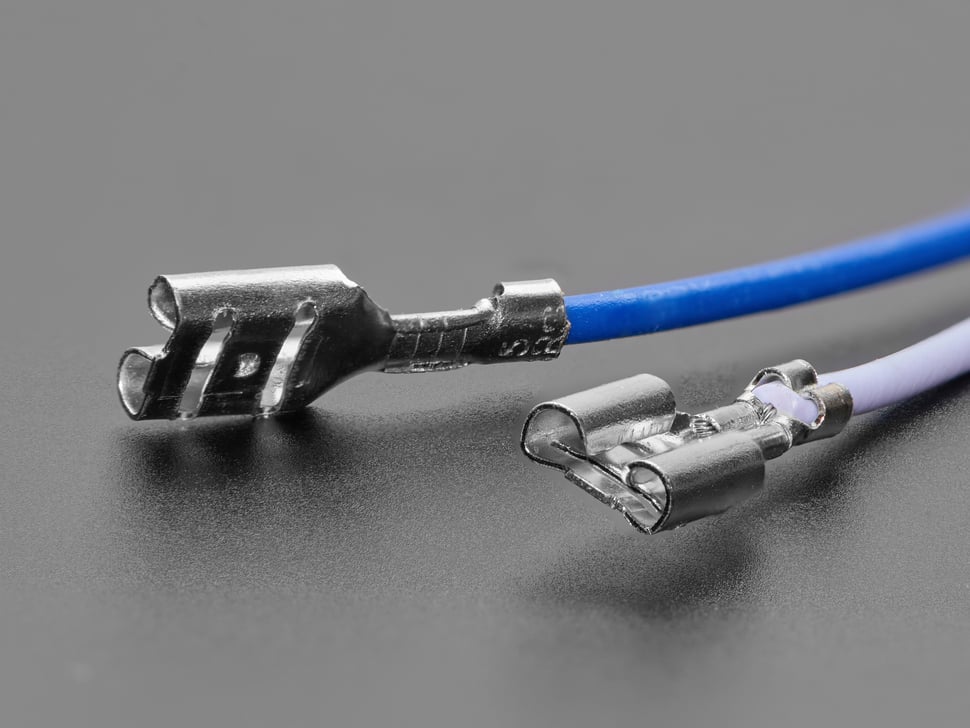

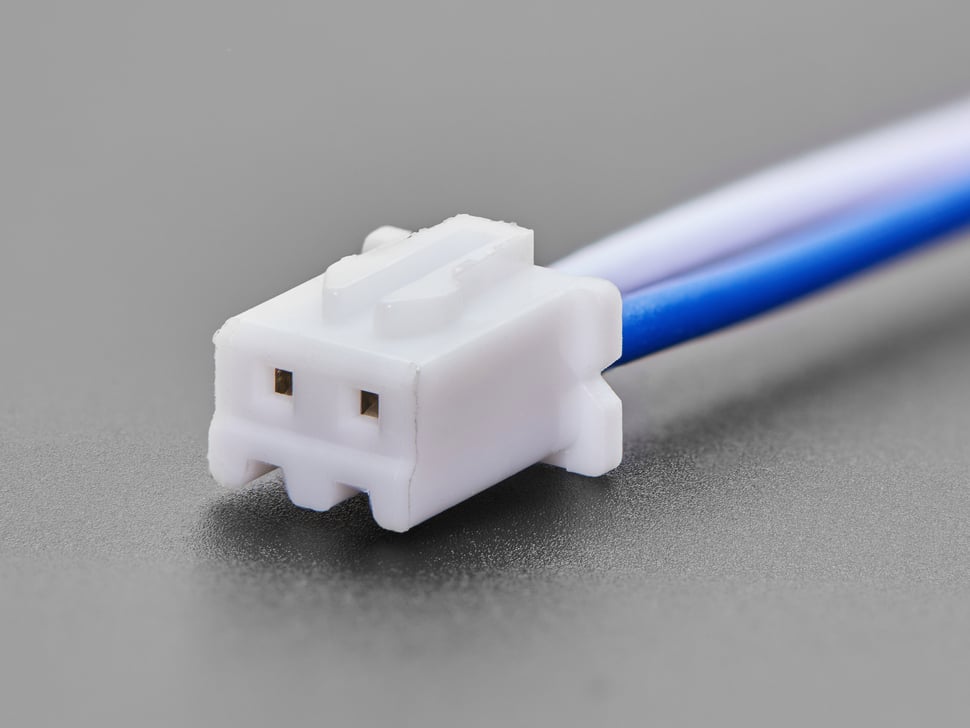

Quick connector wire sets make wiring up arcade-style or metal buttons quick and easy. Each wire comes as a pair with two 0.187" quick-connects pre-crimped. The wires are terminated together in a JST 2.5mm 2-pin connector compatible with 0.1" headers, making it breadboard friendly or suitable for sticking two wires into the end. The connector can be cut off if not needed.

These wires work well with:

• Massive Arcade Buttons (switch contacts only)
• Large Arcade Buttons (switch contacts only)

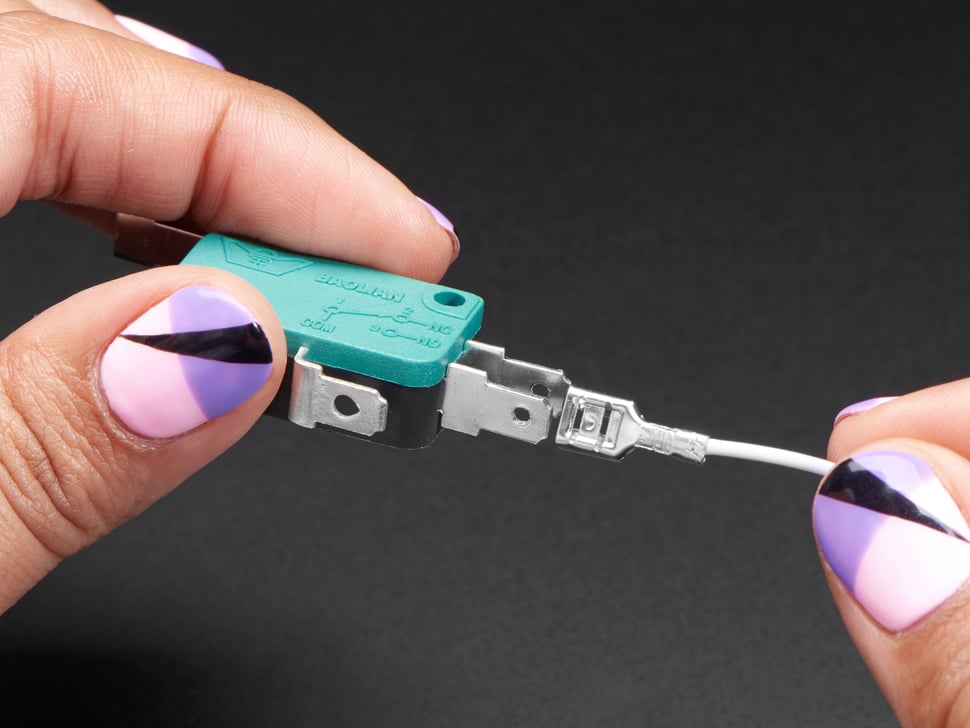

• Micro Switches (except #820 with the long wire)

Note: They are not compatible with LED contacts on Massive and Large Arcade buttons. For those, use the 0.25" Arcade/Button Quick-Connect Wire Pairs. 0.11" Quick-Connect Wire Pairs are also available.

These connectors may sometimes be a little loose on some switches and can be crimped tighter with pliers for a better grip.

Technical Details:

• Wire length (including connectors): 212mm / ~8.3"
• Wire gauge: 26AWG
