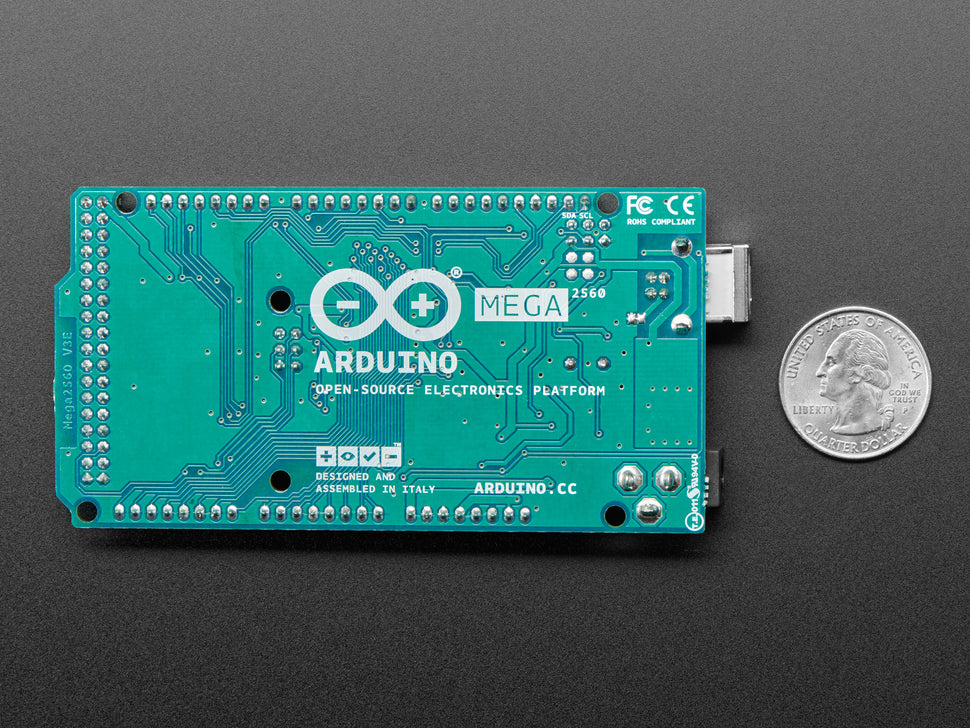

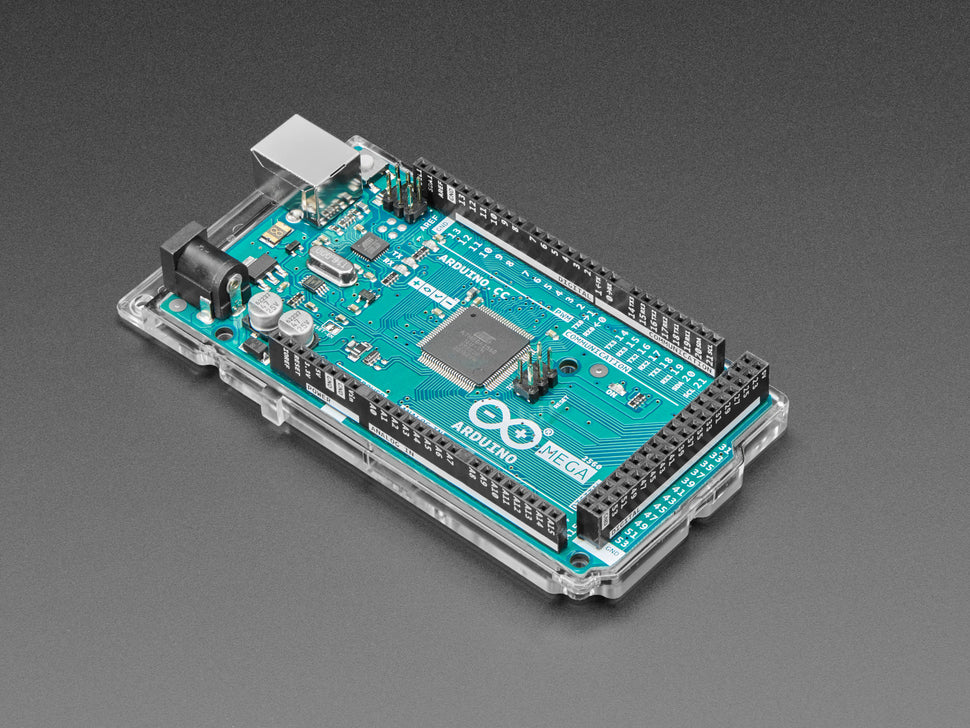

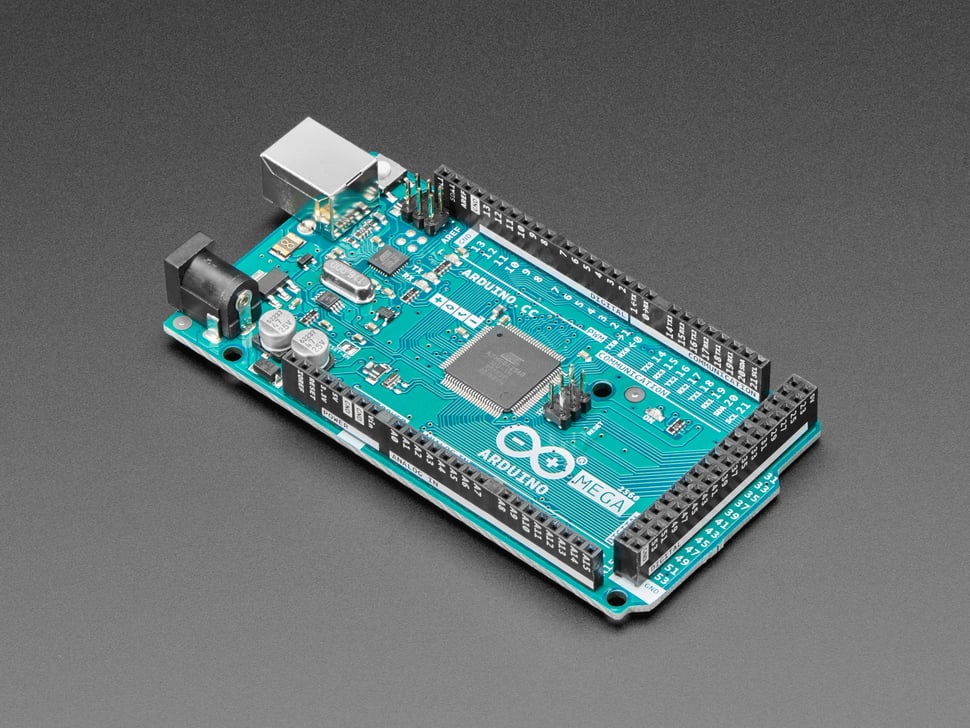

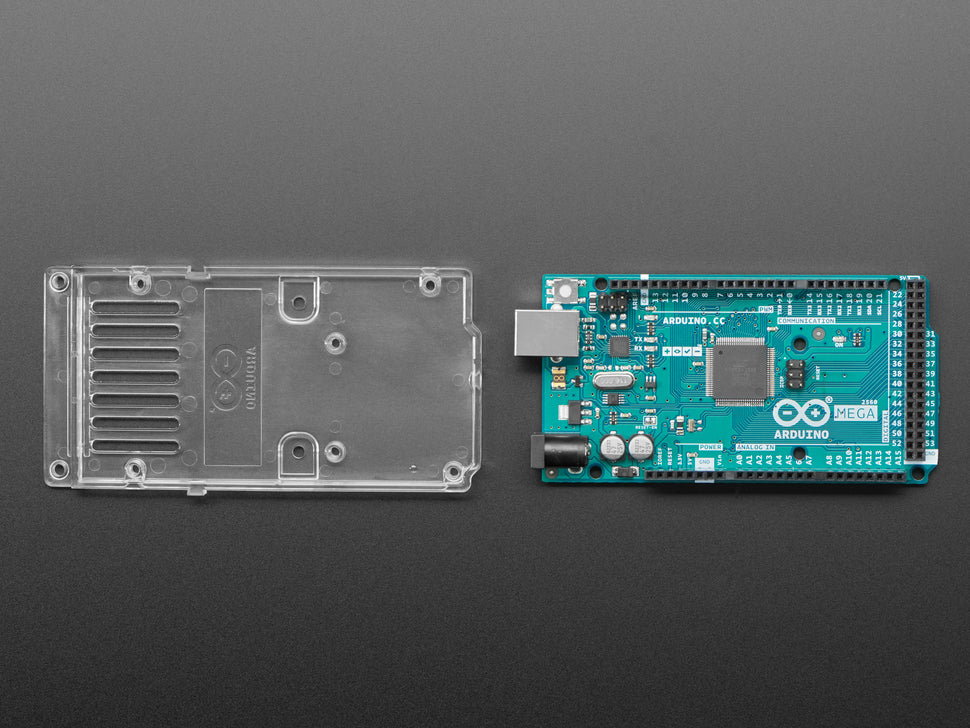

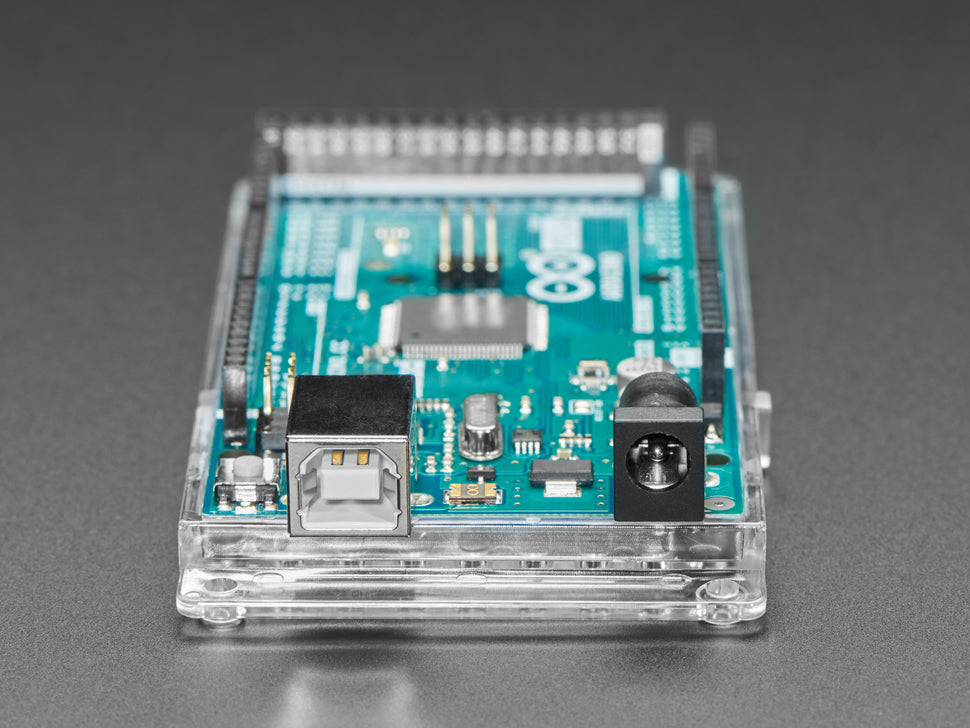

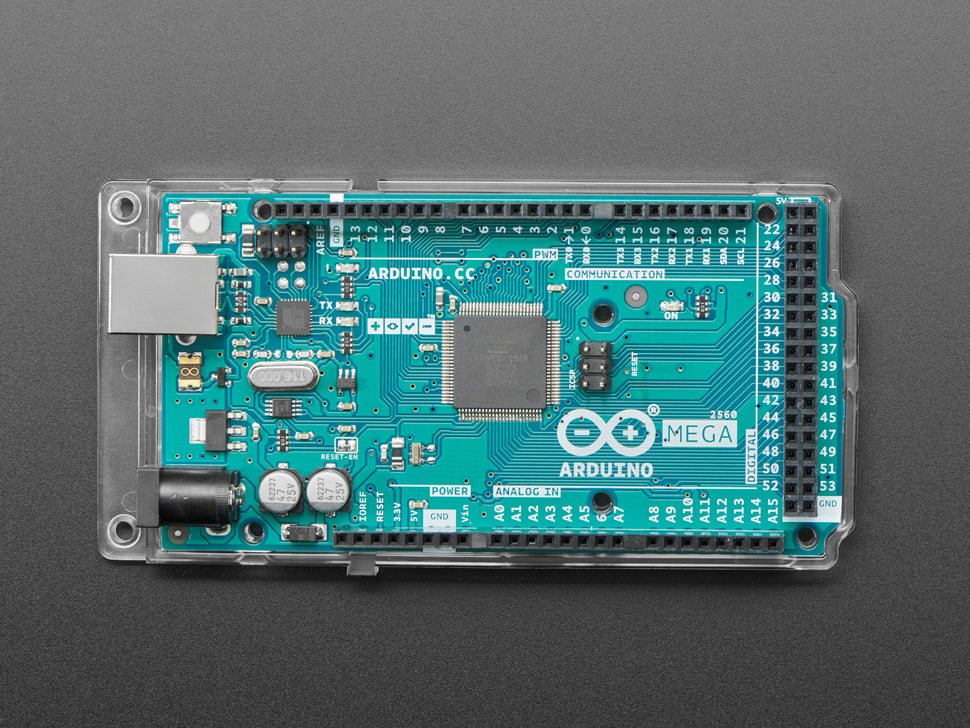

Arduino Mega 2560 R3 (Atmega2560 - assembled)

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It features 54 digital input/output pins (15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, USB connection, power jack, ICSP header, and a reset button.

This board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. It is compatible with most shields designed for the Arduino Uno and the former Duemilanove or Diecimila boards.

Note: This product is discontinued. You can consider the Adafruit Grand Central M4 Express featuring the SAMD51 as an alternative.

• Microcontroller: ATmega2560
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Input Voltage (limit): 6-20V
• Digital I/O Pins: 54 (15 provide PWM output)
• Analog Input Pins: 16
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 256 KB (8 KB used by bootloader)
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock Speed: 16 MHz
• LED_BUILTIN: 13
• Length: 101.52 mm
• Width: 53.3 mm
• Weight: 37 g
