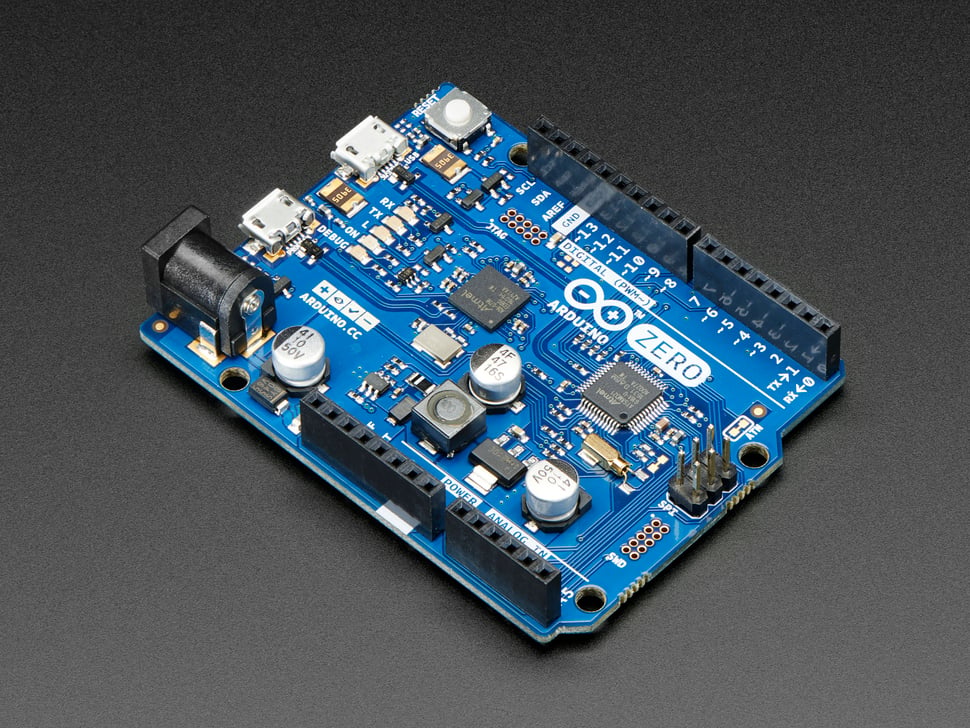

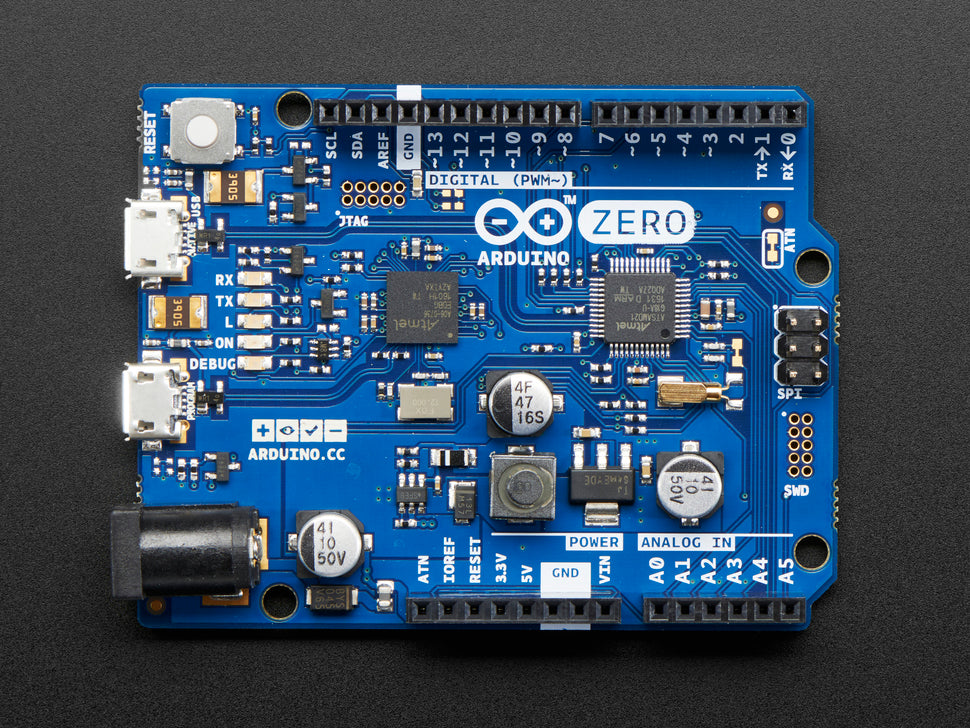

Arduino Zero - 32 bit Cortex M0 Arduino with Debug Interface

The Arduino Zero is a powerful 32-bit extension of the Arduino UNO platform, designed for creative individuals to develop imaginative IoT devices, wearable technologies, advanced automation, robotics, and more. It is powered by Atmel’s SAMD21 MCU, featuring a 32-bit ARM Cortex® M0+ core, providing increased performance and flexibility for a wide range of projects.

This board includes Atmel’s Embedded Debugger (EDBG) which offers a full debug interface without additional hardware, simplifying the debugging process. The onboard EDBG also supports a virtual COM port for device programming and maintains traditional Arduino bootloader functionality.

Note: This board is now discontinued. Adafruit suggests the Adafruit METRO M0 Express (Product ID 3505) as an alternative.

Key Features:

• Microcontroller: ATSAMD21G18, 32-Bit ARM Cortex M0+
• Operating Voltage: 3.3V
• 20 Digital I/O Pins with PWM support on all except pins 2 and 7
• 2 UART interfaces (Native and Programming)
• 6 Analog Input Pins with 12-bit ADC channels
• 1 Analog Output Pin with 10-bit DAC
• External Interrupts on all pins except pin 4
• DC Current per I/O Pin: 7 mA
• Flash Memory: 256 KB, SRAM: 32 KB, EEPROM: None
• Clock Speed: 48 MHz
• Dimensions: 70.3mm x 53.5mm x 12.7mm (2.76" x 2.1" x 0.5")
• Weight: 22.6 grams

For more information, visit the official Arduino Zero page.
