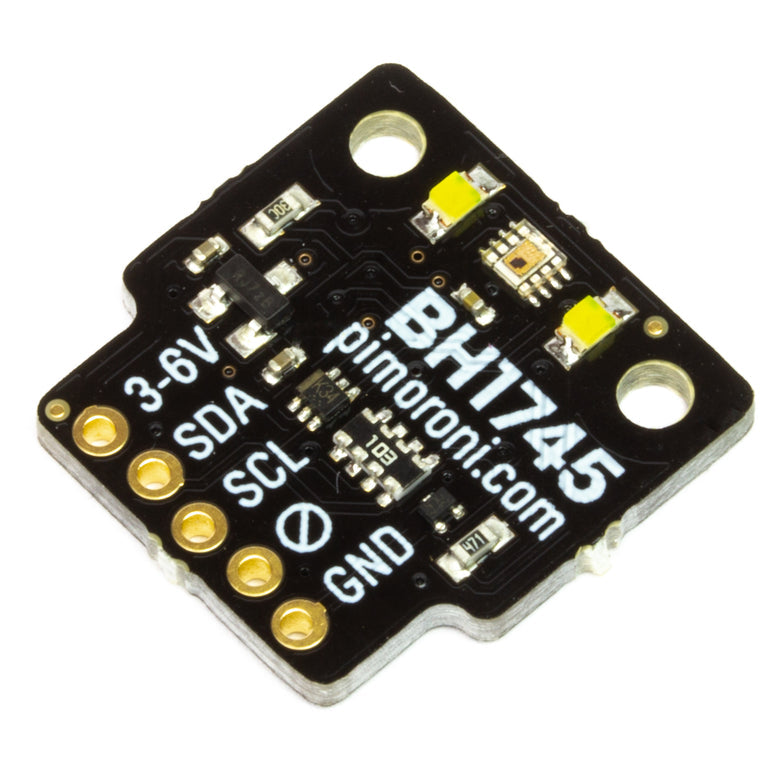

BH1745 Luminance and Colour Sensor Breakout

The BH1745 Luminance and Colour Sensor Breakout is a sophisticated and accurate sensor compatible with Raspberry Pi and Arduino. It detects RGB colour and light level with features like 50/60Hz light noise rejection, a wide detection range, and two illumination LEDs.

This sensor is commonly used in phones, tablets, and laptops to detect ambient light temperature and adjust display colour temperature accordingly.

It features an I2C interface and can operate on both 3.3V or 5V. It can be soldered directly onto the Raspberry Pi GPIO using a right-angle header or used with the Pimoroni Breakout Garden for easy plug-in and play functionality.

Features:

• BH1745 luminance and colour sensor with datasheet available
• Two white illumination LEDs
• Measures red, green, blue, and luminance
• Detection range from 0.005 to 40,000 lux
• 50/60Hz light noise rejection
• IR cut filter included
• 16-bit data output
• 3.3V or 5V compatible
• I2C interface with selectable address (0x38 or 0x39)
• Reverse polarity protection
• Raspberry Pi compatible pinout
• Compatible with Raspberry Pi and Raspberry Pi Pico via Python, C++, and MicroPython libraries
• Qw/ST (Qwiic/STEMMA QT) connector on units made after August 2023 for easy connection

Kit Includes:

• BH1745 Luminance and Colour Sensor Breakout
• 1x5 male header
• 1x5 female right-angle header

Specifications:

• Dimensions: 19x19x3mm
• I2C Addresses: 0x38 (default) or 0x39 (by cutting ADDR trace)

Software libraries are available for Python on Raspberry Pi and for C++/MicroPython on Raspberry Pi Pico.
