Configurable Spring Terminal Blocks - 3 Pin 0.1" Pitch Right Angle - Pack of 5

Spring terminal blocks simplify wiring and enhance project durability by allowing easy connection of 20 to 26 AWG solid or stranded-core wires without soldering wires directly to perf boards. These terminal blocks feature a 0.1" pitch and are right angle style, letting wires enter from the side.

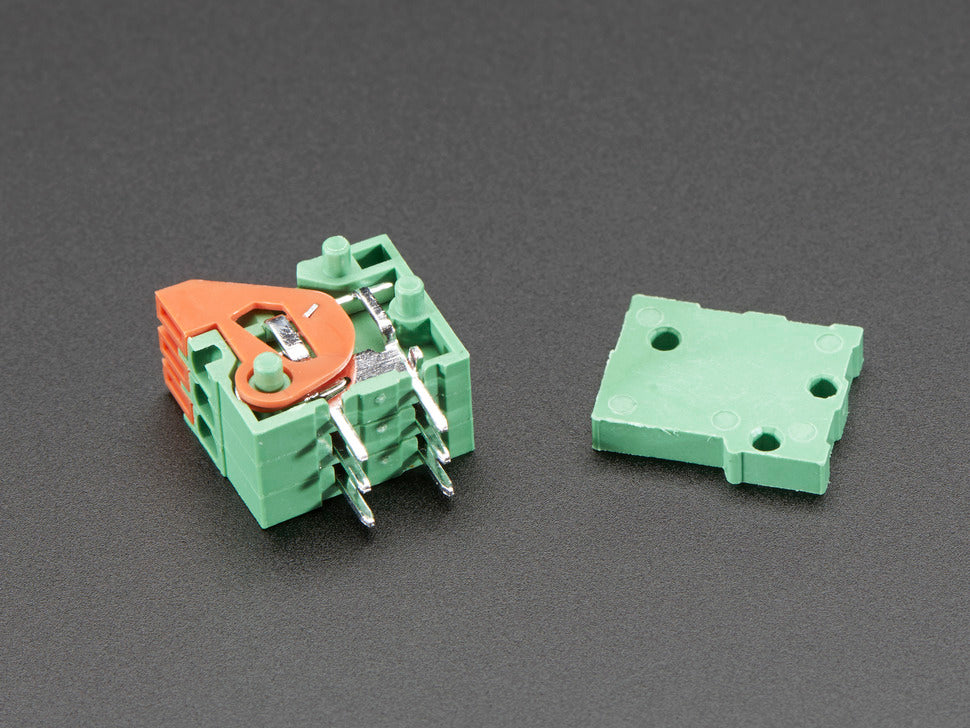

Each pack contains 5 pieces of 3-pin terminal blocks. They are re-configurable by removing the end caps, allowing you to snap together any number of blocks and reattach the end cap to form different pin configurations such as 5 x 3 pin, 1 x 15 pin, or 3 x 5 pin contacts. Each terminal block is electrically isolated from the next and includes two solder pins per contact for strong mechanical and electrical connection.

These terminal blocks are ideal companions for Adafruit PermaProto boards.

• Right angle, 3-pin, 0.1" pitch terminal blocks
• Supports 20 to 26 AWG solid or stranded-core wires
• Re-configurable snap-together design
• Each block electrically isolated
• Two solder pins per contact for mechanical strength

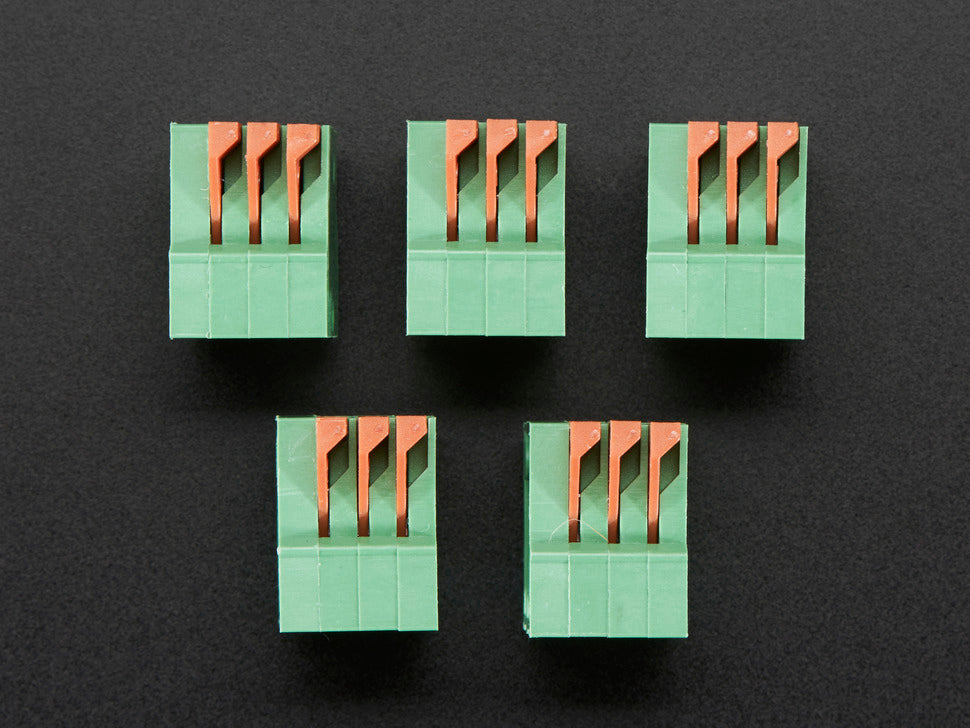

• Pack includes 5 blocks
• Weight: 1.73 grams each

Datasheet
