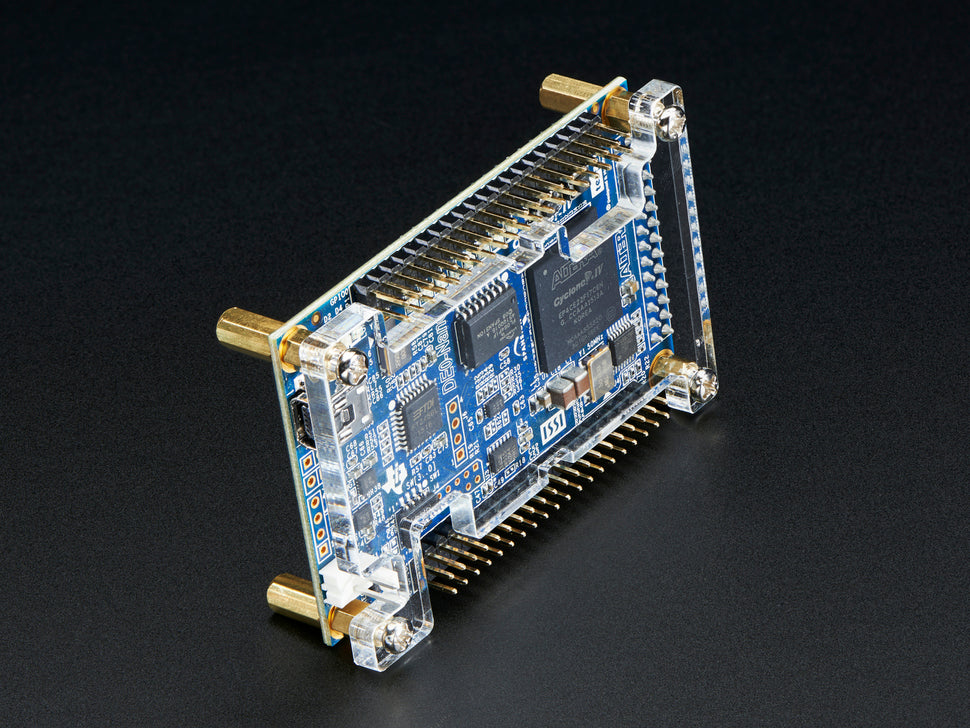

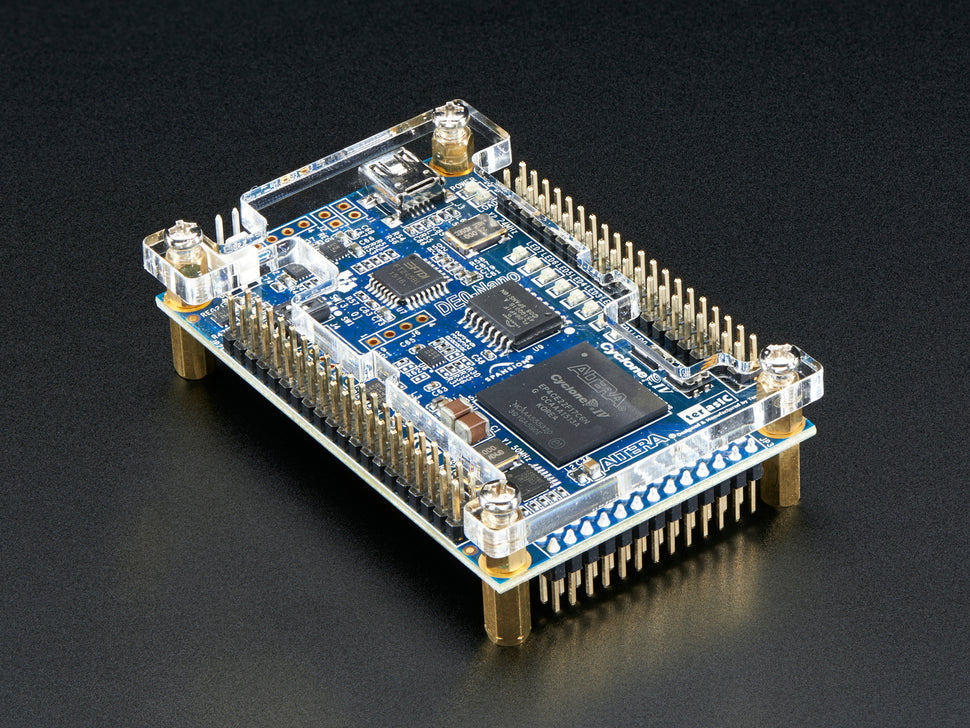

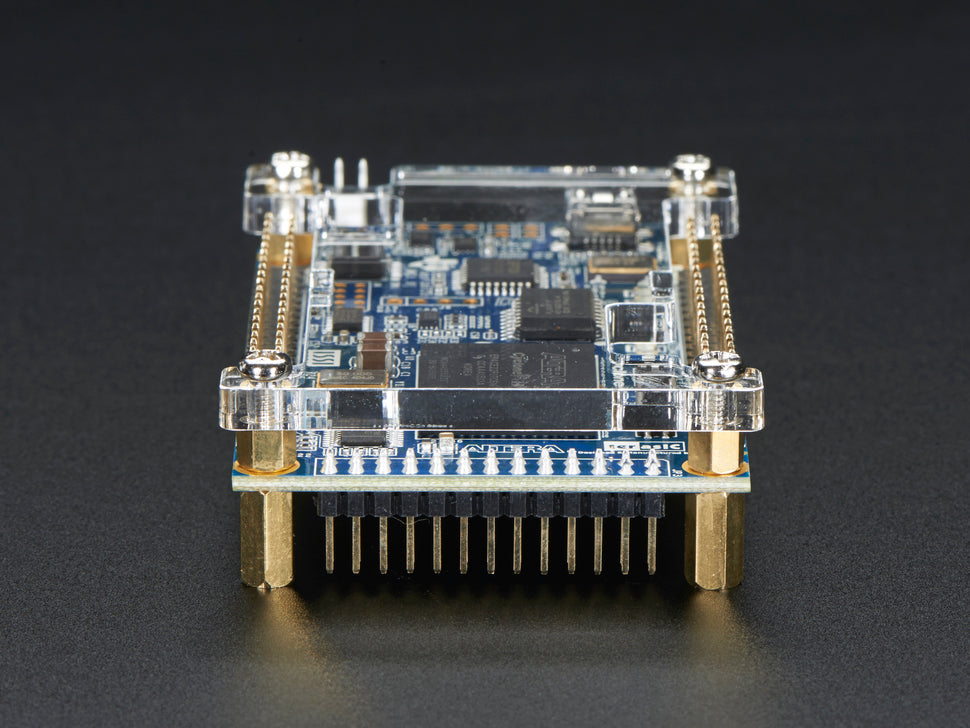

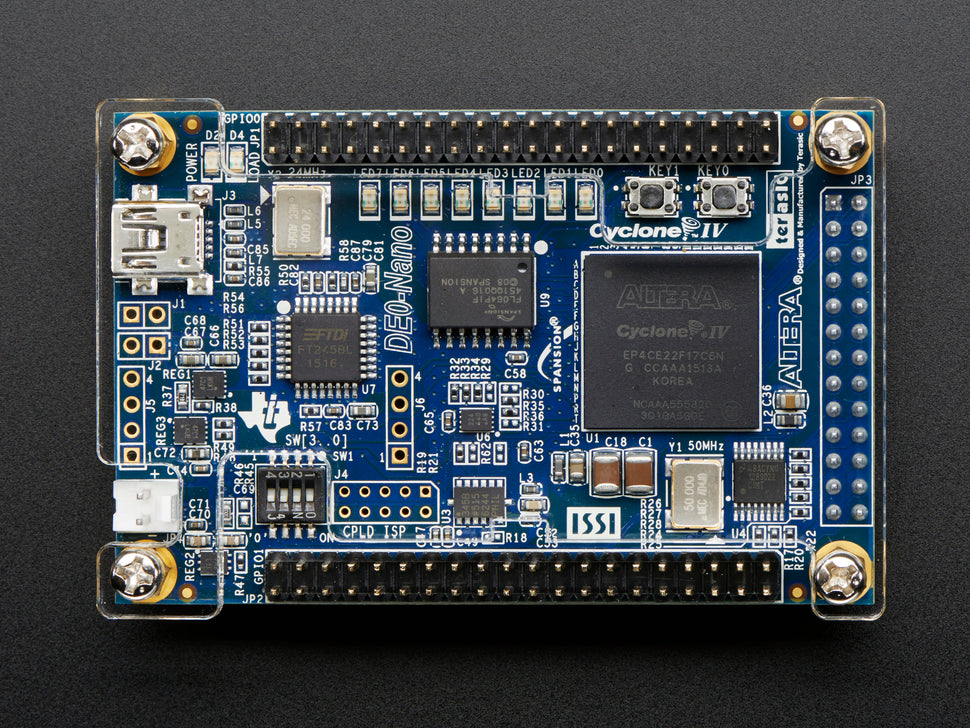

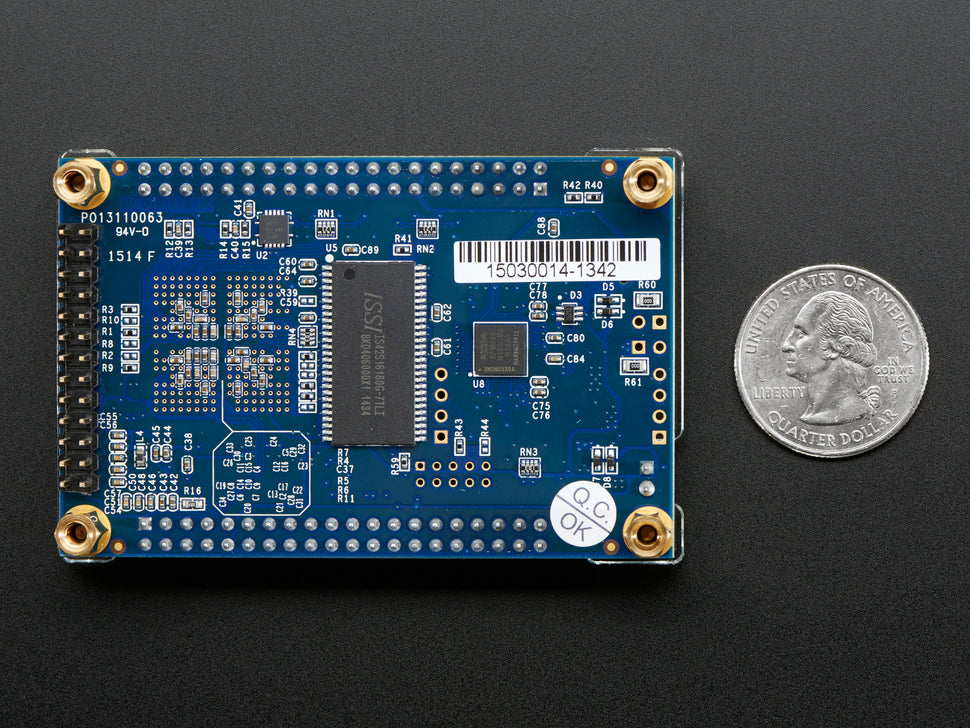

DE0-Nano Altera Cyclone IV FPGA Starter Board

The DE0-Nano is a compact Altera Cyclone IV FPGA starter board designed for high-speed, parallel processing projects. It features a powerful FPGA chip with ample logic elements, embedded memory, and multipliers, perfect for applications such as real-time video, audio, and emulation.

This development board includes numerous integrated peripherals and interfaces, making it a versatile choice for FPGA learners and developers.

• Altera Cyclone IV FPGA (EP4CE22F17C6N) with 22,320 Logic Elements and 594 Kbits embedded memory
• 66 Embedded 18 x 18 multipliers and 4 General-purpose PLLs
• 153 Maximum FPGA I/O pins for extensive connectivity
• 50 MHz clock oscillator
• 8-channel 12-bit Analog to Digital Converter (NS ADC128S022)
• 32 MB SDRAM memory

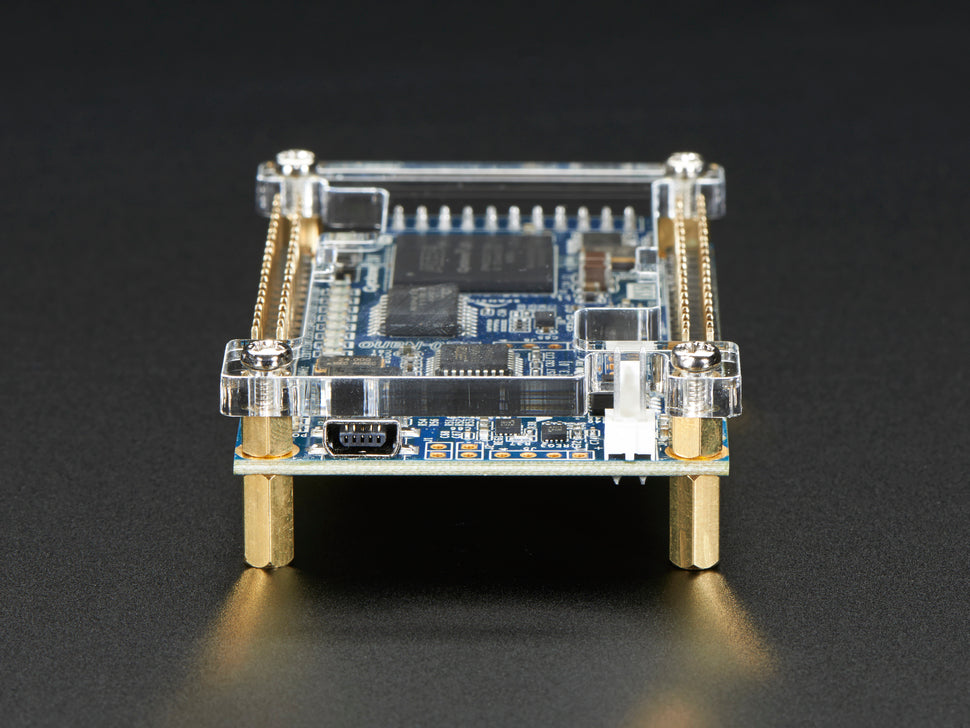

• On-board USB Blaster programming interface and USB mini-AB port
• 2Kb I2C EEPROM
• 4 DIP switches and 8 green LEDs for user input/output
• ADXL345 3-axis accelerometer sensor
• Two 40-pin IDC-compatible headers with 72 general-purpose I/O pins
• One 26-pin header with 16 digital I/O pins and 8 analog input pins for sensor connection

The board is powered and programmed via USB and suitable for use with Windows and Linux platforms. Comprehensive online resources and training curriculums are available to help users get started with FPGA development.

Please note: This product is no longer stocked. Consider the TinyFPGA BX - ICE40 FPGA Development Board with USB as an alternative.
