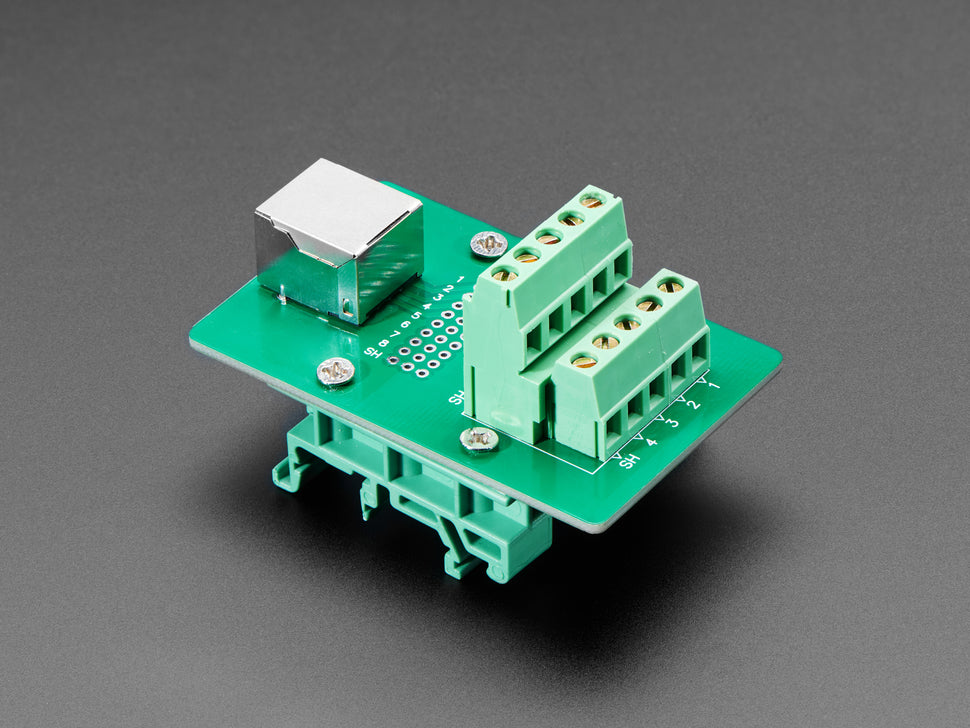

DIN Rail RJ-45 To Terminal Block Adapter - Right Angle Jack

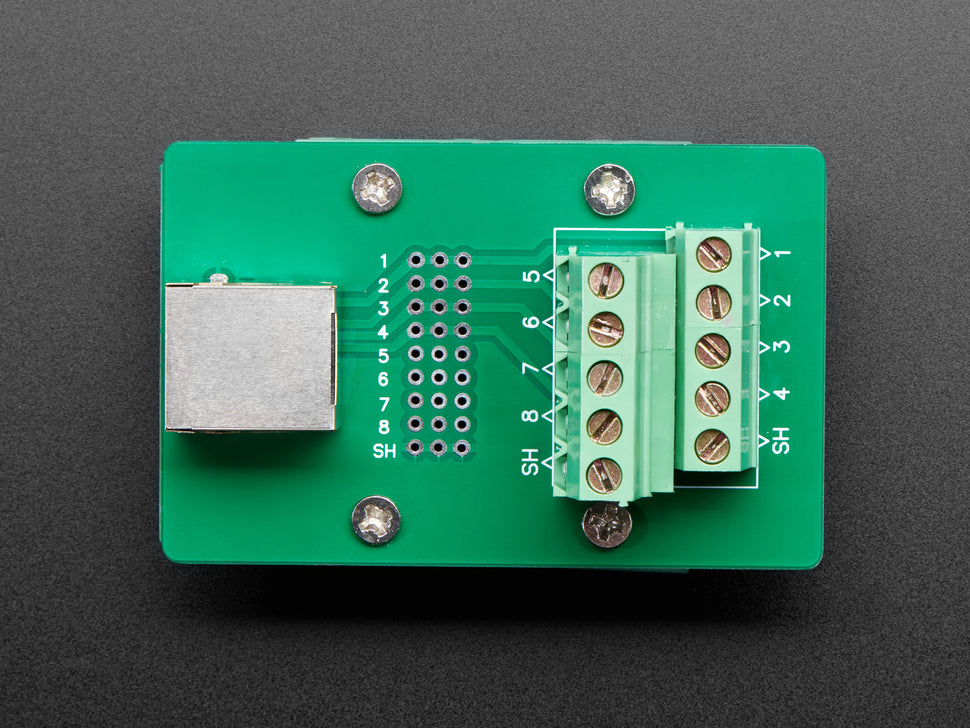

This adapter plate is perfect for makers and designers who use DIN railing in their builds. The adapter allows connection of an RJ45 (Ethernet) cable to a DIN rail-mountable PCB. All 8 wires are broken out into terminal blocks, enabling easy connection to sensors, displays, microcontrollers, and more.

No soldering required! Simply unscrew the terminal blocks and insert stranded or solid-core wire.

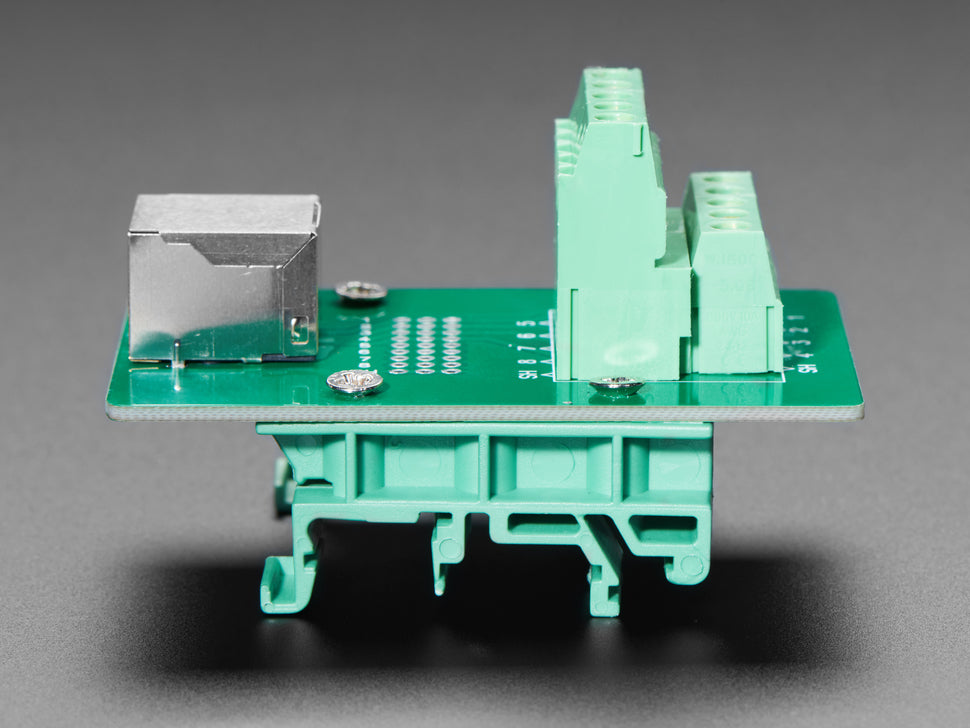

This adapter features a Right Angle RJ45 Ethernet jack and terminal blocks on the opposite end.

Note: These adapters are not recommended for actual Ethernet traffic in the long term, as the twisted pairs are untwisted on the PCB, but are ideal for basic power and data distribution.

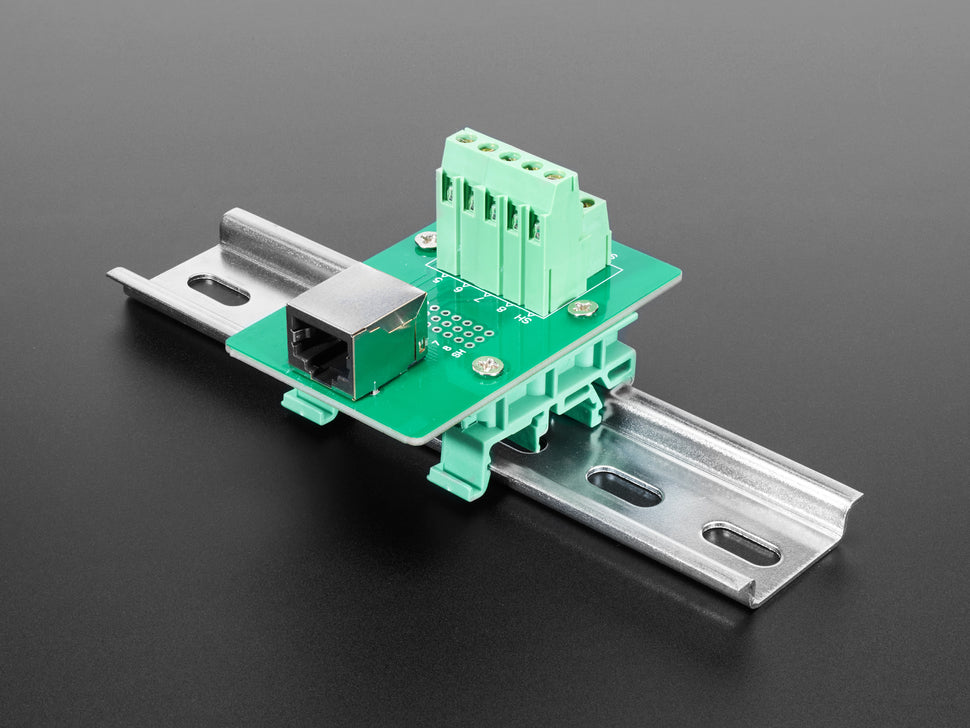

• DIN rail mountable RJ-45 to terminal block adapter

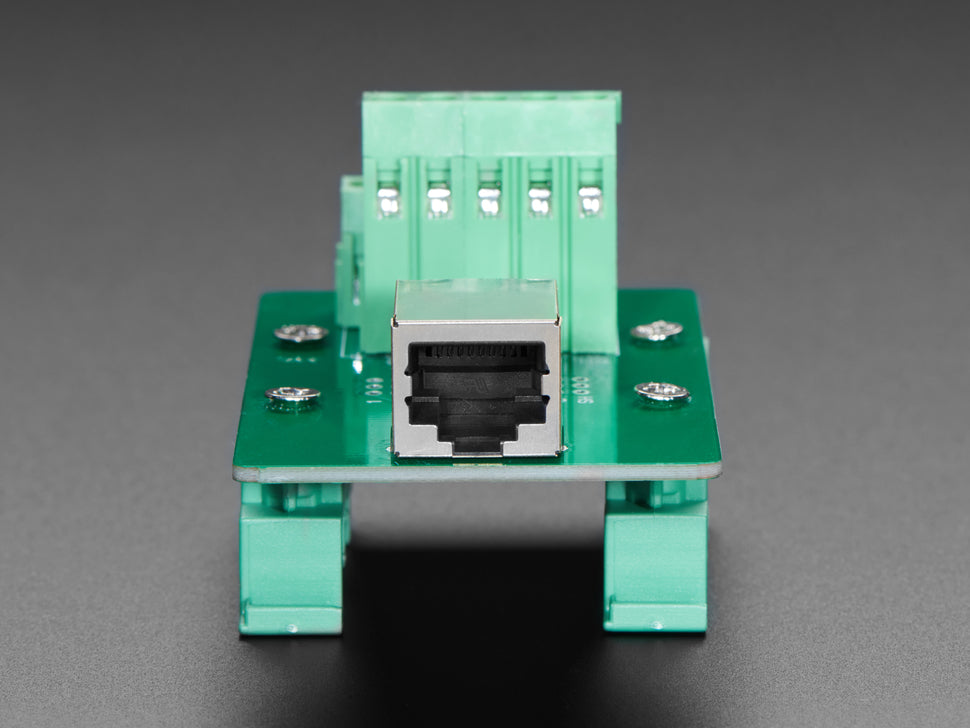

• Right Angle RJ45 Ethernet jack

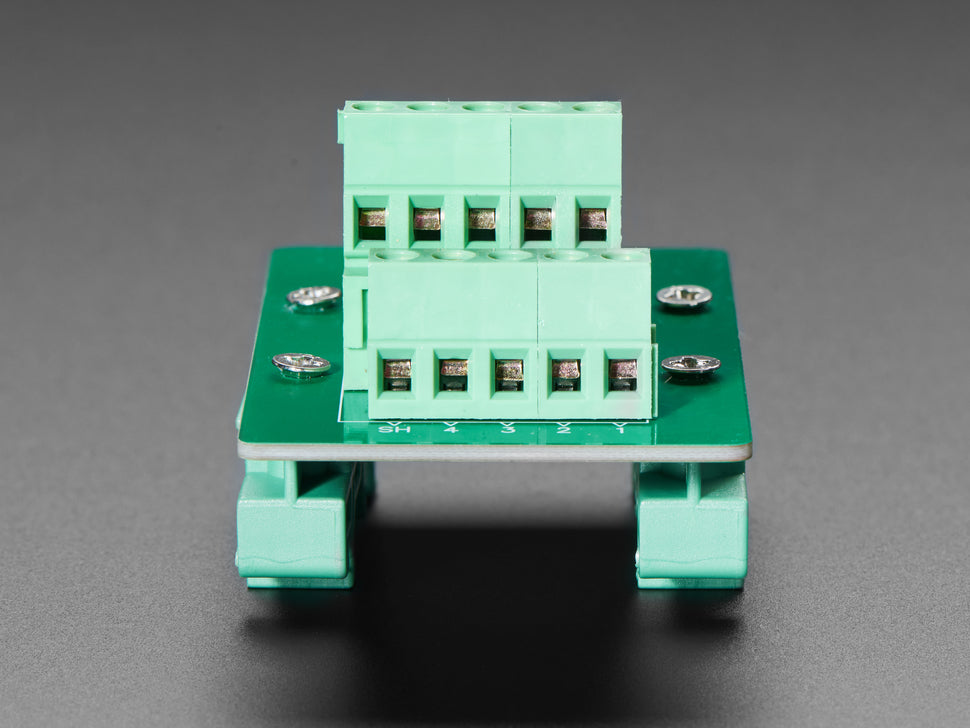

• Terminal blocks for easy wiring
• No soldering required
• Dimensions: 70.0mm x 45.0mm x 30.5mm (2.8" x 1.8" x 1.2")
• Weight: 30.4g (1.1oz)
